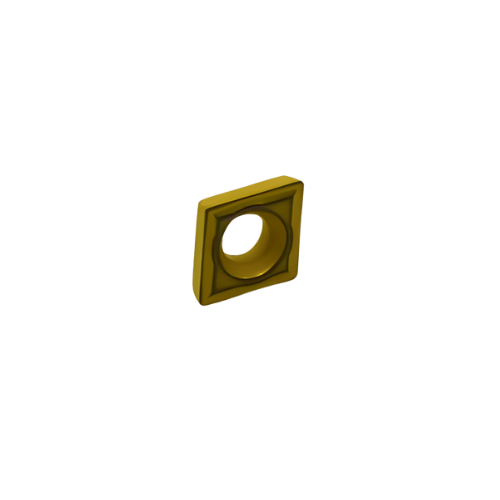

10 pc Kyocera CPMH080204 CA025P – Turning Insert (Finishing, Sharp Edge Type)

Kyocera CPMH080204 CA025P – Turning Insert (10 pcs Finishing, Sharp Edge Type) The Kyocera CPMH080204 CA025P is a precision-ground positive-type carbide turning insert designed for finishing applications in steels and...
$115.00
$0.00
$115.00
(-0%)
SKU: CPMH080204CA025P-10
Availability: In Stock
Subtotal: $115.00
10 pc Kyocera CPMH080204 CA025P – Turning Insert (Finishing, Sharp Edge Type)

10 pc Kyocera CPMH080204 CA025P – Turning Insert (Finishing, Sharp Edge Type)

$0.00 $115.00

10 pc Kyocera CPMH080204 CA025P – Turning Insert (Finishing, Sharp Edge Type)

$0.00 $115.00

Kyocera CPMH080204 CA025P – Turning Insert (10 pcs Finishing, Sharp Edge Type)

The Kyocera CPMH080204 CA025P is a precision-ground positive-type carbide turning insert designed for finishing applications in steels and stainless steels. It features a sharp-edged geometry that provides low cutting resistance and superior surface finish in high-precision turning. Manufactured using Kyocera’s advanced CA025P CVD-coated carbide grade, this insert offers excellent wear resistance, edge sharpness, and thermal stability, making it ideal for achieving tight tolerances in fine finishing operations.

Key Features & Benefits

  • CA025P Grade: CVD-coated carbide optimized for finishing of steels with exceptional wear resistance and toughness balance.
  • Sharp Cutting Edge: Provides precise chip formation and smooth cutting action for superior surface quality.
  • Low Cutting Resistance: Ideal for light finishing and semi-finishing under stable conditions.
  • Stable Edge Integrity: Maintains cutting performance during continuous machining at moderate speeds.
  • High Dimensional Accuracy: Perfect for tight-tolerance turning in precision steel components.

Technical Specifications

  • Designation / Order Code: CPMH080204 CA025P
  • Insert Shape: 80° Rhombic (C Type)
  • Insert Type: Positive Turning Insert
  • Material: CVD-Coated Carbide
  • Grade: CA025P – Finishing Grade
  • Edge Type: Sharp Ground Edge for Precision Machining
  • Inscribed Circle (IC): 7.94 mm
  • Thickness (S): 2.38 mm
  • Hole Diameter (D1): 3.5 mm
  • Corner Radius (RE): 0.4 mm
  • Relief Angle:
  • Cutting Depth (ap): 0.05 – 1.0 mm
  • Feed Rate (f): 0.02 – 0.20 mm/rev
  • Tolerance (Class G): ±0.025 mm (thickness) / ±0.13 mm (corner height)

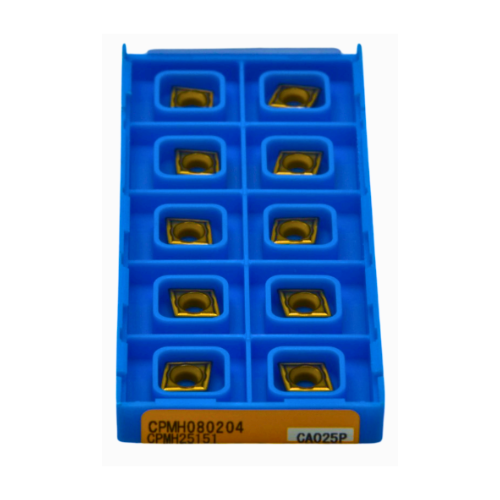

  • Pack Quantity: 10 pcs

About Kyocera CA025P:
Kyocera’s CA025P grade is a finely balanced CVD-coated carbide engineered for high-precision steel turning. It offers exceptional wear and oxidation resistance while maintaining edge sharpness, enabling stable finishing operations and excellent surface quality in high-speed, continuous cutting conditions.
