10 pc Kyocera DCMT070208HQ CA525 – Turning Insert (Finishing to Medium, HQ Chipbreaker)

Kyocera DCMT070208HQ CA525 – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker) The Kyocera DCMT070208HQ CA525 is a precision-engineered positive-type rhombic turning insert designed for finishing to medium cutting...
$138.00
$0.00
$138.00
(-0%)
SKU: DCMT070208HQCA525-10
Availability: In Stock
Subtotal: $138.00
10 pc Kyocera DCMT070208HQ CA525 – Turning Insert (Finishing to Medium, HQ Chipbreaker)

10 pc Kyocera DCMT070208HQ CA525 – Turning Insert (Finishing to Medium, HQ Chipbreaker)

$0.00 $138.00

10 pc Kyocera DCMT070208HQ CA525 – Turning Insert (Finishing to Medium, HQ Chipbreaker)

$0.00 $138.00

Kyocera DCMT070208HQ CA525 – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)

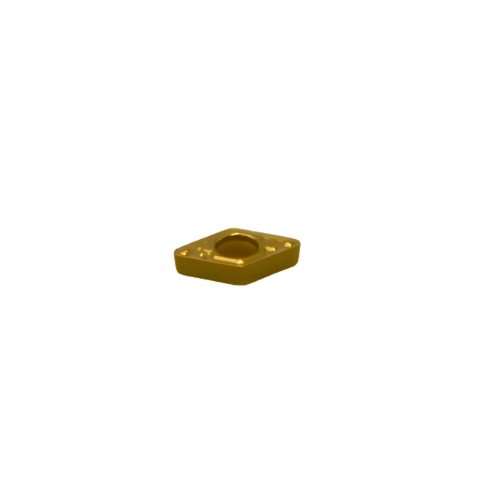

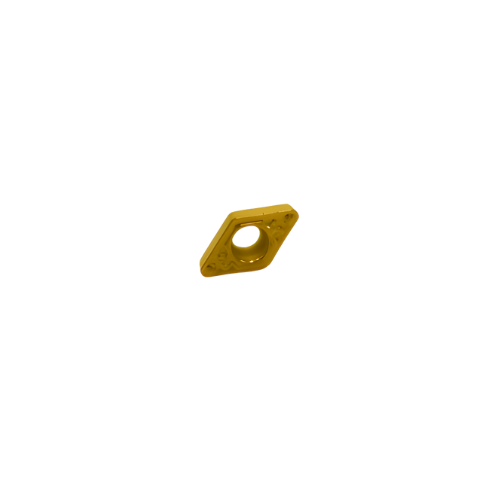

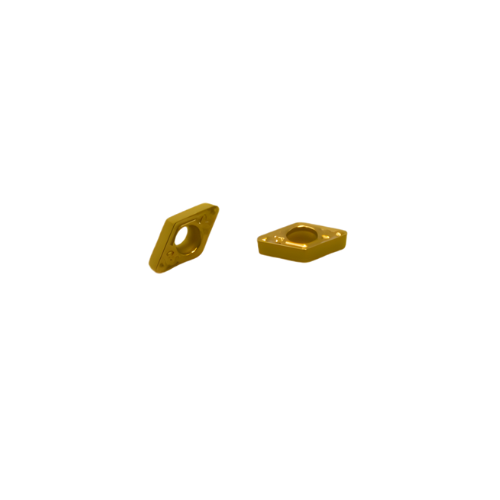

The Kyocera DCMT070208HQ CA525 is a precision-engineered positive-type rhombic turning insert designed for finishing to medium cutting operations on steels. It incorporates the advanced HQ chipbreaker, which ensures smooth chip control, low cutting resistance, and stable performance under a variety of machining conditions. Combined with Kyocera’s durable CA525 CVD-coated carbide grade, this insert provides excellent wear resistance, fracture toughness, and consistent surface finish quality, even in light interrupted cuts.

Key Features & Benefits

  • CA525 Grade: CVD-coated carbide optimized for steel turning, providing an excellent balance of hardness and edge toughness.
  • HQ Chipbreaker: Finishing to medium geometry that promotes stable chip evacuation and consistent cutting action.
  • Stable Machining: Designed for smooth cutting with reduced vibration and controlled heat generation.
  • Excellent Surface Quality: Produces fine finishes while maintaining dimensional accuracy.
  • Versatile Performance: Ideal for carbon steel and alloy steel machining under both wet and dry conditions.

Technical Specifications

  • Designation / Order Code: DCMT070208HQ CA525
  • Insert Shape: 55° Rhombic (D Type)
  • Insert Type: Positive Turning Insert
  • Material: CVD-Coated Carbide
  • Grade: CA525 – Steel Machining Grade
  • Chipbreaker: HQ – Finishing to Medium Range
  • Inscribed Circle (IC): 6.35 mm
  • Thickness (S): 2.38 mm
  • Hole Diameter (D1): 2.8 mm
  • Corner Radius (RE): 0.8 mm
  • Relief Angle:

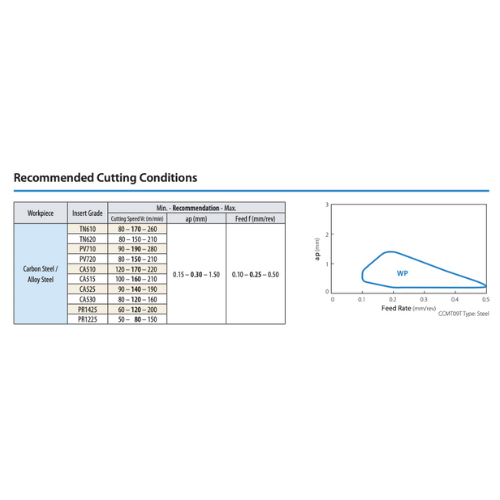

  • Cutting Depth (ap): 0.1 – 2.0 mm
  • Feed Rate (f): 0.05 – 0.25 mm/rev
  • Tolerance (Class G): ±0.025 mm (thickness) / ±0.13 mm (corner height)
  • Pack Quantity: 10 pcs

About Kyocera CA525:
Kyocera’s CA525 CVD-coated carbide grade is developed for reliable steel turning in a wide range of applications. It offers superior wear resistance and edge toughness, supported by Kyocera’s proprietary coating technology that ensures stable cutting performance, long tool life, and consistently high-quality surface finishes.
