10pc Kyocera SNMN120412 CA315 – Turning Insert (Cast Iron, CVD Coated Carbide)

Kyocera SNMN120412 CA315 – Turning Insert (10 pcs Cast Iron, CVD Coated Carbide) The Kyocera SNMN120412 CA315 is a high-performance negative-type turning insert designed for cast-iron machining applications. As part...
$244.00
$0.00
$244.00
(-0%)
SKU: SNMN120412CA315-10
Availability: In Stock
Subtotal: $244.00
10pc Kyocera SNMN120412 CA315 – Turning Insert (Cast Iron, CVD Coated Carbide)

10pc Kyocera SNMN120412 CA315 – Turning Insert (Cast Iron, CVD Coated Carbide)

$0.00 $244.00

10pc Kyocera SNMN120412 CA315 – Turning Insert (Cast Iron, CVD Coated Carbide)

$0.00 $244.00

Kyocera SNMN120412 CA315 – Turning Insert (10 pcs Cast Iron, CVD Coated Carbide)

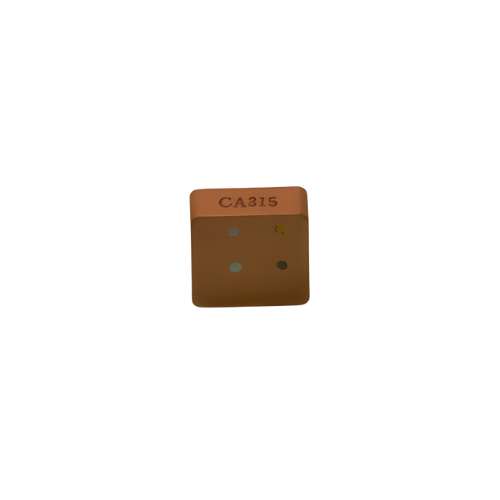

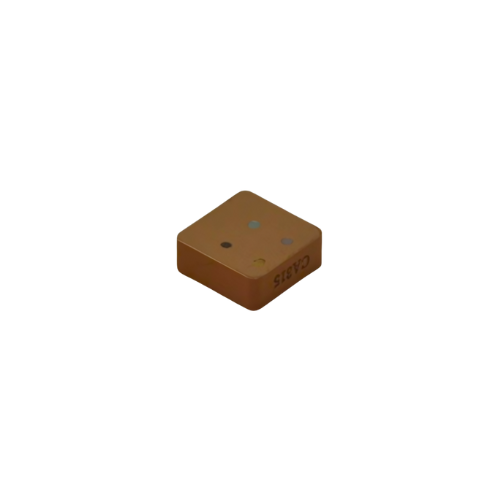

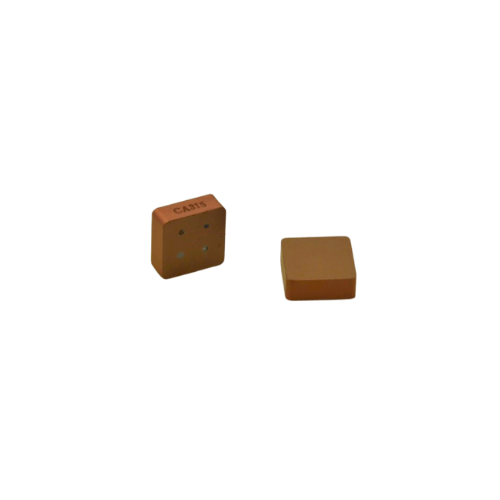

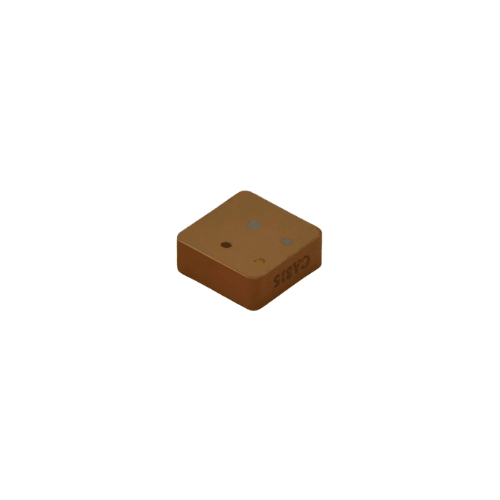

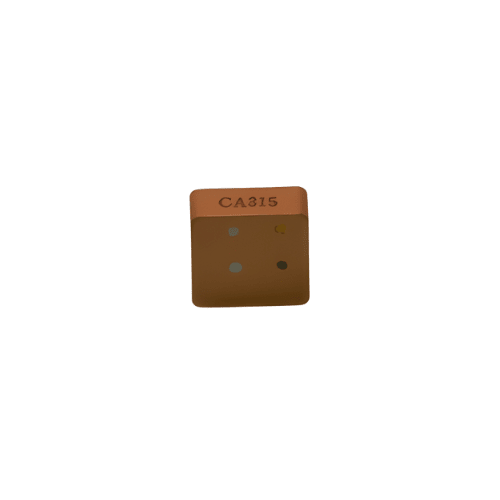

The Kyocera SNMN120412 CA315 is a high-performance negative-type turning insert designed for cast-iron machining applications. As part of Kyocera’s CA3 Series, it features an advanced multi-layer CVD coating with micro-TiCN and α-Al₂O₃ layers that provide excellent wear resistance, high thermal stability, and superior adhesion strength. This makes the CA315 grade ideal for continuous to interrupted cutting of nodular and gray cast iron, delivering stable tool life even under demanding conditions.

Key Features & Benefits

  • CA3 Series: Engineered for highly stable cast-iron machining with optimized coating adhesion and microstructure.
  • CA315 Grade: CVD-coated carbide developed specifically for nodular cast iron, offering a balance of wear resistance and toughness.
  • High Coating Adhesion: 20 % improvement in interface strength prevents delamination and enhances fracture resistance.
  • Micro TiCN + α-Al₂O₃ Coating: Provides excellent hardness and resistance to oxidation and chipping.
  • Stable Performance: Maintains long tool life and surface quality in both continuous and interrupted operations.

Technical Specifications

  • Designation / Order Code: SNMN120412 CA315
  • Insert Shape: 90° Square (Negative)
  • Insert Type: Double-Sided, No Chipbreaker
  • Material: CVD-Coated Carbide
  • Grade: CA315 – MEGACOAT CVD for Cast Iron
  • Inscribed Circle (IC): 12.70 mm
  • Thickness (S): 4.76 mm
  • Hole (D1): None (Solid Type)
  • Corner Radius (RE): 1.2 mm
  • Application Range: Continuous → Interrupted Machining of Nodular & Gray Cast Iron
  • Recommended Cutting Speed (Vc): 150 – 300 m/min
  • Feed (f): 0.15 – 0.35 mm/rev
  • Depth of Cut (ap): 0.5 – 2.0 mm
  • Coolant: Wet preferred for improved chip evacuation and edge life

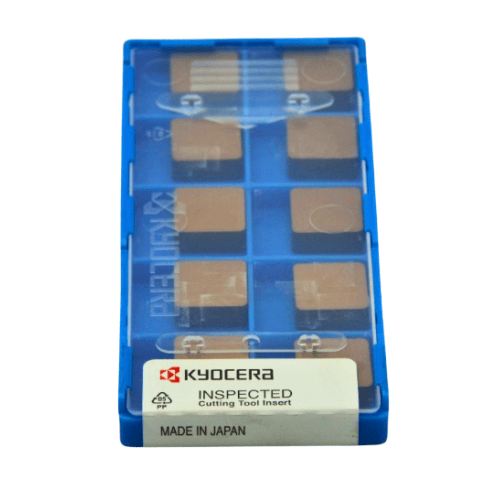

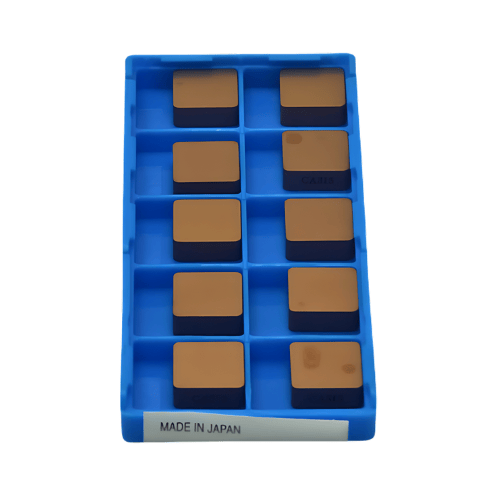

  • Pack Quantity: 10 pcs

About Kyocera CA315:
Kyocera’s CA315 is part of the CA3 Series of CVD-coated carbides optimized for cast-iron turning. It combines a tough substrate with a micro-structured TiCN + Al₂O₃ coating for excellent adhesion and wear resistance, achieving up to twice the tool life of conventional grades in nodular cast-iron machining applications.
