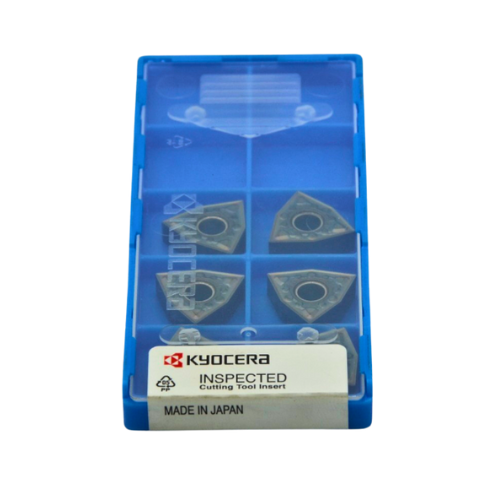

10pc Kyocera WNMG080404MS CA525 – Turning Insert (Finishing to Medium, MS Chipbreaker)

Kyocera WNMG080404MS CA525 – Turning Insert (10 pcs Finishing to Medium, MS Chipbreaker) The Kyocera WNMG080404MS CA525 is a high-performance negative-type turning insert engineered for finishing to medium operations in...
$159.00
$0.00
$159.00
(-0%)
SKU: WNMG080404MSPR1535-10
Availability: In Stock
Subtotal: $159.00
Kyocera WNMG080404MS CA525 – Turning Insert (Finishing to Medium, MS Chipbreaker)

10pc Kyocera WNMG080404MS CA525 – Turning Insert (Finishing to Medium, MS Chipbreaker)

$0.00 $159.00

10pc Kyocera WNMG080404MS CA525 – Turning Insert (Finishing to Medium, MS Chipbreaker)

$0.00 $159.00

Kyocera WNMG080404MS CA525 – Turning Insert (10 pcs Finishing to Medium, MS Chipbreaker)

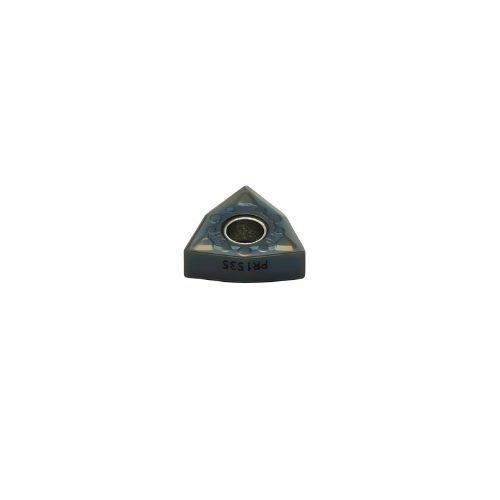

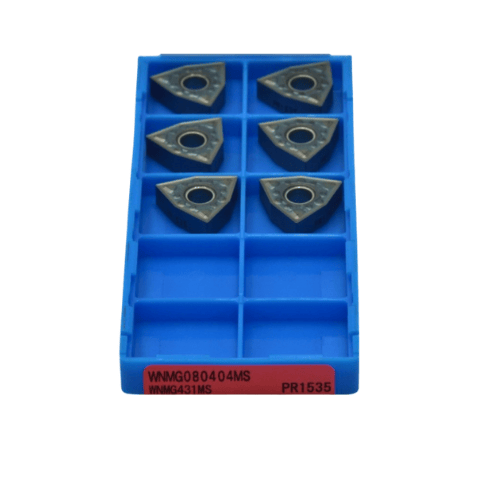

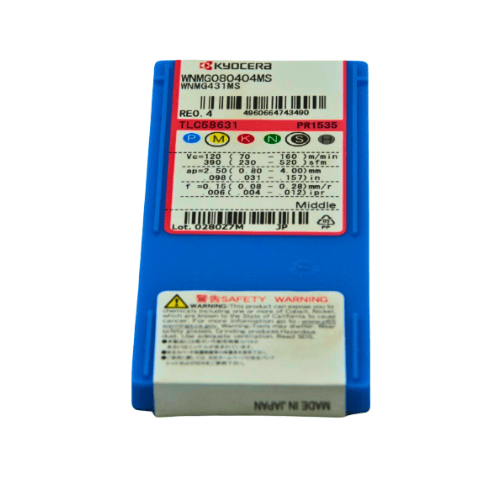

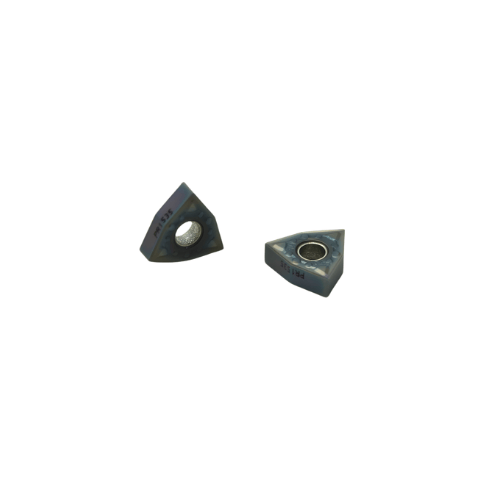

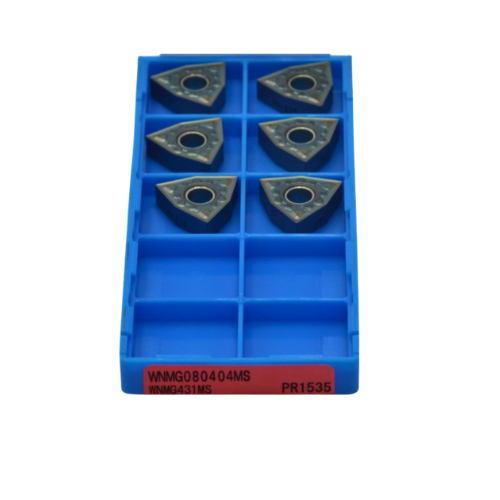

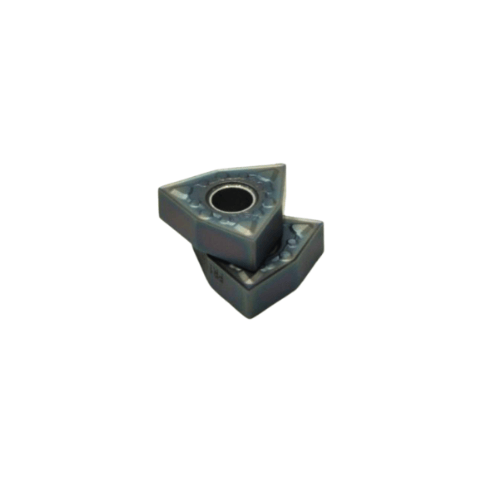

The Kyocera WNMG080404MS CA525 is a high-performance negative-type turning insert engineered for finishing to medium operations in steel machining. It features Kyocera’s proven CA525 CVD-coated carbide grade, providing excellent wear resistance, oxidation stability, and edge strength. The MS chipbreaker is designed for smooth chip evacuation, low cutting resistance, and improved surface finish, making this insert ideal for stable and efficient turning across a wide range of steel applications.

Key Features & Benefits

  • CA525 Grade: Reliable all-round CVD-coated carbide for steel turning applications.
  • MS Chipbreaker: Finishing to medium geometry with smooth cutting and efficient chip evacuation.
  • Stable Cutting Performance: Reduces built-up edge and maintains consistent surface finish quality.
  • Excellent Tool Life: Maintains wear resistance and fracture toughness even at high speeds.
  • Versatile Application: Suitable for both continuous and light interrupted steel turning operations.

Technical Specifications

  • Designation / Order Code: WNMG080404MS CA525
  • Insert Type: Negative, 80° Trigon Insert (Double-Sided)
  • Chipbreaker: MS – Finishing to Medium
  • Grade: CA525 (CVD-coated carbide)
  • Applicable Materials: Steel (P)
  • Inscribed Circle (IC): 12.7 mm
  • Thickness (S): 4.76 mm
  • Hole Diameter (d): 5.16 mm
  • Corner Radius (RE): 0.4 mm
  • Relief Angle (α): 0° (Negative Type)
  • Cutting Speed (Vc): 120 – 300 m/min
  • Feed Rate (f): 0.05 – 0.30 mm/rev
  • Depth of Cut (ap): 0.2 – 3.0 mm
  • Coolant: Wet or dry (wet recommended for consistent performance)
  • Pack Quantity: 10 pcs

About Kyocera CA525:
Kyocera’s CA525 grade is a CVD-coated carbide optimized for general steel turning. It offers an excellent balance of wear resistance and toughness, delivering stable and predictable tool life under a wide range of cutting conditions. The MS chipbreaker complements the grade by providing smooth chip control and superior surface finish quality in finishing and medium-depth cuts.
