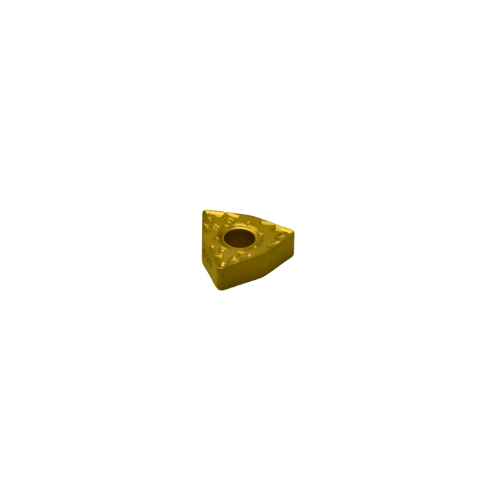

10pc Kyocera WNMG080408PT CA525 – Turning Insert (Medium to Roughing, PT Chipbreaker)

Kyocera WNMG080408PT CA525 – Turning Insert (10 pcs Medium to Roughing, PT Chipbreaker) The Kyocera WNMG080408PT CA525 is a high-performance negative-type trigon turning insert engineered for medium to roughing steel...
$159.00
$0.00
$159.00
(-0%)
SKU: WNMG080408PTCA525-10
Availability: In Stock
Subtotal: $159.00
10pc Kyocera WNMG080408PT CA525 – Turning Insert (Medium to Roughing, PT Chipbreaker)

10pc Kyocera WNMG080408PT CA525 – Turning Insert (Medium to Roughing, PT Chipbreaker)

$0.00 $159.00

10pc Kyocera WNMG080408PT CA525 – Turning Insert (Medium to Roughing, PT Chipbreaker)

$0.00 $159.00

Kyocera WNMG080408PT CA525 – Turning Insert (10 pcs Medium to Roughing, PT Chipbreaker)

The Kyocera WNMG080408PT CA525 is a high-performance negative-type trigon turning insert engineered for medium to roughing steel machining. It incorporates the PT chipbreaker, designed with a reinforced land and optimized rake geometry to deliver strong edge support and smooth chip evacuation, even under heavy cutting conditions. Utilizing Kyocera’s CA525 MEGACOAT TOUGH CVD-coated carbide grade, the insert provides excellent wear resistance, thermal stability, and fracture toughness—ideal for maintaining consistent tool life in demanding continuous and light-interrupted operations.

Key Features & Benefits

  • CA525 Grade – MEGACOAT TOUGH: Advanced CVD coating for superior balance of wear resistance and toughness in medium to heavy-duty cutting of steels.
  • PT Chipbreaker: Land-supported design reduces cutting load and enhances edge strength during high-feed or deep-cut applications.
  • Optimized Chip Control: Ensures smooth chip evacuation and prevents re-cutting in roughing conditions.
  • Stable Machining: Excellent performance in both continuous and slightly interrupted cutting.
  • Extended Tool Life: Reliable performance under dry or wet conditions with minimized crater and flank wear.

Technical Specifications

  • Designation / Order Code: WNMG080408PT CA525
  • Insert Shape: 80° Trigon (W Type)
  • Insert Type: Negative Turning Insert
  • Material: CVD-Coated Carbide
  • Grade: CA525 – MEGACOAT TOUGH (CVD)
  • Chipbreaker: PT – Medium to Roughing Geometry
  • Inscribed Circle (IC): 12.7 mm
  • Thickness (S): 4.76 mm
  • Hole Diameter (D1): 5.16 mm
  • Corner Radius (RE): 0.8 mm
  • Number of Cutting Edges: 6
  • Cutting Depth (ap): 0.5 – 4.0 mm
  • Feed Rate (f): 0.15 – 0.45 mm/rev

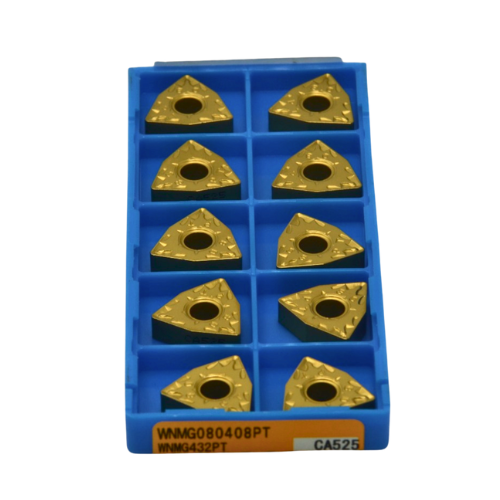

  • Pack Quantity: 10 pcs

About Kyocera CA525:
Kyocera’s CA525 MEGACOAT TOUGH grade combines a wear-resistant CVD coating with a tough carbide substrate to ensure durability and consistency in medium to heavy steel turning. It’s the preferred choice for roughing operations where stability and longevity are crucial.
