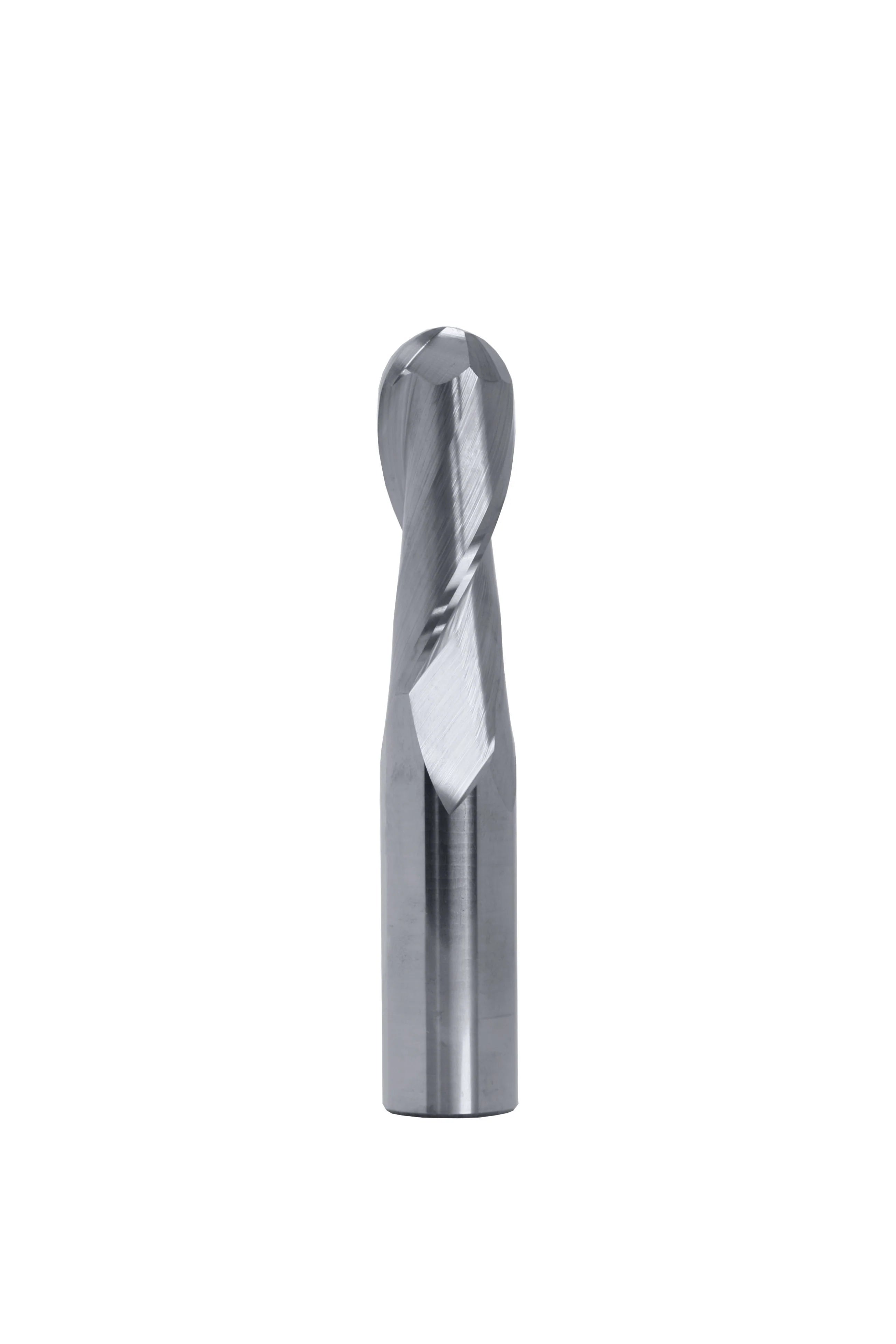

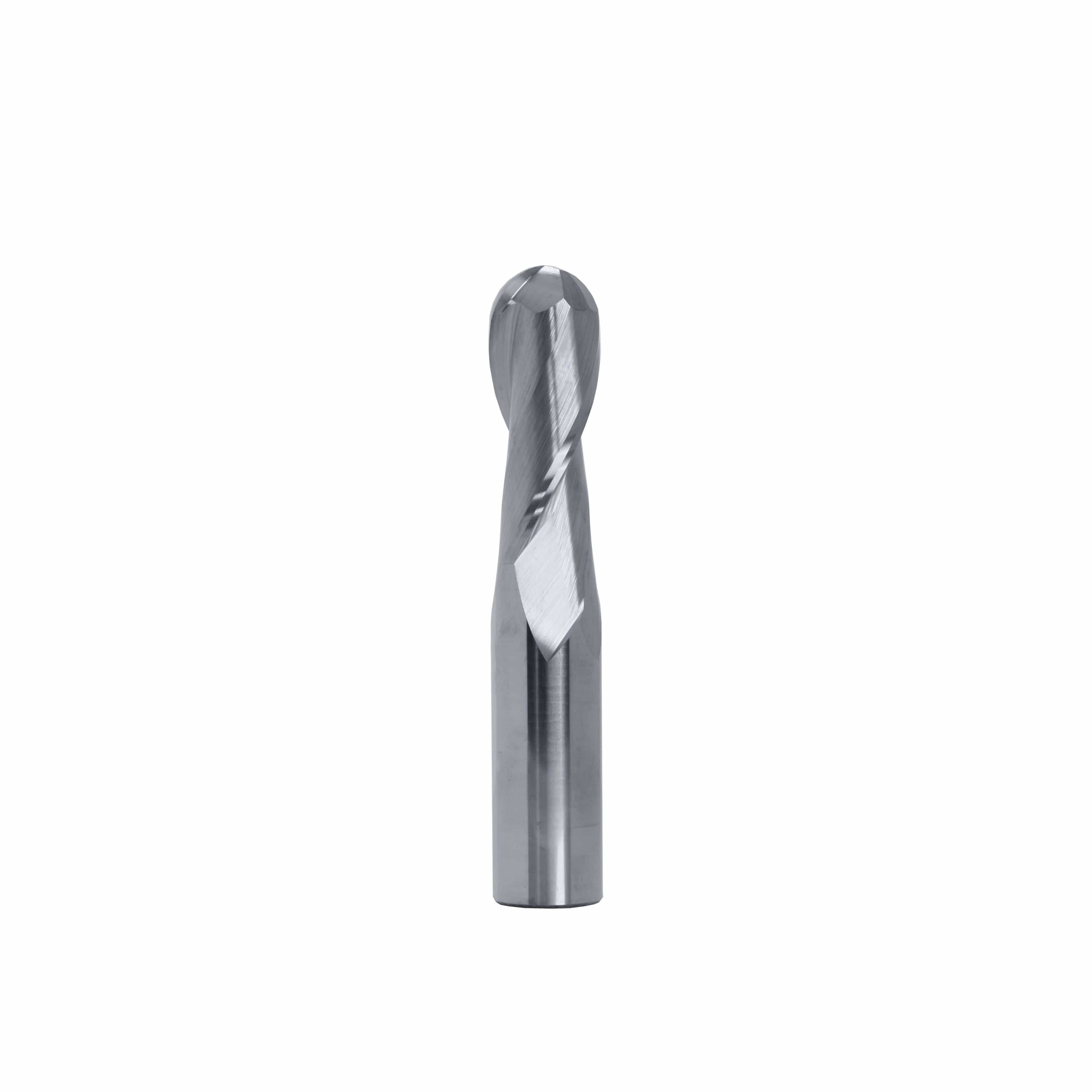

Best Carbide - Long Series Ball Nose Slot Drill 1/4" (2 Flute, Uncoated)

Versatile Long Series Ball Nose End Mill The Best Carbide Long Series Ball Nose Slot Drill 1/4" (2 Flute, Uncoated) is engineered for precision 3D contouring, profiling, and cavity machining...
$109.00
$0.00
$109.00
(-0%)
Vendor: BEST CARBIDE
SKU: 54322500
Availability: In Stock
Subtotal: $109.00
Best Carbide - Long Series Ball Nose Slot Drill 1/4" (2 Flute, Uncoated)

Best Carbide - Long Series Ball Nose Slot Drill 1/4" (2 Flute, Uncoated)

$0.00 $109.00

Best Carbide - Long Series Ball Nose Slot Drill 1/4" (2 Flute, Uncoated)

$0.00 $109.00

Versatile Long Series Ball Nose End Mill

The Best Carbide Long Series Ball Nose Slot Drill 1/4" (2 Flute, Uncoated) is engineered for precision 3D contouring, profiling, and cavity machining in mold, die, and component production. Its ball nose geometry ensures smooth surface blending and curved profile accuracy, while the 2-flute design improves chip evacuation and feed control. Manufactured from solid carbide, this end mill delivers exceptional rigidity, accuracy, and durability. The long series design provides extended reach, making it suitable for machining deeper cavities and complex geometries.

Specifications:

🔹 Tool Series: 543
🔹 Type: Universal Application Carbide End Mills – Long Length
🔹 Geometry: 2 Flute – Ball nose
🔹 Material: Solid carbide metal drill bit / end mill body
🔹 Cutting Diameter (D1): 1/4" (≈ 6.35 mm)
🔹 Shank Diameter (D2): 1/4"
🔹 Length of Cut (L.O.C.): 1-1/8" (≈ 28.58 mm)
🔹 Overall Length (O.A.L.): 3" (≈ 76.2 mm)
🔹 Coating: Uncoated
🔹 Reference Number: 54322500

Key Features & Benefits:

Ball Nose Geometry – Provides smooth contouring and accurate 3D surface finishes
2-Flute Configuration – Improves chip evacuation and stable feed rates
Solid Carbide – Delivers rigidity, dimensional stability, and extended service life
Long Series Design – Offers extended reach for deeper machining applications
Uncoated – Flexible and economical for general-purpose use

Applications:

✅ 3D contouring and profiling
✅ Mold, die, and cavity machining
✅ Precision work on steels, alloys, and non-ferrous metals

Why Choose?

✔ Long reach for deeper cavity access
✔ Smooth surface blending with ball nose geometry
✔ Reliable performance backed by solid carbide strength
