Canela Dimple Lock Turning Tool Holder DCLNL2020K12-N 20mm Shank

External turning 2020 95° Dimple lock multipurpose toolholder equipped with rhombic negative double-sided insert (angle 80º).ISO standard tools perform most of the metalworking industry's machining. The applications range from finishing...
$185.00
$185.00
(-0%)
Vendor: Canela
SKU: 1001
Availability: In Stock
Subtotal: $185.00

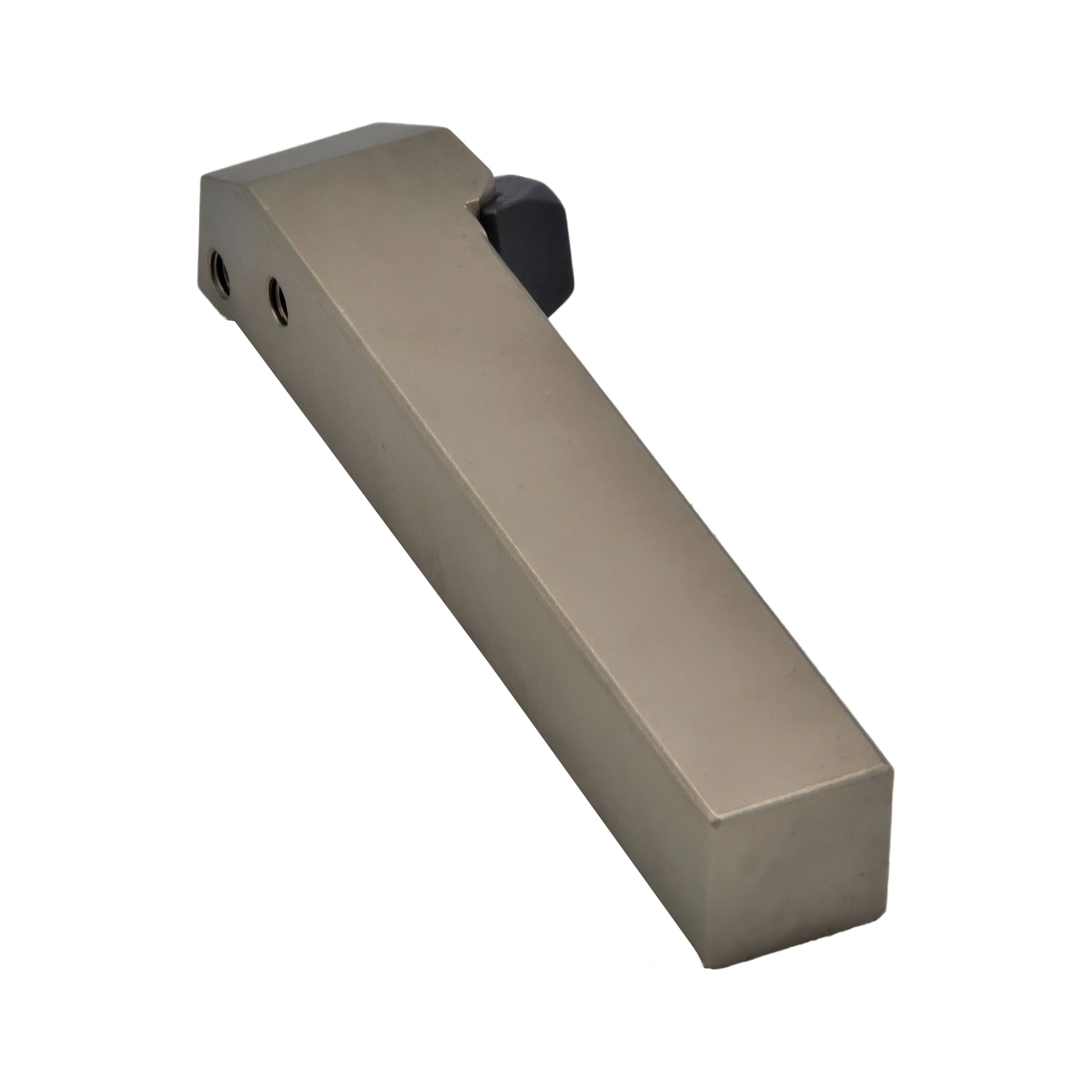

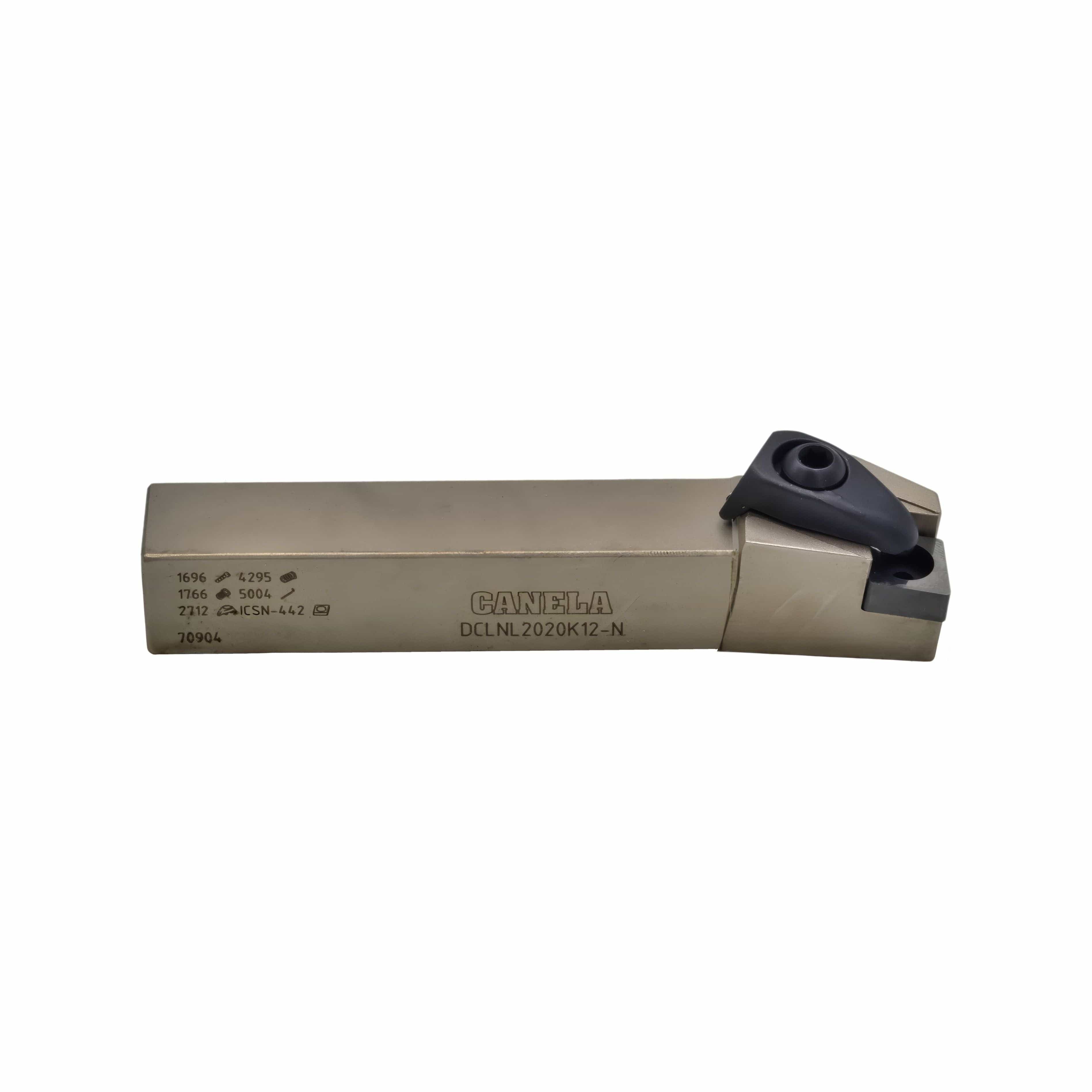

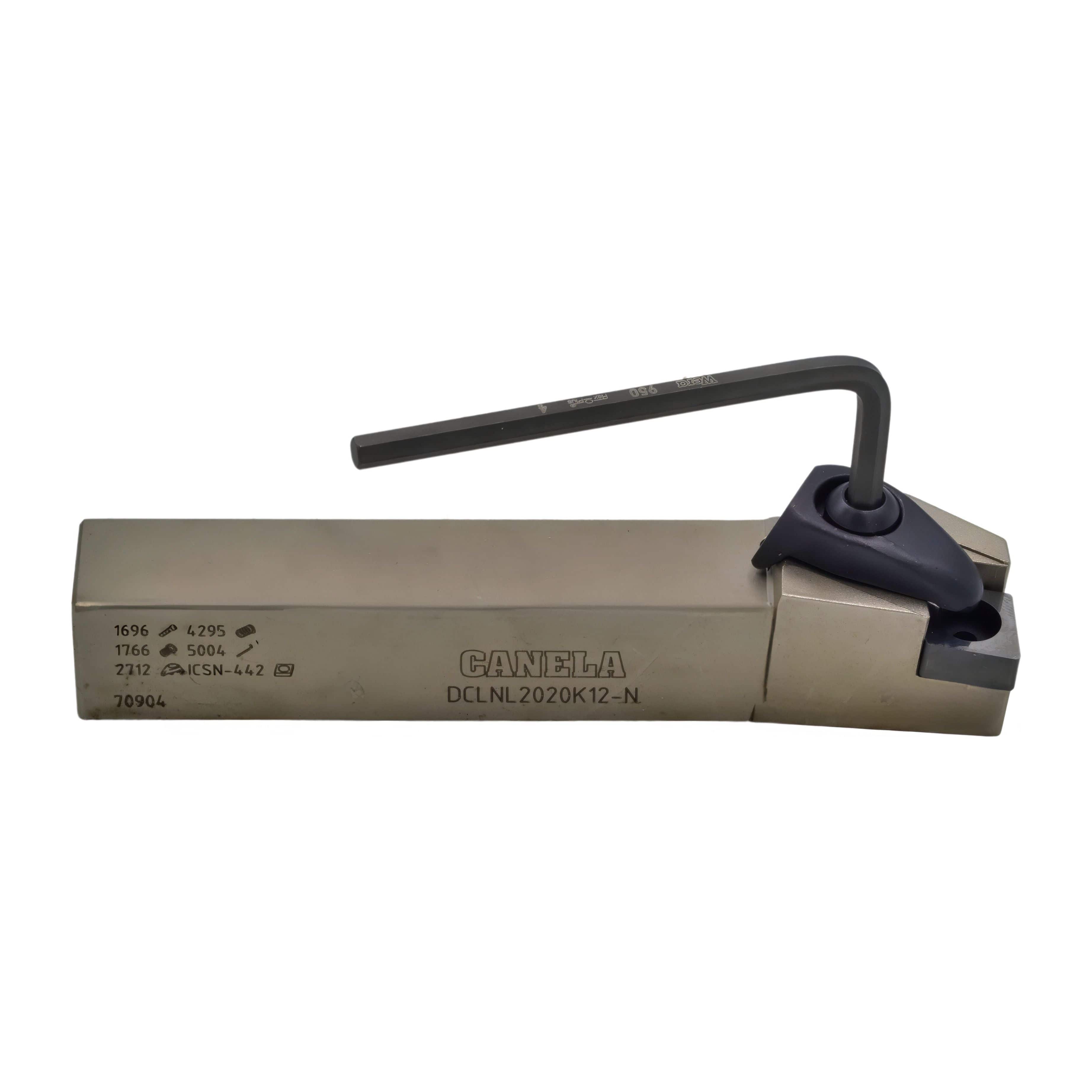

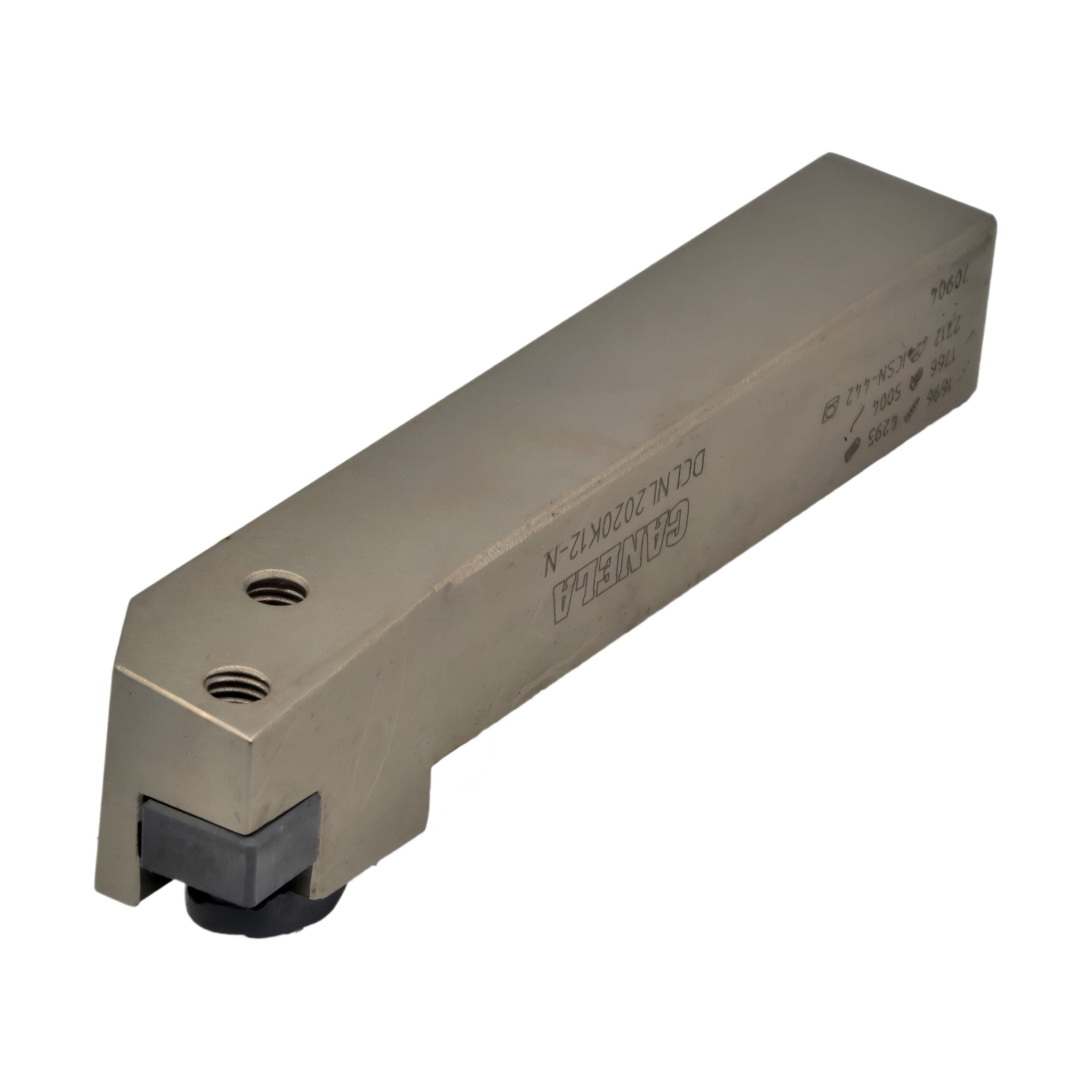

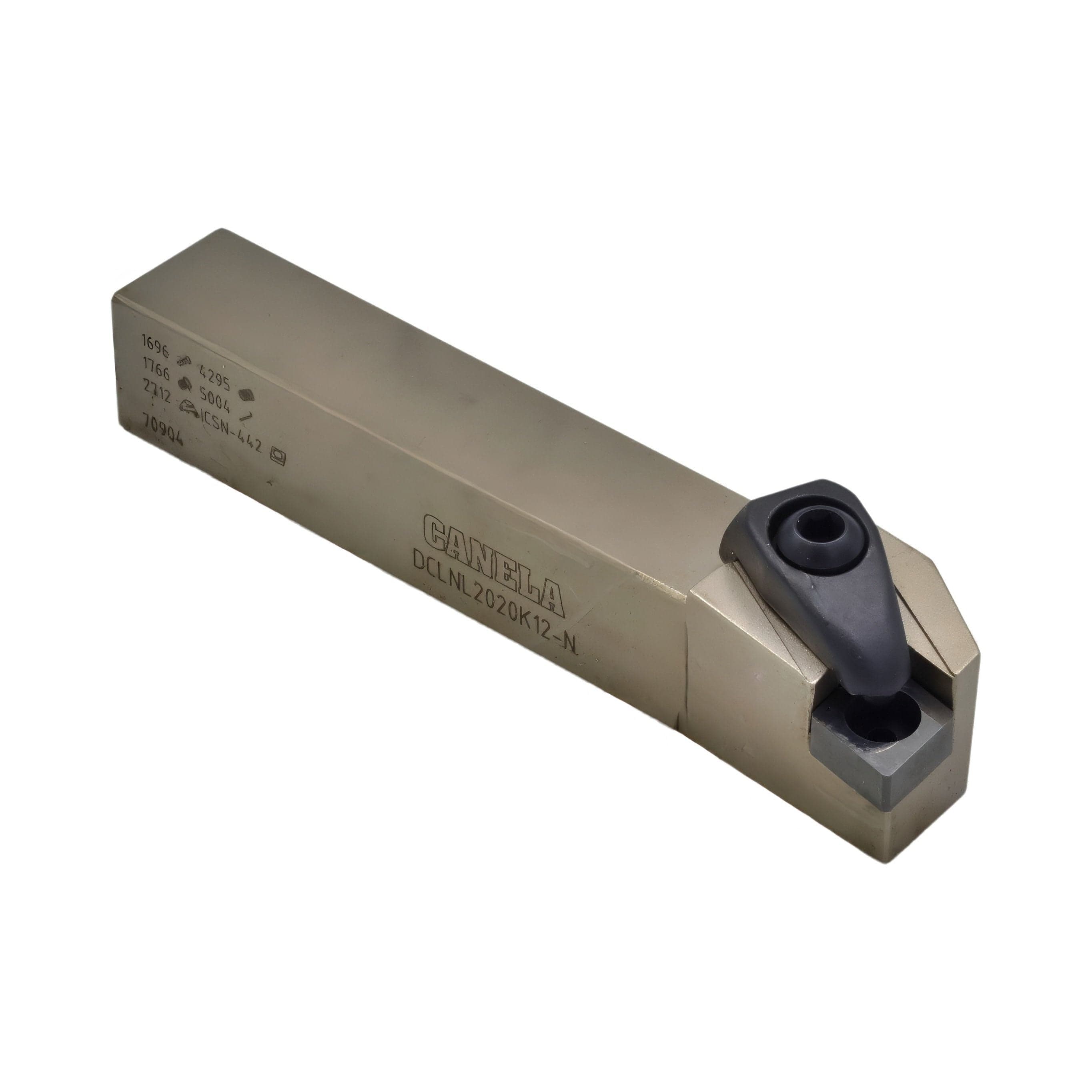

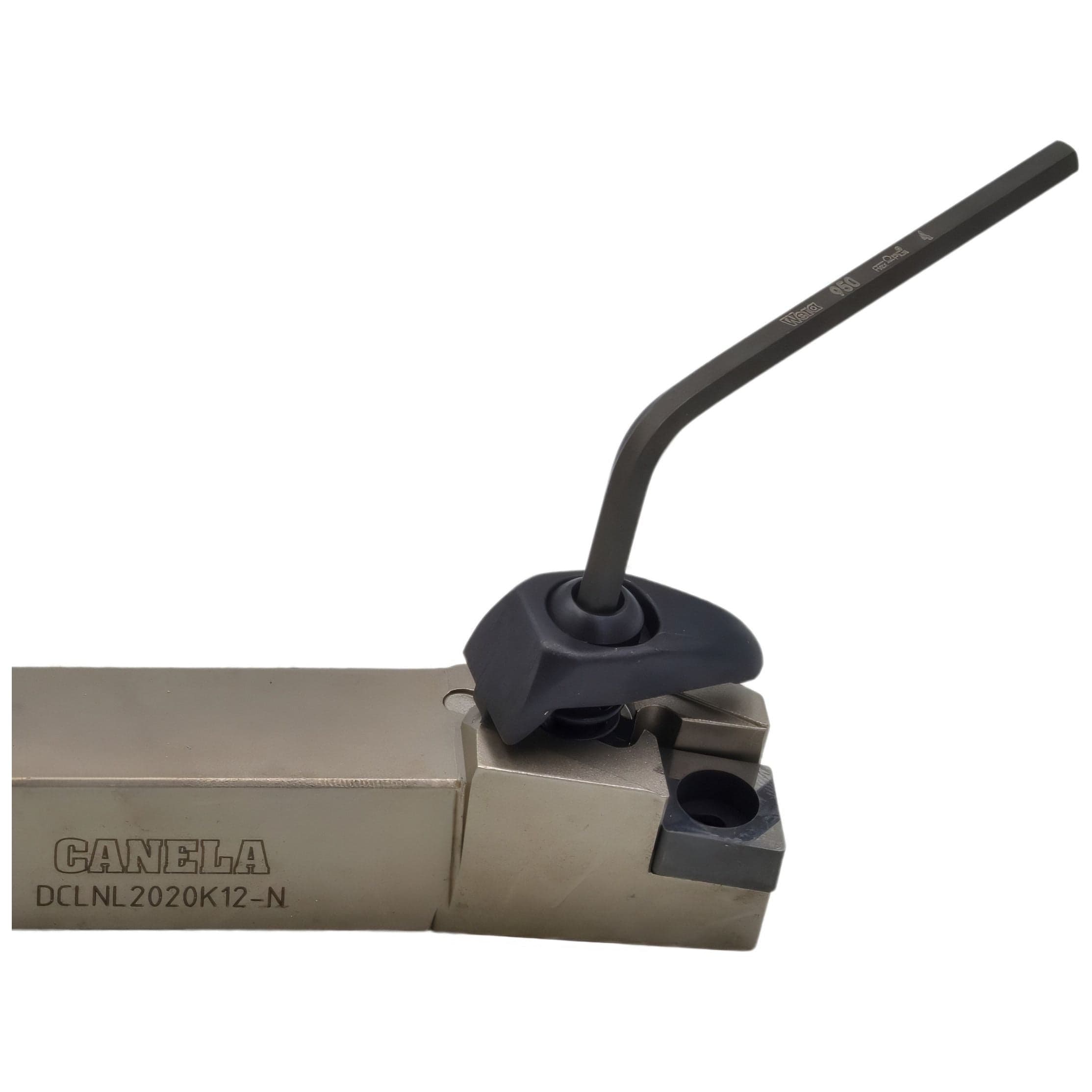

Canela Dimple Lock Turning Tool Holder DCLNL2020K12-N 20mm Shank

Canela Dimple Lock Turning Tool Holder DCLNL2020K12-N 20mm Shank

$185.00

Canela Dimple Lock Turning Tool Holder DCLNL2020K12-N 20mm Shank

$185.00

External turning 2020 95°

Dimple lock multipurpose toolholder equipped with rhombic negative double-sided insert (angle 80º).
ISO standard tools perform most of the metalworking industry's machining. The applications range from finishing to roughing. As a full-line supplier of metalworking tools, Canela provides a full ISO range of tools and all standard geometries are supplied.
The ISO turning line provides a complete solution for all types of applications and materials, with innovative insert geometries combined with leading carbide grades designed to meet customer demands for tool life and productivity.

Quality Designation
Measurement System Metric
Clamping method of insert Dimple Lock
Category External Turning
Connection Style Square Shank
Back End Size 20x20
Holder Style 95°
Insert Shape C-Rhombic 80°
Clearance angle Negative
Hand Left
Coolant No
Insert Code
CN

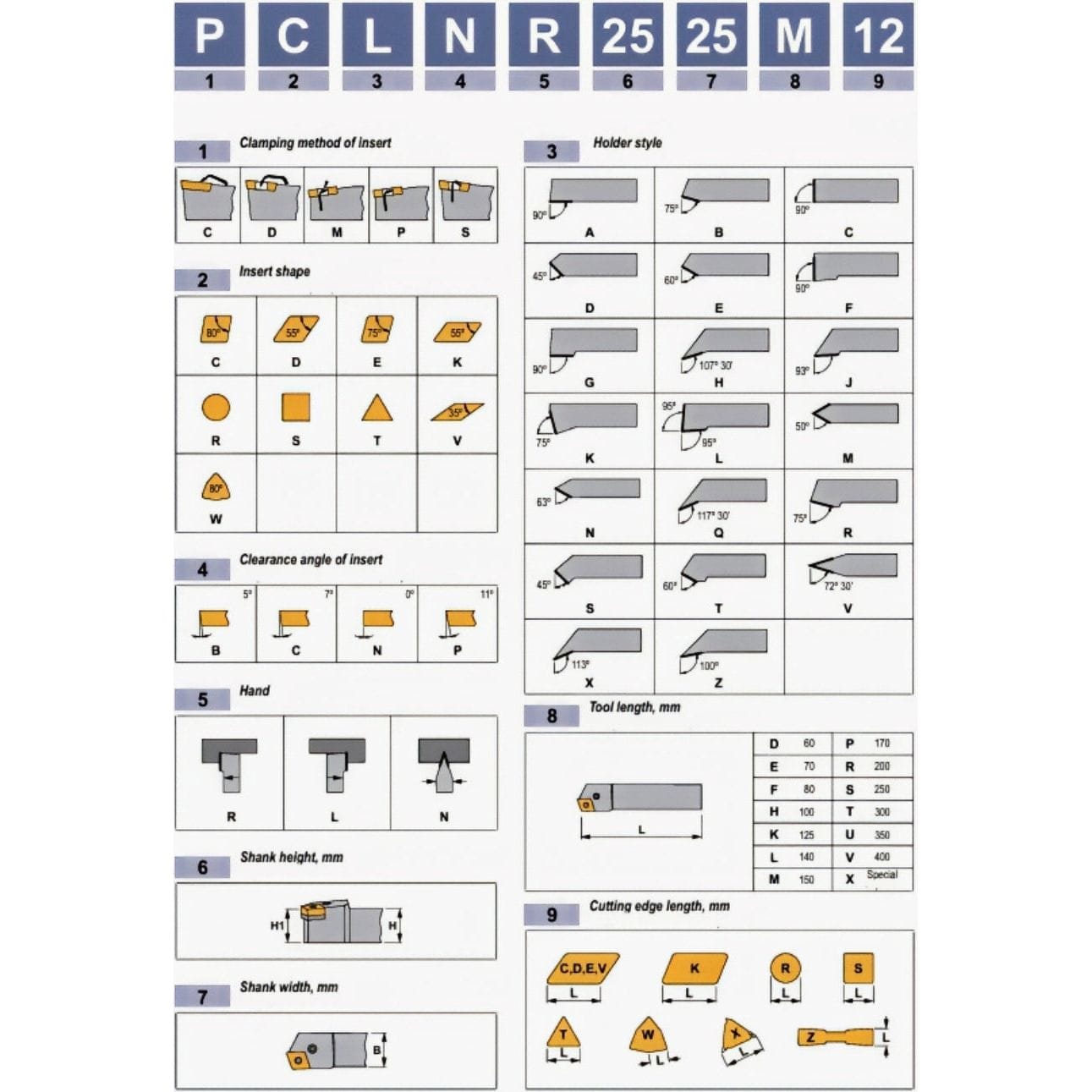

Using the chart within images, the relevant parts in the code are the 2nd and 4th letters. eg = DCLNL2020K12-N would refer to a CN insert style.
To know what size the insert should be it refers to the last two digits in the code -  DCLNL2020K12-N meaning a CN-12 insert. The result being any insert starting with a CN will fit on the respective holder.
