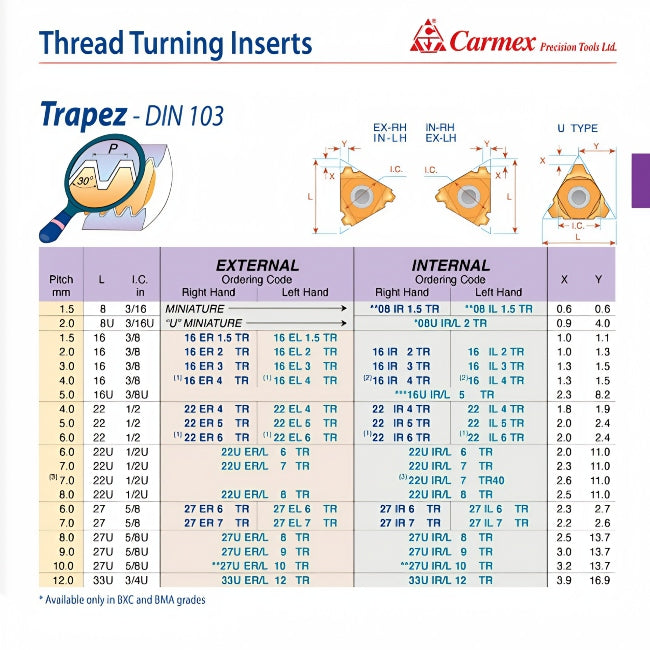

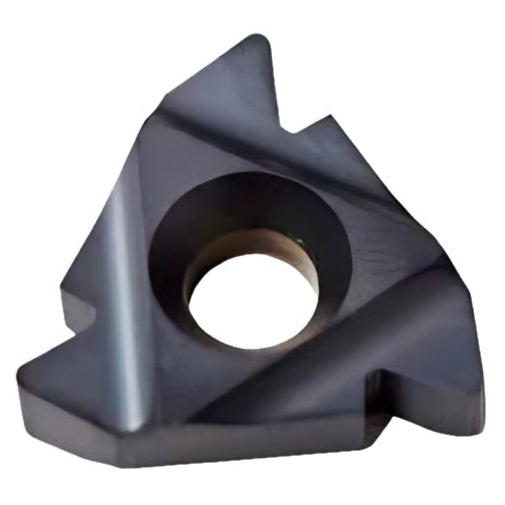

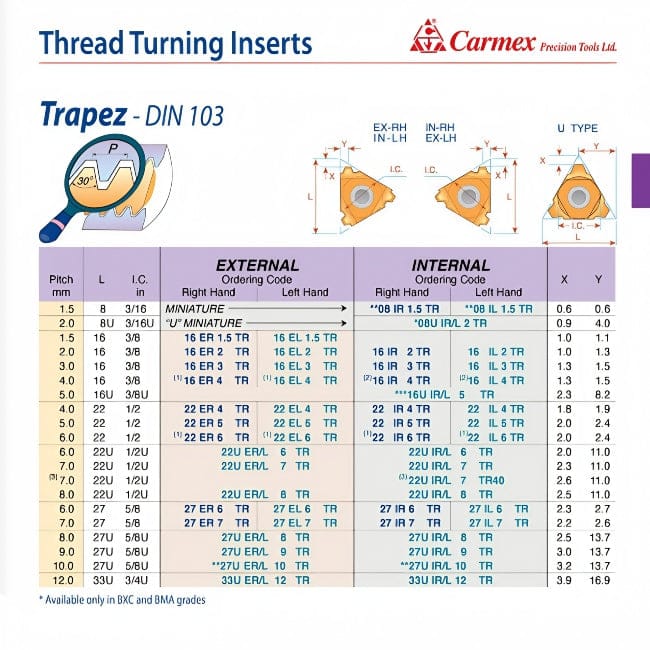

External Thread Turning Insert – Trapez DIN 103 Full Profile 30°

The Trapez DIN 103 Full Profile External Thread Turning Insert is engineered for producing trapezoidal threads as per the DIN 103 standard. With a 30° thread angle and a 4.0 mm pitch, this insert ensures full-profile thread generation with excellent load-carrying capacity, making it ideal for lead screws and motion systems.

Constructed from BMA-grade carbide, the insert offers enhanced wear resistance and heat stability. The X and Y geometries are optimized for high chip clearance, smooth thread finish, and consistent tool performance across a variety of materials.

Key Features:

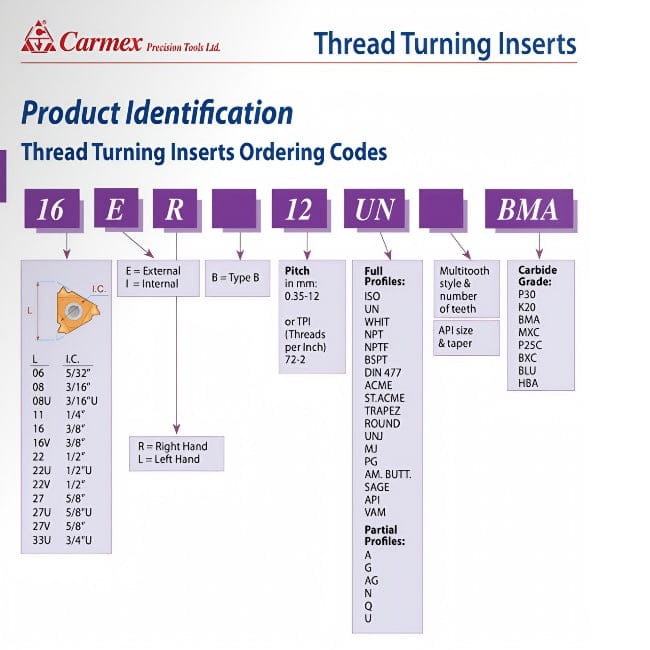

  • Ordering Code: 22 ER 4.0 TR BMA
  • Thread Type: Trapez (DIN 103 – 30°)
  • Profile: Full Form
  • Insert Type: External
  • Hand: Right Hand
  • L: 22 mm
  • I.C.: 1/2"
  • Pitch: 4.0 mm
  • X: 1.8 mm
  • Y: 1.9 mm

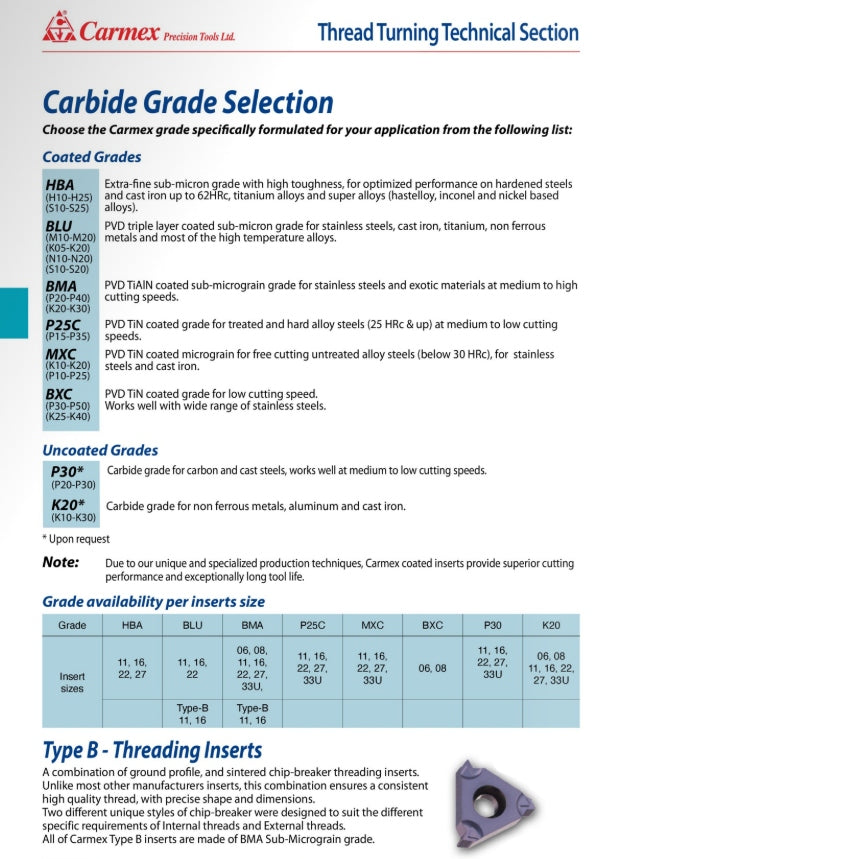

  • Carbide Grade: BMA
  • Applications: External threading for Trapezoidal leadscrews, machine parts, and linear drive systems
  • Key Advantage: Precision 30° thread cutting with high resistance to wear and excellent profile consistency

Manufactured by Carmex Precision Tools Ltd.—a global innovator in threading technology—this insert is part of Carmex’s premium range of threading tools, including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Trusted for reliability, accuracy, and tool life.
