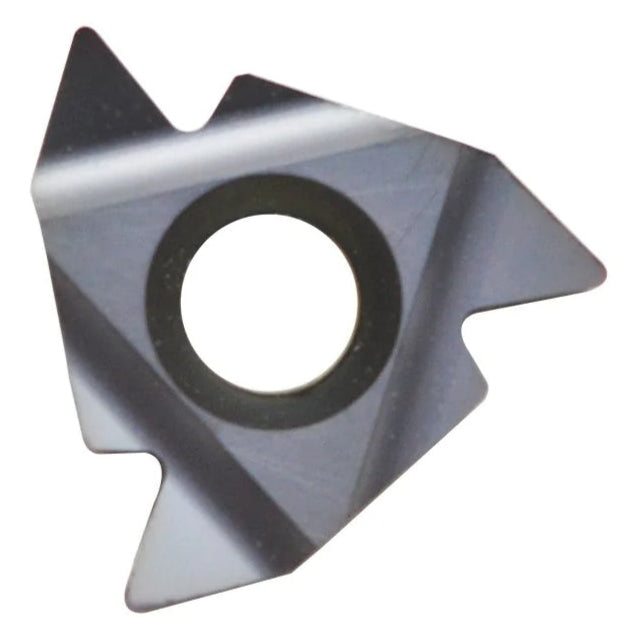

Carmex External Right Hand UN Unified Thread Turning Insert 7 TPI / 22 ER 7 UN BMA

External Thread Turning Insert – UN Full Profile 60° The UN Full Profile External Thread Turning Insert is designed for machining Unified threads (UNC, UNF, UNEF, UNS) with high accuracy...
$58.00
$0.00
$58.00
(-0%)
SKU: 22 ER 7 UN BMA
Availability: In Stock
Subtotal: $58.00
Carmex External Right Hand UN Unified Thread Turning Insert 7 TPI / 22 ER 7 UN BMA

Carmex External Right Hand UN Unified Thread Turning Insert 7 TPI / 22 ER 7 UN BMA

$0.00 $58.00

Carmex External Right Hand UN Unified Thread Turning Insert 7 TPI / 22 ER 7 UN BMA

$0.00 $58.00

External Thread Turning Insert – UN Full Profile 60°

The UN Full Profile External Thread Turning Insert is designed for machining Unified threads (UNC, UNF, UNEF, UNS) with high accuracy and efficiency. With a 7 TPI pitch and a 60° full profile, this insert ensures complete thread formation—including crest, root, and flanks—in a single pass, delivering robust and reliable threads for structural and mechanical assemblies.

Crafted from premium BMA-grade carbide, the insert provides outstanding wear resistance, thermal stability, and cutting consistency. The X and Y geometry (1.6 mm and 2.3 mm) ensures stable machining, smooth chip flow, and consistent thread profile across a wide range of materials.

Key Features:

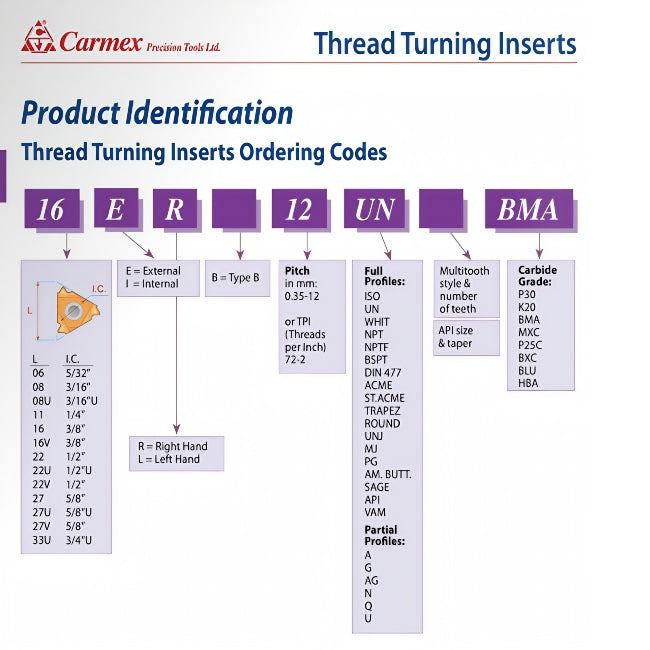

  • Ordering Code: 22 ER 7 UN BMA

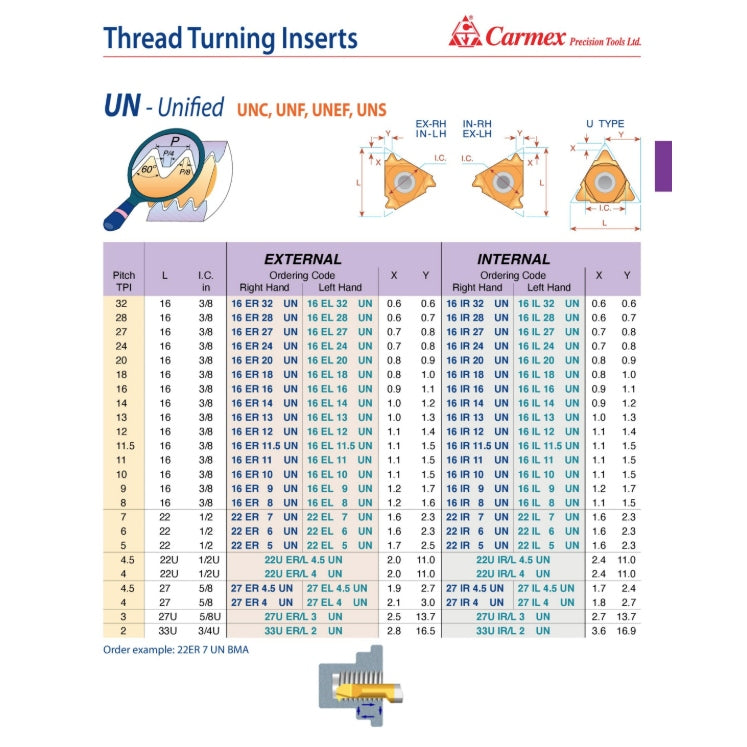

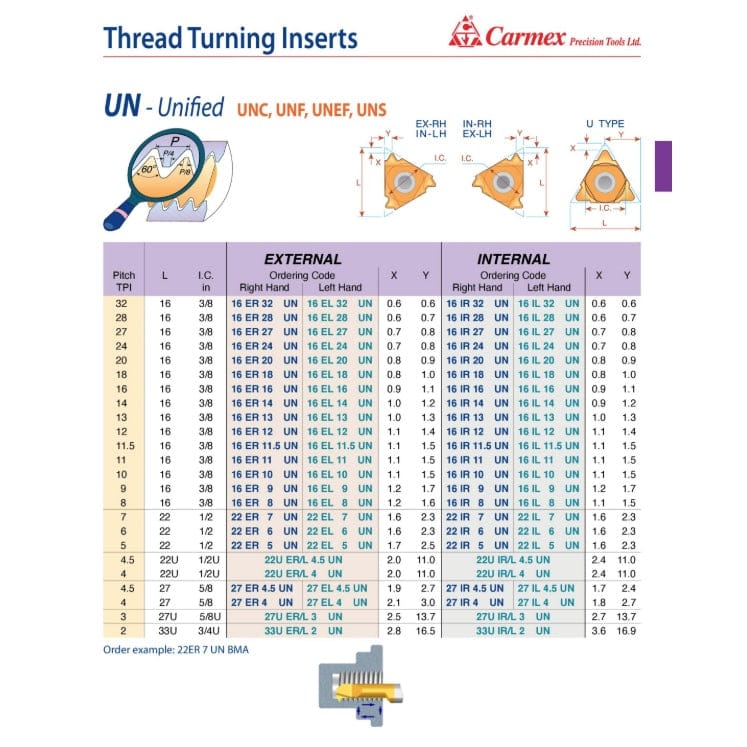

  • Thread Type: UN (Unified Thread Standard – 60°)
  • Profile: Full Form
  • Insert Type: External
  • Hand: Right Hand
  • L: 22 mm
  • I.C.: 1/2"
  • Pitch: 7 TPI
  • X: 1.6 mm
  • Y: 2.3 mm

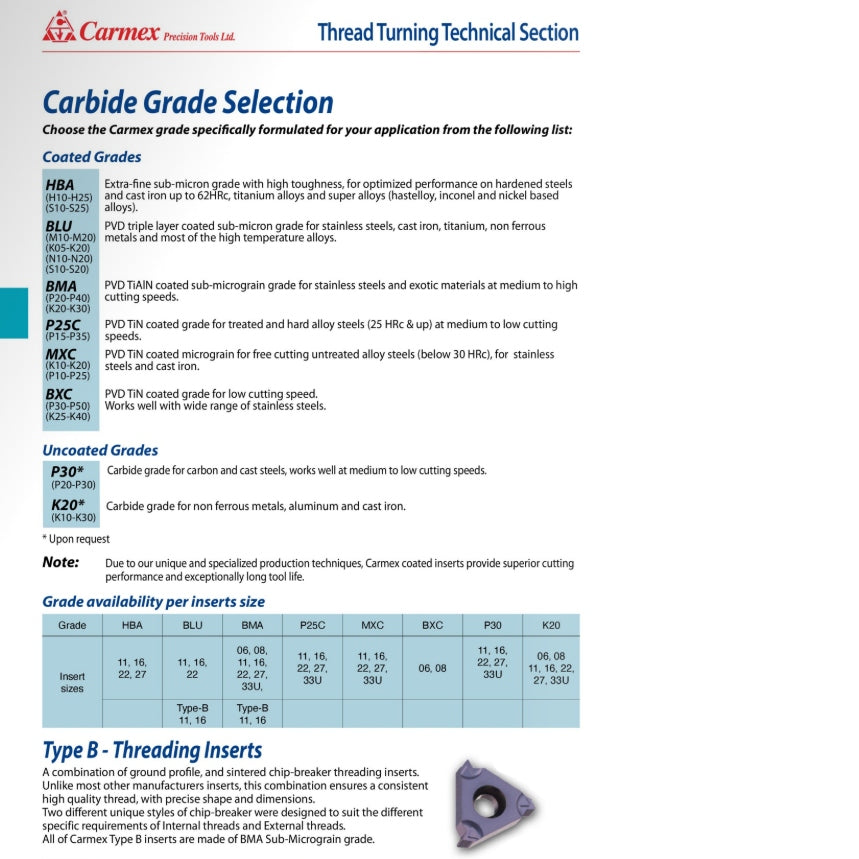

  • Carbide Grade: BMA
  • Applications: External Thread Turning for UN Thread Forms
  • Key Advantage: Durable, full-profile threading with precise form control and reliable chip management

Carmex Precision Tools Ltd. is a world-renowned manufacturer of high-quality threading solutions. From Thread Turning Inserts and Solid Carbide Threadmills to advanced Mill Thread systems, Carmex tools are trusted by machinists and manufacturers worldwide for their innovation, accuracy, and dependable performance.
