Mill-Thread Insert – UN 20 TPI, Internal

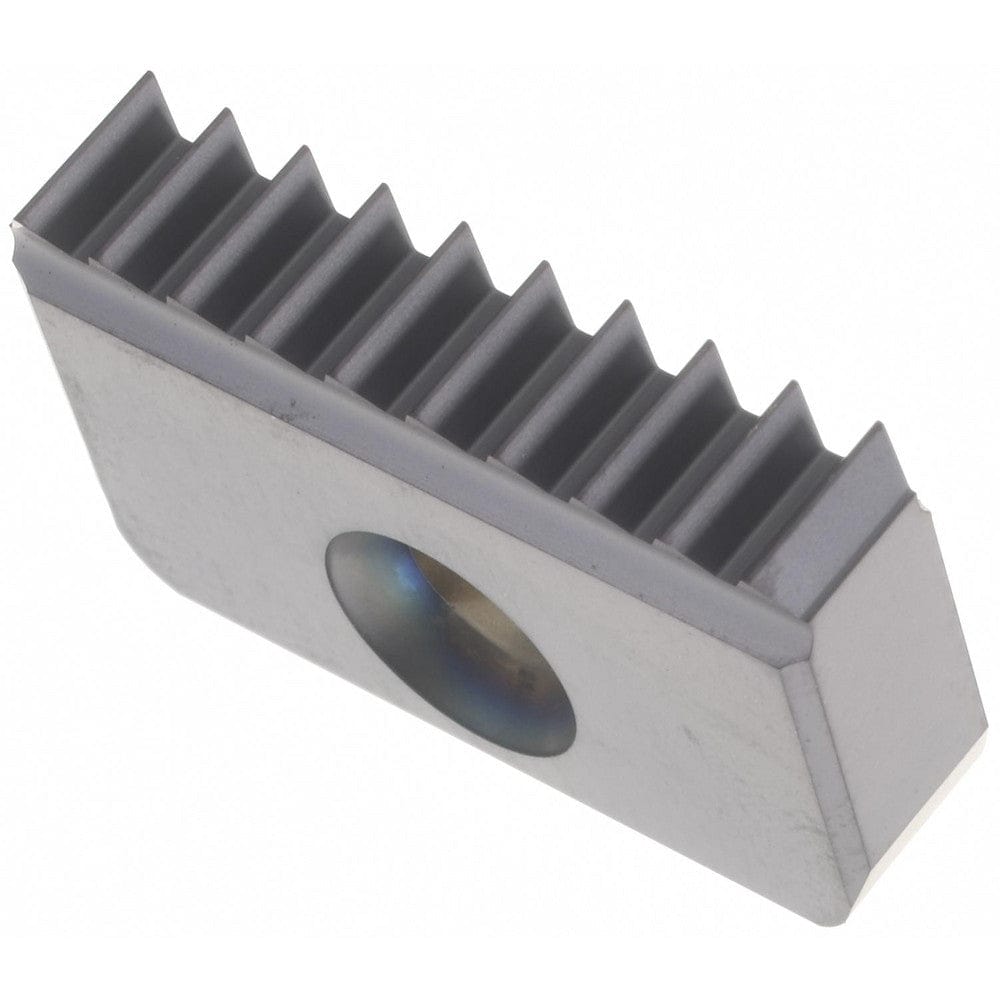

The Carmex 12 I 20 UN MT7 is a precision internal thread milling insert for Unified (UN) 20 TPI threads. Designed for high-accuracy threading on CNC machines using helical interpolation, it produces uniform threads and excellent surface finishes while maintaining stable cutting under demanding conditions.

Manufactured from MT7 ultra-fine carbide, the insert offers outstanding wear resistance, durability, and heat tolerance. Its compact size 12 profile ensures high rigidity and low vibration, delivering exceptional accuracy when machining steel, stainless steel, or non-ferrous alloys.

Compatible with Carmex SR Series toolholders for enhanced rigidity and chip evacuation in precision threading operations.

Key Features & Benefits

  • Ordering Code: 12 I 20 UN MT7
  • Thread Type: Internal Threading
  • Thread Profile: UN – Unified 60°
  • TPI: 20
  • Insert Size: 12
  • H (Height): 6.3 mm
  • T (Thickness): 2.9 mm
  • Carbide Grade: MT7
  • Cutting Edge: Single
  • Applications: Internal Unified threading for high-precision components
  • Compatible Toolholders: SR Series (Single, Twin, Multi-Insert)

Carmex Precision Tools Ltd. is a world-renowned leader in threading innovation, providing advanced cutting tools that ensure superior precision, long life, and consistent performance.
