Carmex Internal UN Threadmill Insert 30mm/ 10 TPI

Mill-Thread Insert – UN 10 TPI, Internal The 30 I 10 UN MT7 Mill-Thread Insert is specifically engineered for internal threading of Unified National (UN) profiles on CNC milling machines...
$195.00
$0.00
$195.00
(-0%)
SKU: 30I10UNMT7
Availability: In Stock
Subtotal: $195.00
Carmex Internal UN Threadmill Insert 30mm/ 10 TPI

Carmex Internal UN Threadmill Insert 30mm/ 10 TPI

$0.00 $195.00

Carmex Internal UN Threadmill Insert 30mm/ 10 TPI

$0.00 $195.00

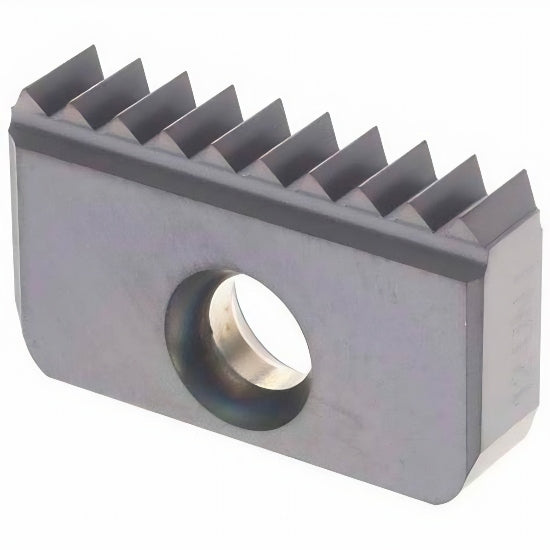

Mill-Thread Insert – UN 10 TPI, Internal

The 30 I 10 UN MT7 Mill-Thread Insert is specifically engineered for internal threading of Unified National (UN) profiles on CNC milling machines using helical interpolation. Designed to cut at 10 TPI, this insert delivers precise and reliable threading results for mechanical and general-purpose components using the Unified thread form. With a size 30 profile, 16 mm height, and 5.5 mm thickness, the insert ensures cutting stability, clean thread geometry, and optimal chip evacuation.

Manufactured from Carmex’s high-performance MT7 carbide grade, the insert provides excellent wear resistance, consistent performance, and extended tool life across production runs. For maximum threading efficiency, this insert is compatible with Carmex’s comprehensive range of SR series toolholders available in single, twin, and multi-insert formats, with options for carbide shanks and internal coolant supply. These holders are designed to match insert sizes and ensure secure clamping and high-performance machining.

Key Features:

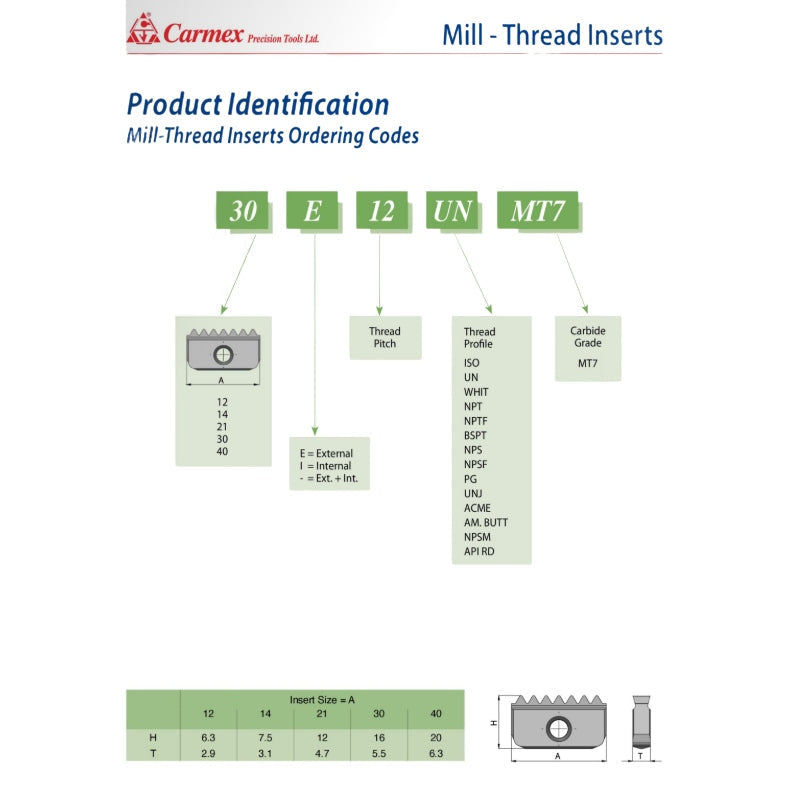

  • Ordering Code: 30 I 10 UN MT7
  • Thread Type: Internal Threading
  • Thread Profile: UN
  • Pitch (TPI): 10
  • Insert Size: 30
  • H (Height): 16 mm
  • T (Thickness): 5.5 mm
  • Carbide Grade: MT7
  • Insert Type: Internal-use only
  • Applications: Unified internal threads for mechanical and general-purpose use
  • Key Advantage: Precise, durable threading in combination with SR series toolholders

Carmex Precision Tools Ltd. is globally recognized for its advanced threading solutions. The company offers a full range of Thread Turning inserts, Mill-Thread tools, Spiral Mill-Thread, Solid Carbide threadmills, and matching SR Series Toolholders ensuring full compatibility and performance from toolholder to insert.
