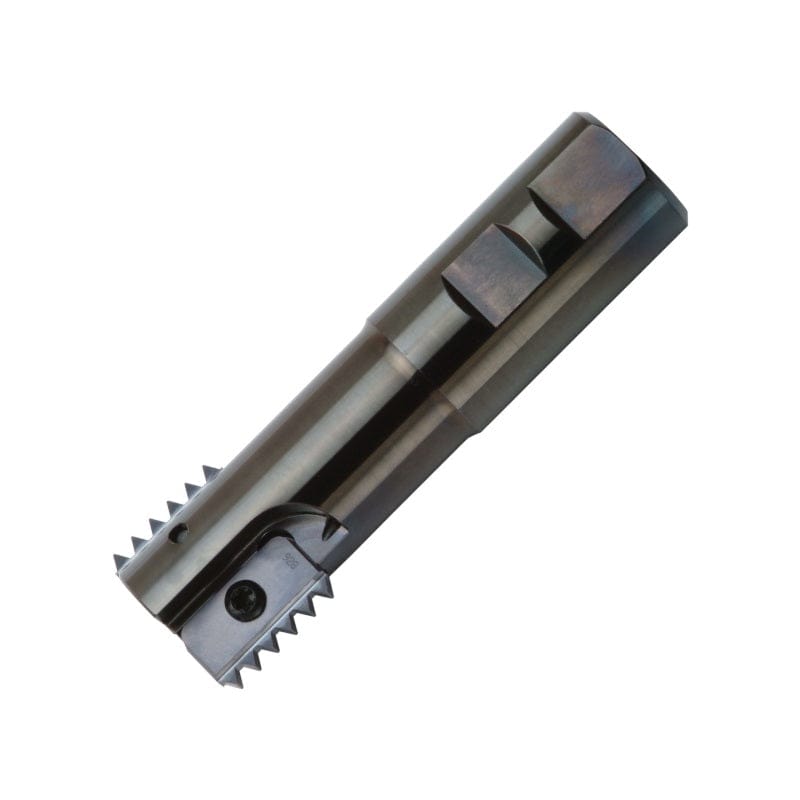

Carmex Threadmill Twin Insert Toolholder 20mm Cut / SR0020H142

Carmex SR0020H14-2 – Threadmill Twin Insert Toolholder (20 mm Cutting Diameter, Internal Coolant) The Carmex SR0020H14-2 is a precision-built twin insert toolholder designed for high-accuracy thread milling and grooving applications....
$1,262.00
$0.00
$1,262.00
(-0%)
Vendor: CARMEX
SKU: SR0020H142
Availability: In Stock
Subtotal: $1,262.00
Carmex Threadmill Twin Insert Toolholder 20mm Cut / SR0020H142

Carmex Threadmill Twin Insert Toolholder 20mm Cut / SR0020H142

$0.00 $1,262.00

Carmex Threadmill Twin Insert Toolholder 20mm Cut / SR0020H142

$0.00 $1,262.00

Carmex SR0020H14-2 – Threadmill Twin Insert Toolholder (20 mm Cutting Diameter, Internal Coolant)

The Carmex SR0020H14-2 is a precision-built twin insert toolholder designed for high-accuracy thread milling and grooving applications. With a 20 mm cutting diameter and internal coolant channel, it provides excellent chip evacuation, enhanced cooling, and consistent dimensional accuracy. This toolholder supports two inserts, ensuring balanced cutting forces, improved stability, and superior surface finish even under demanding machining conditions.

Manufactured from hardened alloy steel, the SR0020H14-2 delivers rigidity, repeatability, and long-term performance in threading operations on steels, stainless steels, cast irons, and non-ferrous materials. Ideal for CNC applications where precision and reliability are essential.

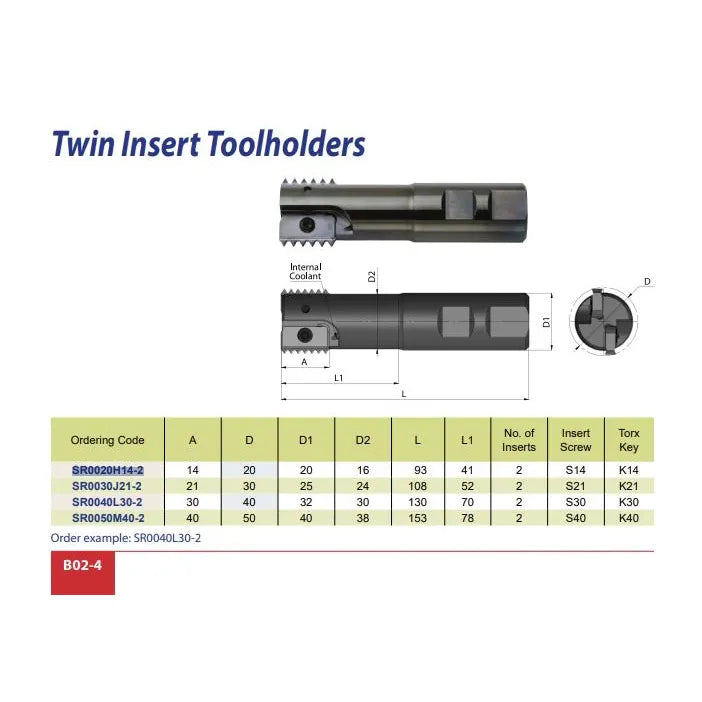

Key Features & Specifications:

  • Ordering Code: SR0020H14-2
  • Tool Type: Threadmill Twin Insert Toolholder
  • Coolant Supply: Internal Coolant
  • Cutting Diameter (D): 20 mm
  • Shank Diameter (A): 14 mm
  • Head Diameter (D1): 20 mm
  • Bore Diameter (D2): 16 mm
  • Overall Length (L): 93 mm
  • Head Length (L1): 41 mm
  • Number of Inserts: 2
  • Insert Screw: S14
  • Torx Key: K14
  • Material: Hardened Alloy Steel
  • Applications: Thread milling and grooving operations requiring high precision and coolant-assisted cutting
  • Advantages: Dual-insert design | High rigidity | Efficient coolant flow | Superior thread accuracy | Extended tool and insert life

About Carmex:
Carmex Precision Tools Ltd. is a world-leading manufacturer of advanced cutting tools for threading, grooving, and milling. Known for precision engineering, durability, and innovation, Carmex products are trusted globally for achieving superior machining performance and productivity.
