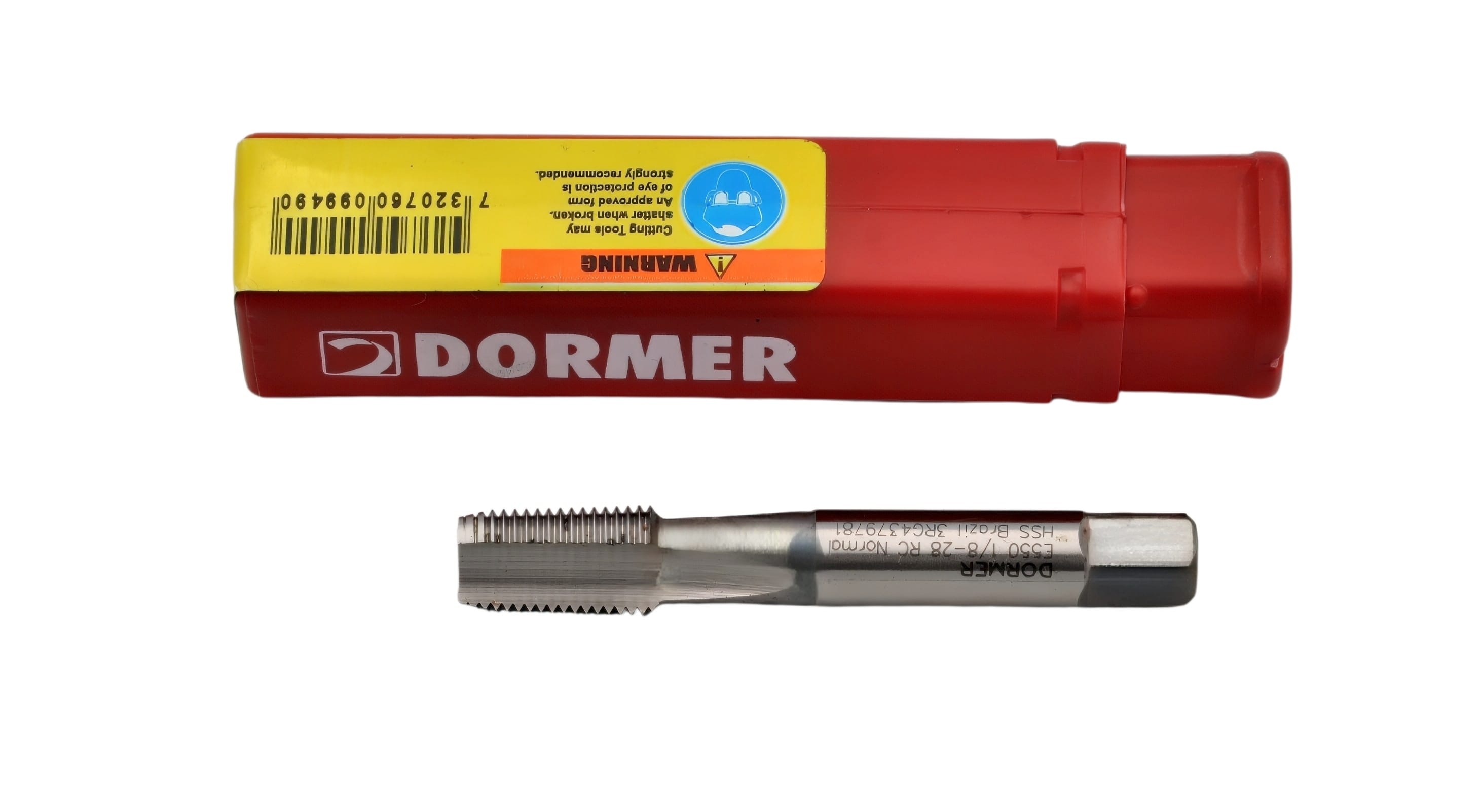

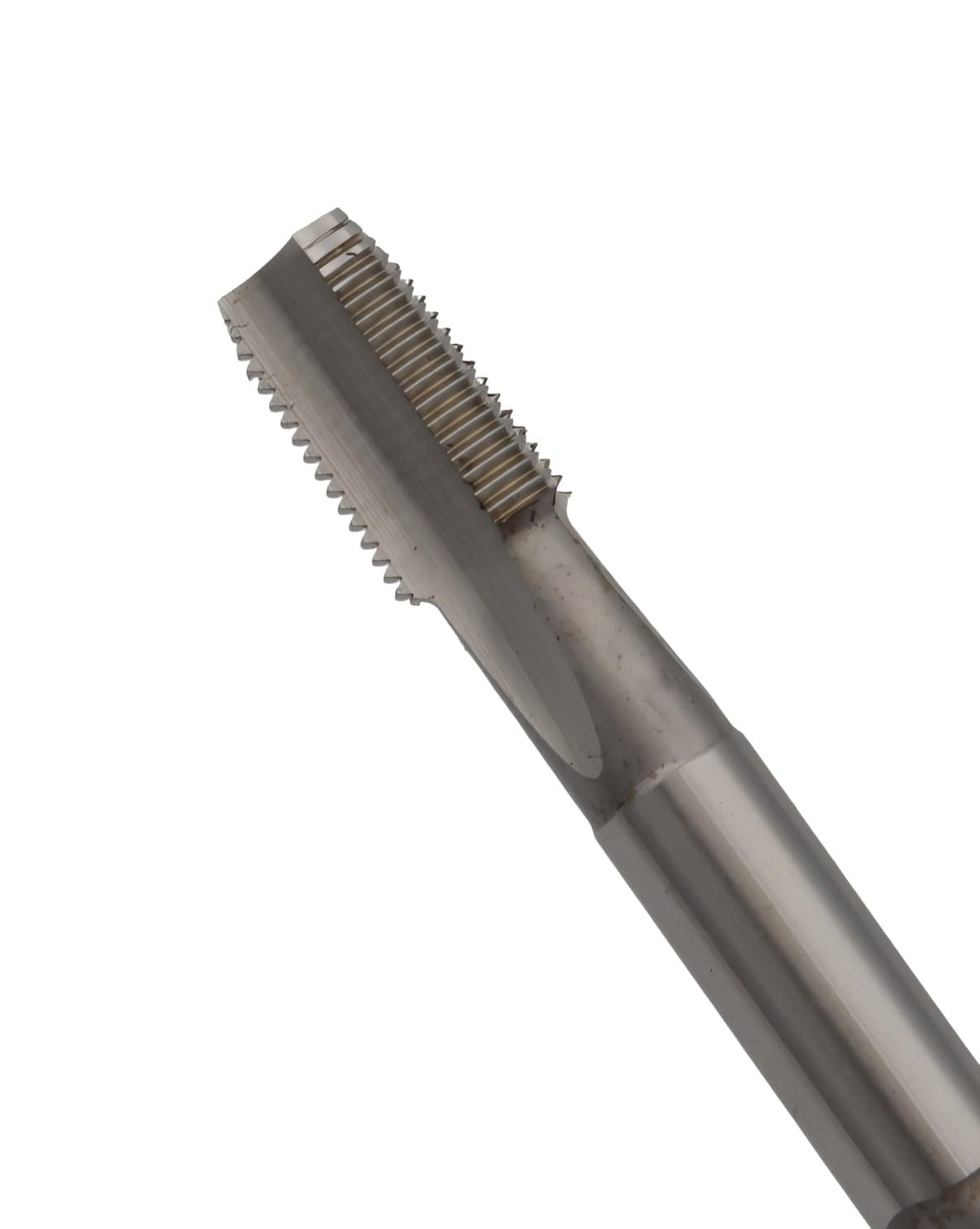

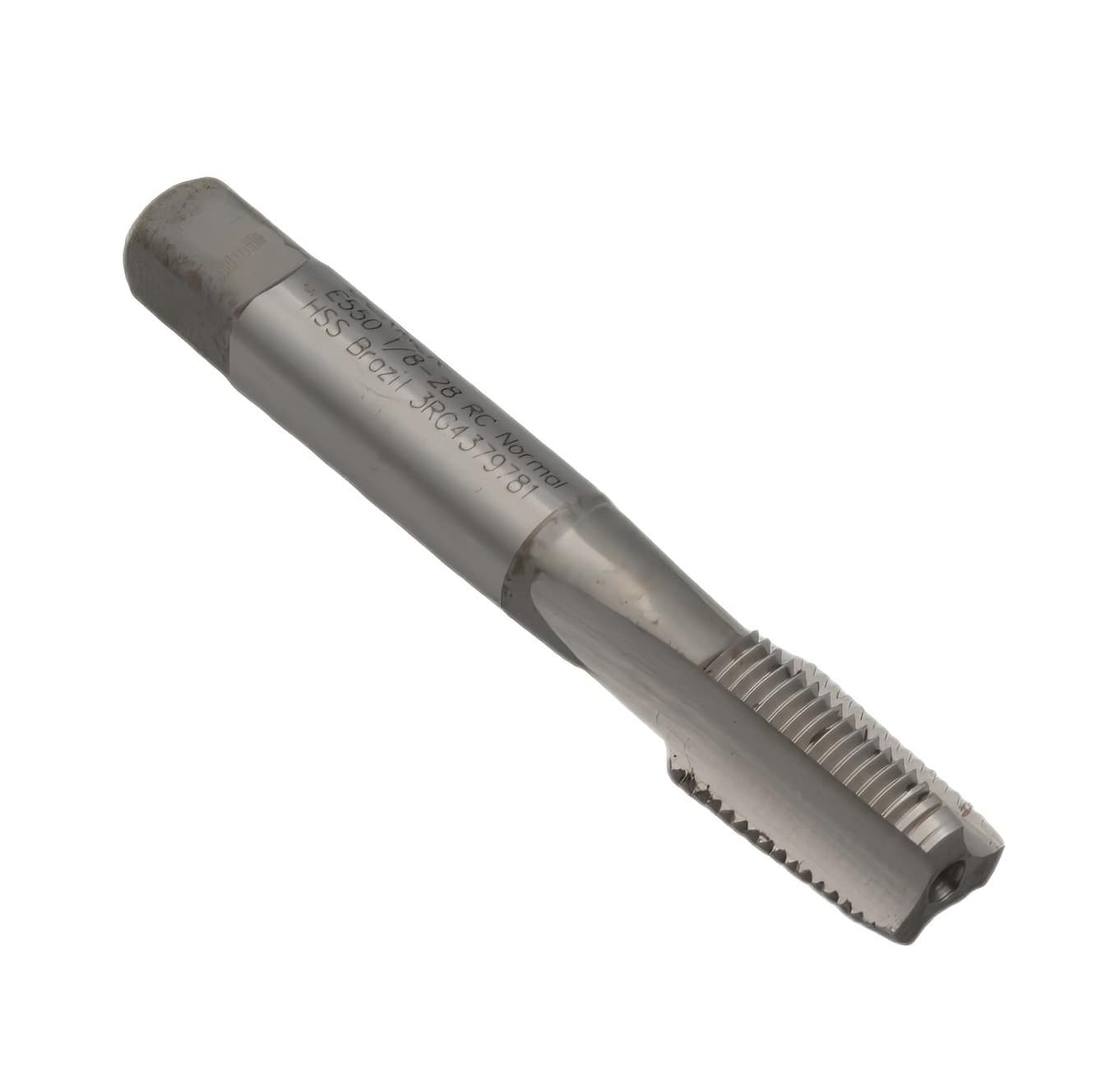

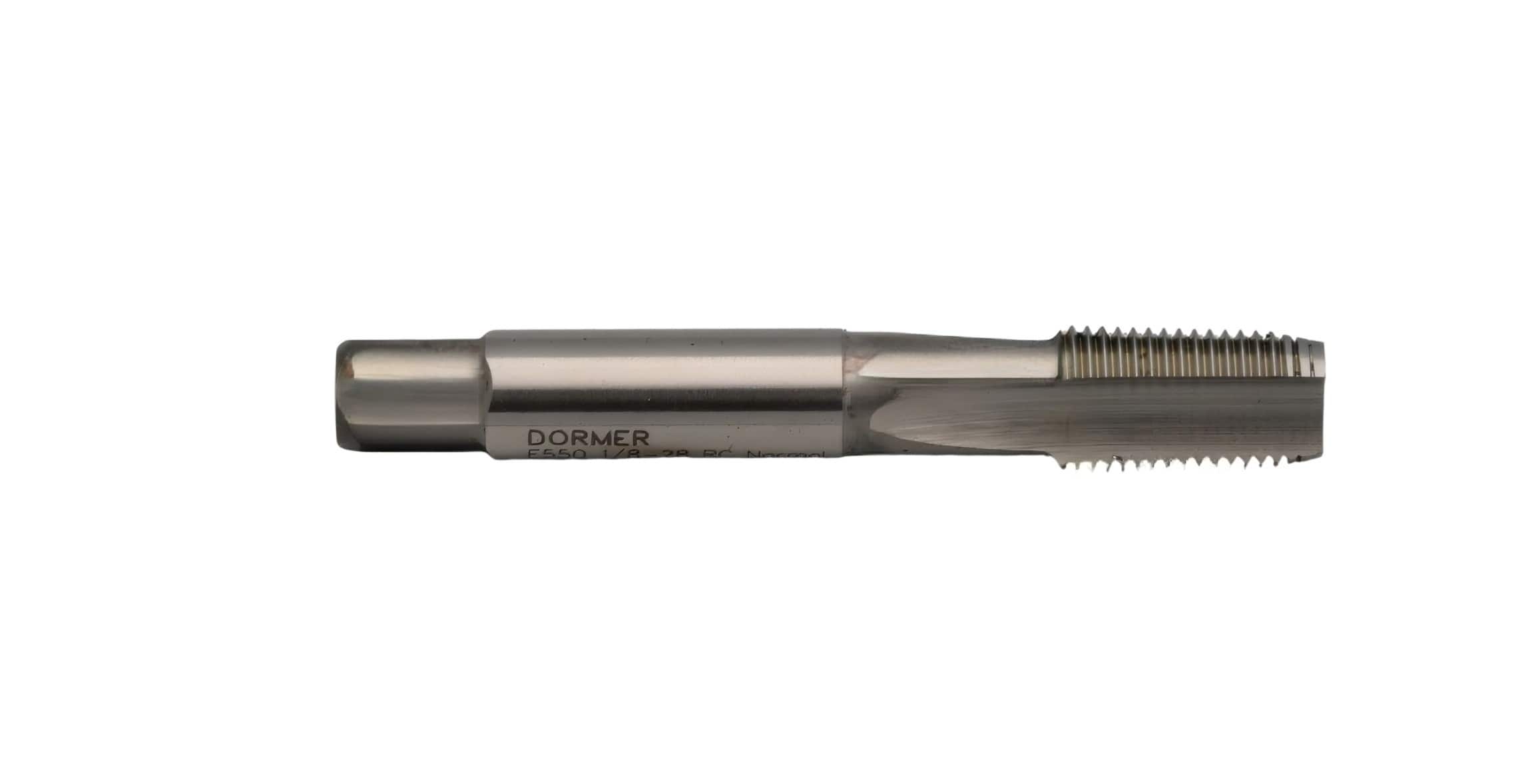

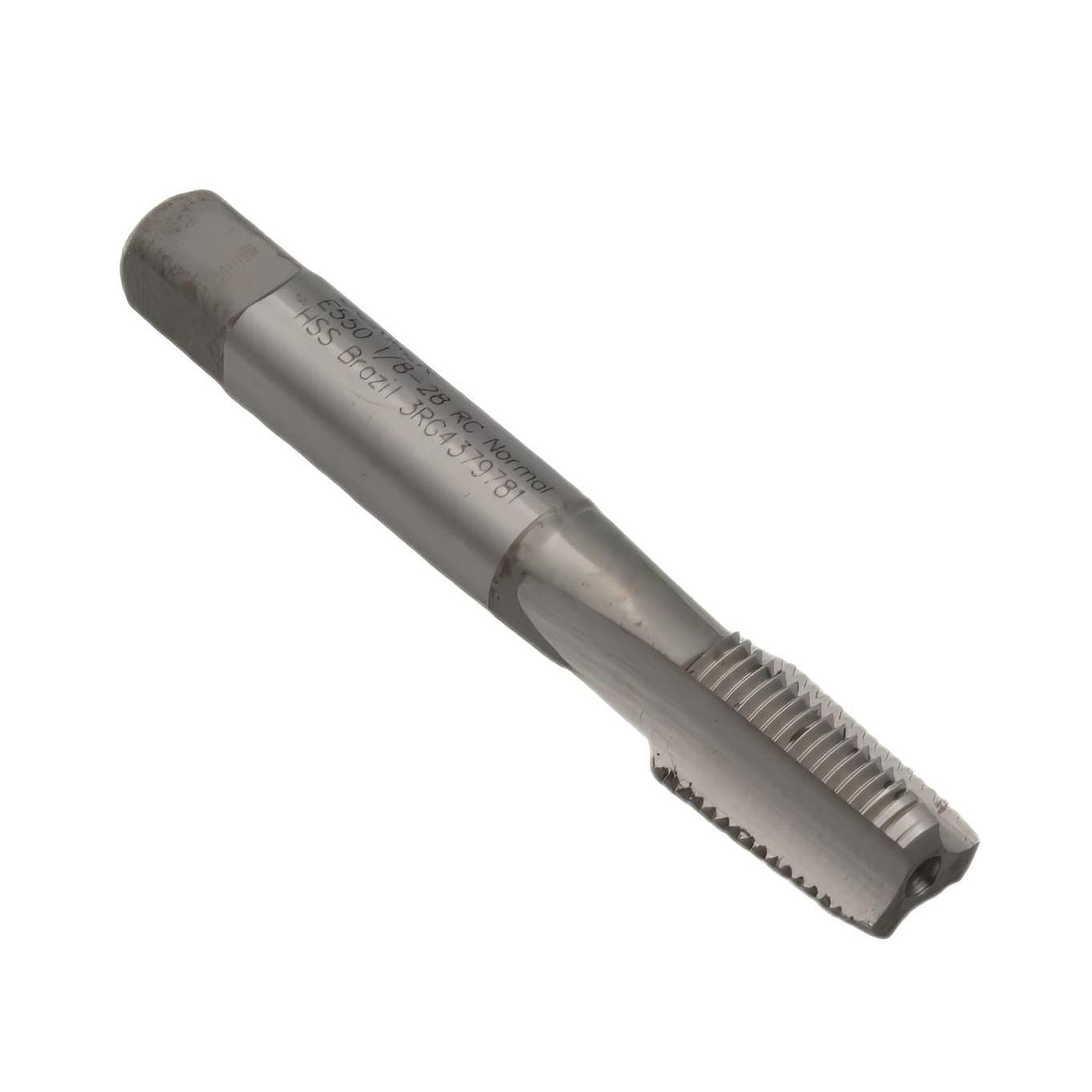

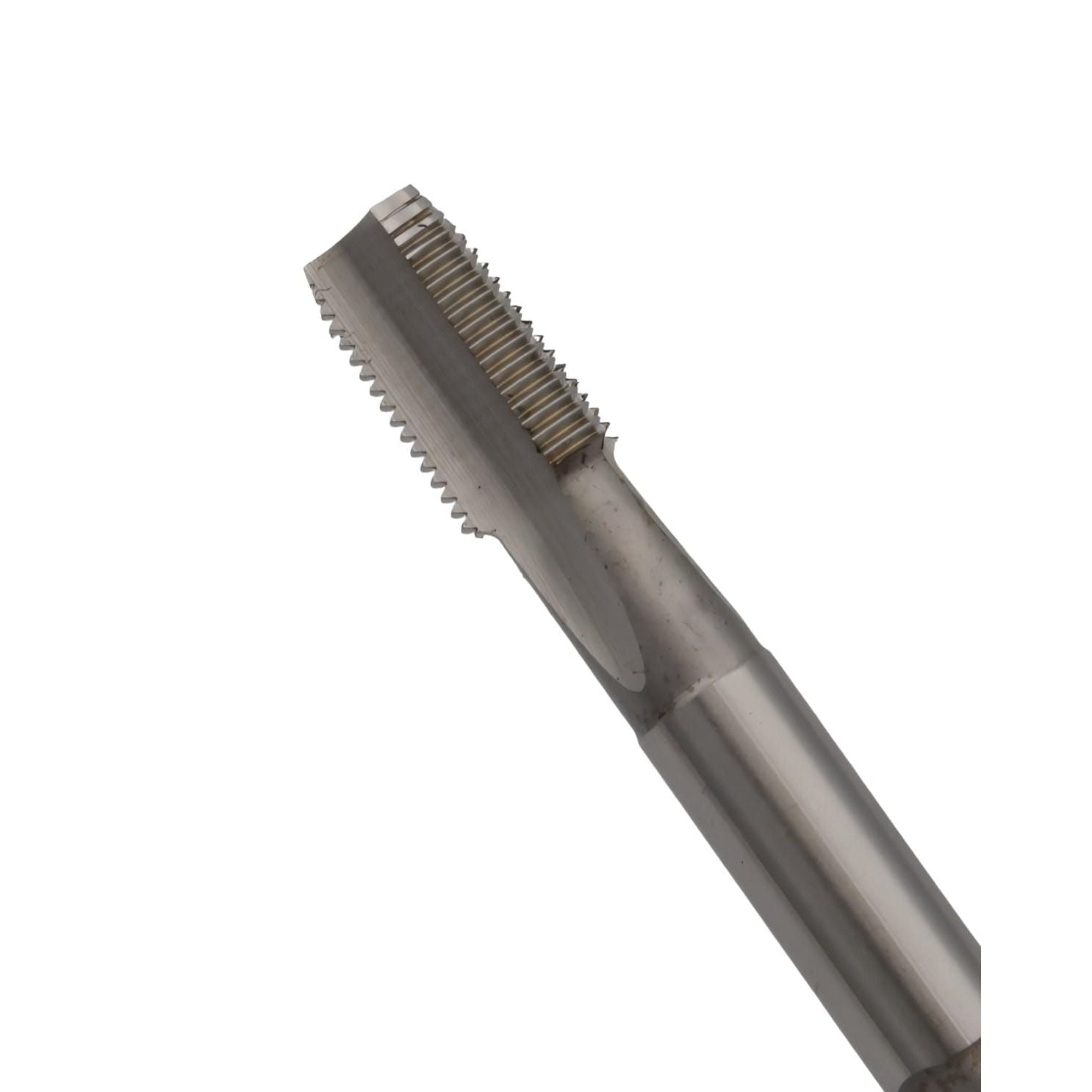

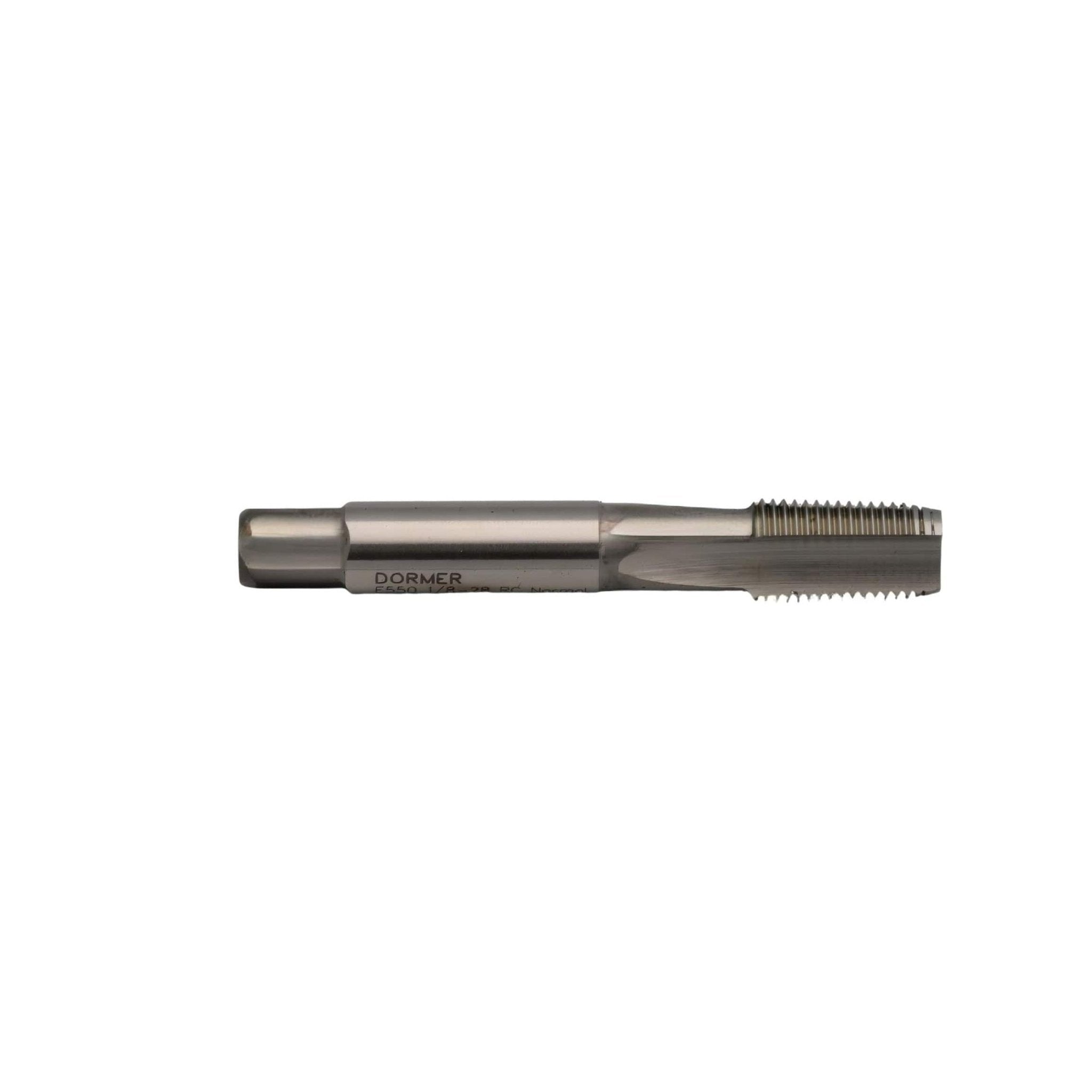

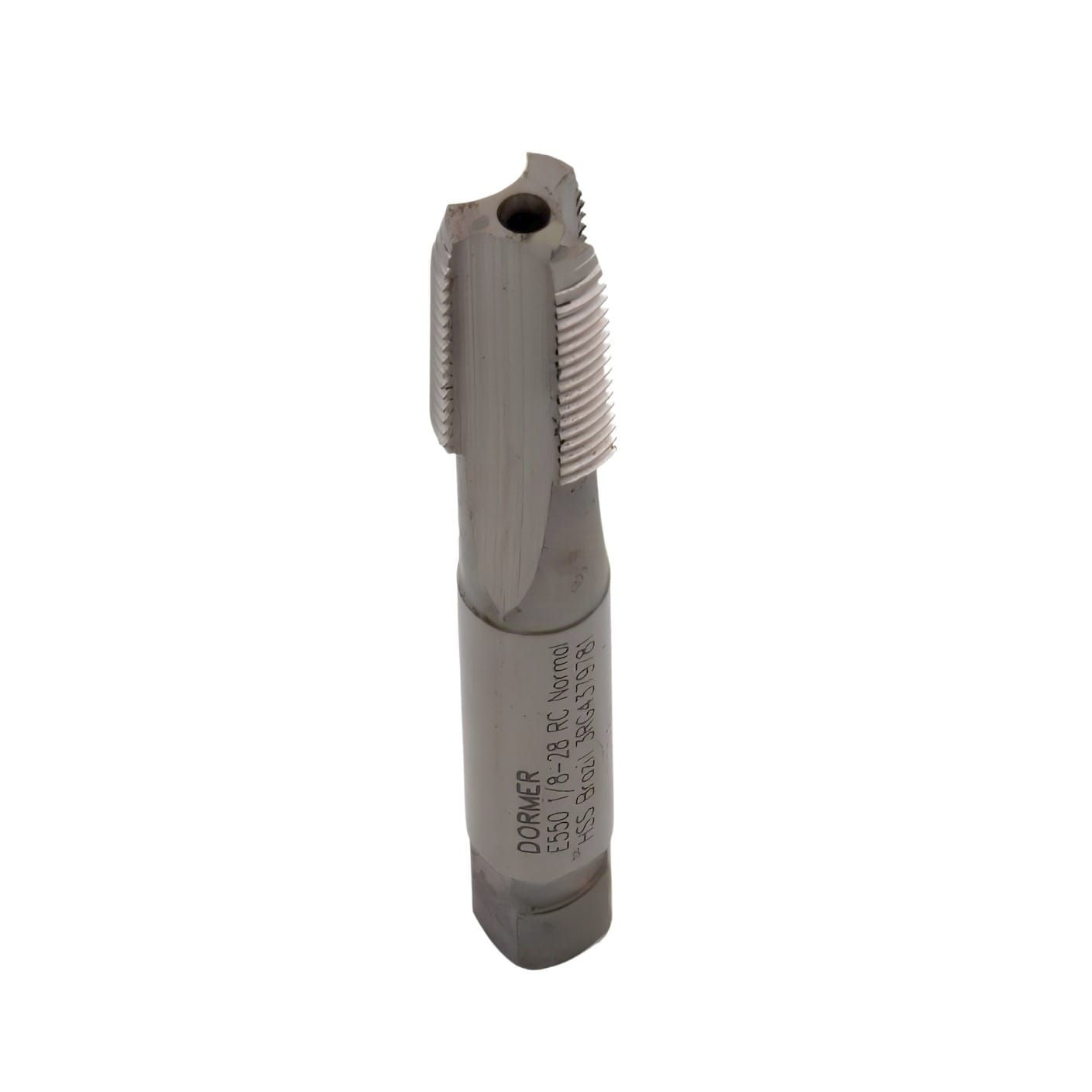

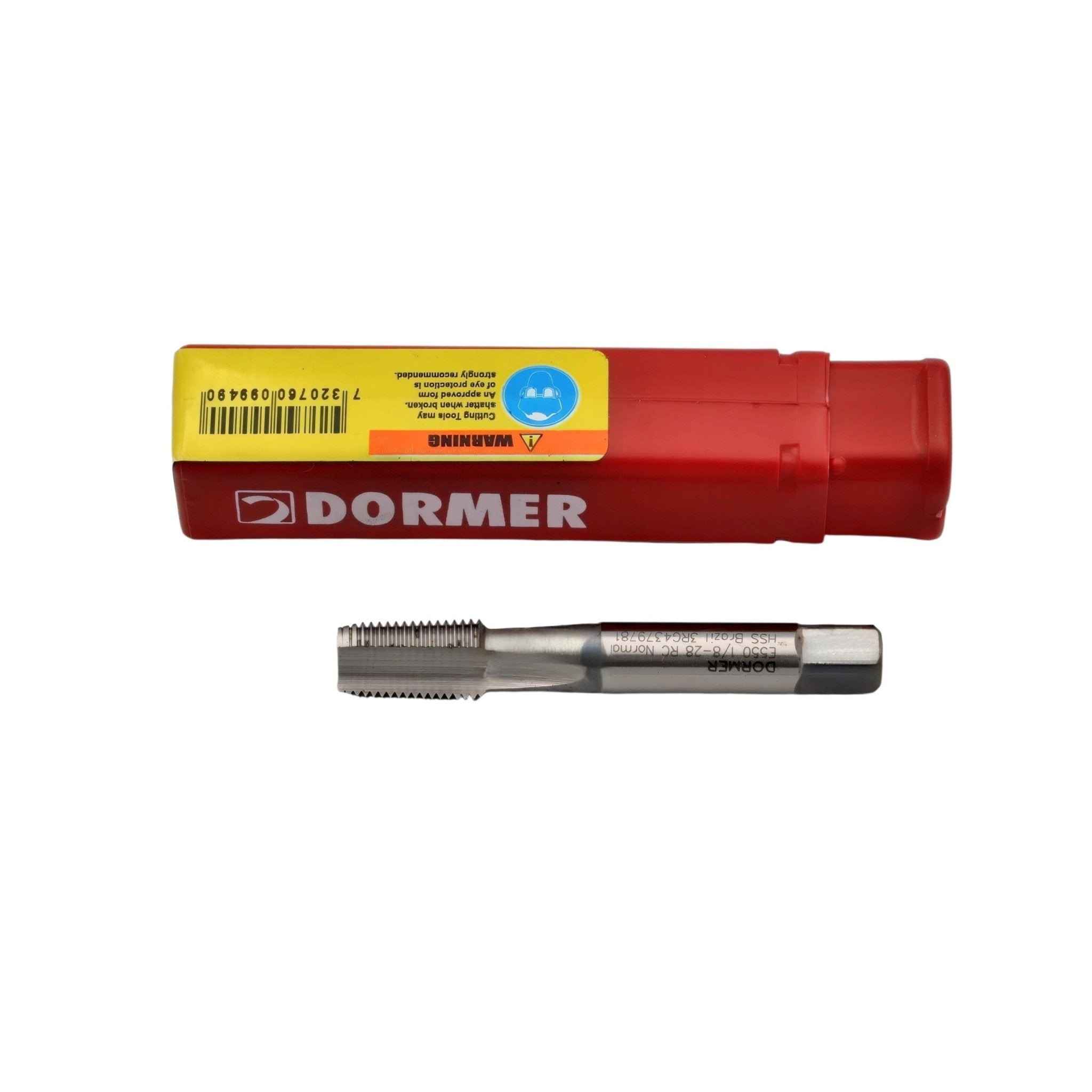

Dormer E5501/8 – 1/8" BSPT Rc HSS Straight Flute Hand Tap

The Dormer E5501/8 is a precision straight flute hand tap designed for producing Rc 1/8" British Standard Pipe Taper (BSPT) internal threads with 28 TPI. Featuring chamfer form C with...
$86.00
$0.00
$86.00
(-0%)
Vendor: DORMER
SKU: E5501/8
Availability: In Stock
Subtotal: $86.00
DORMER TAPS Dormer E5501/8 – 1/8" BSPT Rc HSS Straight Flute Hand Tap

Dormer E5501/8 – 1/8" BSPT Rc HSS Straight Flute Hand Tap

$0.00 $86.00

Dormer E5501/8 – 1/8" BSPT Rc HSS Straight Flute Hand Tap

$0.00 $86.00

The Dormer E5501/8 is a precision straight flute hand tap designed for producing Rc 1/8" British Standard Pipe Taper (BSPT) internal threads with 28 TPI. Featuring chamfer form C with a 2–3xP plug lead, it is suitable for both through hole and blind hole threading applications up to 1.5xD depth.

Manufactured from high-speed steel with a bright uncoated finish, this tap delivers reliable cutting performance in free machining steels, copper, and copper alloys. Produced to ISO 2284 standards, it provides accurate thread generation with a normal fit class for pipe thread applications.

Key Features & Benefits

  • Brand: Dormer Pramet
  • Product Code: E5501/8
  • Thread Type: BSPT Rc internal pipe thread
  • Thread Size: Rc 1/8" x 28 TPI
  • Chamfer Type: Form C semi-bottoming, 2–3 pitch lead
  • Flute Style: Straight flute geometry
  • Material: High Speed Steel (HSS)
  • Finish: Bright (uncoated)
  • Cutting Direction: Right-hand cutting
  • Application: Through or blind hole threading up to 1.5xD
  • Standard: ISO 2284 pipe tap standard
  • Fit Class: Normal pipe thread fit

Technical Specifications

  • Product Name: E5501/8
  • Ordering Code ANSI: E5501/8
  • EAN: 7320760099490
  • Thread Diameter Size: 1/8"
  • Thread Diameter: 9.728 mm
  • Threads Per Inch: 28 TPI
  • Threading Length: 15 mm
  • Overall Length: 59 mm
  • Shank Diameter: 8 mm
  • Square Drive: 6.3 mm
  • Clamping Length: 9 mm
  • Flute Count: 3
  • Premachined Hole Diameter: 8.4 mm
  • Usable Tool Depth: 1.5xD
  • Thread Form: British Standard Taper Pipe (BSPT), 1:16 taper
  • Net Weight: 24.2 g
  • Gross Weight: 24.2 g
  • Product ID: 86017115
  • EDP Number: 0099490
