Hepyc 16.0mm HSS-Co Reduced Shank Drill – DIN 338 MR, 12mm Shank

The Hepyc 16.0mm HSS-Co Reduced Shank Drill supports large-diameter drilling with a standard 12 mm chuck. Cobalt-alloyed HSS provides wear resistance and hot hardness, and the 135° split point improves self-centering to reduce walking.

To DIN 338 MR (short series) with a 30° right-hand helix, it offers smooth chip evacuation and stable cutting across steels, stainless steels, cast irons, and non-ferrous alloys.

Key Features & Benefits

  • HSS-Co substrate: Long tool life in demanding materials.
  • Reduced 12 mm shank: Drill 16 mm holes with common 12 mm chucks.
  • 135° split point: Clean starts and lower thrust forces.
  • 30° helix: Efficient chip control.
  • Versatile: Suitable for steel, stainless, cast iron, aluminum, copper alloys, plastics.
  • Standards-compliant: DIN 338 MR dimensions.

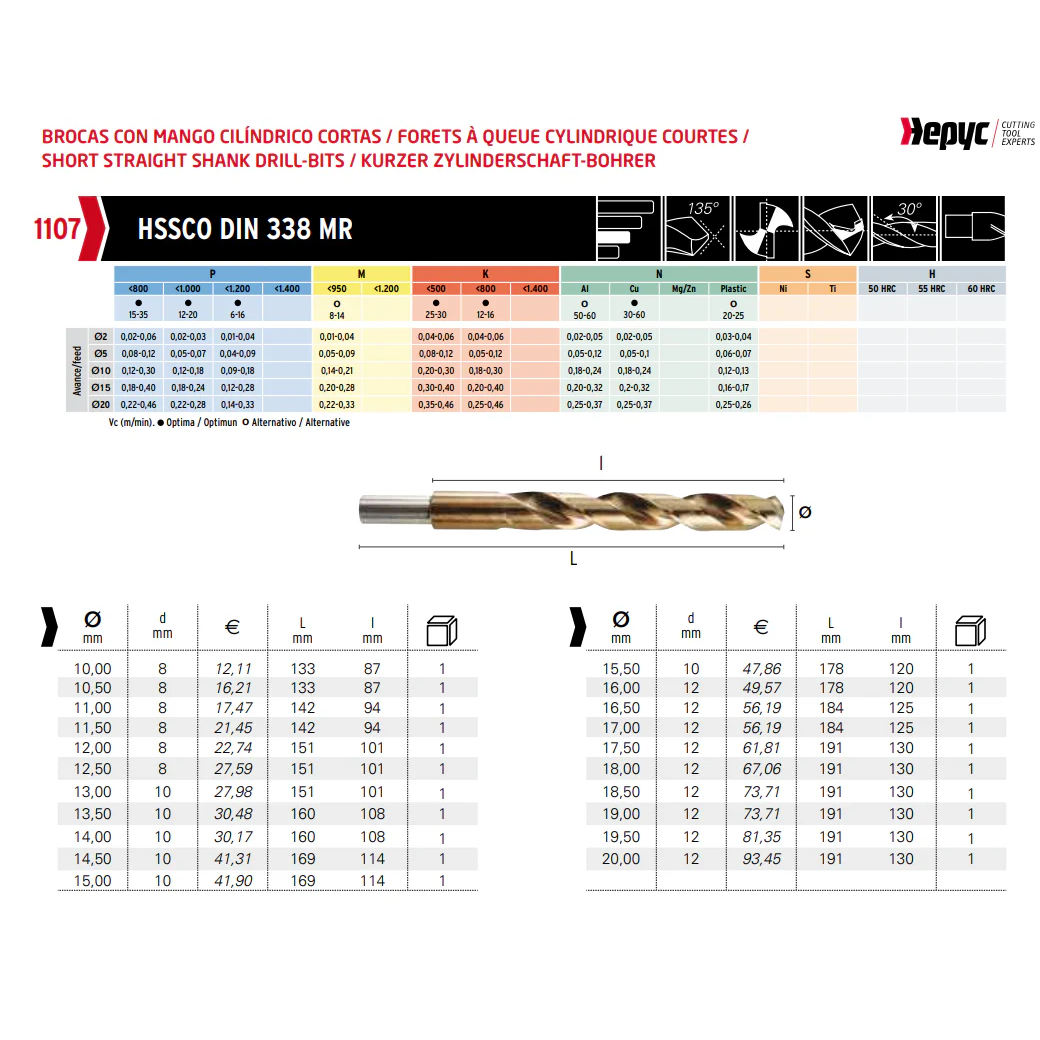

Technical Specifications

  • Cutting Diameter: 16.0 mm
  • Shank Diameter: 12.0 mm (reduced)
  • Standard: DIN 338 MR
  • Point Angle: 135°
  • Helix Angle: 30° right-hand
  • Flute Length (l): 120 mm
  • Overall Length (L): 178 mm
  • Material: HSS-Co
  • Part No.: 11070001600

Hepyc cutting tools are manufactured in Spain and deliver excellent performance and value.

Disclaimer: This drill may also be available under alternative brand names such as Somta or Capital Cutting Tools. The product remains identical in terms of quality and performance, with only branding and packaging variations.

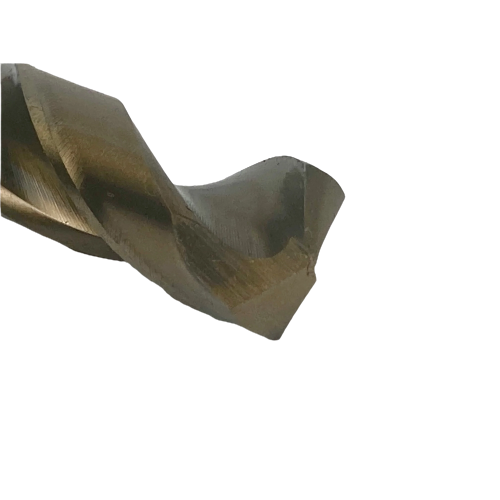

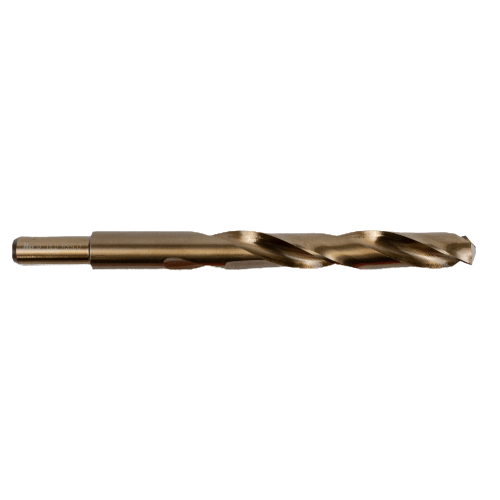

Note: Images shown may depict a similar-size reduced-shank drill and are provided for guidance only.

The reduced-shank design enables larger diameters using a standard 12 mm chuck for quick, reliable setup.
