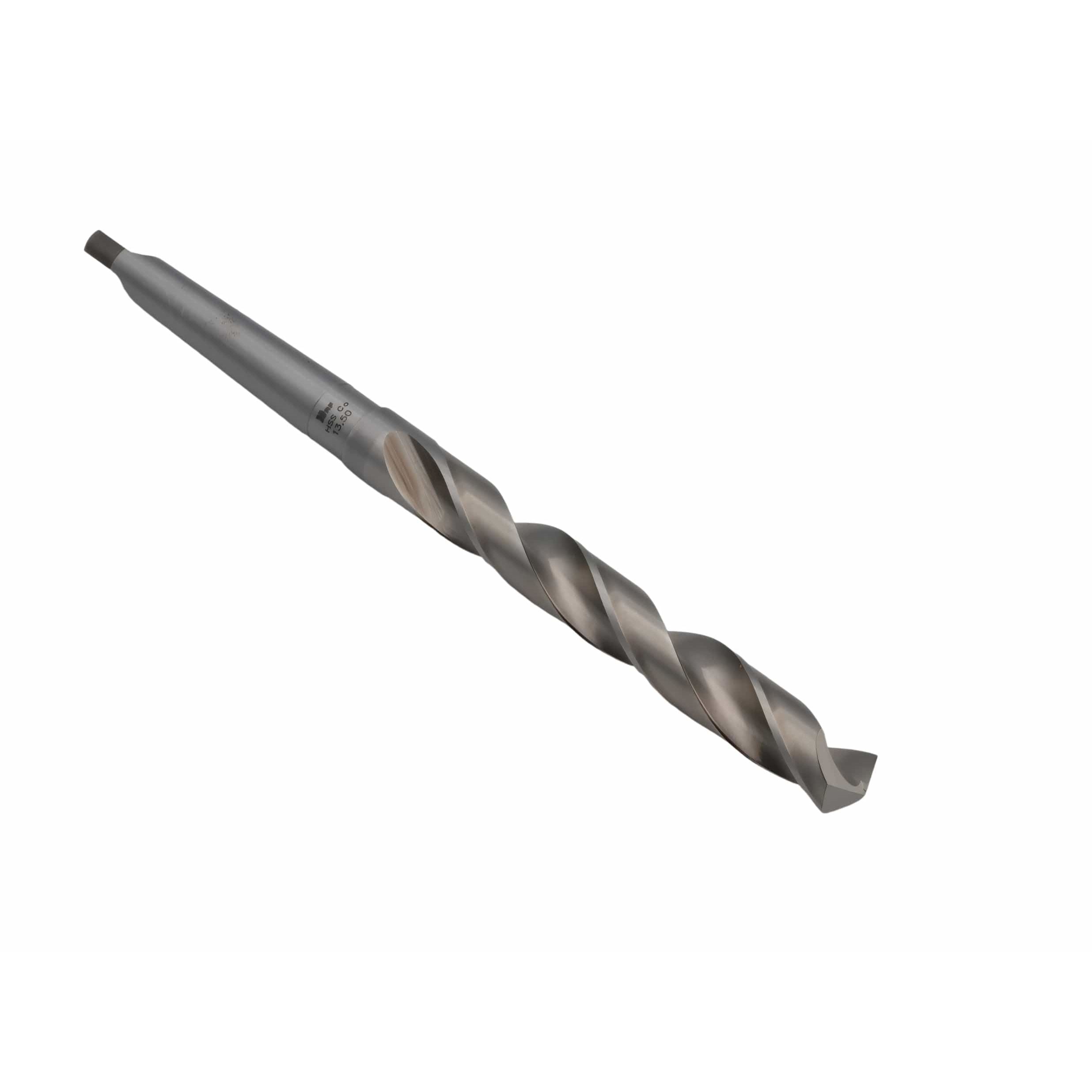

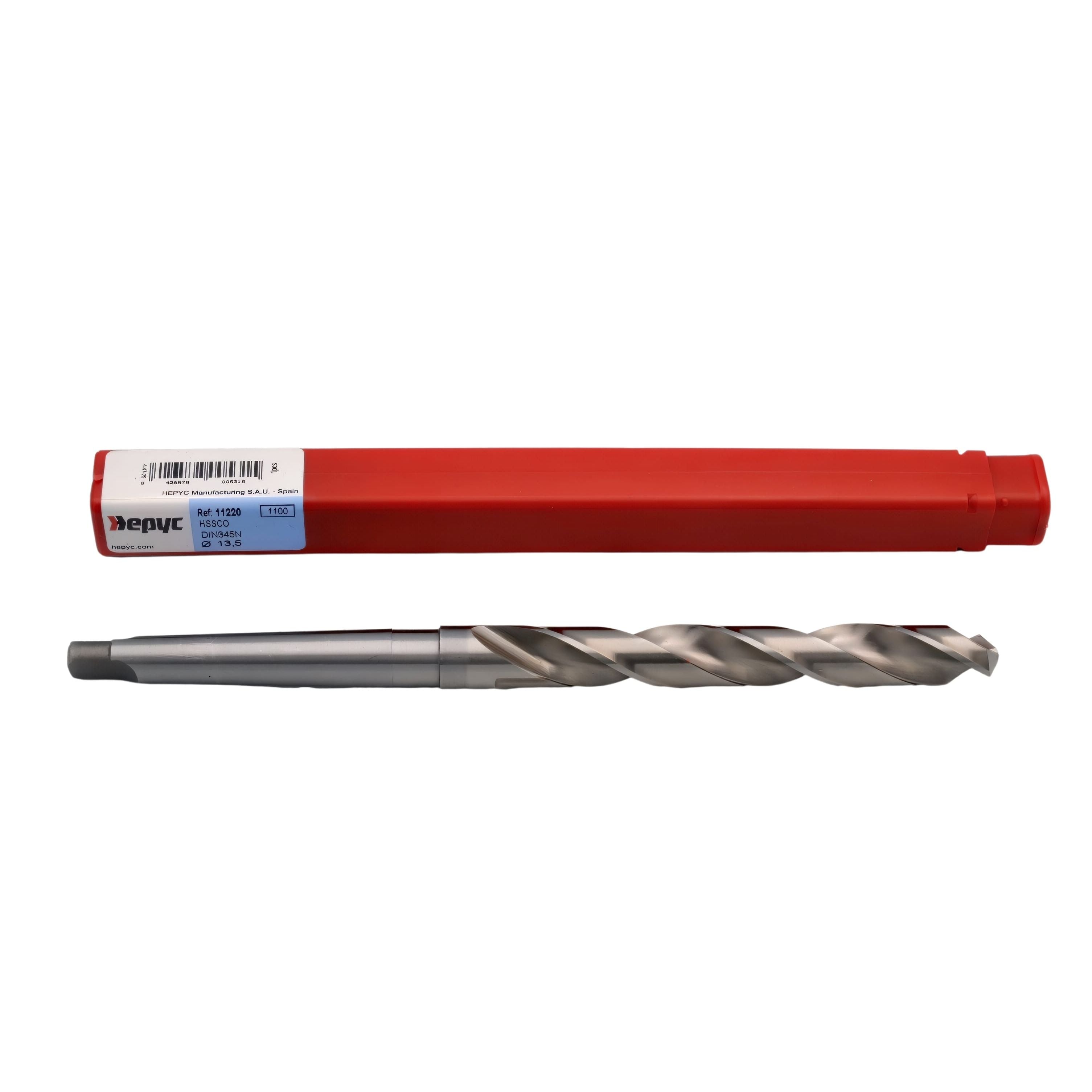

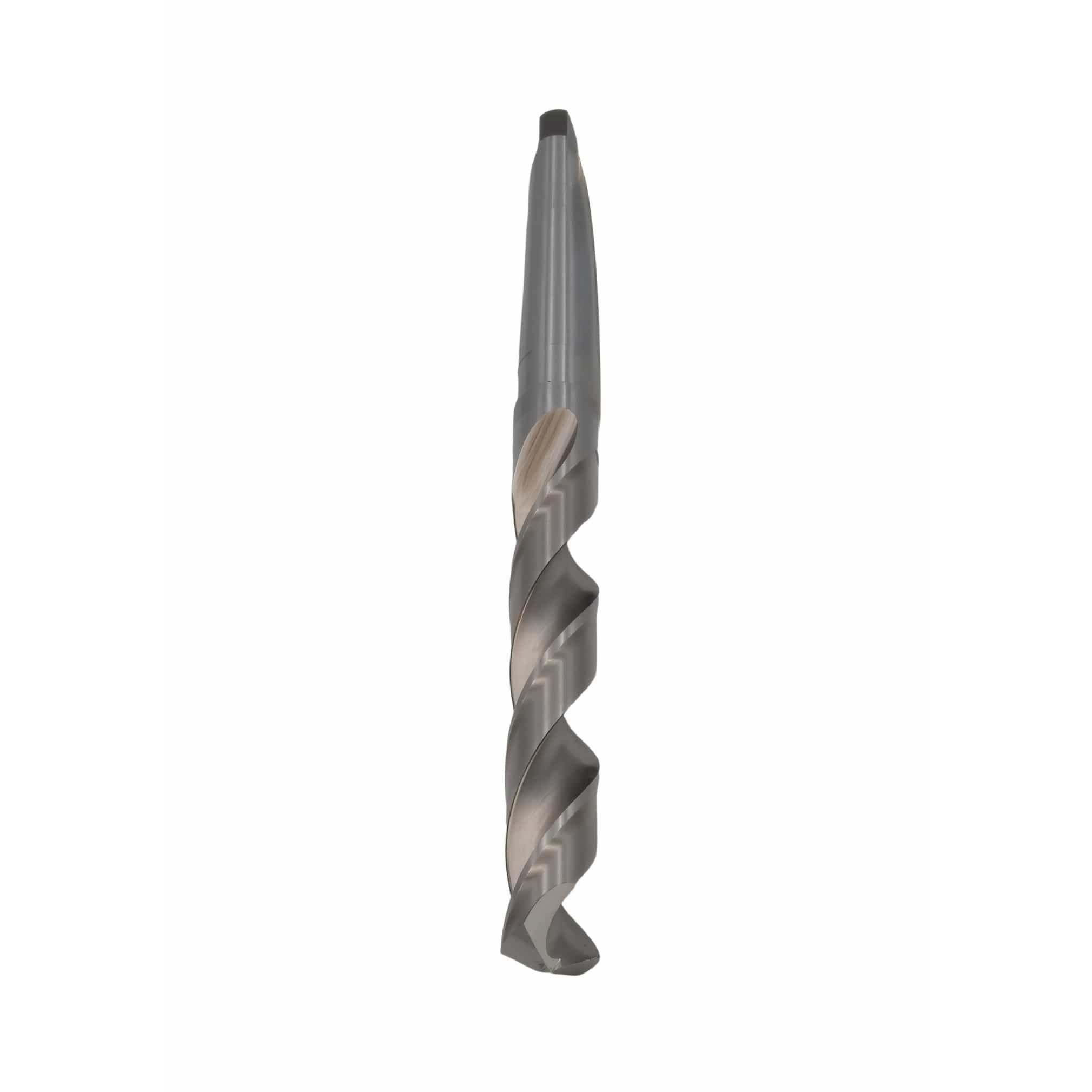

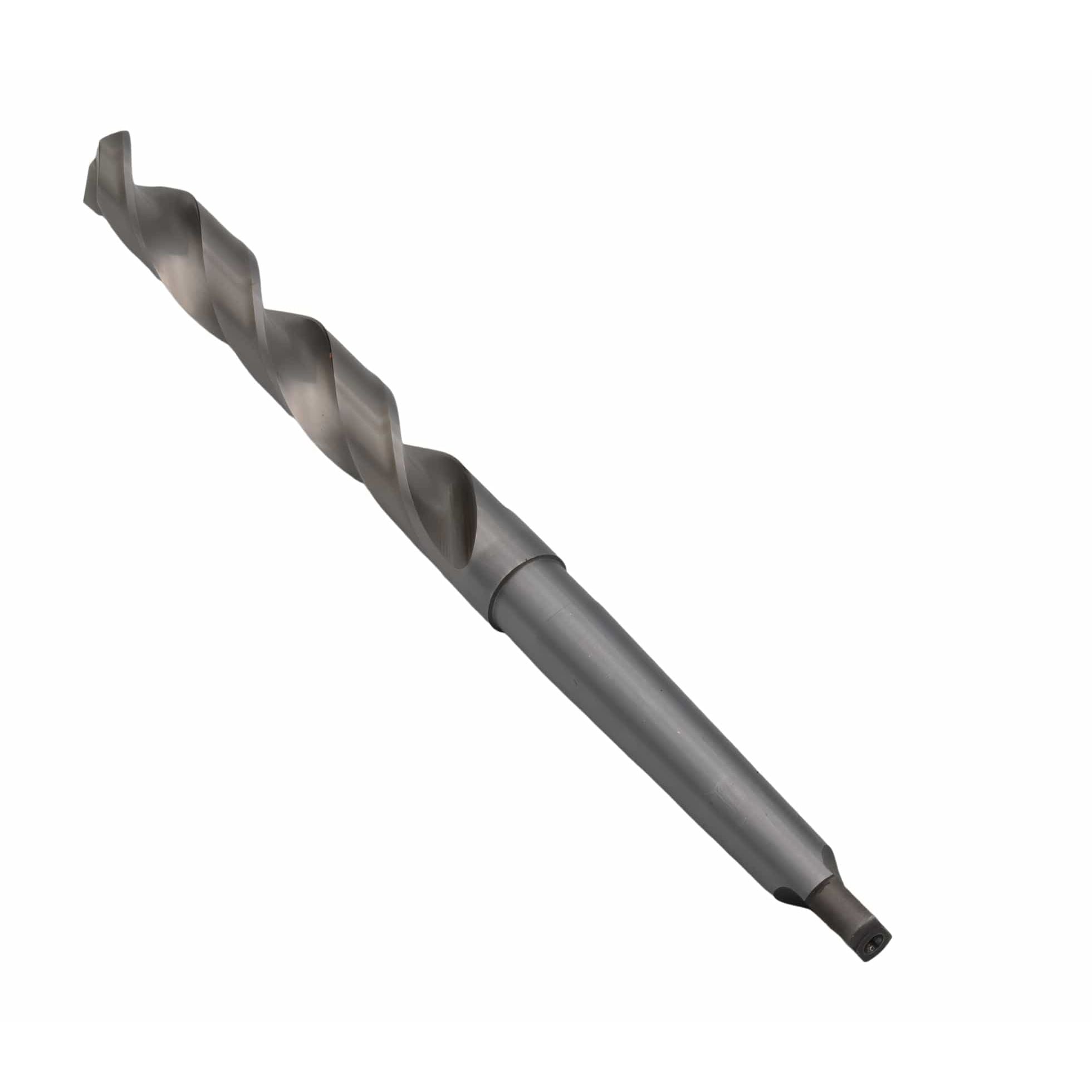

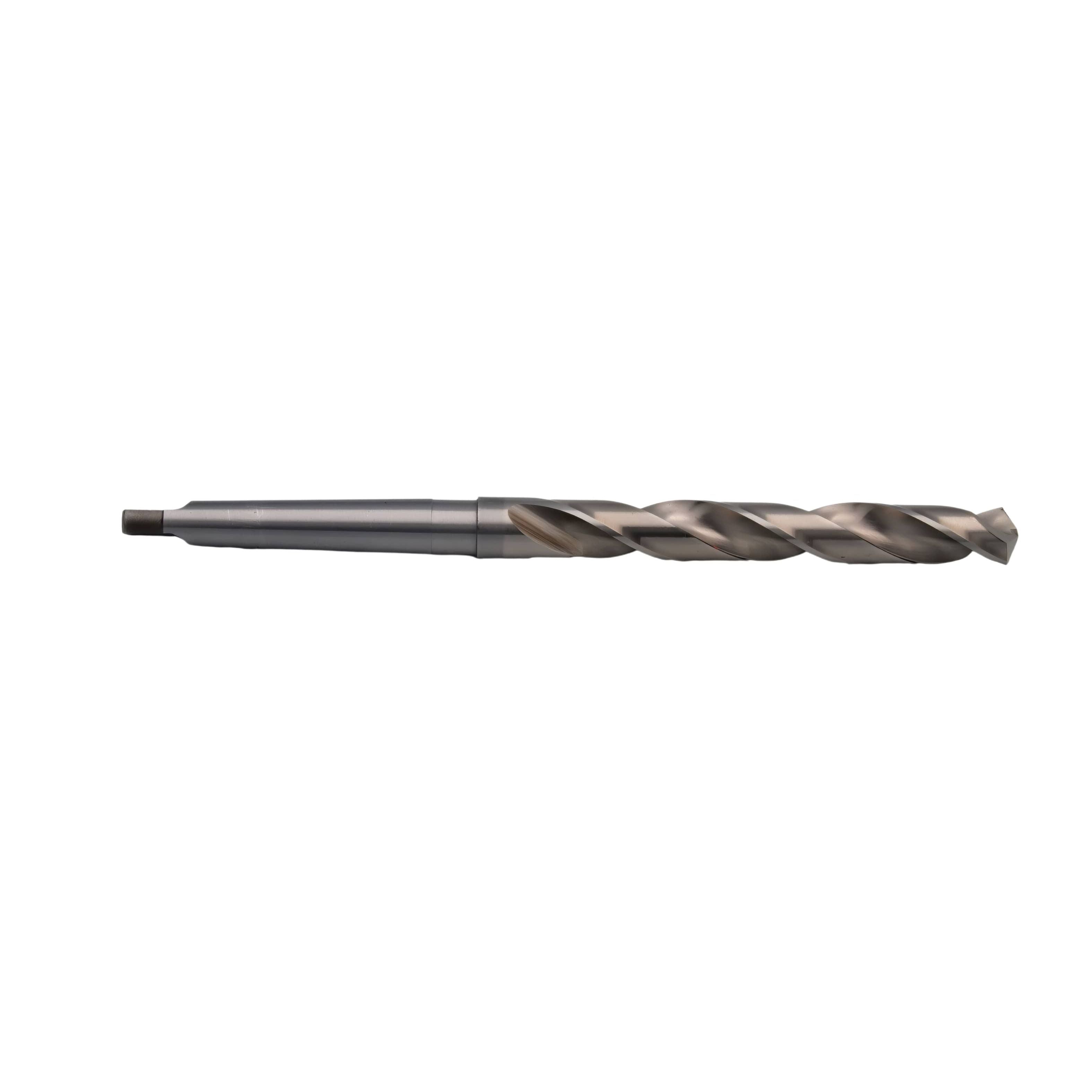

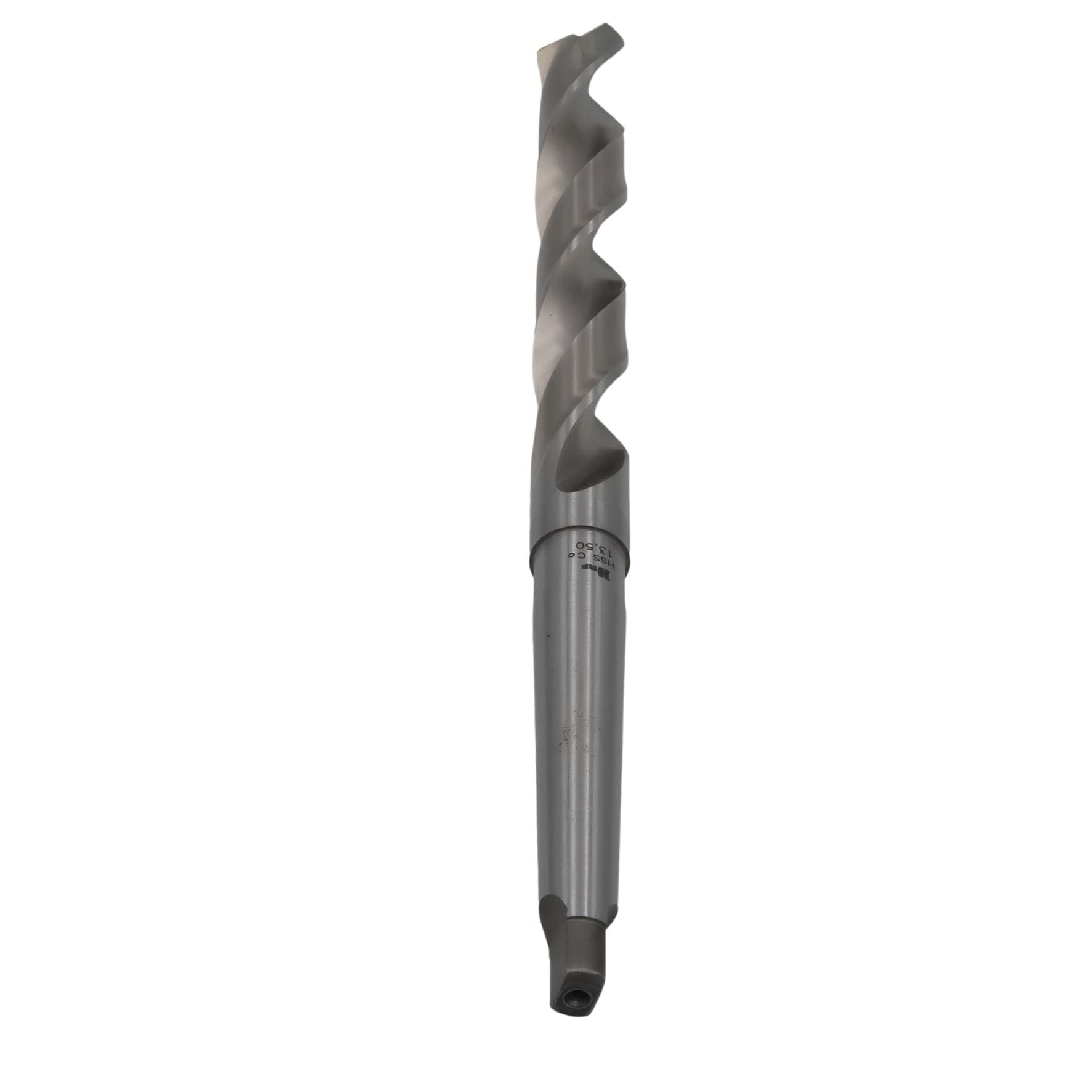

Hepyc HSSCo Taper Shank Drill Bit 13.5mm DIN345N CM1

High-performance cobalt HSSCo taper shank drill bit manufactured to DIN345N standards for precision drilling in tougher steels and demanding machining applications. Designed for industrial use, this drill provides excellent wear...
$189.00
$0.00
$189.00
(-0%)
Vendor: HEPYC
SKU: 11220001350
Availability: In Stock
Subtotal: $189.00
HEPYC DRILLS Hepyc HSSCo Taper Shank Drill Bit 13.5mm DIN345N CM1

Hepyc HSSCo Taper Shank Drill Bit 13.5mm DIN345N CM1

$0.00 $189.00

Hepyc HSSCo Taper Shank Drill Bit 13.5mm DIN345N CM1

$0.00 $189.00

High-performance cobalt HSSCo taper shank drill bit manufactured to DIN345N standards for precision drilling in tougher steels and demanding machining applications. Designed for industrial use, this drill provides excellent wear resistance, heat resistance, and long service life when working with alloy steels and high-strength materials.

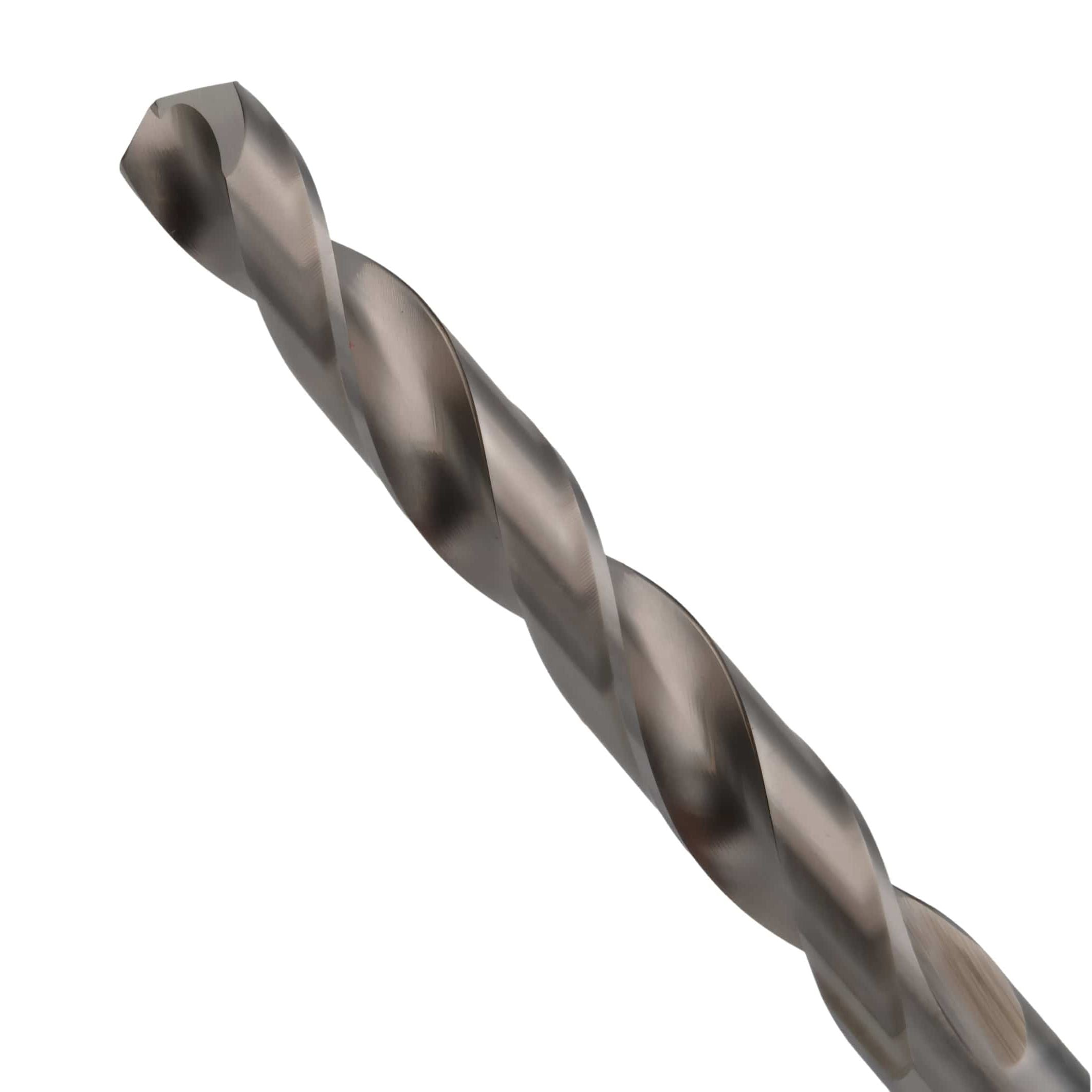

Featuring a 135° split point for improved centering and reduced walking, along with a 30° helix for efficient chip evacuation, this drill bit delivers smooth and accurate drilling performance. The Morse taper CM1 shank ensures secure machine fitment and reliable torque transfer in heavy-duty drilling operations.

Key Features & Benefits

  • Cobalt high-speed steel (HSSCo) construction
  • DIN345N taper shank drill design
  • 135° split point for precise starting and reduced wandering
  • 30° helix for smooth chip evacuation
  • Morse taper CM1 shank for secure holding
  • Suitable for alloy steels and higher tensile materials up to 1,100 N/mm²

Technical Specifications

  • Reference: 11220001350
  • Drill Diameter: 13.5mm
  • Overall Length (L): 189mm
  • Flute Length (l): 108mm
  • Shank Type: Morse Taper CM1
  • Standard: DIN345N
  • Material: Cobalt High Speed Steel (HSSCo)
  • Point Angle: 135° Split Point
  • Helix Angle: 30°

Hepyc industrial cutting tools are manufactured for precision, durability, and reliable machining performance, making them ideal for professional engineering, fabrication, and metalworking applications.
