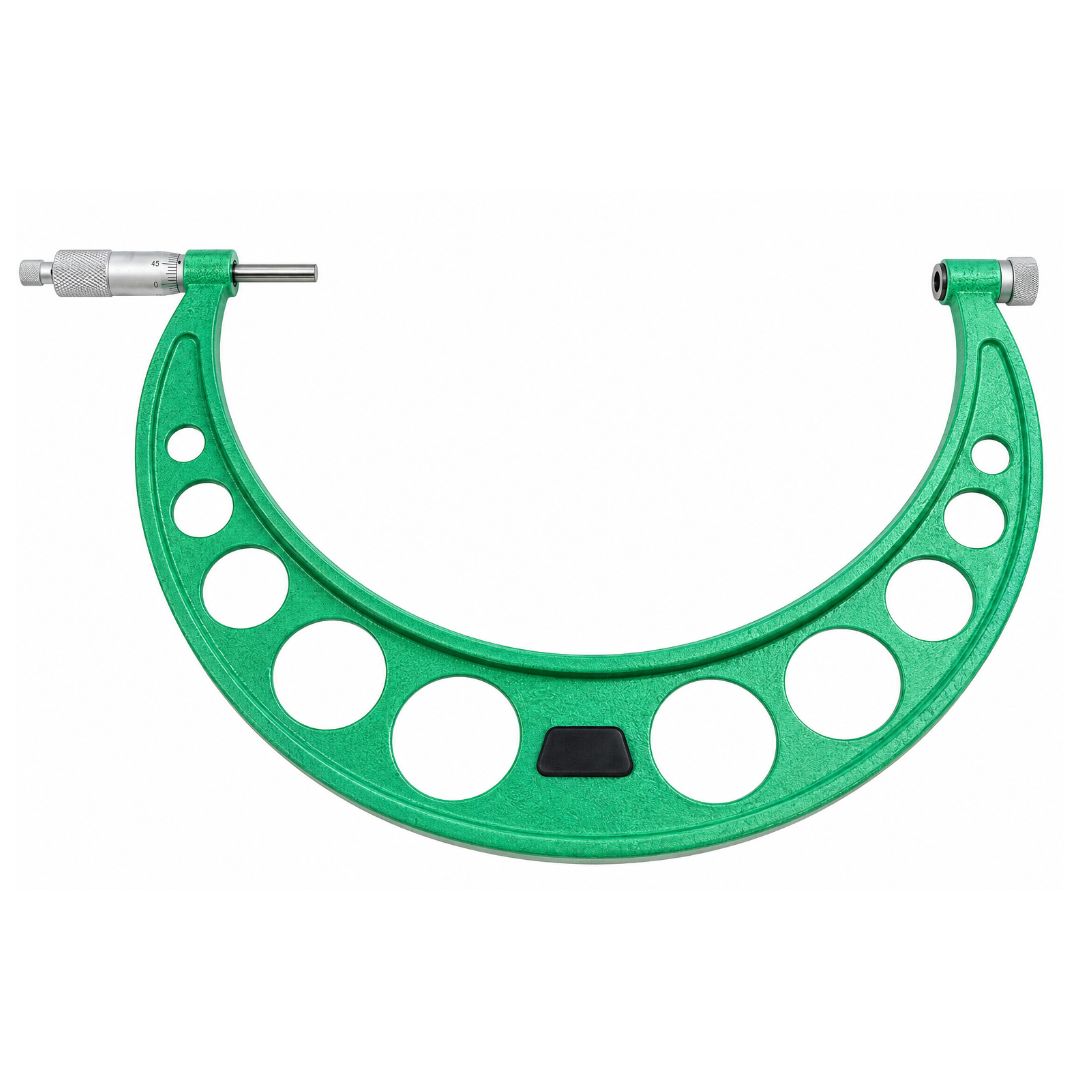

Insize 24–28" Outside Micrometer

The Insize 24–28" Outside Micrometer is designed for accurate external measurement of large components in heavy machining, fabrication, and inspection applications. Built with a rigid frame and an interchangeable anvil system, it provides dependable precision, excellent stability, and repeatable results when measuring oversized workpieces.

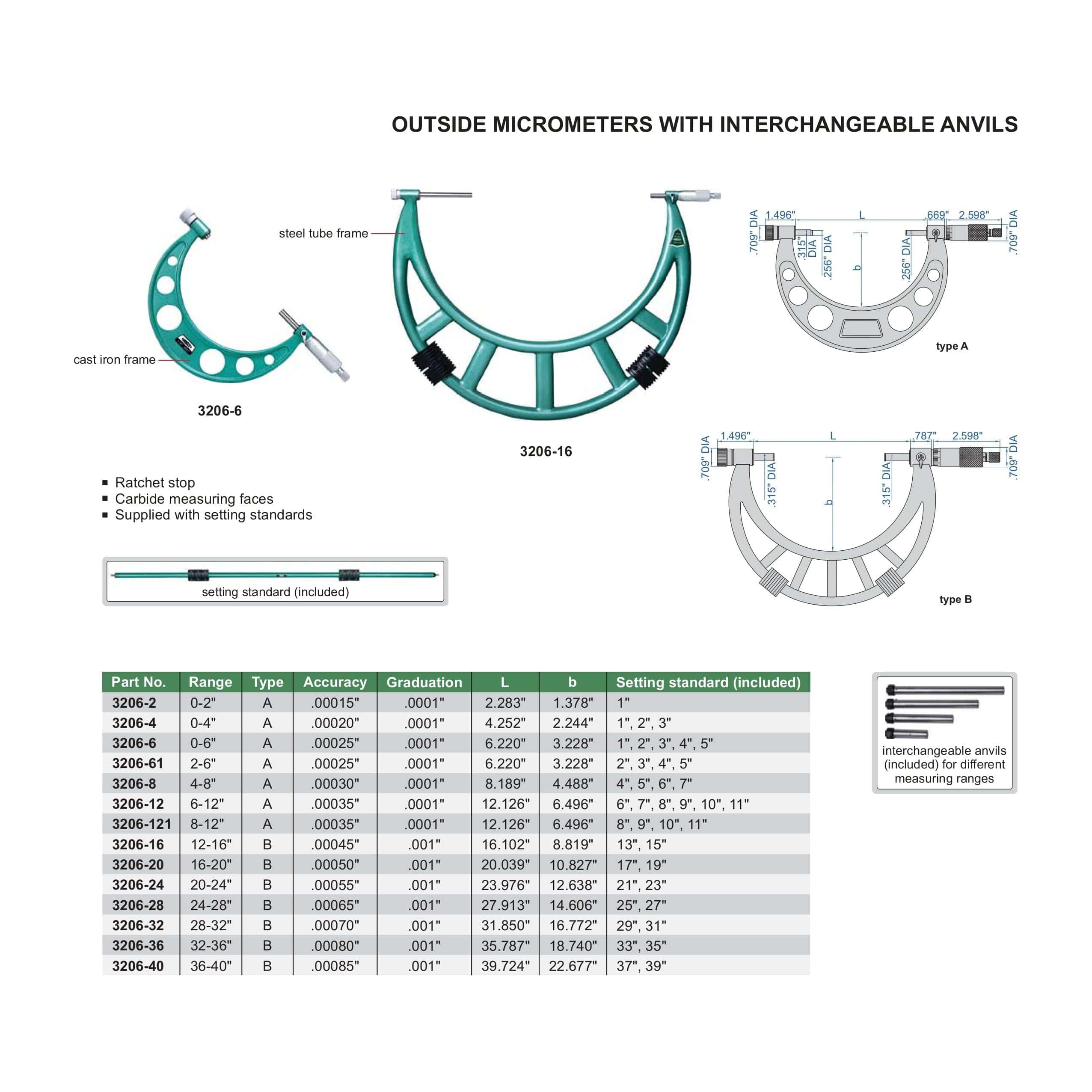

Specifications :

  • Part No.: 3206-28
  • Measuring range: 24–28"
  • Graduation: 0.001"
  • Accuracy: ±0.00065"
  • Type: B
  • Overall length (L): 27.913"
  • Frame depth (B): 14.606"
  • Interchangeable anvil system for multiple measuring ranges
  • Setting standards included: 25", 27"

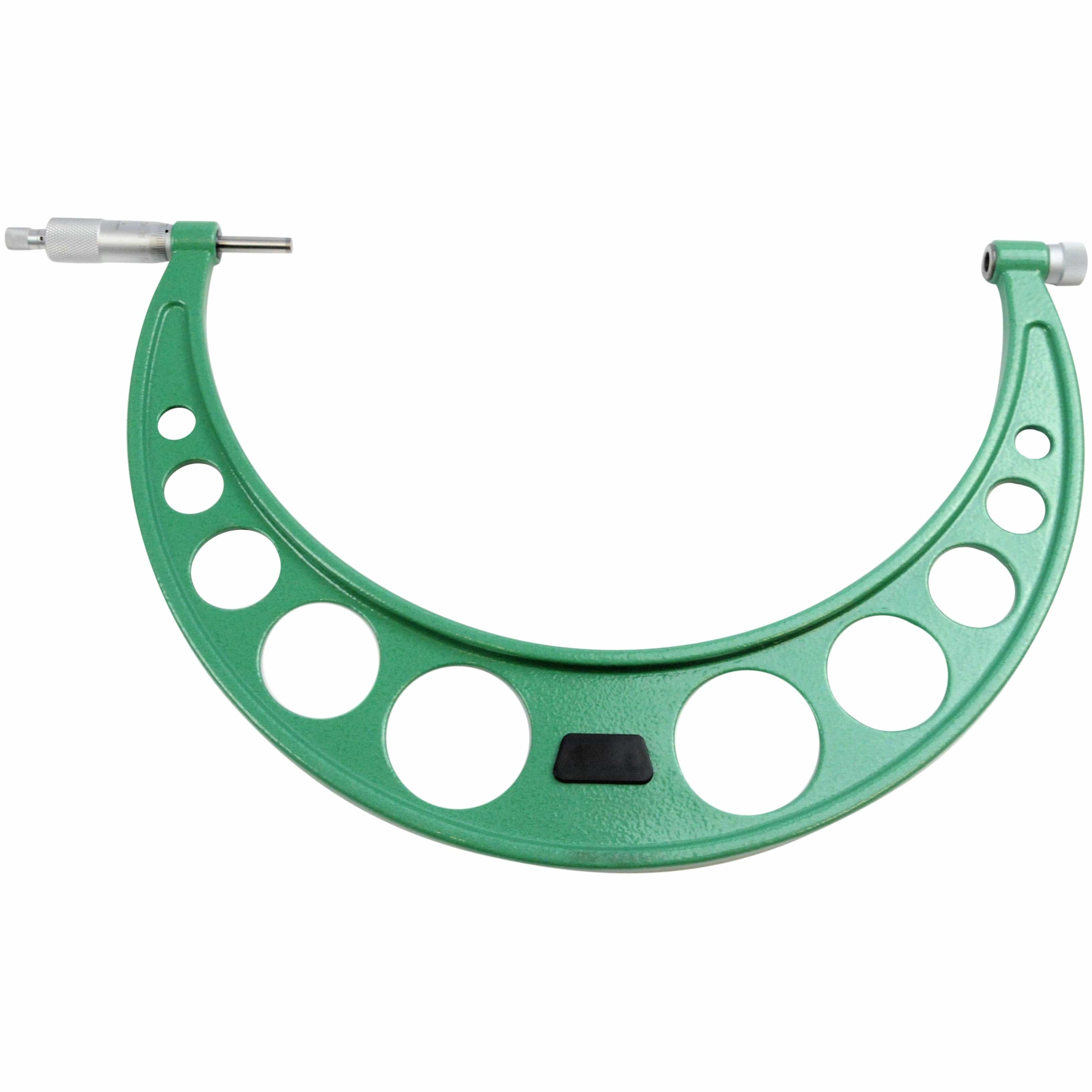

  • Cast iron frame combined with steel tube construction for maximum rigidity and reduced deflection
  • Carbide measuring faces for high wear resistance and long service life

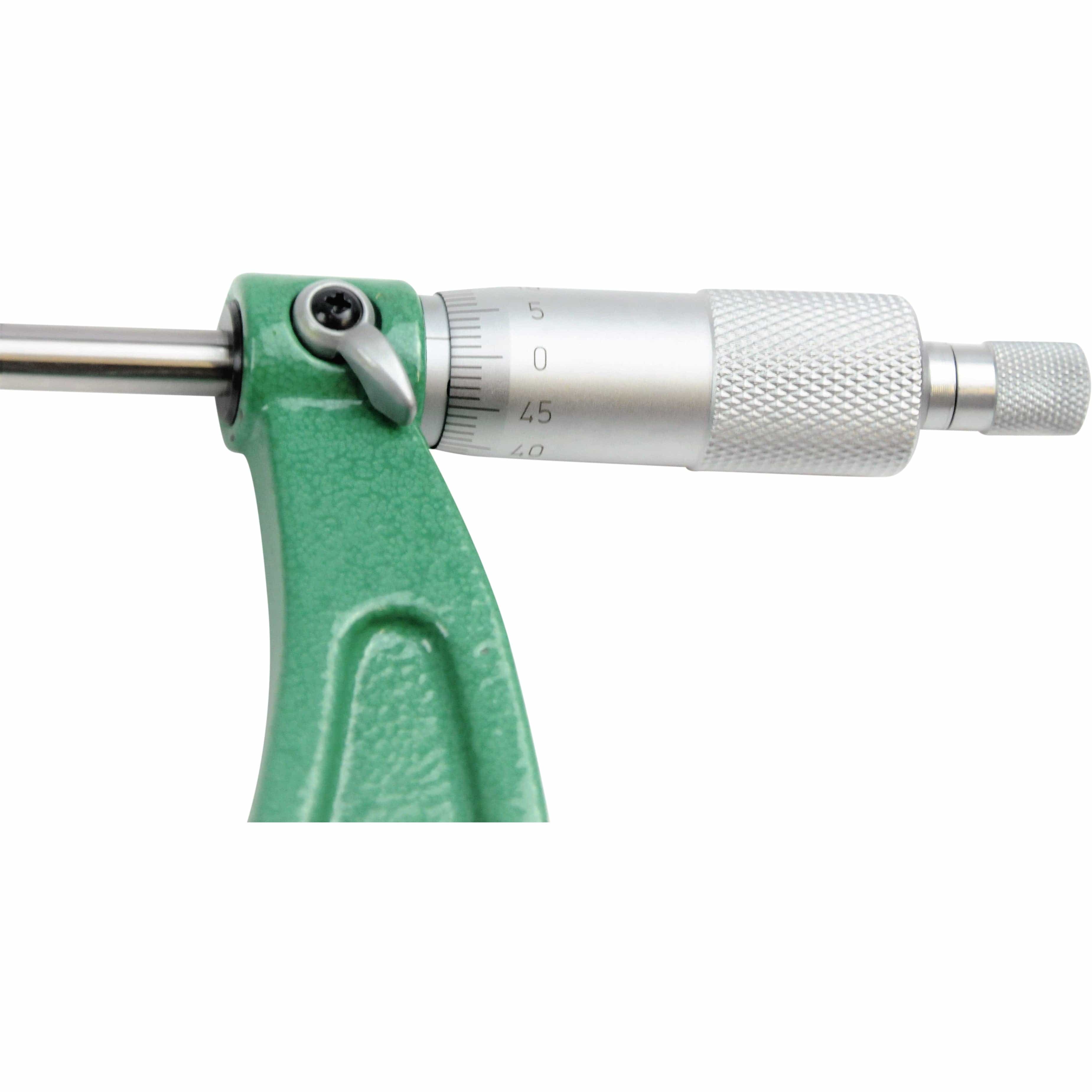

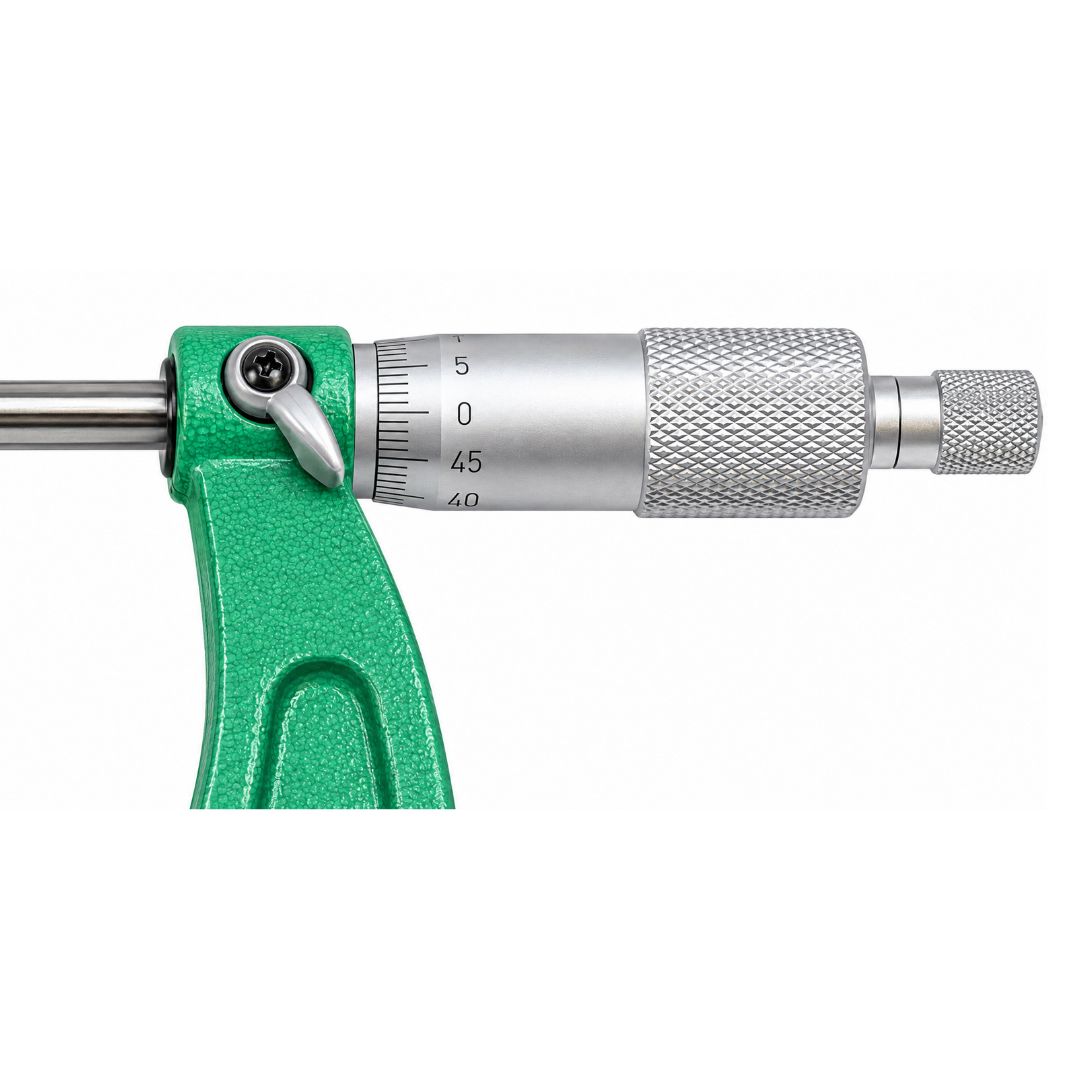

  • Ratchet stop to ensure consistent measuring pressure and reliable repeatability
  • Supplied with setting standards for accurate calibration

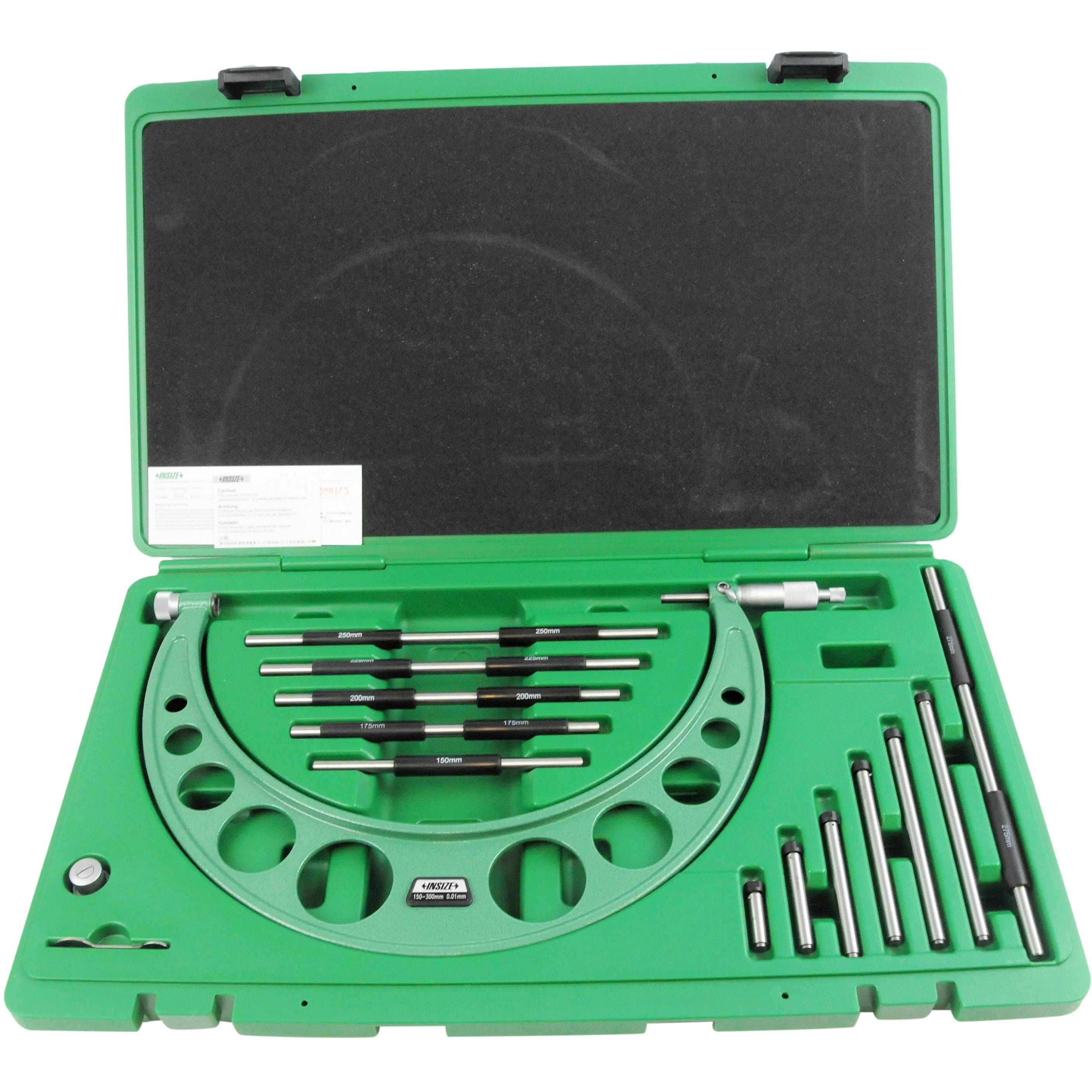

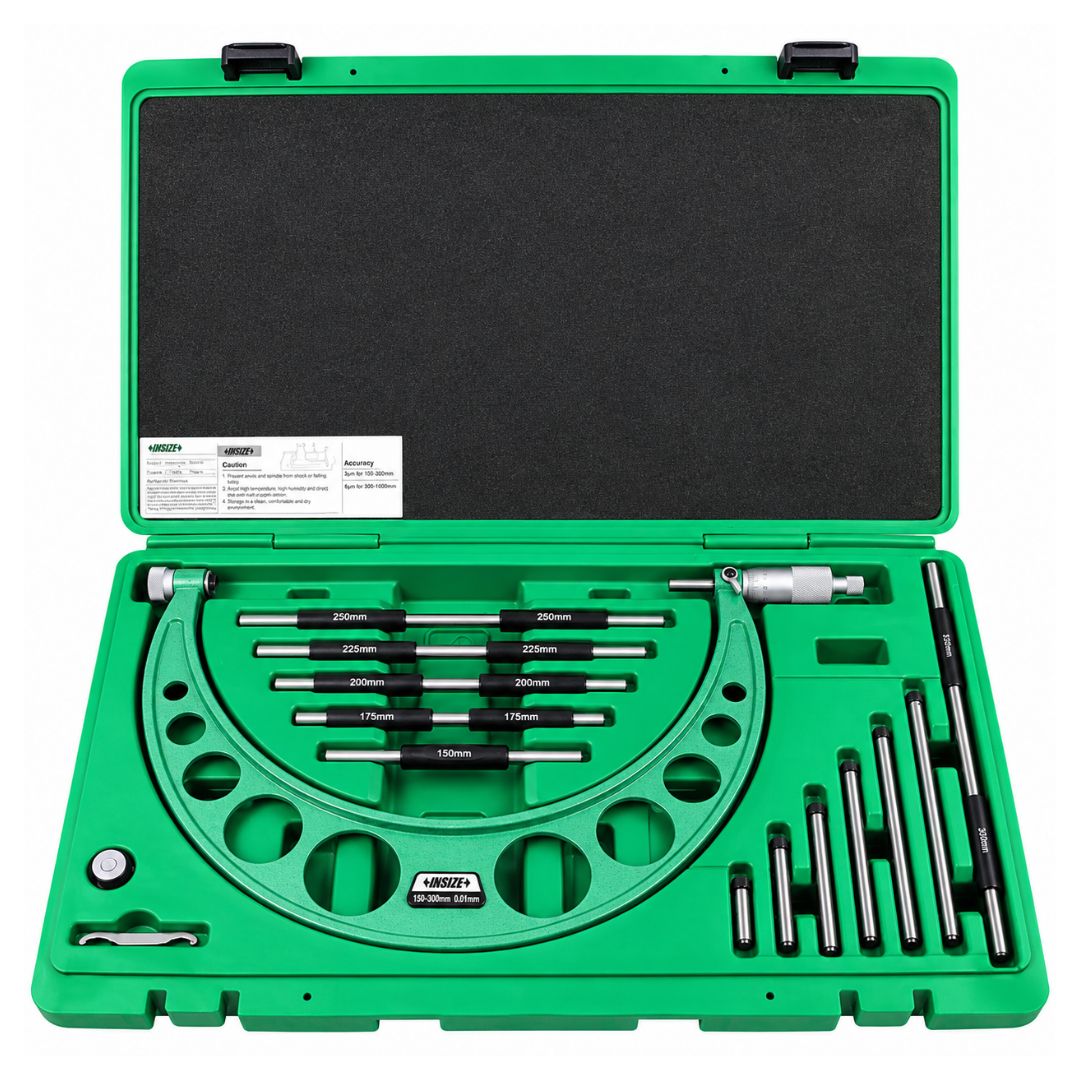

Includes

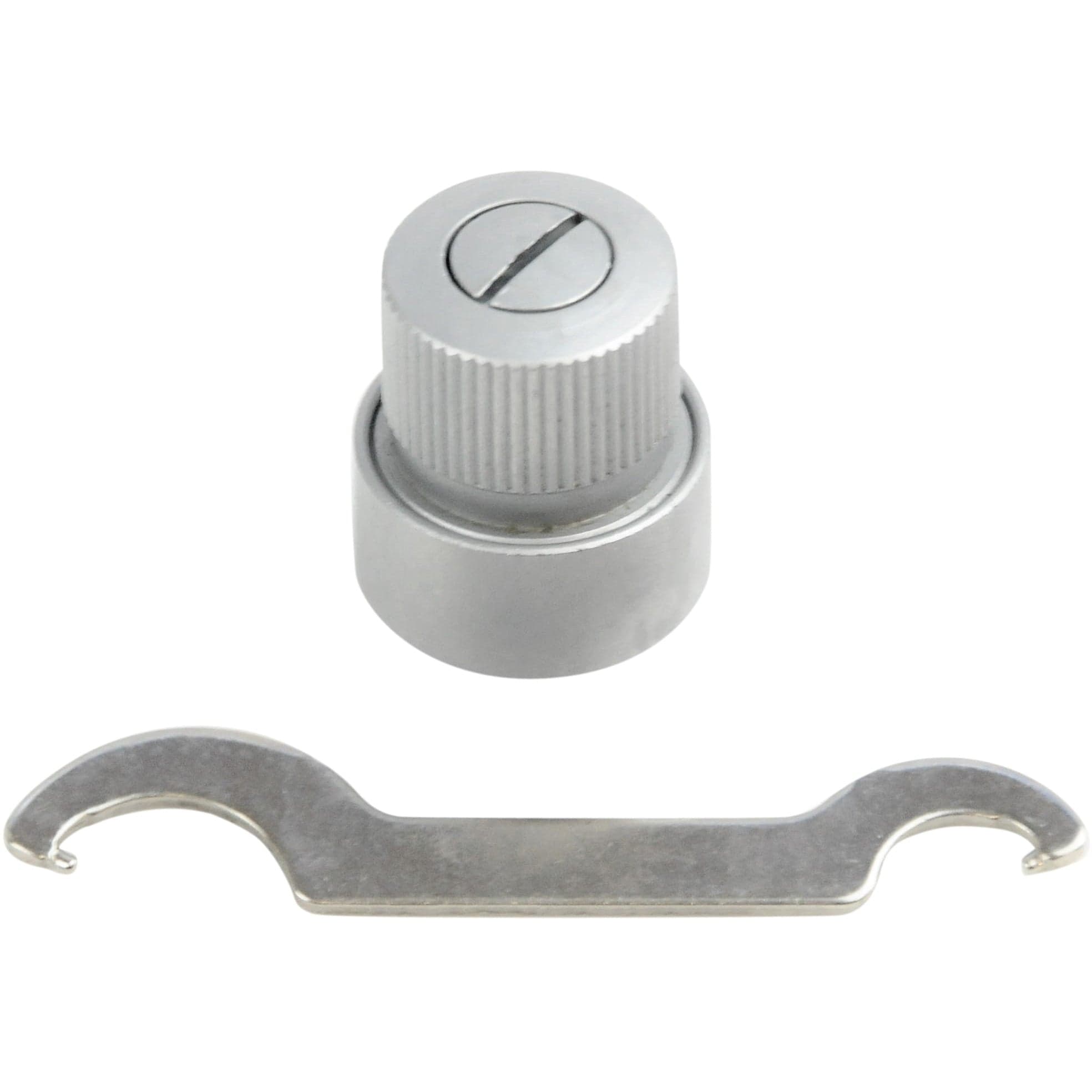

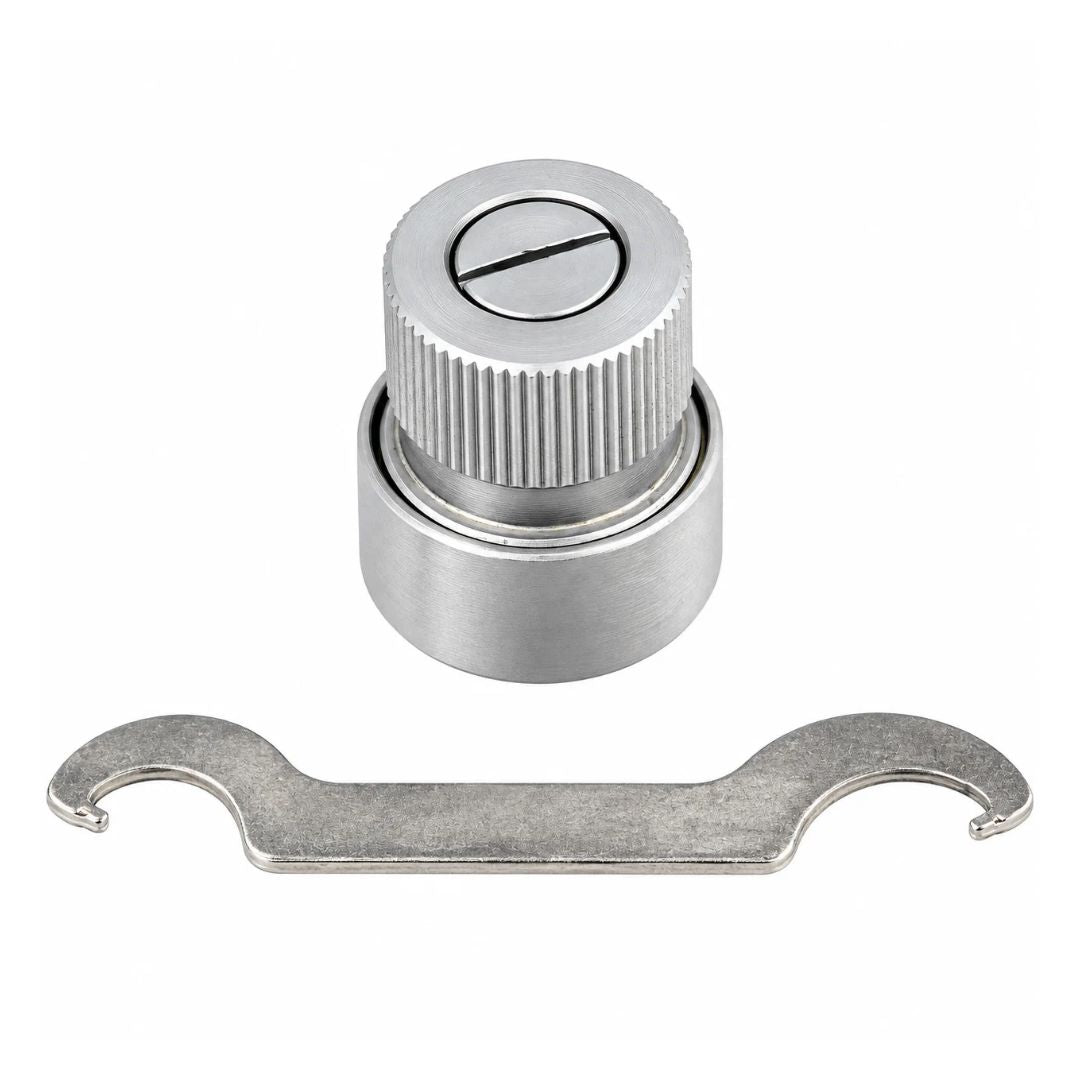

  • Zero adjusting wrench
  • Insize 3206-28 outside micrometer (24–28" range)
  • Full set of calibration rods
  • Full set of interchangeable anvils
  • Custom-styled protective case

Engineered for durability and precision, this Insize outside micrometer is ideal for professionals who require accurate measurement of large external dimensions. Its robust construction and interchangeable anvil design make it a reliable measuring solution for demanding industrial environments.
