Kyocera MSO45160R-09 160mm 45° Indexable Face Milling Cutter

Kyocera MSO45160R-09 160mm 45° Indexable Face Milling Cutter The Kyocera MSO45160R-09 is a high-rake indexable face milling cutter designed for efficient metal machining and facing operations. Featuring a robust cutter...
$1,164.00
$0.00
$1,164.00
(-0%)
SKU: MSO45160R09
Availability: In Stock
Subtotal: $1,164.00
Kyocera MSO45160R-09 160mm 45° Indexable Face Milling Cutter - Twin Eagle Imports

Kyocera MSO45160R-09 160mm 45° Indexable Face Milling Cutter

$0.00 $1,164.00

Kyocera MSO45160R-09 160mm 45° Indexable Face Milling Cutter

$0.00 $1,164.00

Kyocera MSO45160R-09 160mm 45° Indexable Face Milling Cutter

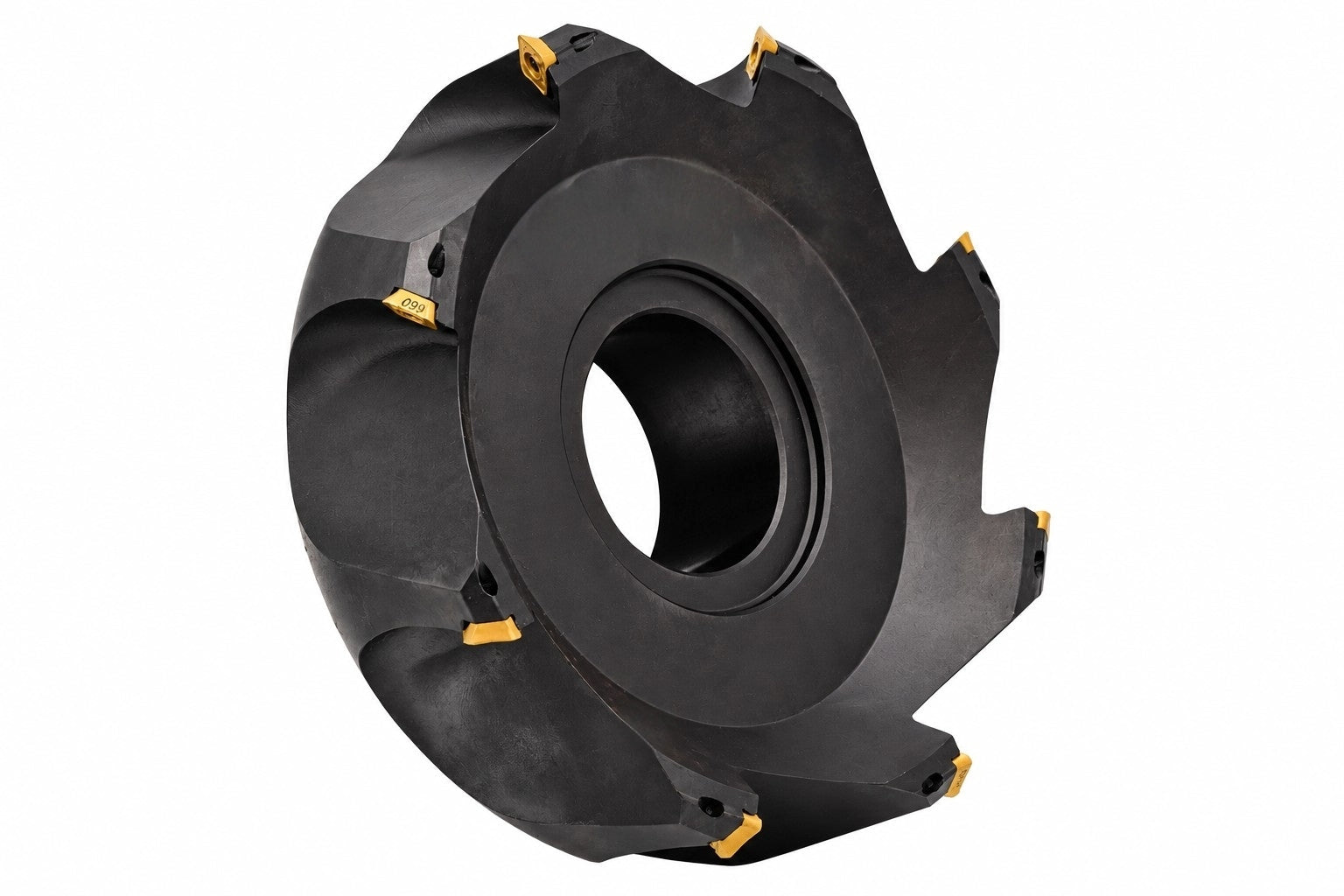

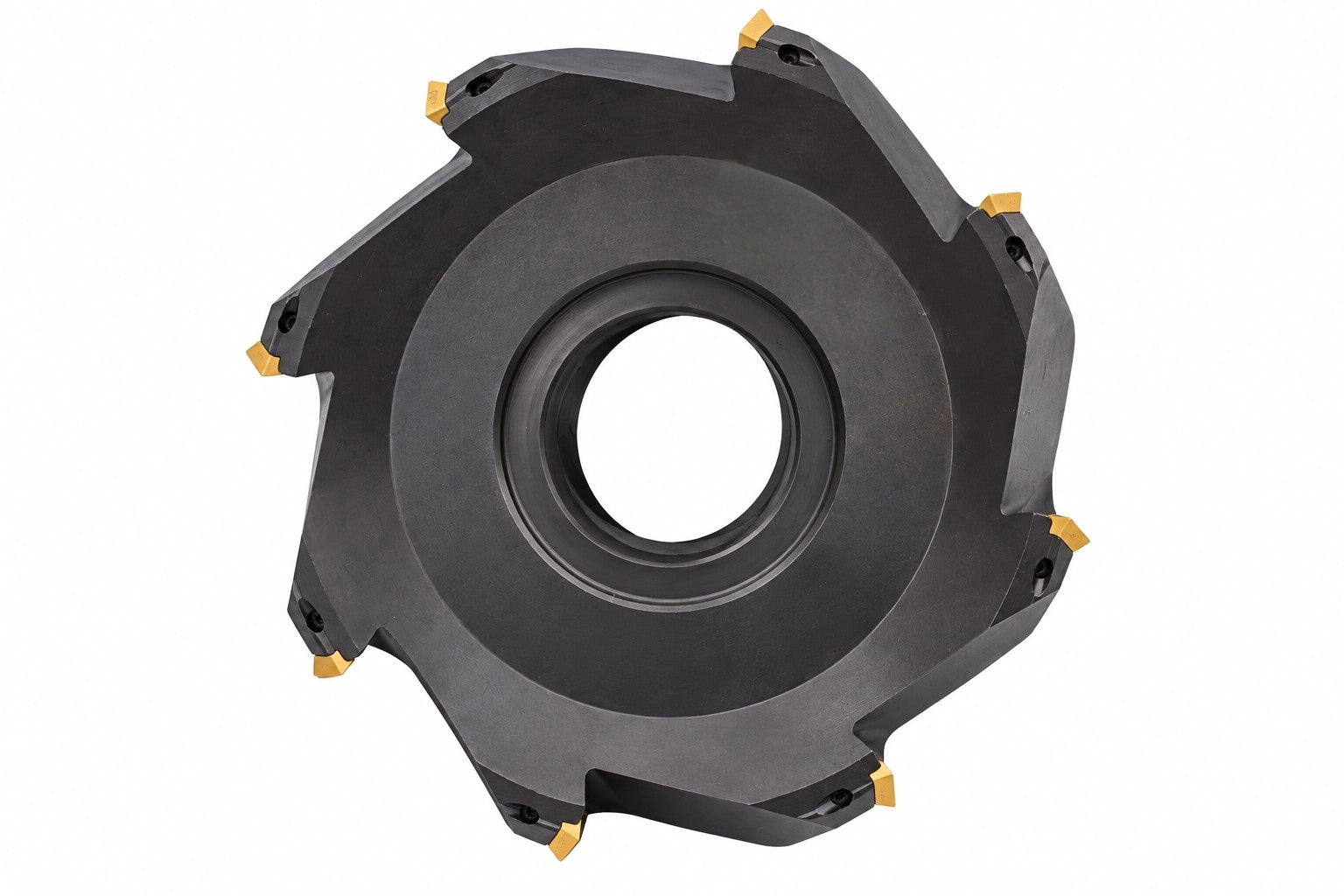

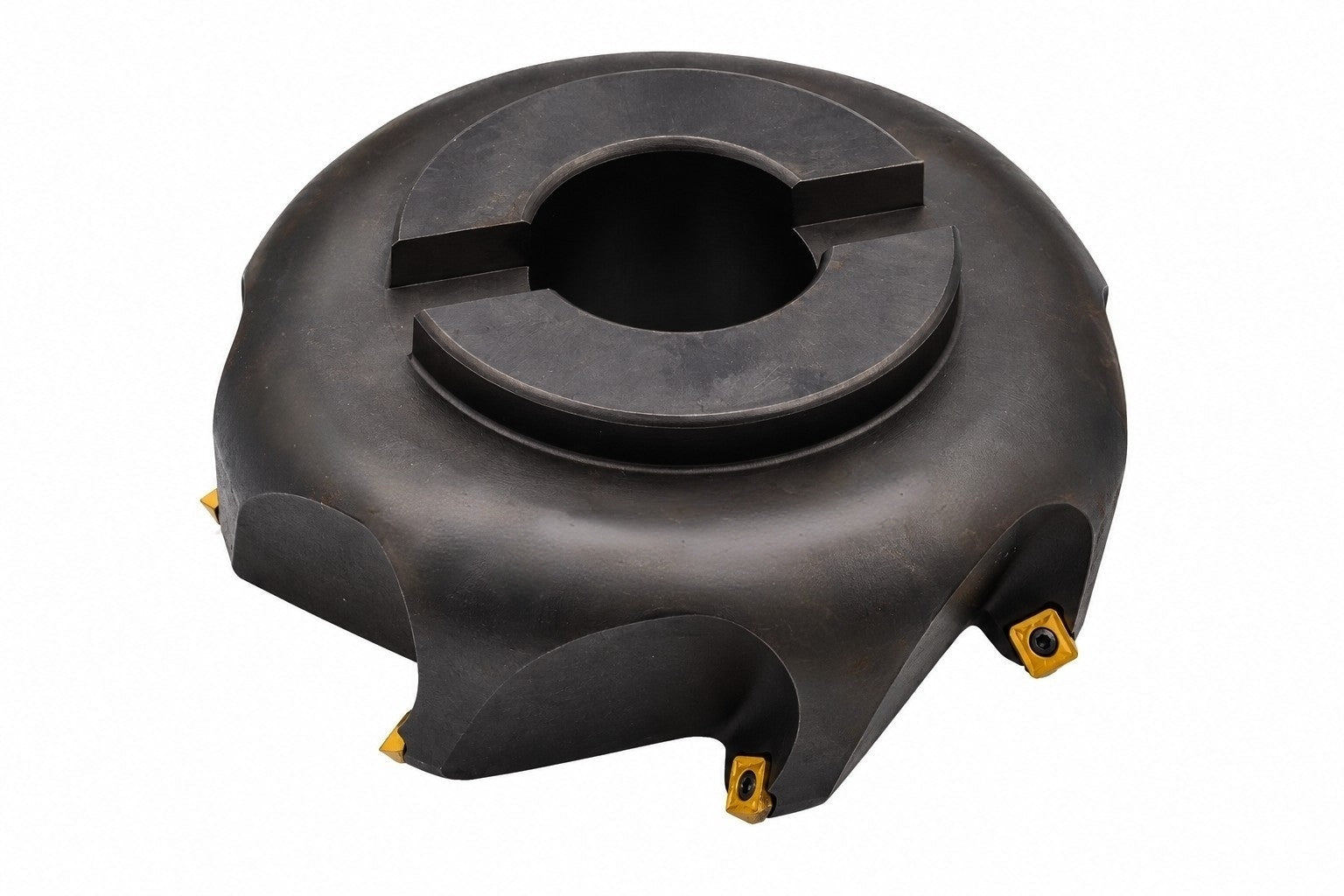

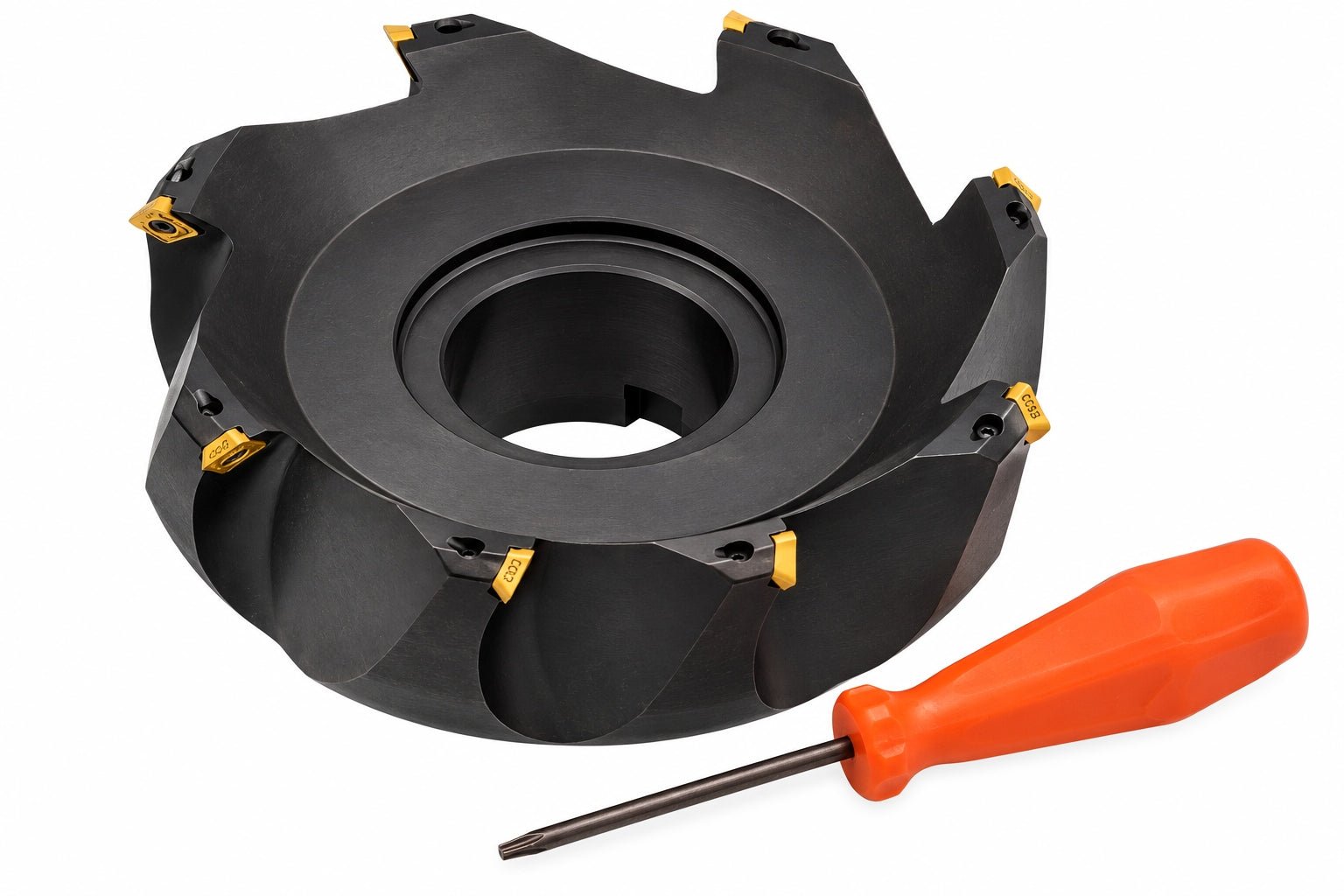

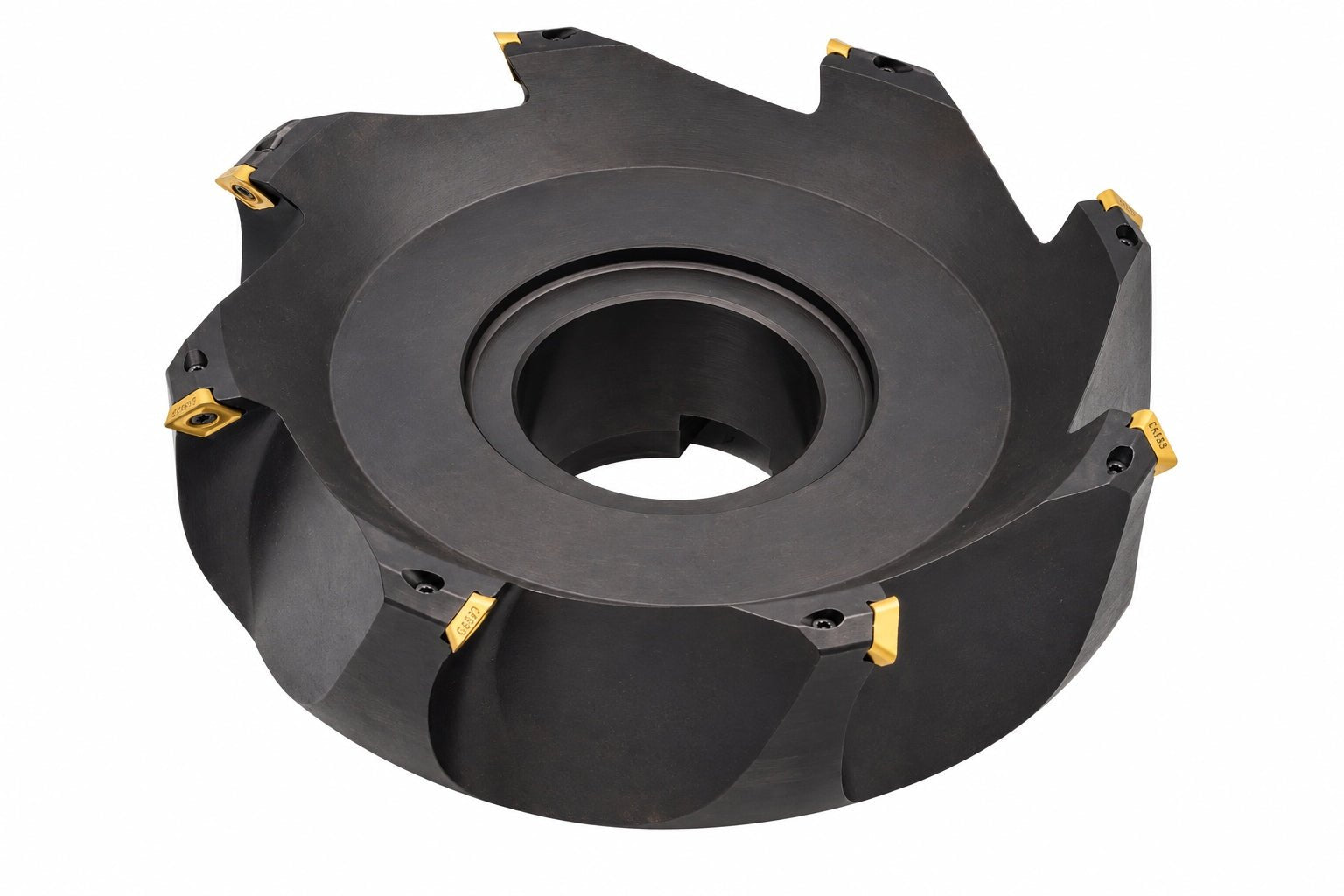

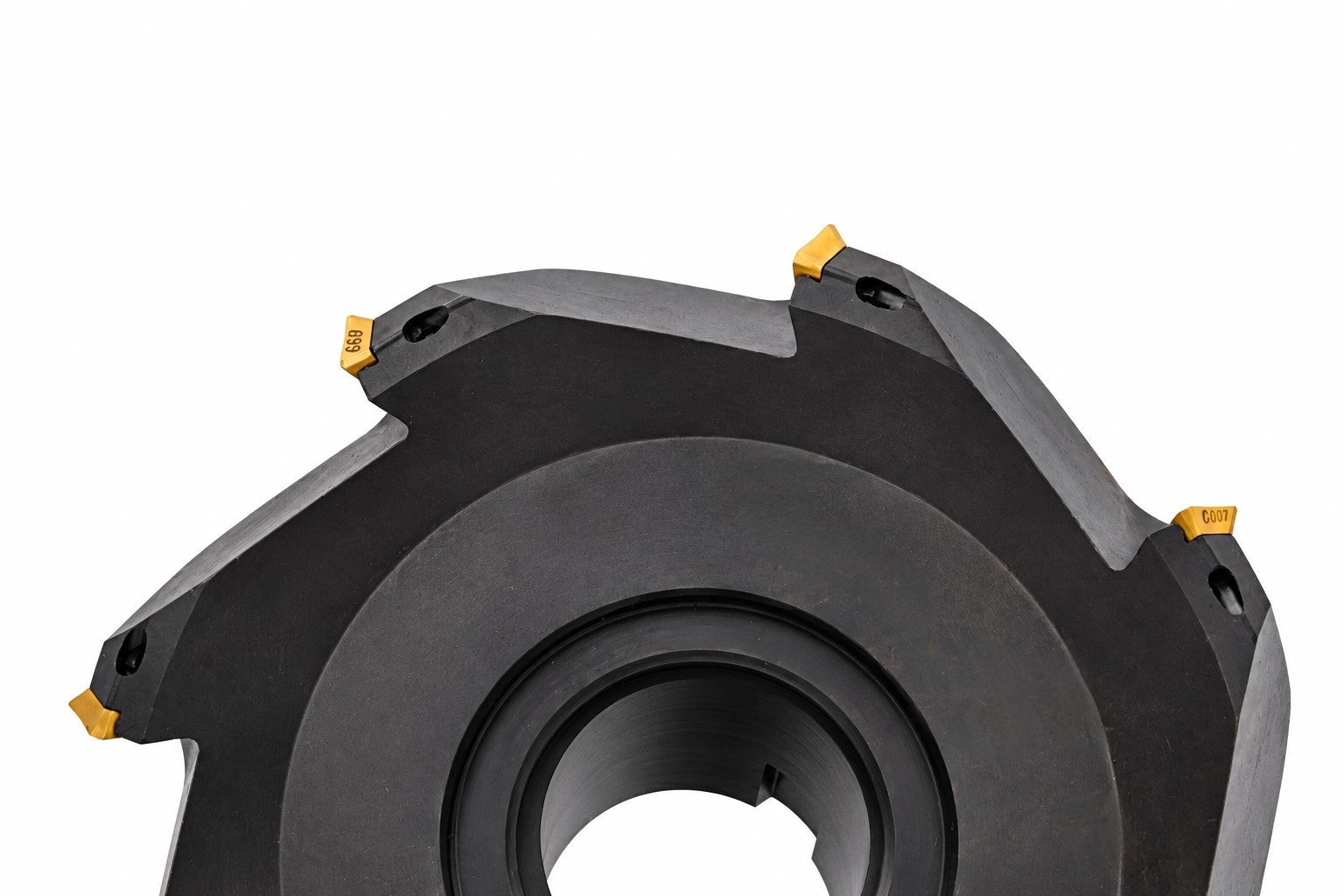

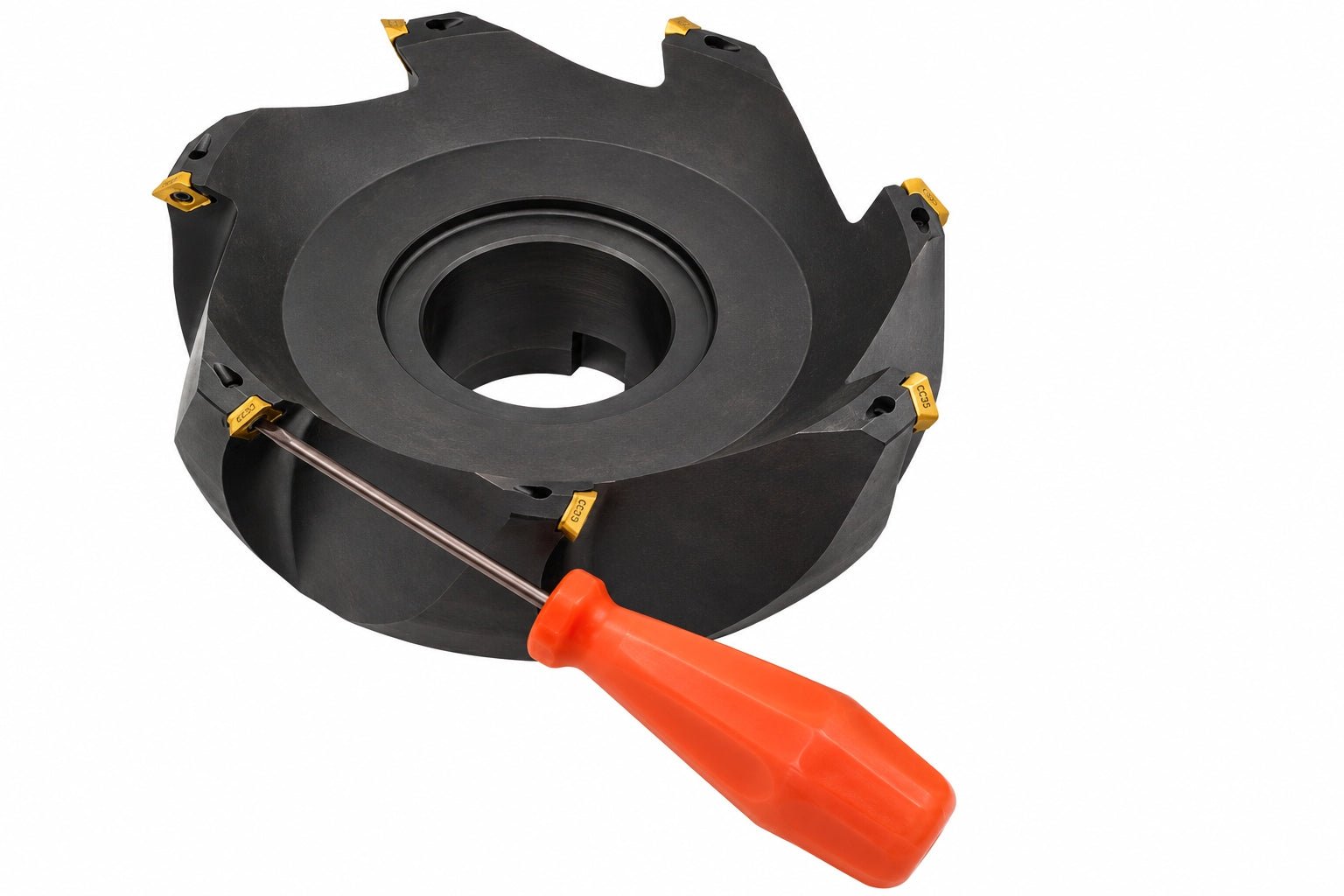

The Kyocera MSO45160R-09 is a high-rake indexable face milling cutter designed for efficient metal machining and facing operations. Featuring a robust cutter body, an integrated mounting bore, and replaceable cutting inserts secured with screw clamps, it provides a practical solution for precision milling applications.

With a 160mm cutting diameter and a 45° lead angle, this milling cutter is designed to machine flat surfaces while supporting effective chip formation and cutting performance. Its replaceable insert design allows individual cutting edges to be indexed or replaced when worn, helping reduce tooling replacement costs and simplify maintenance.

Key Features and Benefits

  • 160mm Cutting Diameter: Suitable for large-area face milling operations.
  • 45° Lead Angle: Designed for face milling applications with an angled cutting edge.
  • Indexable Insert Design: Uses replaceable carbide inserts for convenient cutting-edge maintenance.
  • Screw-Clamp Insert Retention: Secures the inserts in their designated pockets.
  • Rigid Cutter Body: Engineered for mounting on compatible milling machine arbors.
  • 50.80mm Bore: Mounting bore for compatible milling arbors.
  • Eight Insert Positions: Designed to accommodate eight cutting inserts.

Specifications

  • Brand: KYOCERA
  • Model: MSO45160R-09
  • Tool Type: Indexable Face Milling Cutter
  • Cutting Diameter: 160mm
  • Lead Angle: 45°
  • Mounting Bore Diameter: 50.80mm
  • Number of Inserts: 8
  • Compatible Insert Type: SOMT 0903AXEN-J

Applications

Suitable for face milling and surface machining operations where material is removed from a workpiece to produce flat surfaces. Compatibility with the milling machine, arbor, workpiece material, and selected insert grade should be confirmed before use.
