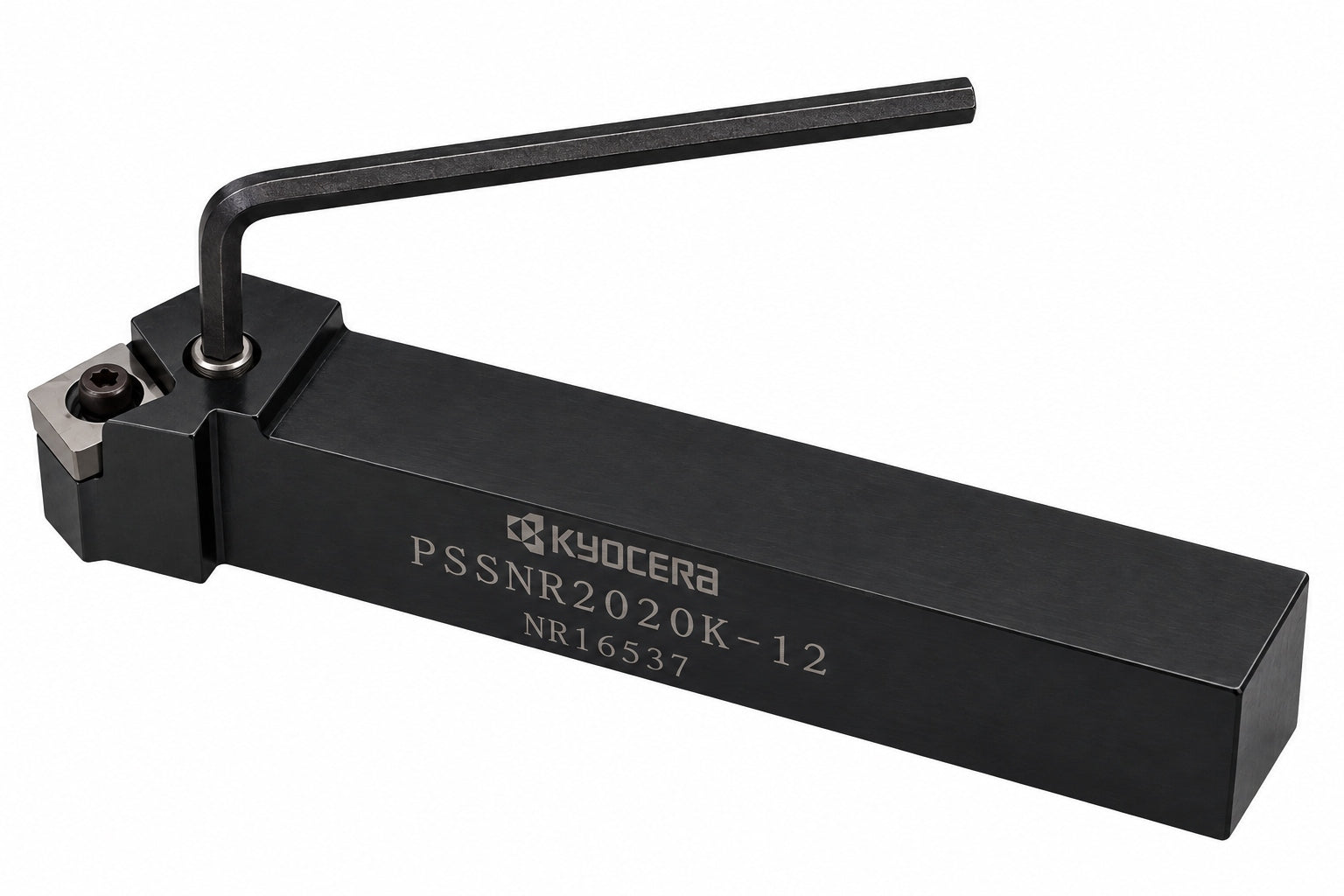

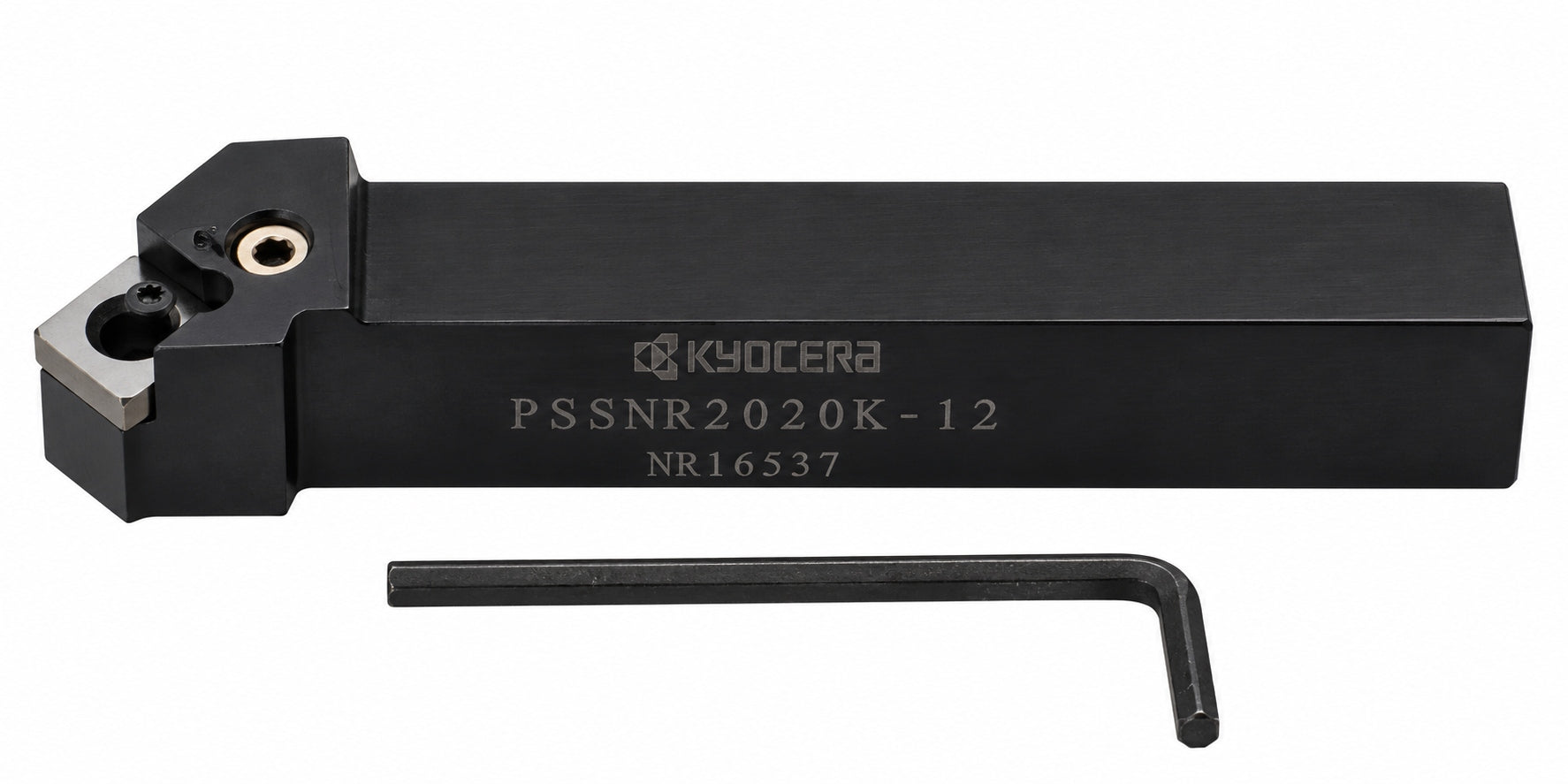

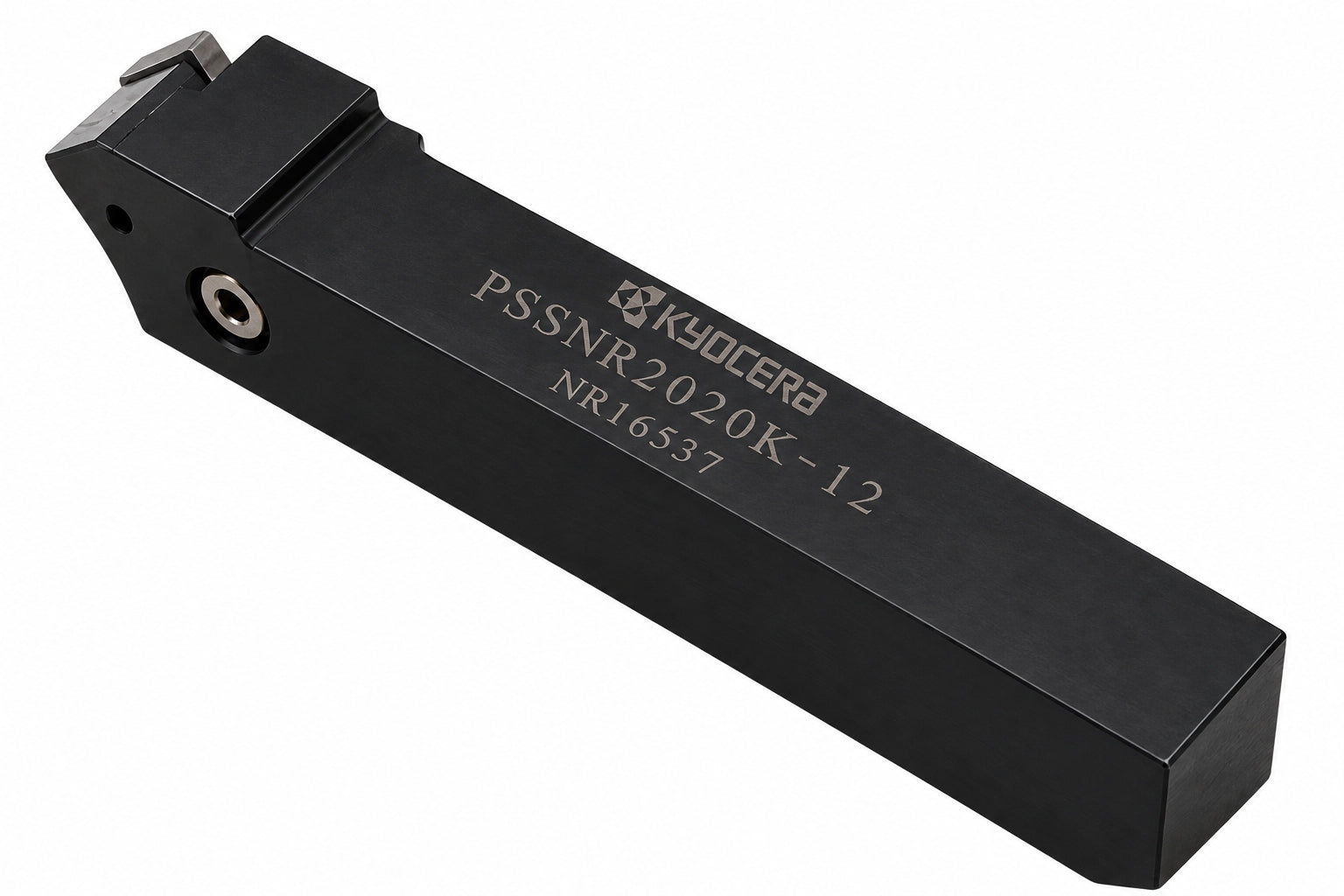

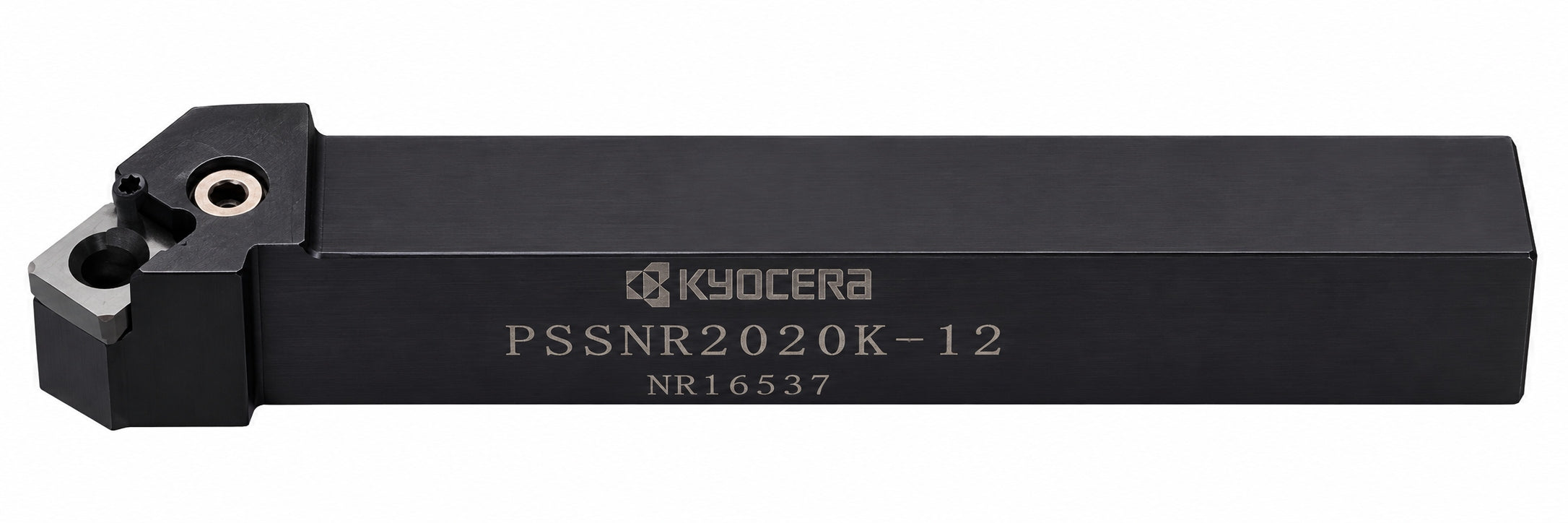

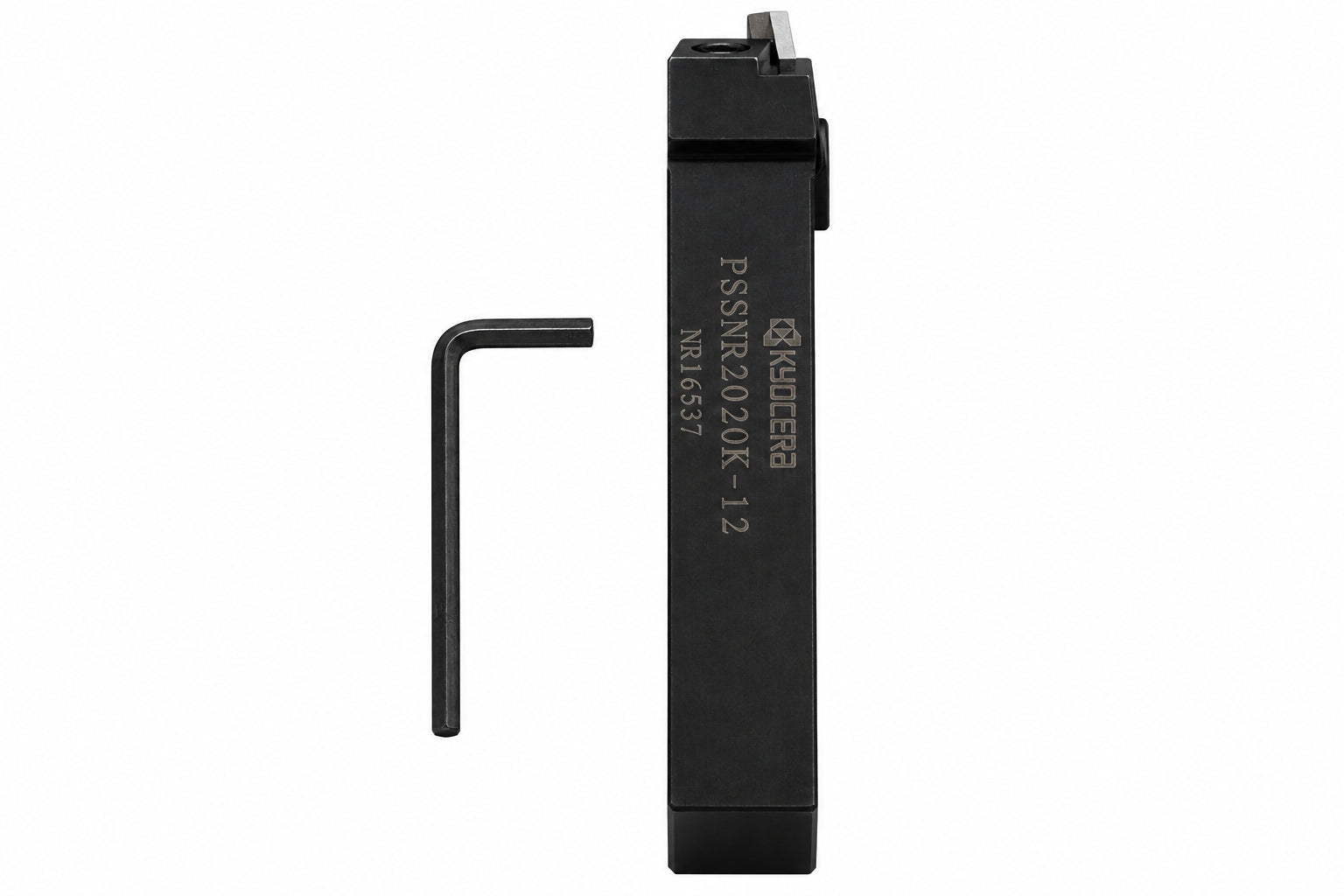

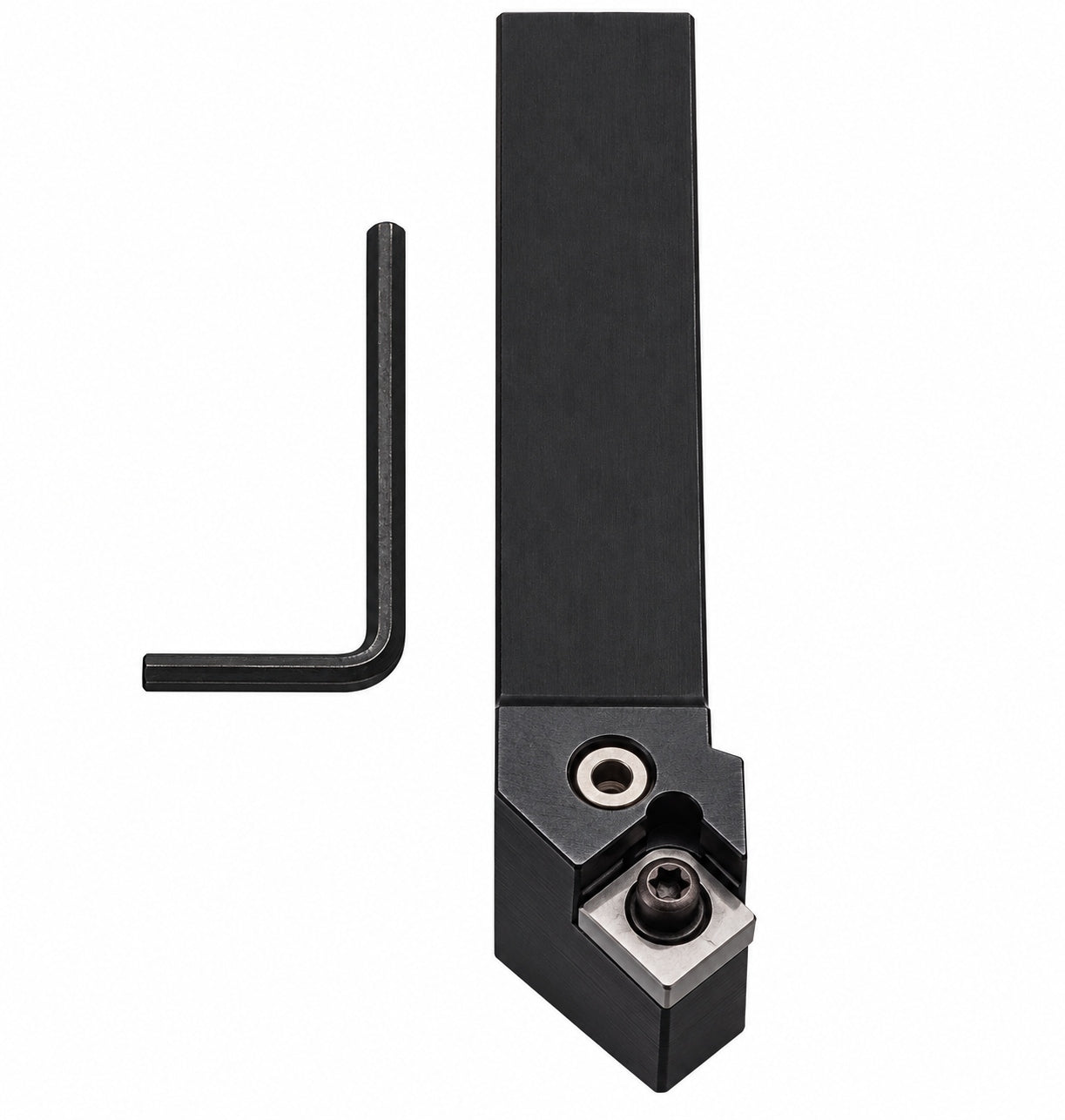

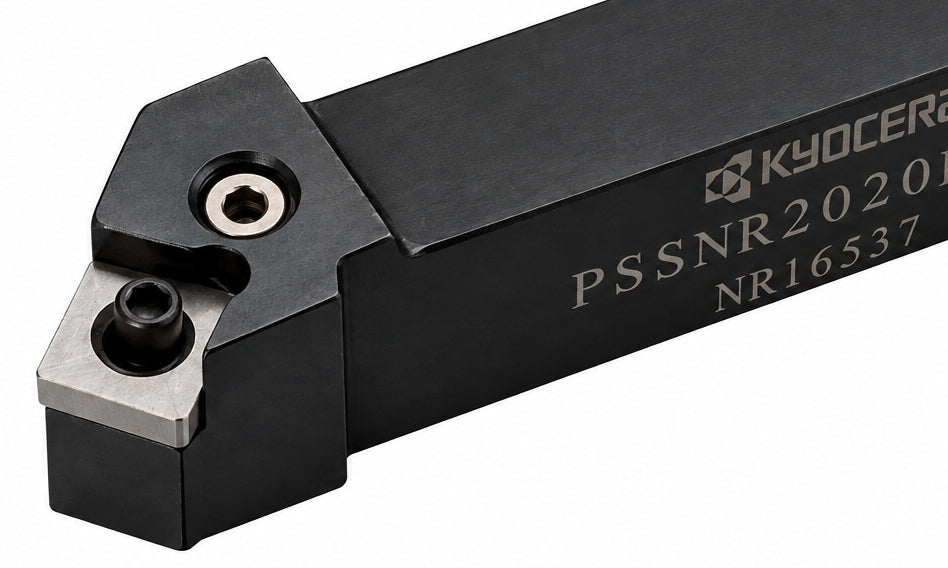

Kyocera PSSNR2020K-12 20mm Right Hand Turning Toolholder for 12mm Inserts

Professional quality Kyocera PSSNR2020K-12 turning toolholder designed for compatible 12mm inserts in turning applications. This right-hand toolholder features a 20mm shank width, 20mm shank height and 125mm overall length, providing...
$201.00
$0.00
$201.00
(-0%)
SKU: PSSNR2020K-12
Availability: In Stock
Subtotal: $201.00
Kyocera PSSNR2020K-12 20mm Right Hand Turning Toolholder for 12mm Inserts

Kyocera PSSNR2020K-12 20mm Right Hand Turning Toolholder for 12mm Inserts

$0.00 $201.00

Kyocera PSSNR2020K-12 20mm Right Hand Turning Toolholder for 12mm Inserts

$0.00 $201.00

Professional quality Kyocera PSSNR2020K-12 turning toolholder designed for compatible 12mm inserts in turning applications. This right-hand toolholder features a 20mm shank width, 20mm shank height and 125mm overall length, providing a compact and rigid tooling solution for machining operations.

The PSSNR2020K-12 features a 90° insert included angle, 45° tool cutting edge angle, 0° radial rake angle and -8° axial rake angle. The toolholder has a 0.8mm corner radius specification and does not include internal coolant.

Product Features

  • Genuine Kyocera turning toolholder
  • Right-hand configuration
  • Designed for 12mm insert size
  • 20mm shank width
  • 20mm shank height
  • 125mm overall length
  • 29mm head length
  • 90° insert included angle
  • 45° tool cutting edge angle
  • 0° radial rake angle
  • -8° axial rake angle
  • 0.8mm corner radius specification
  • No internal coolant

Technical Specifications

  • Brand: Kyocera
  • Part Number: PSSNR2020K-12
  • Item Number: THC00240
  • Tool Type: Turning Toolholder
  • Type: Right
  • Hand: Right
  • Insert Size: 12
  • Shank Width (B): 20mm
  • Shank Height (H): 20mm
  • Functional Height (HF): 20mm
  • Overall Length (OAL): 125mm
  • Functional Length (LF): 125mm
  • Head Length (LH): 29mm
  • Insert Included Angle (EPSR): 90°
  • Tool Cutting Edge Angle (KAPR): 45°
  • Major Clearance Angle (AN): 0°
  • Radial Rake Angle (GAMF): 0°
  • Axial Rake Angle (GAMP): -8°
  • Inscribed Circle Diameter (IC): 12.7mm
  • Cutting Edge Length (L): 12.7mm
  • Corner Radius (RE): 0.8mm
  • Insert Thickness (S): 4.76mm
  • Functional Width (WF): 25mm
  • Functional Width 2 (WF2): 16.4mm
  • Functional Width Secondary (WFS): 16.4mm
  • Internal Coolant: No

Applications

The Kyocera PSSNR2020K-12 is designed for turning applications requiring a right-hand toolholder with a 20mm shank and compatible 12mm inserts. Its compact dimensions and specified cutting geometry make it suitable for machining operations using inserts matching the listed specifications.
