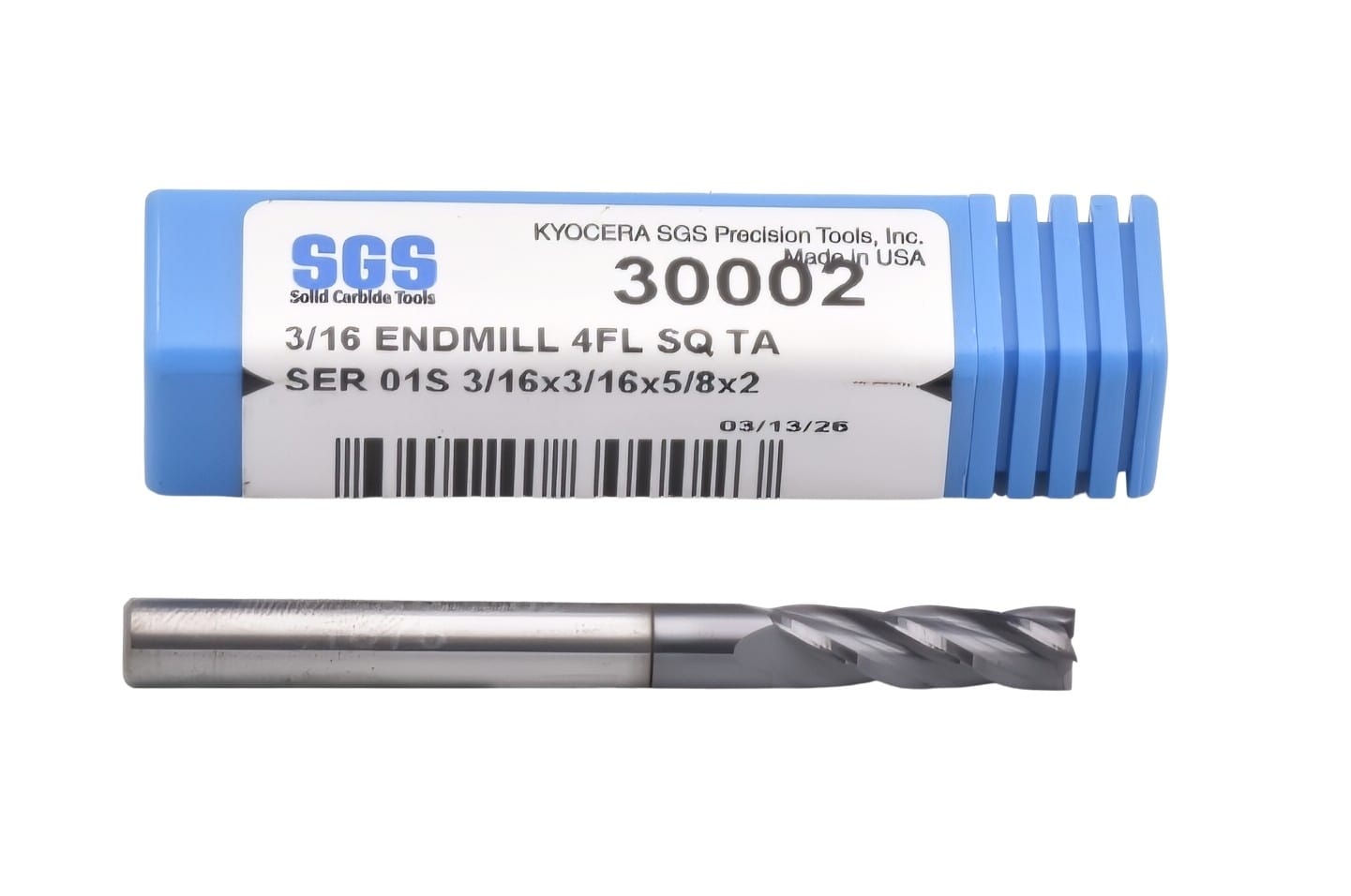

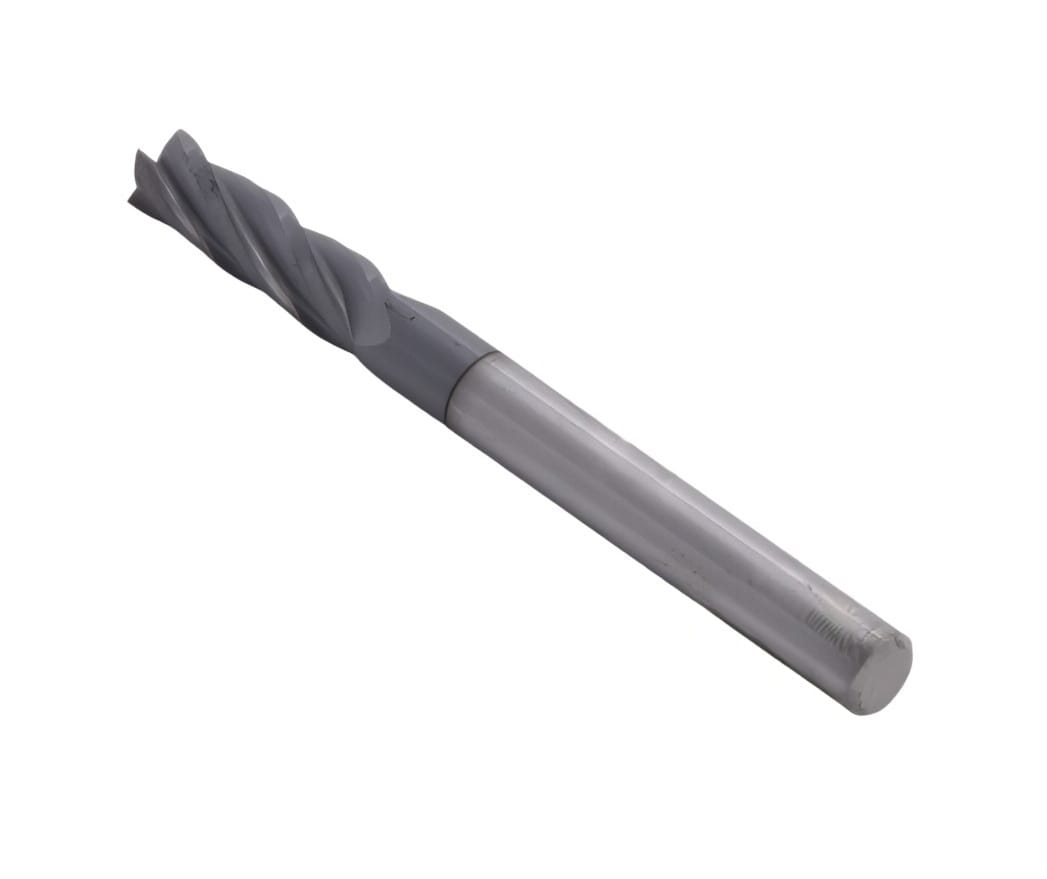

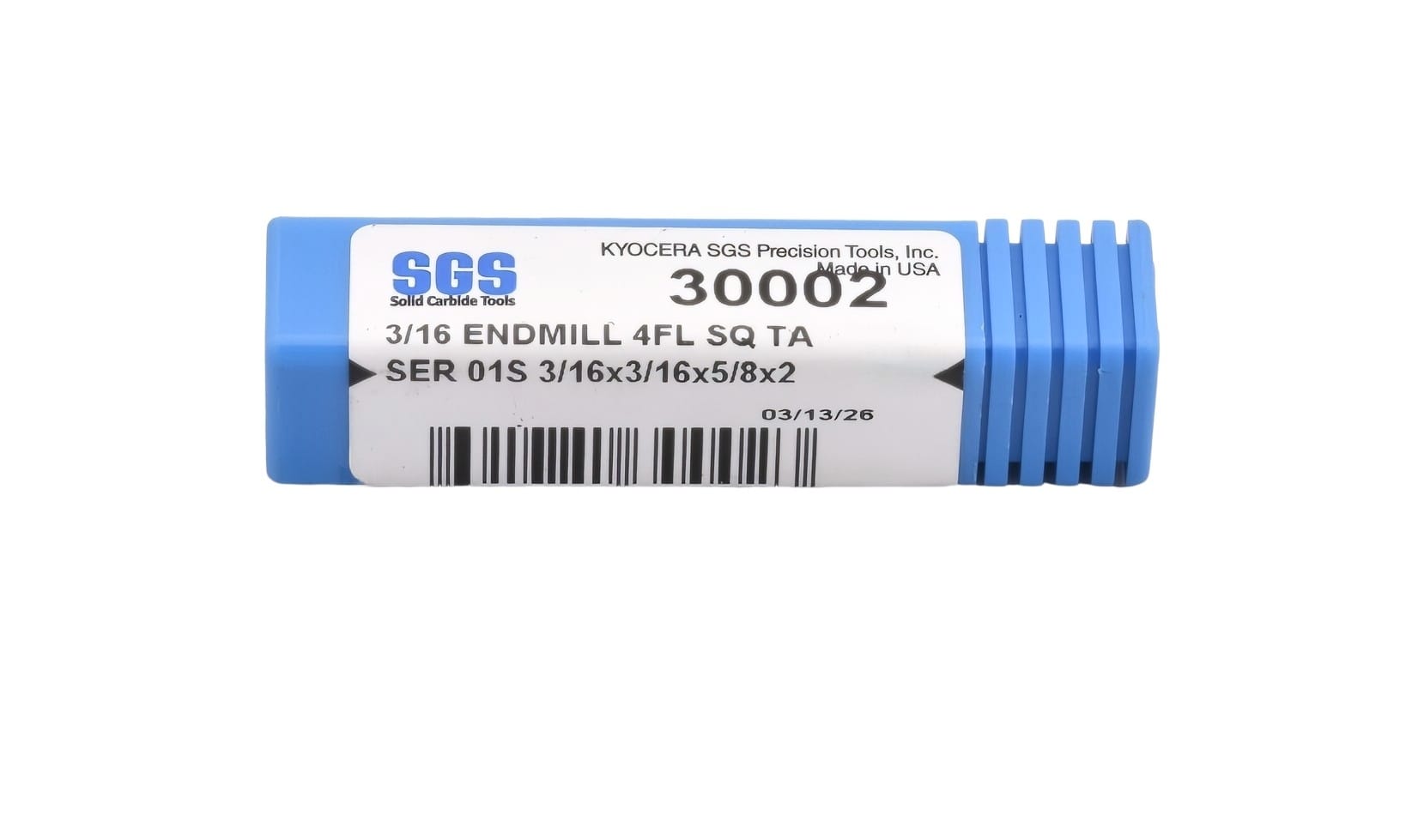

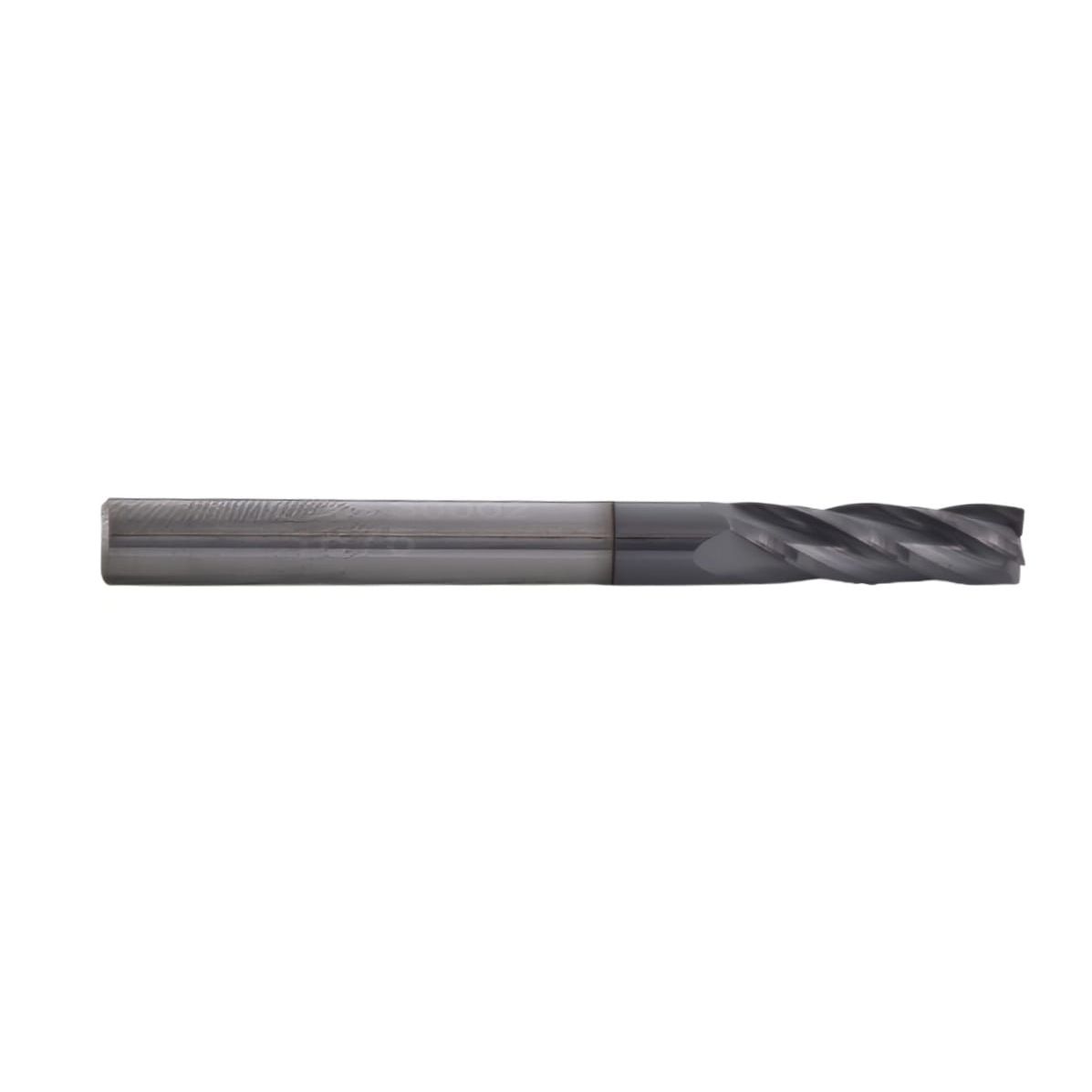

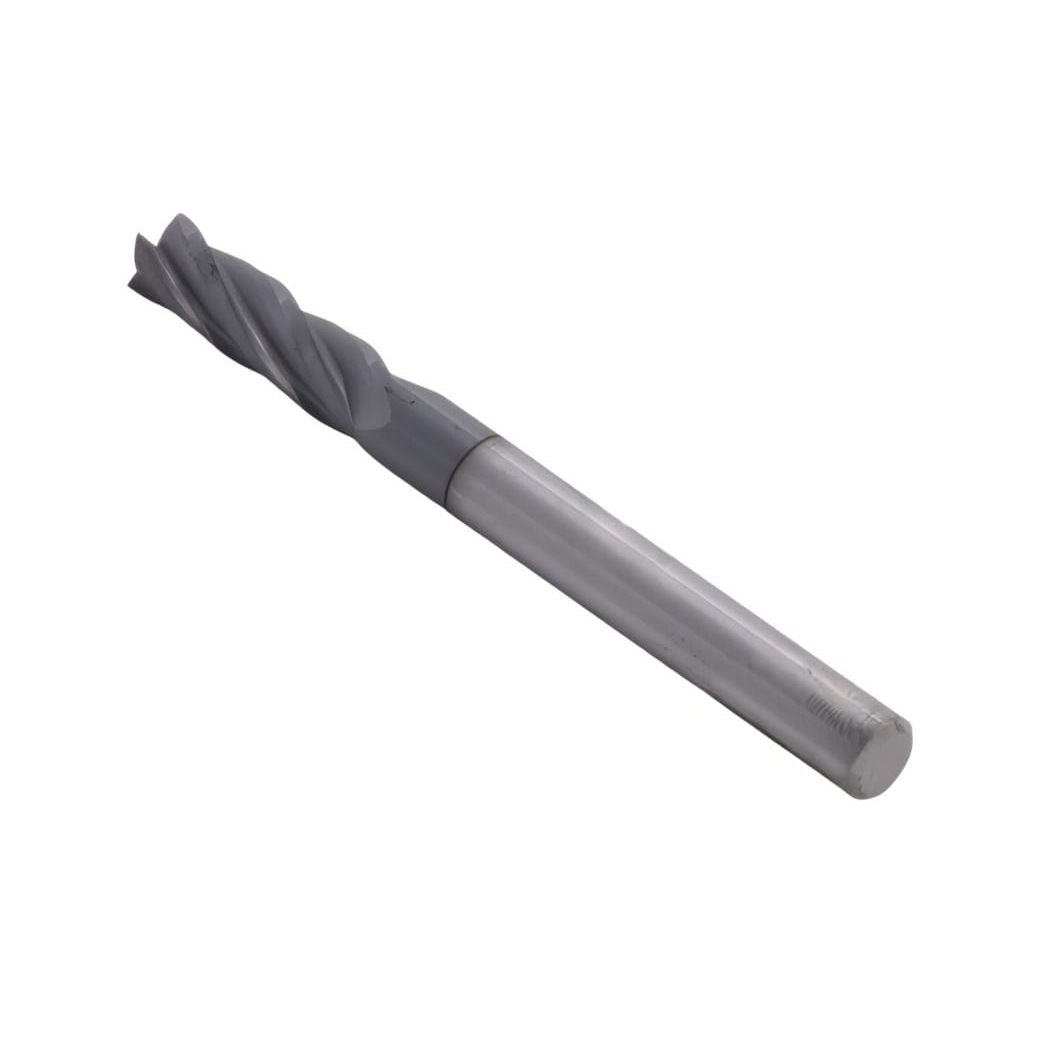

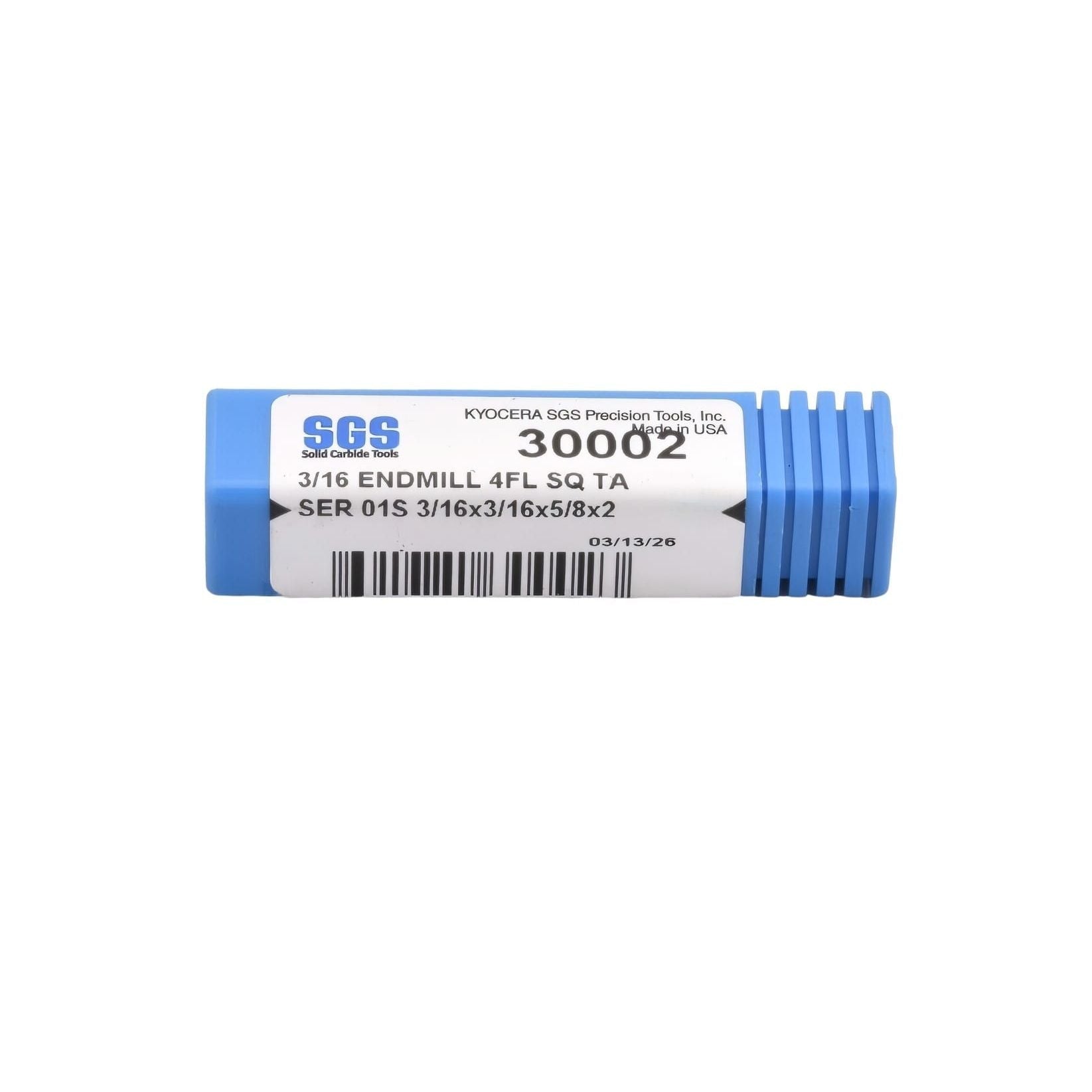

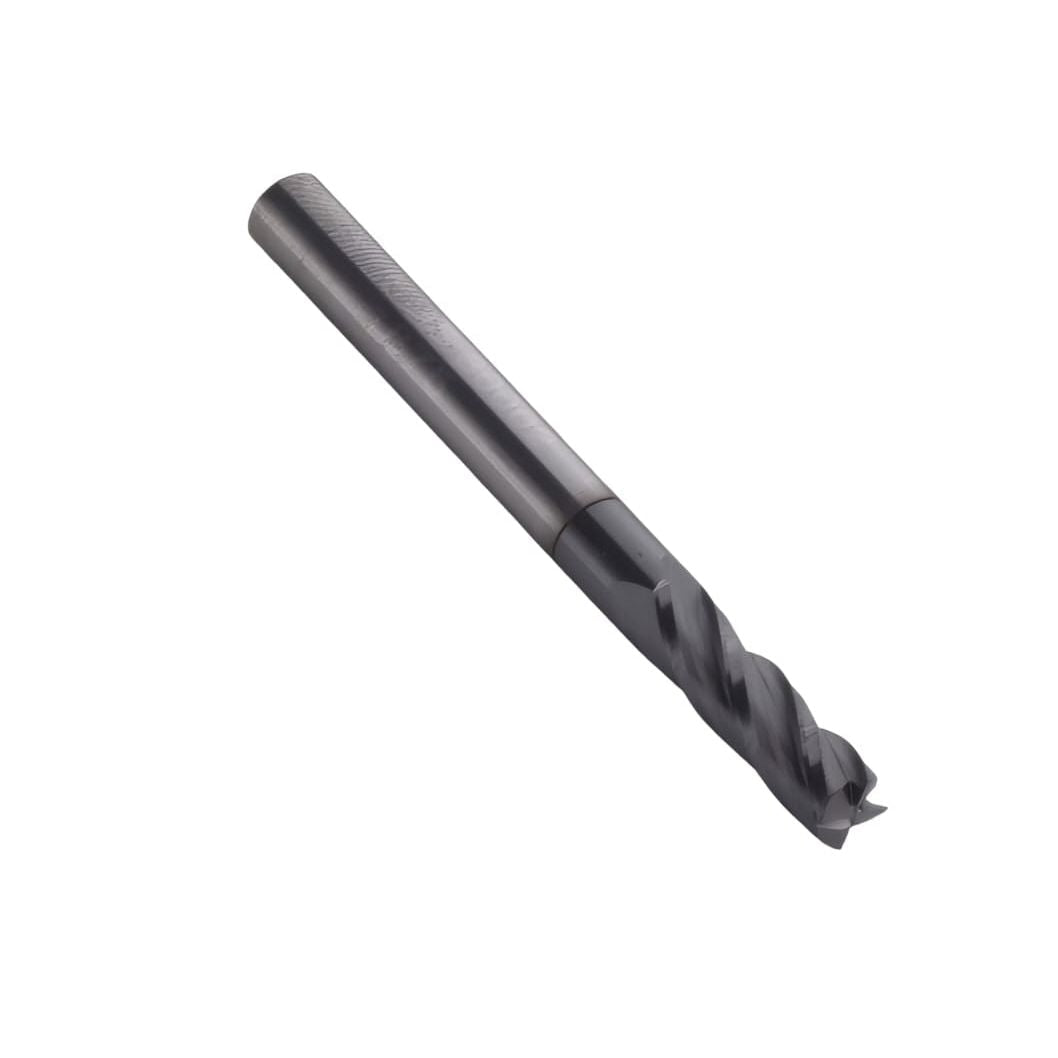

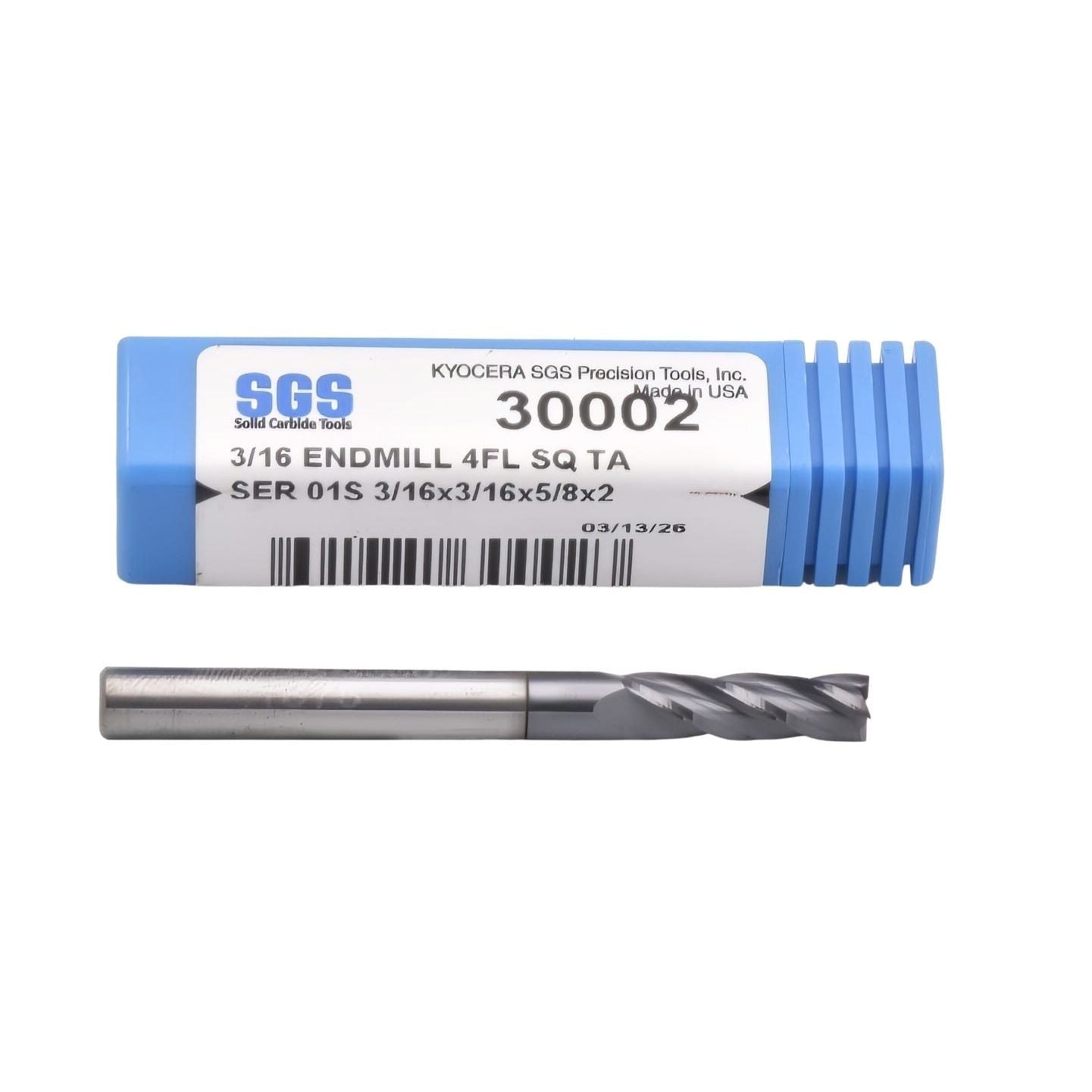

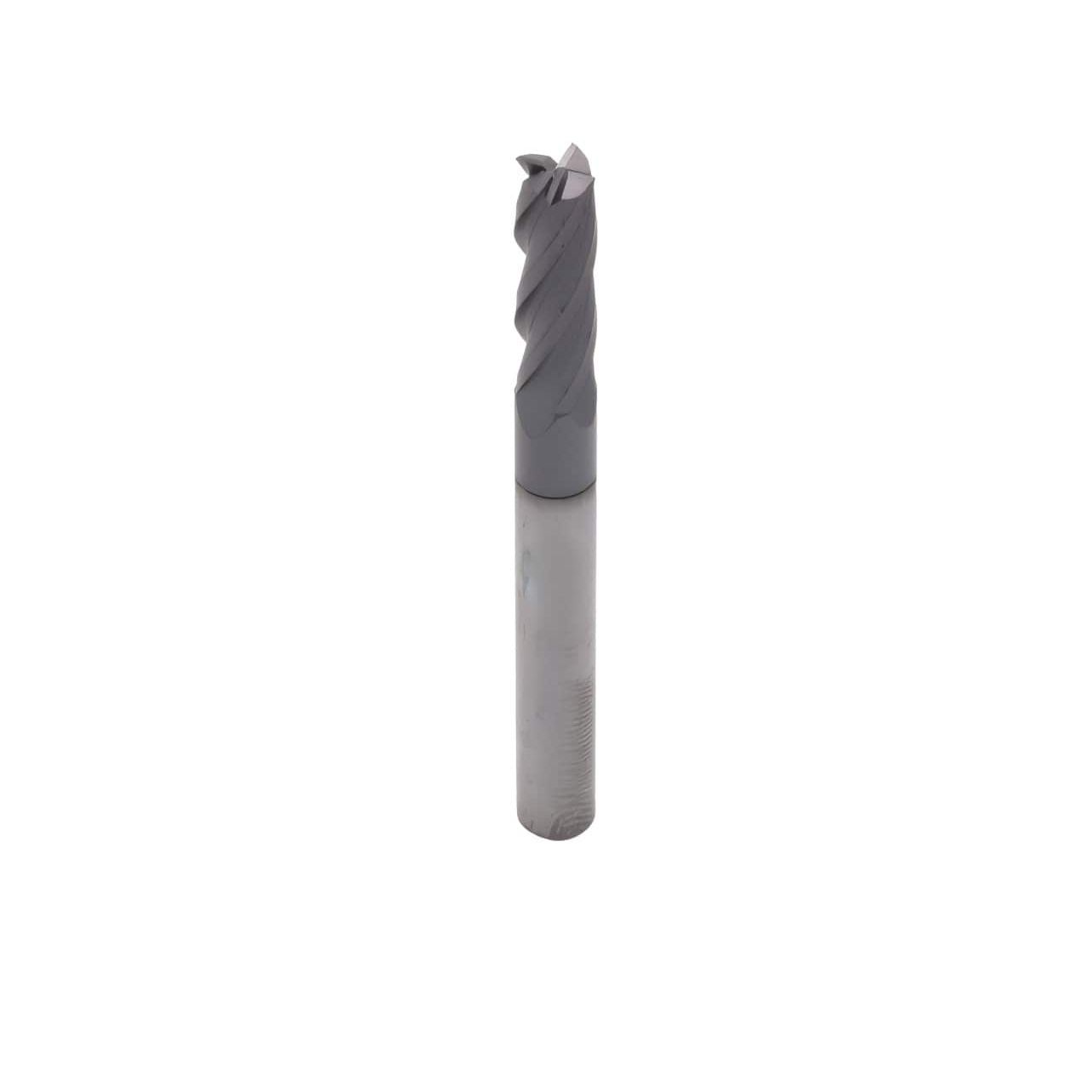

Kyocera SGS 30002 3/16" 4 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

Professional quality Kyocera SGS 30002 Series 01S general application end mill manufactured from solid carbide for reliable and precise machining across a wide range of materials. This 3/16" diameter end...
$122.00
$0.00
$122.00
(-0%)
SKU: KSP30002
Availability: In Stock
Subtotal: $122.00
Kyocera SGS 30002 3/16" 4 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

Kyocera SGS 30002 3/16" 4 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

$0.00 $122.00

Kyocera SGS 30002 3/16" 4 Flute Ti-NAMITE-A AlTiN Coated Carbide Square End Mill

$0.00 $122.00

Professional quality Kyocera SGS 30002 Series 01S general application end mill manufactured from solid carbide for reliable and precise machining across a wide range of materials. This 3/16" diameter end mill features four flutes, a 5/8" length of cut, 30° right-hand spiral and Ti-NAMITE-A AlTiN coating for enhanced wear resistance and dependable performance in demanding milling applications.

The four-flute design provides a balance of material removal and surface finish, while the positive rake geometry and 30° helix promote efficient cutting and chip evacuation. The center-cutting design allows for plunging, slotting, profiling and general milling operations. This versatile end mill is suitable for machining steel, stainless steel, cast iron, non-ferrous materials, high temperature alloys and hardened materials.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 30002
  • Series: 01S
  • Application: General Application End Mill
  • End Mill Type: Square End
  • Cutting Diameter: 3/16" (4.76mm)
  • Number of Flutes: 4
  • Length of Cut: 5/8" (15.88mm)
  • Shank Diameter: 3/16" (4.76mm)
  • Overall Length: 2" (50.80mm)
  • Shank Length: 1-3/8" (34.93mm)
  • Material: Solid Carbide
  • Coating: Ti-NAMITE-A AlTiN
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 30° Right Spiral
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: No
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Long
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.050mm (+0.0000/-0.0020 inch)
  • Shank Diameter Tolerance: h6
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Materials, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials
  • Shipping Weight: 0.0280
  • US Stock: 475

The Kyocera SGS 30002 is an excellent choice for CNC milling applications requiring a reliable 3/16" 4-flute solid carbide square end mill with 5/8" length of cut, 30° helix and Ti-NAMITE-A AlTiN coating for efficient cutting, wear resistance and dependable performance across a broad range of workpiece materials.
