Morse 3 Revolving Lathe Chuck Plus Inside Outside Jaws

This package includes: 80 mm 3-Jaw Lathe Chuck 3MT (Morse Taper #3) shank rotating chuck plate 3MT (Morse Taper #3) shank dead chuck plate one set of solid steel internal...
$440.00
$440.00
(-0%)
SKU: 110075
Availability: In Stock
Subtotal: $440.00
morse 3 3 jaw revolving live lathe chuck 80mm inside outside jaws cnc industrial toolholder chuck metalwork manufacturing

Morse 3 Revolving Lathe Chuck Plus Inside Outside Jaws

$440.00

Morse 3 Revolving Lathe Chuck Plus Inside Outside Jaws

$440.00

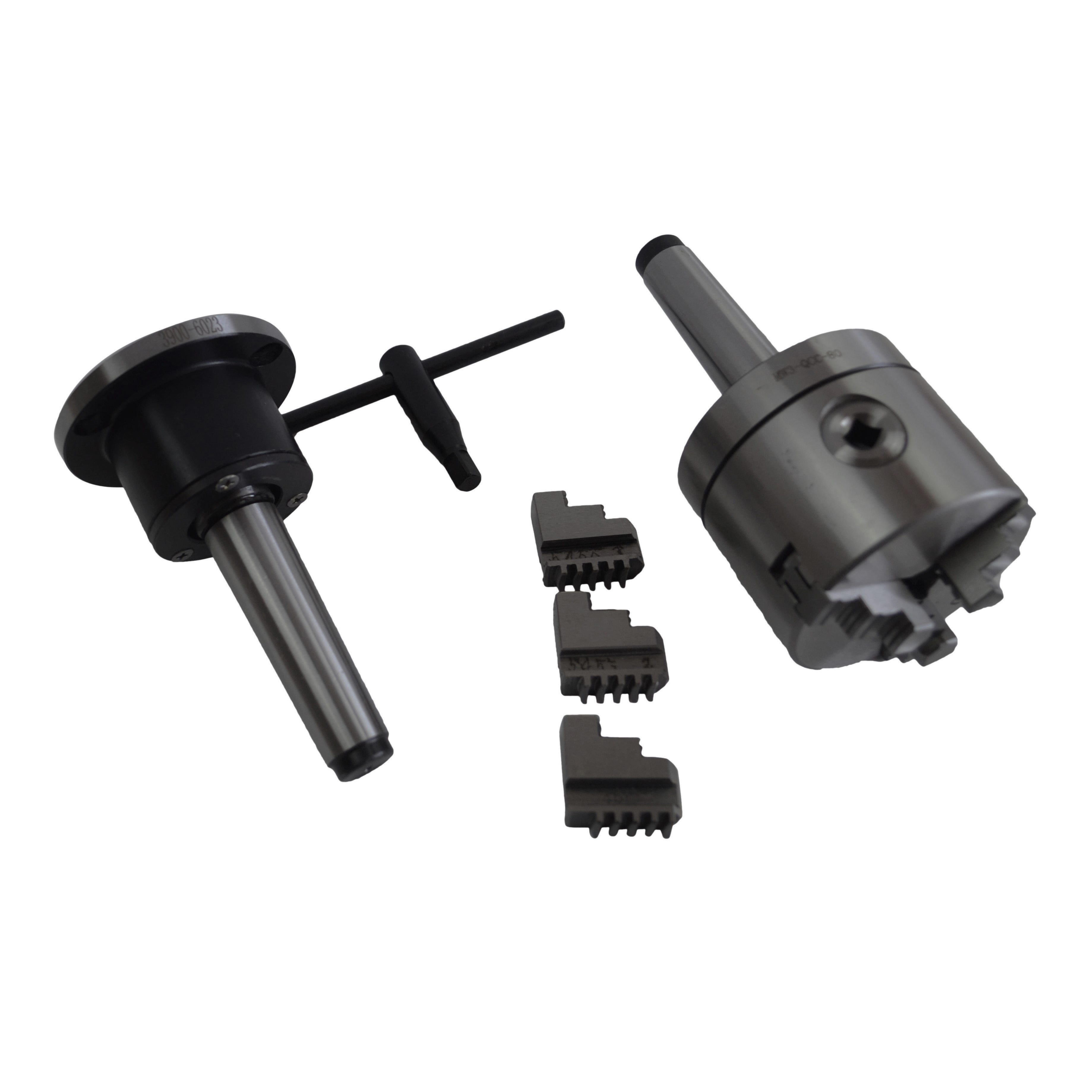

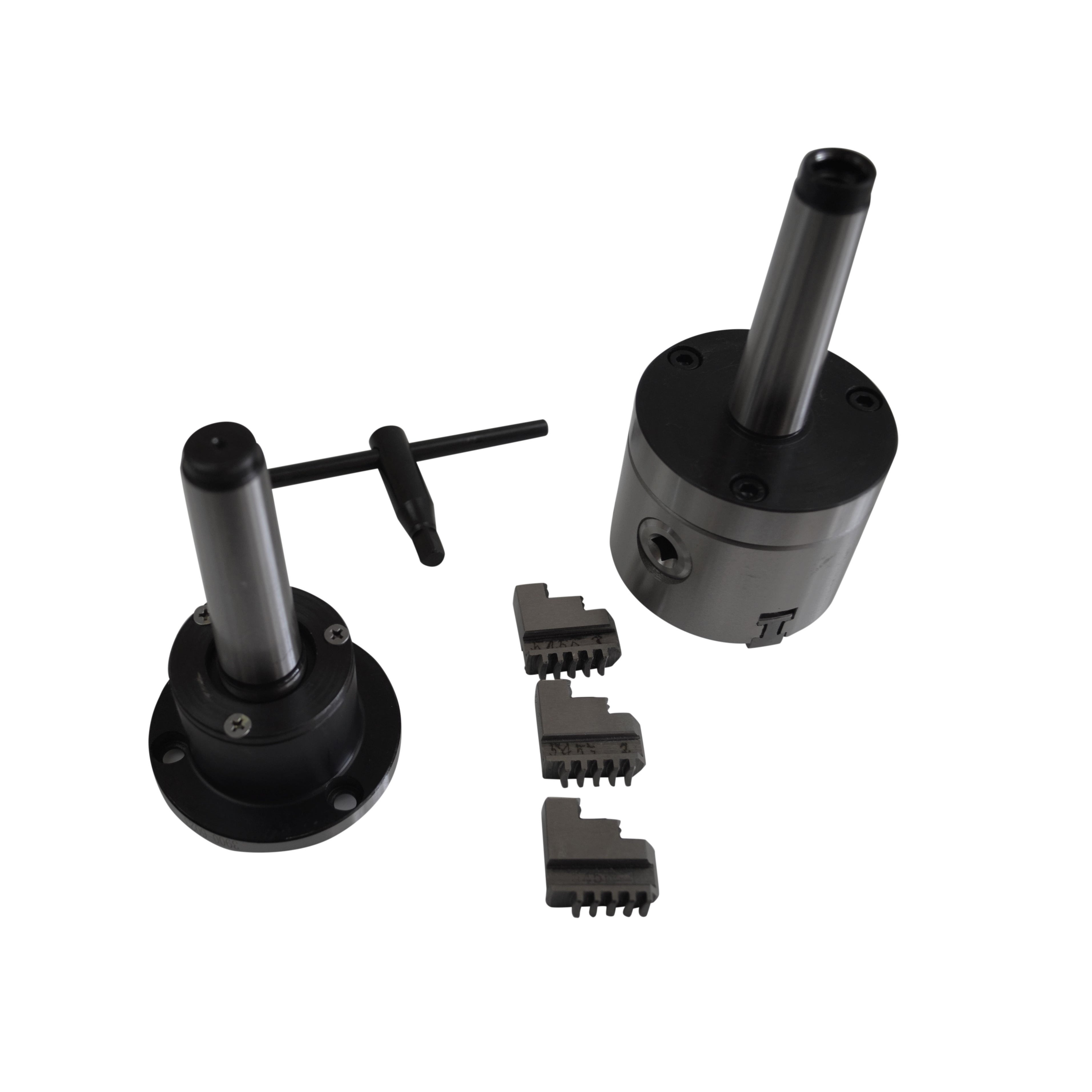

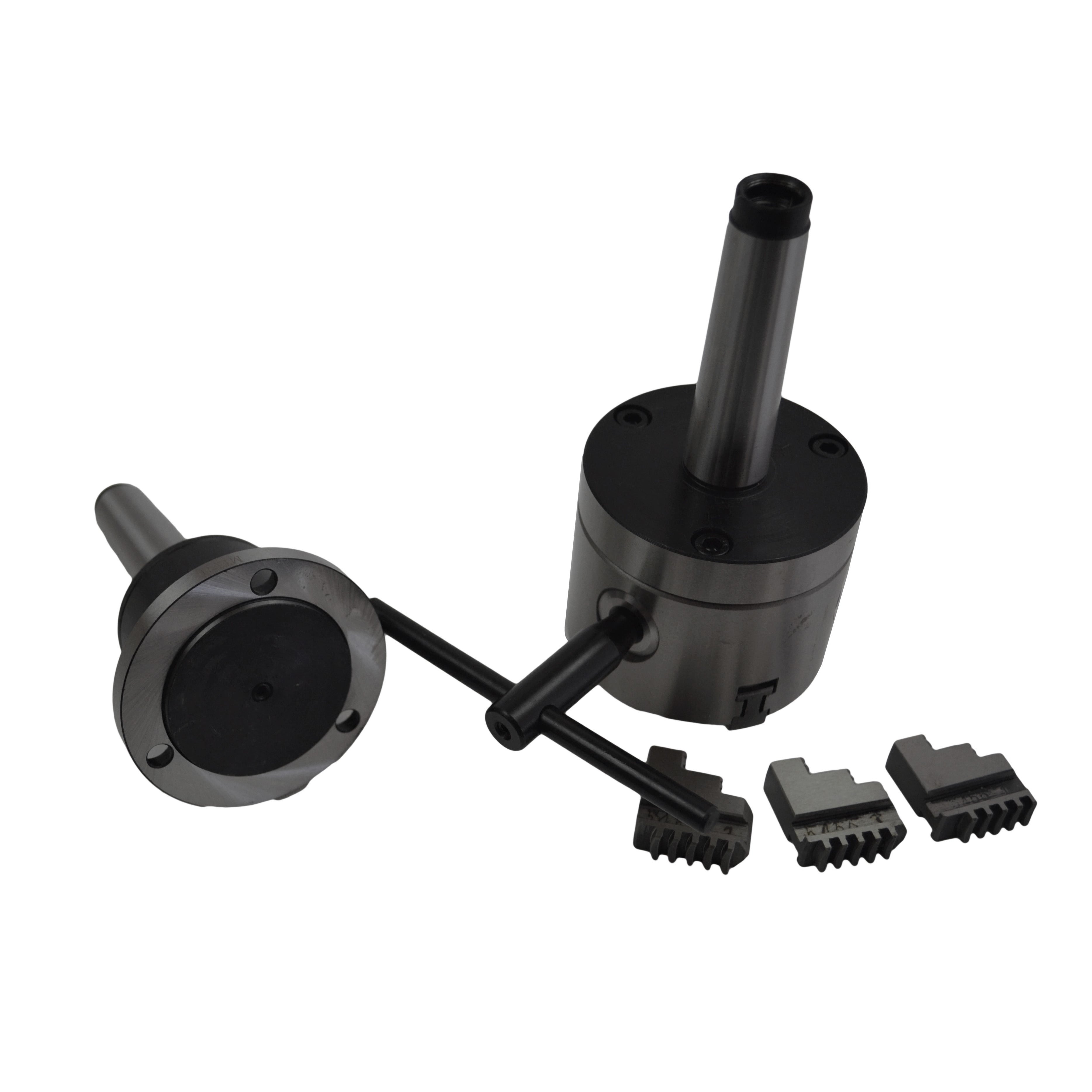

This package includes:
80 mm 3-Jaw Lathe Chuck
3MT (Morse Taper #3) shank rotating chuck plate
3MT (Morse Taper #3) shank dead chuck plate
one set of solid steel internal jaws
one set of solid steel external jaws
chuck wrench to suit included in the package.

About the Chuck Revolving Plate:
The chuck plate is designed for supporting work pieces during process to be fitted for standard 80mm 3-jaw self centering lathe chuck.
Triple ball bearing design.
The main body and taper shank are made of high quality carbon steel and hardened for high performance and stability.
Morse taper : 3 MT.
Accuracy: 0.0002".

About the dead plate with chuck
Morse 3 self centering lathe chuck

Overall Length – 150 mm

Body Diameter – 80 mm

Morse 3 arbor with M12 drawbar fitted

Self centering lathe chuck will open all jaws simultaneously.

3 Pinion around the chuck body for access to open or close the chuck jaws.

Each pinion machined and hardened to HRC 43.

Both sides of the jaw teeth and guides are ground and hardened to RC 58-62 .

Each set of supplied jaws are uniquely stamped for easy identification.

The scroll plates thread flank has been machined on both sides to achieve tighter contact with the master jaw.

Each precision assembly goes through rigorous accuracy and action inspection to ensure repeated uniform clamping action.
