Live Centre Extended Nose MT3 M12 Drawbar Medium Duty

Morse Taper 2 Live Centre Designed for medium speed medium load lathes. Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life....
$67.00
$67.00
(-0%)
Vendor: Dajiu
SKU: 562
Availability: In Stock
Subtotal: $67.00
Morse Taper 2 Medium Duty Live Centre M10 drawbar

Live Centre Extended Nose MT3 M12 Drawbar Medium Duty

$67.00

Live Centre Extended Nose MT3 M12 Drawbar Medium Duty

$67.00

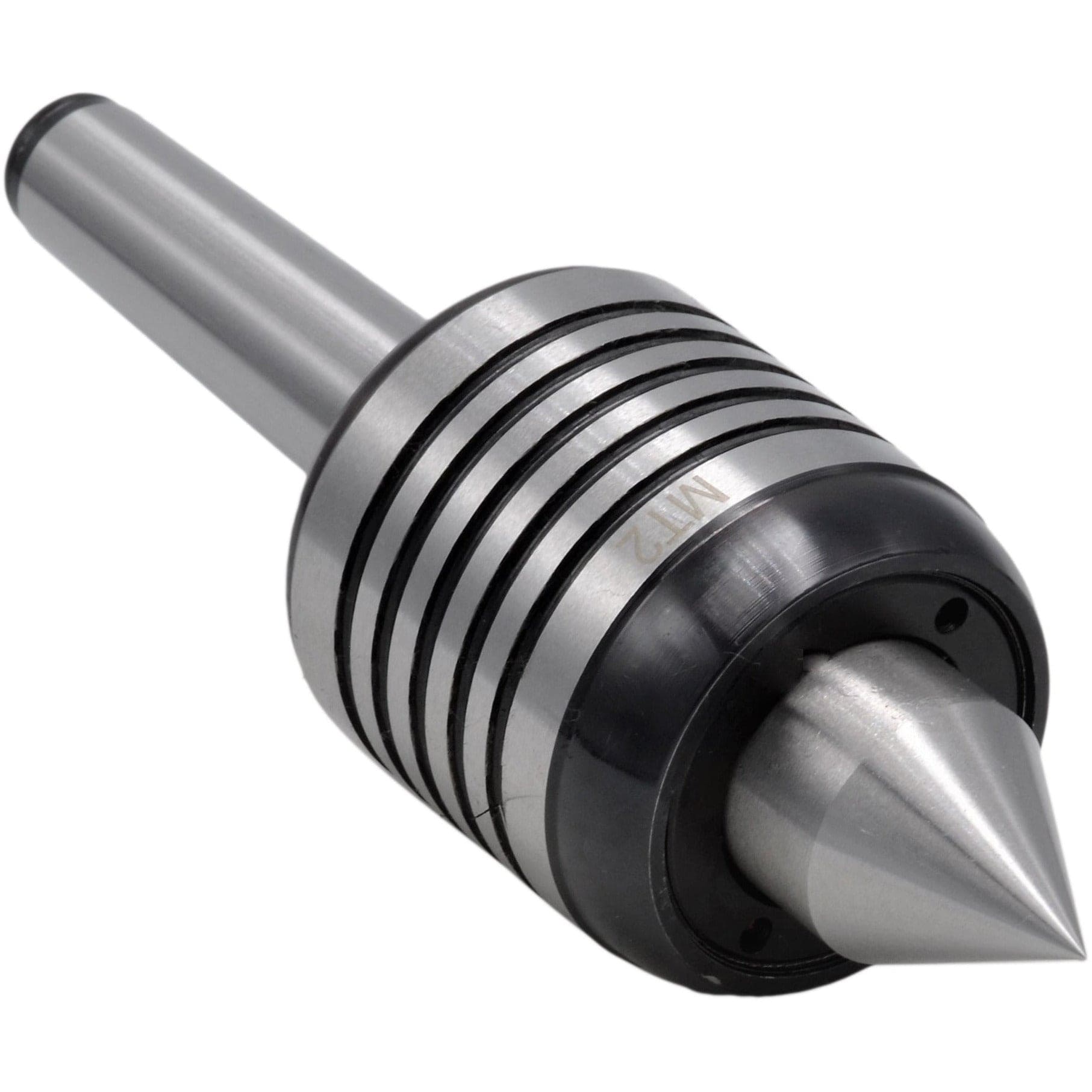

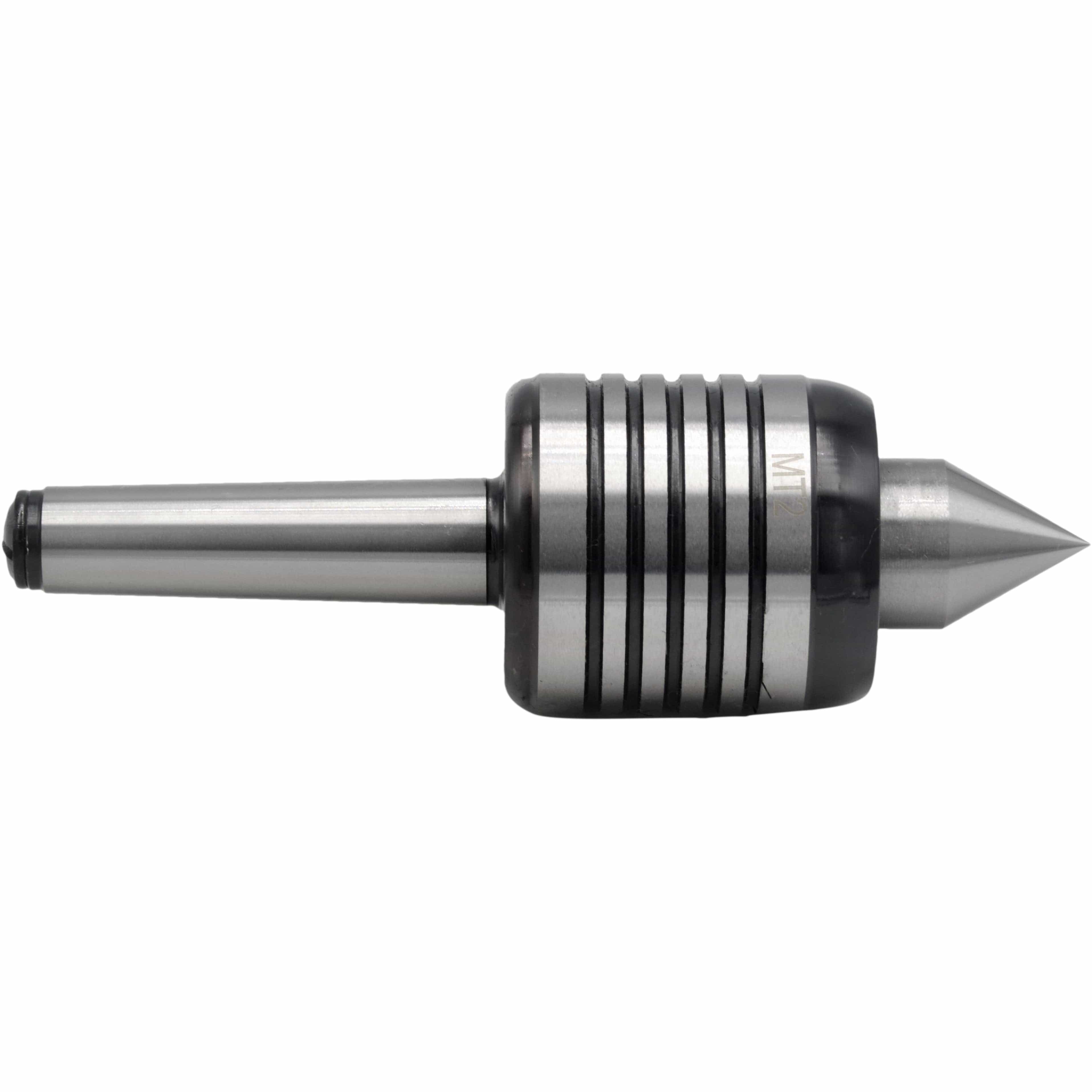

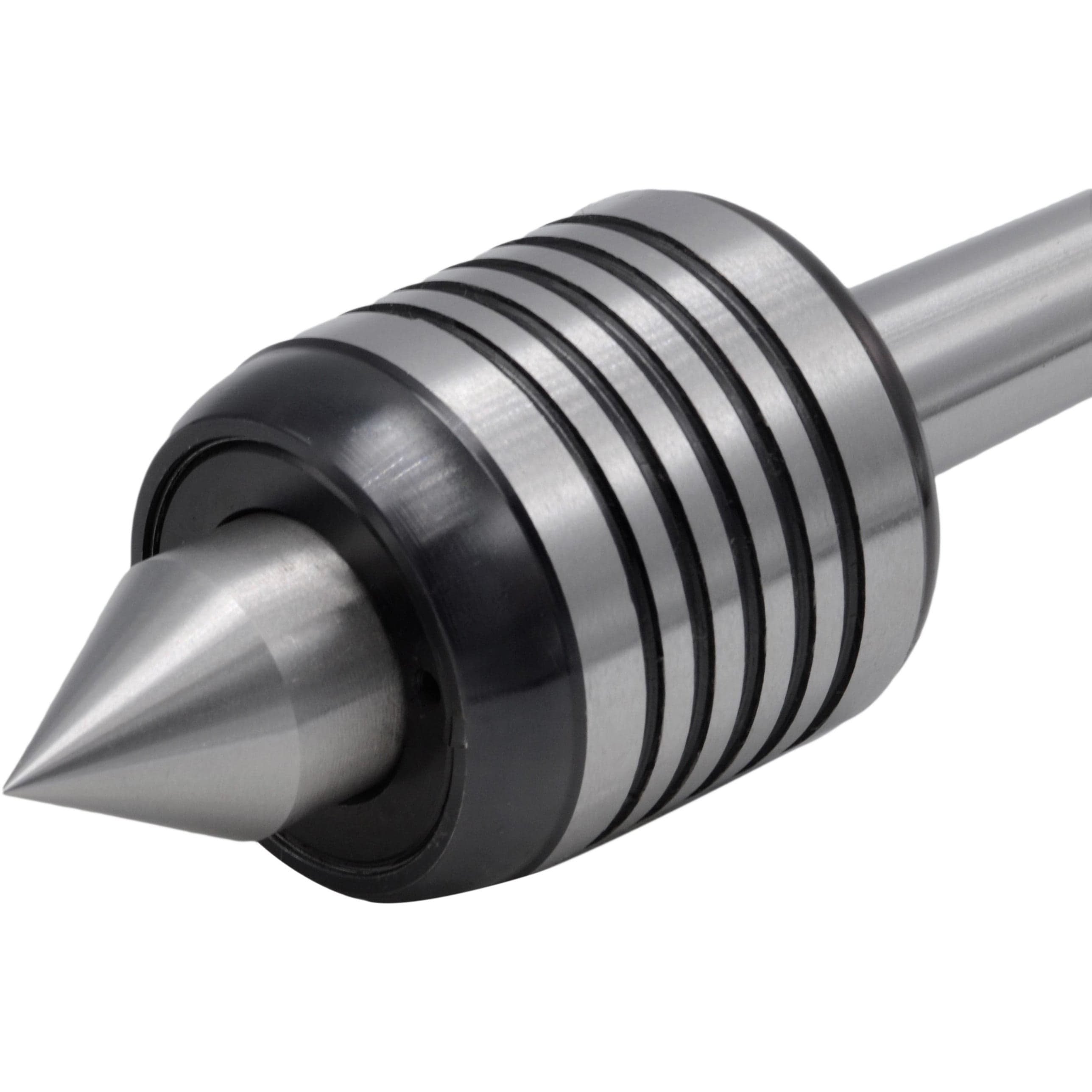

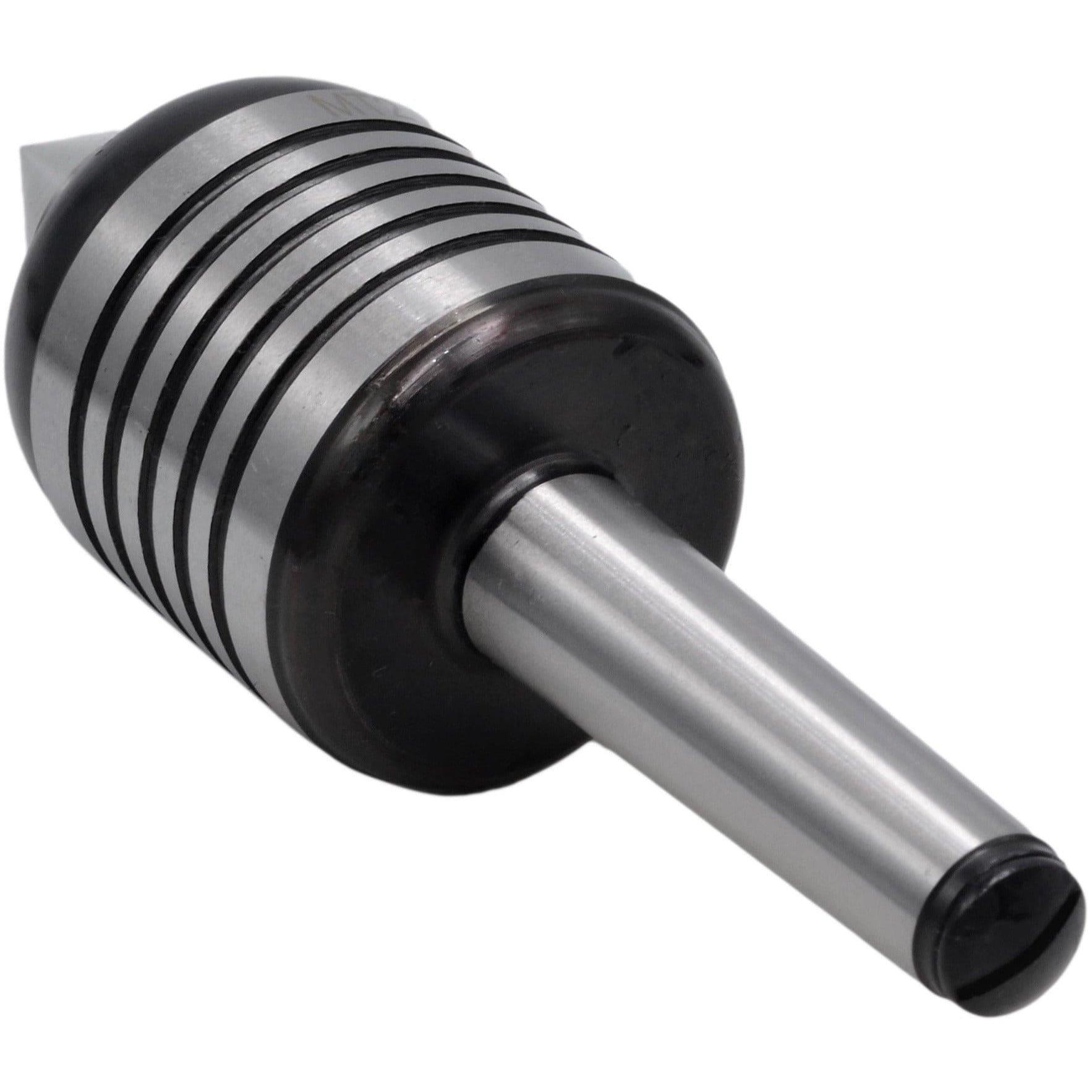

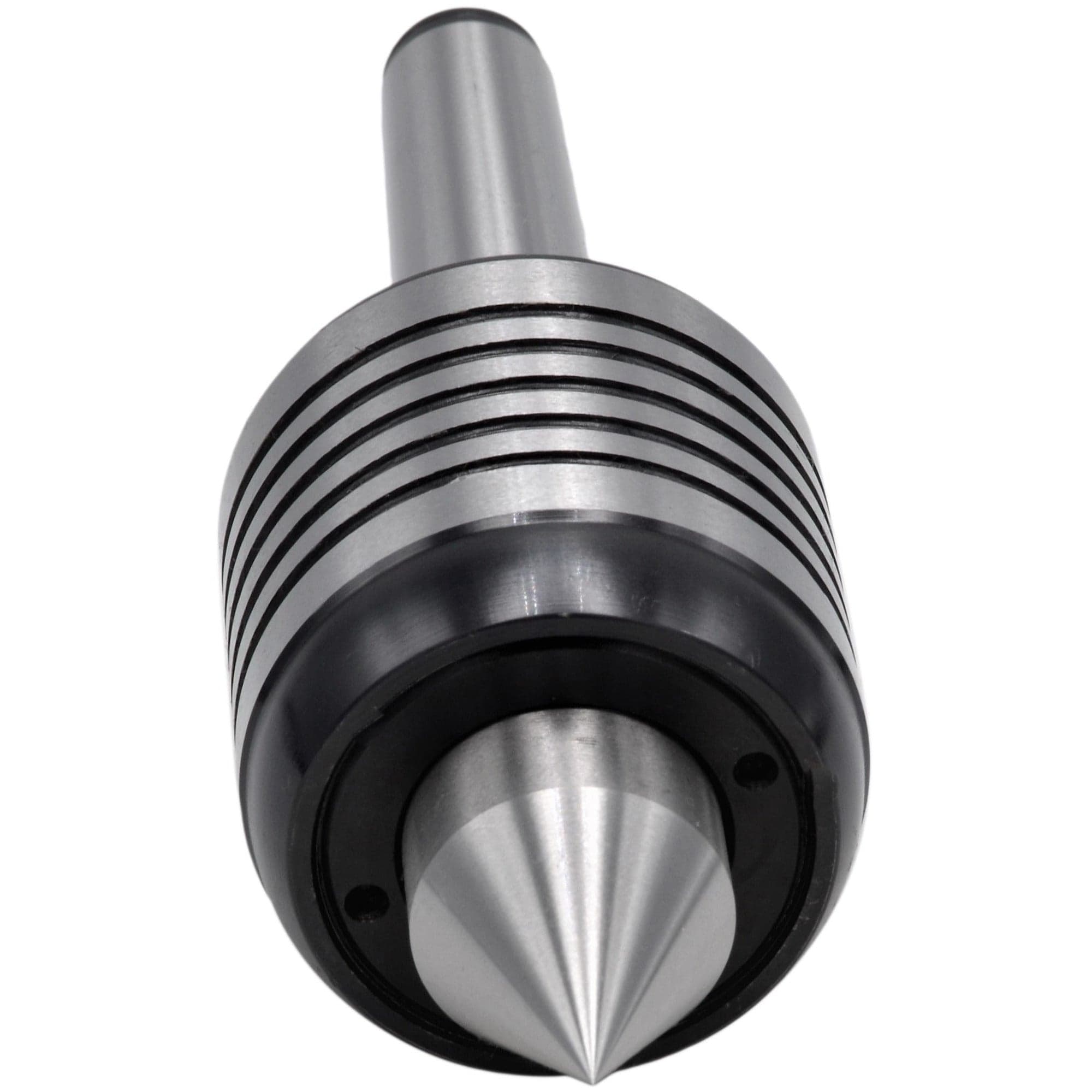

Morse Taper 2 Live Centre

Designed for medium speed medium load lathes.
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life.
  • Shank Size: Morse taper 2
  • Part No:DJ-08002/MT2
  • Max RPM: 3500
  • Accuracy: 0.005 mm
  • Load Capacity: 120 kg
  • 60 Degree Centre Point
  • Triple bearing
  • M10 Drawbar thread with cap

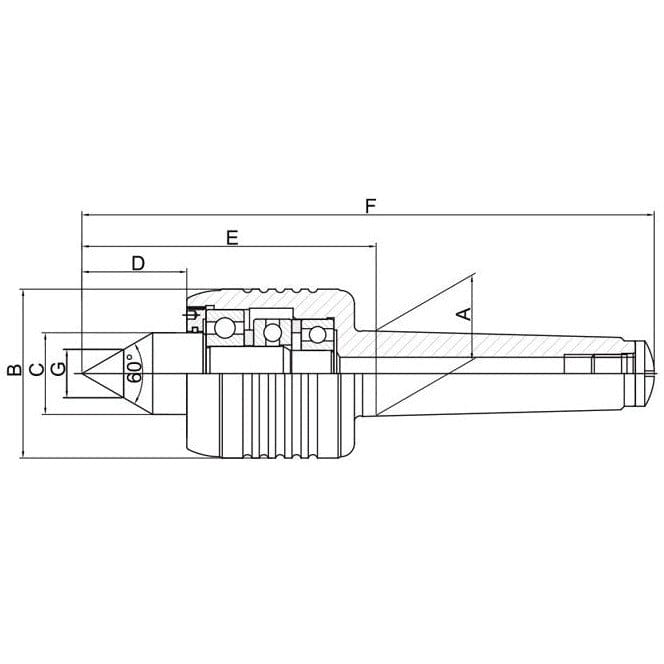

     Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm)
    MT2 17.780 45 24 31 87
    151 12
    MT3 23.825 52 26 34 94 175 15
    MT4 31.267 60 30
    38.5
    107 210 18
    MT5 44.399 77 44 50
    130 260 24
