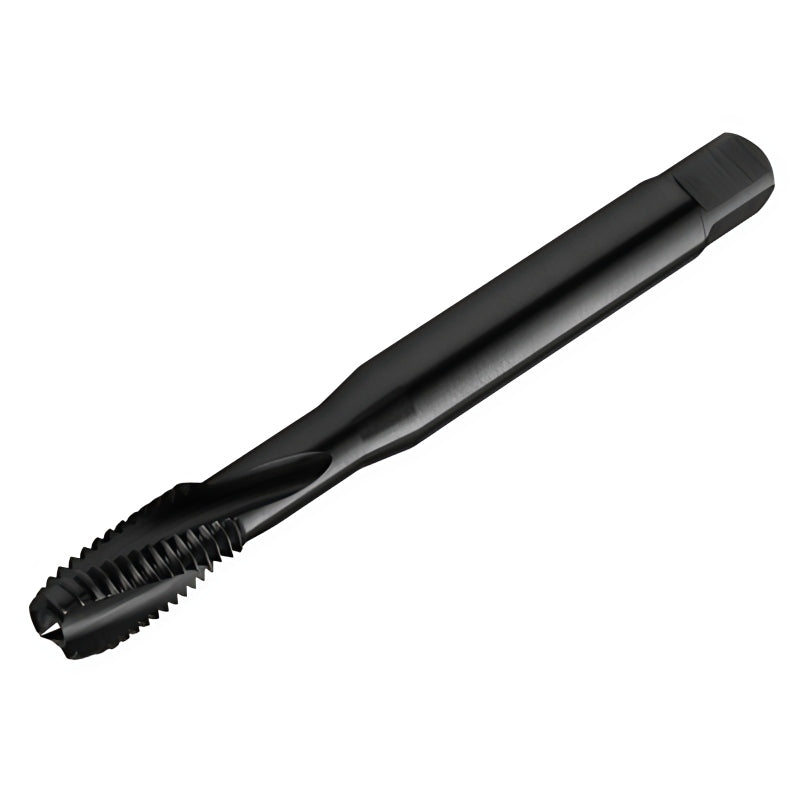

Sandvik HSS-E Blue Gun Nose PVD FeN coated Tap M4 X 0.7, DIN 371 Reinforced Shank

Sandvik M4 × 0.7 Blue Spiral Point (Gun Nose) Tap – Premium Through-Hole Tapping (DIN 371) Engineered for precision CNC and conventional machining, this Sandvik spiral point (gun nose) tap...
$47.00
$47.00
(-0%)
Vendor: SANDVIK
SKU: E344M4
Availability: In Stock
Subtotal: $47.00
Sandvik HSS-E Blue Gun Nose PVD FeN coated Tap M4 X 0.7, DIN 371 Reinforced Shank

Sandvik HSS-E Blue Gun Nose PVD FeN coated Tap M4 X 0.7, DIN 371 Reinforced Shank

$47.00

Sandvik HSS-E Blue Gun Nose PVD FeN coated Tap M4 X 0.7, DIN 371 Reinforced Shank

$47.00

Sandvik M4 × 0.7 Blue Spiral Point (Gun Nose) Tap – Premium Through-Hole Tapping (DIN 371)

Engineered for precision CNC and conventional machining, this Sandvik spiral point (gun nose) tap drives chips forward and out of the hole for clean, accurate threading. Optimized for steels and similar materials, it ensures smooth chip evacuation and consistent performance. Best suited for through holes.

Key Features & Benefits

  • Extended Tool Life – HSS-E substrate with PVD FeN coating resists wear and edge build-up.
  • Optimized Chip Control – Spiral point geometry pushes swarf ahead, preventing clogging in through-hole tapping.
  • DIN Standard Design – DIN 371 shank provides stability and compatibility with a wide range of machines.
  • Precision Threading – Ground to 6H tolerance for accurate, repeatable thread profiles.

Technical Specifications

Specification Metric Imperial
Thread Size M4
Thread Pitch 0.7 mm 0.0276 in
Thread Form M (Metric 60°)
Thread Diameter 4.0 mm 0.1575 in
Tap Chamfer Length 3.13 mm 0.1233 in

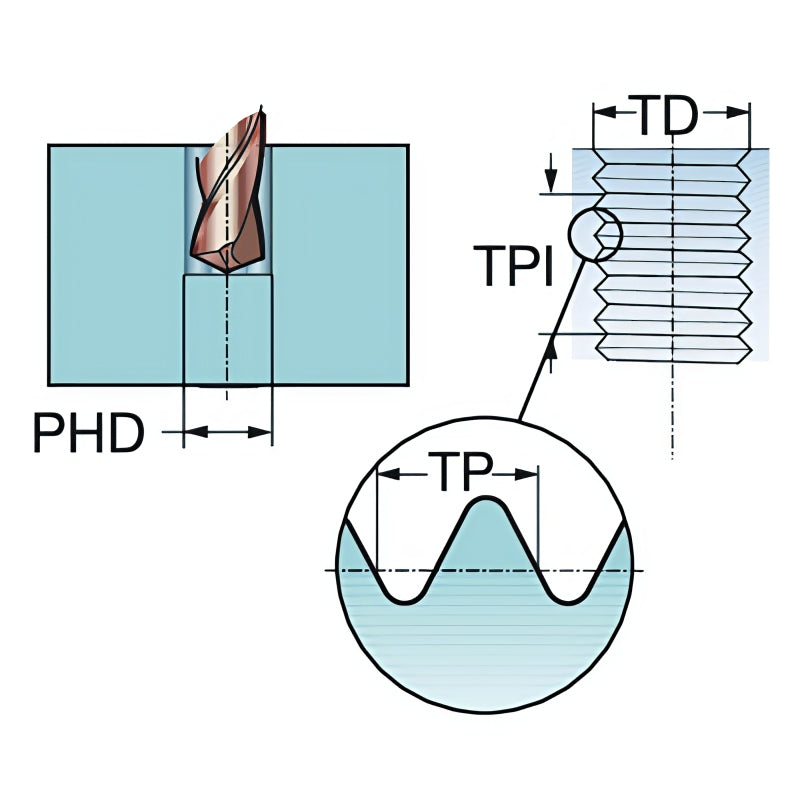

Premachined Hole Diameter 3.3 mm 0.1299 in
Premachined Hole Type / Hole Type Through hole Through hole
Thread Tolerance Class 6H
Shank Standard DIN 371

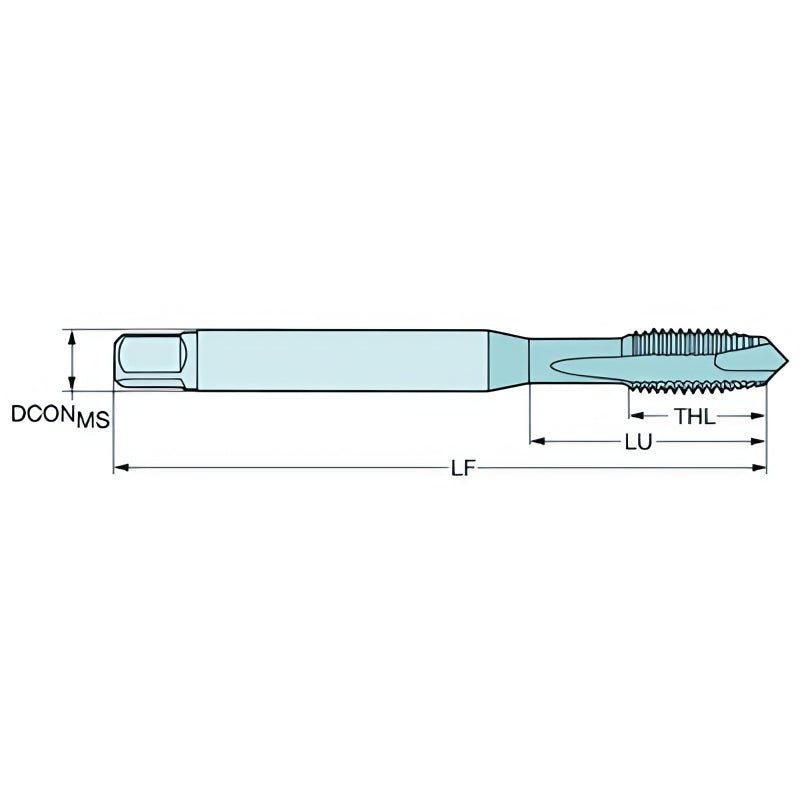

Usable Length (LU) 21 mm 0.8268 in
Functional Length (LF) 63 mm 2.4803 in
Overall Length (OAL) 64.6 mm 2.5433 in
Neck Diameter 2.97 mm 0.1169 in
Flute Count 3
Flute Helix Angle 0° (spiral point)
Radial Rake Angle
Threading Length 11.7 mm 0.4606 in
Threading Chamfer Type B = 3.5–5×TP (Gunnose)
Chip Breaker MM
Grade S9P4
Substrate HSS-E
Coating PVD FeN (iron-nitride)
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 4.50 × 3.40
Connection Diameter (Machine Side) 4.5 mm 0.1772 in
Connection Diameter Tolerance h9
Weight 0.009 kg 0.0198 lb
Maximum Regrinds 0
Release Date 12/12/2011
Release Pack ID 11.2

Why Choose This Tool?

The Sandvik E344M4 spiral point (gun nose) tap combines a tough HSS-E substrate, PVD FeN coating, and a DIN 371 shank to deliver durable, accurate threading performance. Designed for through-hole tapping, it offers reliable chip control, smooth operation, and professional-grade consistency for both CNC and manual applications.
