Sandvik M6 × 1.0 Blue Spiral Point (Gun Nose) Tap – Premium Through-Hole Tapping (DIN 371)

Built for precision and reliability in CNC and conventional machining, this Sandvik spiral point (gun nose) tap drives chips forward and clear of the cutting zone, ensuring smooth, clean threading with reduced risk of clogging. Optimized for through-hole applications, it provides outstanding tool life and thread accuracy in steels and other challenging materials.

Key Features & Benefits

  • Durable Tool Life – HSS-E substrate with PVD FeN coating delivers excellent wear resistance.
  • Efficient Chip Evacuation – Spiral point design pushes swarf forward for uninterrupted threading.
  • Reinforced Shank Design – DIN 371 standard ensures strength and stability in small-diameter tapping.
  • Accurate Threads – Precision-ground to 6H tolerance for consistent, high-quality threads.

Technical Specifications

Specification Metric Imperial

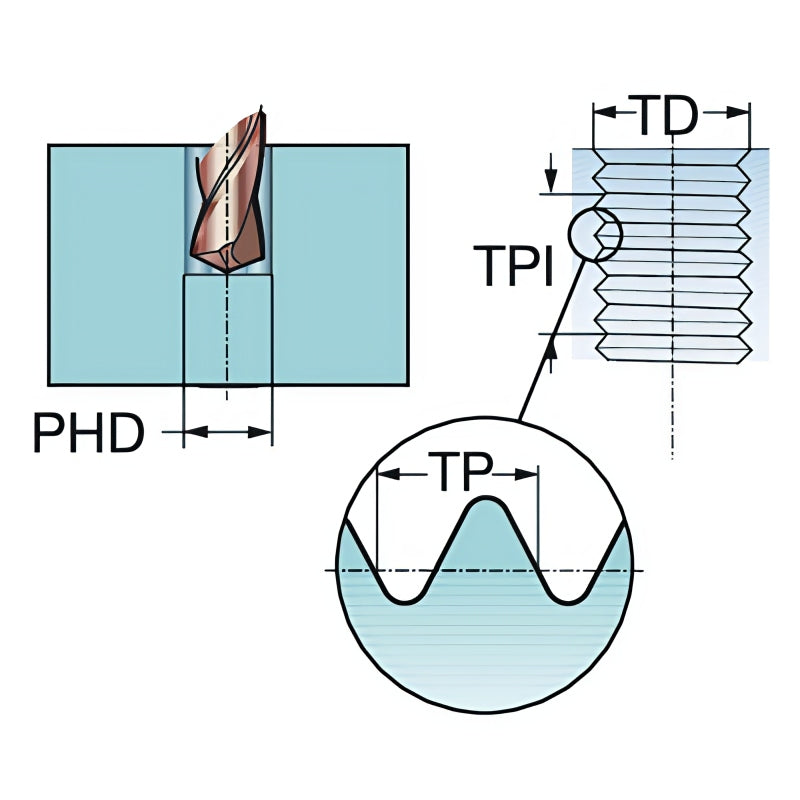

Thread Size M6
Thread Pitch 1.0 mm 0.0394 in
Thread Form M (Metric 60°)
Thread Diameter 6.0 mm 0.2362 in
Tap Chamfer Length 4.34 mm 0.1709 in
Premachined Hole Diameter 5.0 mm 0.1969 in
Premachined Hole Type / Hole Type Through hole Through hole
Thread Tolerance Class 6H
Shank Standard DIN 371

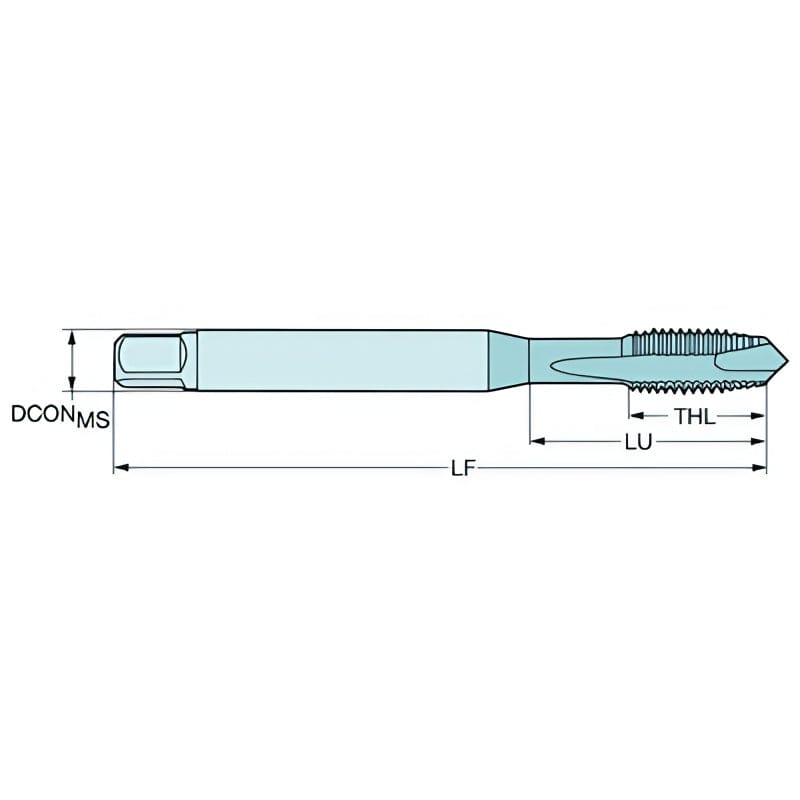

Usable Length (LU) 30.0 mm 1.1811 in
Functional Length (LF) 80.0 mm 3.1496 in
Overall Length (OAL) 82.5 mm 3.2441 in
Neck Diameter 4.56 mm 0.1795 in
Flute Count 3
Flute Helix Angle 0° (spiral point)
Radial Rake Angle
Threading Length 14.5 mm 0.5709 in
Threading Chamfer Type B = 3.5–5×TP (Gunnose)
Chip Breaker MM
Grade S9P4
Substrate HSS-E
Coating PVD FeN (iron-nitride)
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 6.00 × 4.90
Connection Diameter (Machine Side) 6.0 mm 0.2362 in
Connection Diameter Tolerance h9
Weight 0.0200 kg 0.0441 lb
Maximum Regrinds 0
Release Date 12/12/2011
Release Pack ID 11.2

Why Choose This Tool?

The Sandvik M6 spiral point (gun nose) tap combines a tough HSS-E substrate with a PVD FeN coating and DIN 371 reinforced shank design. Offering long tool life, accurate threading, and smooth chip evacuation, it is the professional’s choice for reliable through-hole production in steels and other demanding materials.
