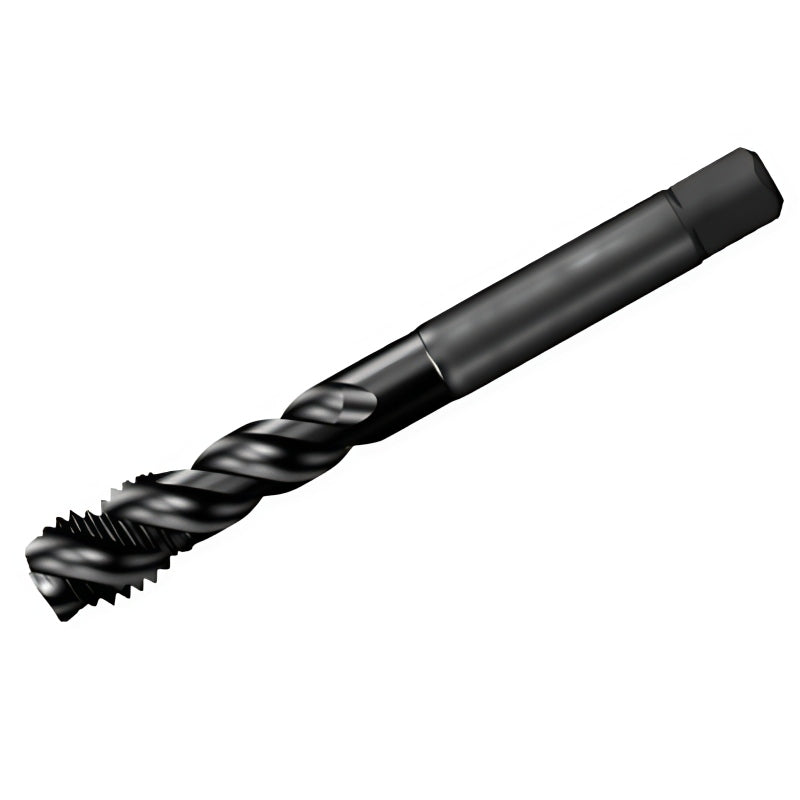

Built for reliability in CNC and manual machining. The spiral flute geometry with a 45° helix angle efficiently lifts chips out of blind holes, ensuring clean threads and preventing tool breakage. Ideal for blind-hole tapping in steels, stainless steels, and cast irons (PMK).
Specification | Metric | Imperial |
---|---|---|
Workpiece Material(s) | PMK | — |
Thread Size | UNC 1/2-13 | 1/2-13 |
Thread Form | UNC 60° | UNC 60° |

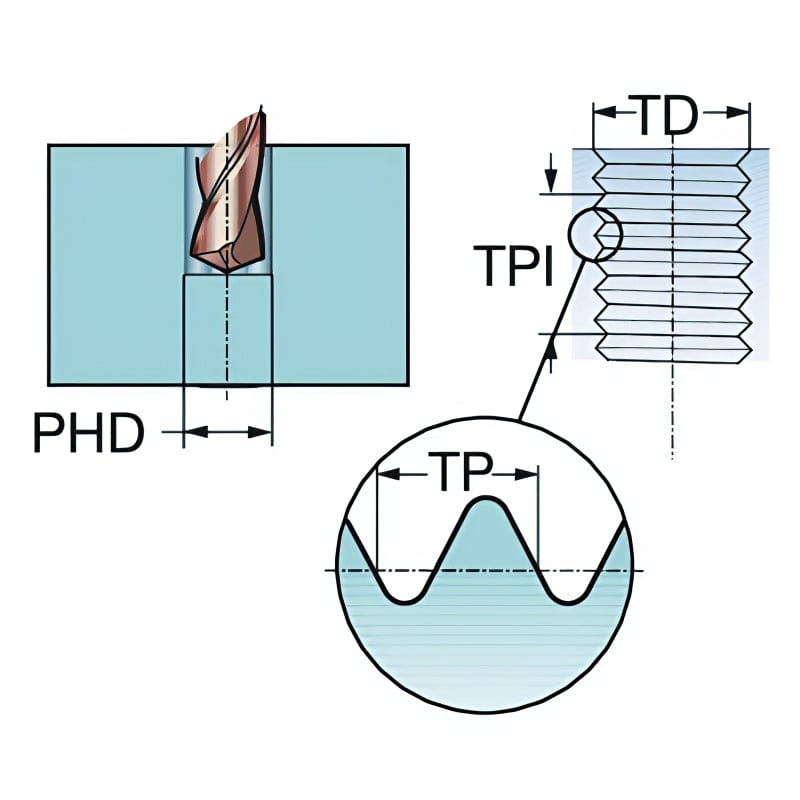

Thread Pitch | 1.95 mm (equiv.) | 13 TPI |
Thread Diameter | 12.7 mm | 0.5000 in |
Tap Chamfer Length | 4.05 mm | 0.1596 in |
Premachined Hole Diameter | 10.8 mm | 0.4252 in |
Premachined Hole Type / Hole Type | Blind hole | Blind hole |
Thread Tolerance Class | 2B | — |
Shank Standard | DIN 2184-1 | — |

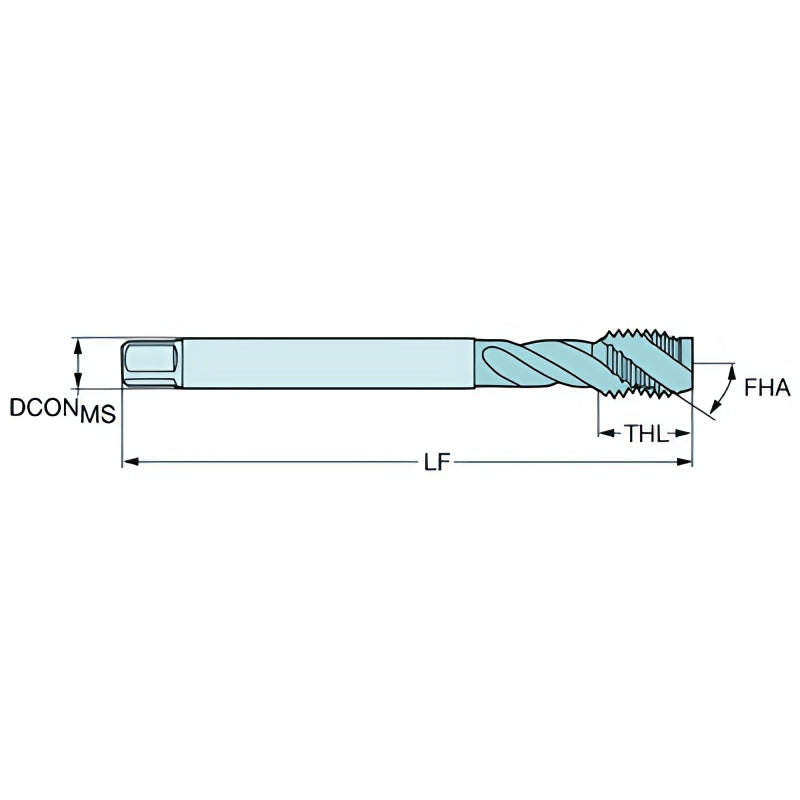

Usable Length (LU) | 82.75 mm | 3.2579 in |
Functional Length (LF) | 110 mm | 4.3307 in |
Overall Length (OAL) | 110 mm | 4.3307 in |
Neck Diameter | 8.6 mm | 0.3386 in |
Flute Count | 3 | — |
Flute Helix Angle | 45° | — |
Radial Rake Angle | 13° | — |
Threading Length | 18 mm | 0.7087 in |
Threading Chamfer Type | C = 2–3×TP | — |
Chip Breaker | XM | — |
Grade | C145 | — |
Substrate | HSS-PM | — |
Coating | PVD FeN | — |
Coolant Entry / Exit | Without / None | — |
Connection – Machine Side | Tap shank DIN-metric 9.00 × 7.00 | — |
Connection Diameter (Machine Side) | 9.0 mm | 0.3543 in |
Connection Diameter Tolerance | h9 | — |
Weight | 0.0469 kg | 0.1034 lb |
Maximum Regrinds | 0 | — |
Release Date | 02/25/2014 | — |
Release Pack ID | 14.1 | — |
This Sandvik spiral flute tap leverages a high-performance HSS-PM substrate, reinforced with a PVD FeN coating and a 45° spiral design for superior blind-hole tapping. Delivering strength, accuracy, and smooth chip evacuation, it is ideal for CNC production and precision manual operations in tough PMK materials.
