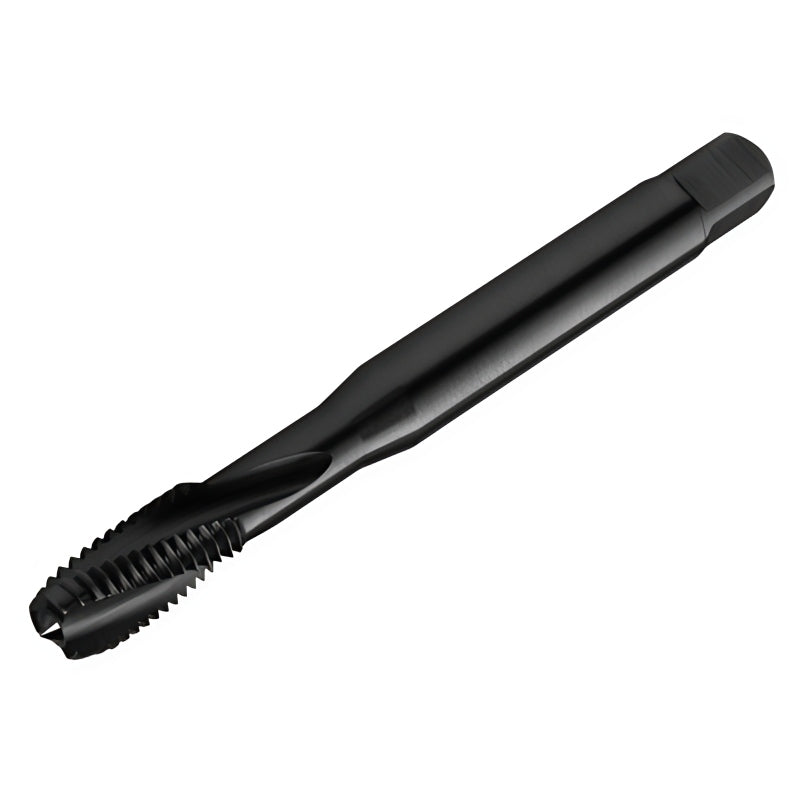

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap No.10 UNF, DIN 2184-1 Short Body

Sandvik UNF #10-32 Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1) Designed for high-precision machining of steels, stainless steels, and cast irons (PMK). The 45° spiral flute geometry efficiently...
$65.00
$65.00
(-0%)
Vendor: SANDVIK
SKU: T300-XM100DF-10-32 C145
Availability: In Stock
Subtotal: $65.00
Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap No.10 UNF, DIN 2184-1 Short Body

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap No.10 UNF, DIN 2184-1 Short Body

$65.00

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap No.10 UNF, DIN 2184-1 Short Body

$65.00

Sandvik UNF #10-32 Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1)

Designed for high-precision machining of steels, stainless steels, and cast irons (PMK). The 45° spiral flute geometry efficiently evacuates chips in blind holes, ensuring clean threads, reduced tool stress, and reliable performance in both CNC and conventional applications.

Key Features & Benefits

  • Extended Tool Life – HSS-PM substrate with PVD FeN coating provides durability and resistance to wear.
  • Efficient Chip Evacuation – 45° spiral flutes ensure smooth swarf removal in blind-hole tapping.
  • Production Ready – DIN 2184-1 shank standard with rigid 3-flute design for stability and accuracy.
  • High Precision – Manufactured to UNC/UNF 2B tolerance for consistent, in-spec threads.

Technical Specifications

Specification Metric Imperial
Workpiece Material(s) PMK

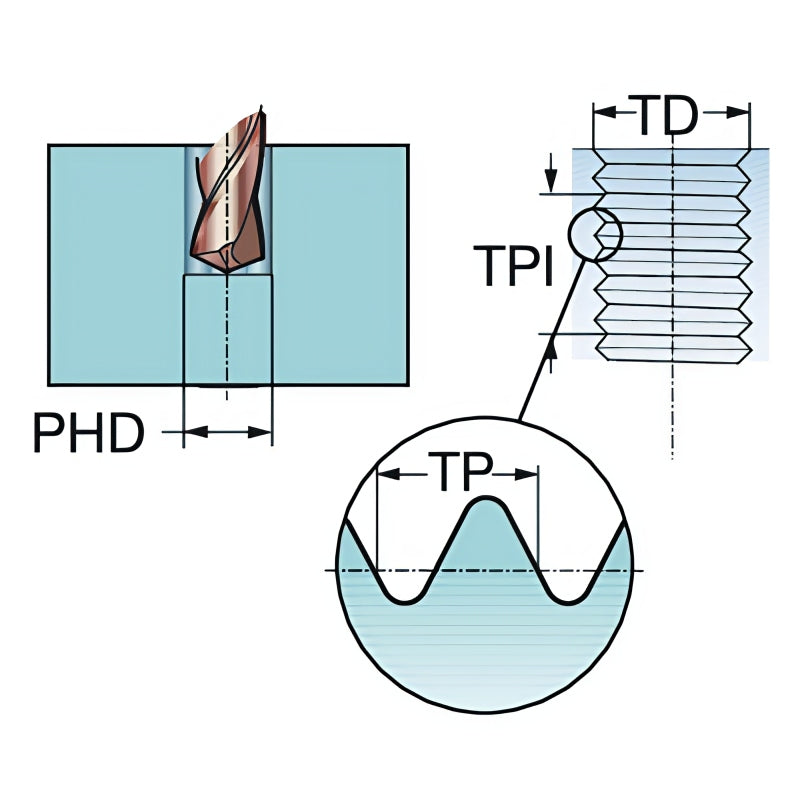

Thread Size UNF #10-32 #10-32
Thread Form UNF 60° UNF 60°
Thread Pitch 0.7938 mm 32 TPI
Thread Diameter 4.83 mm 0.1900 in
Tap Chamfer Length 1.62 mm 0.0639 in
Premachined Hole Diameter 4.10 mm 0.1614 in
Premachined Hole Type / Hole Type Blind hole Blind hole
Thread Tolerance Class 2B
Shank Standard DIN 2184-1

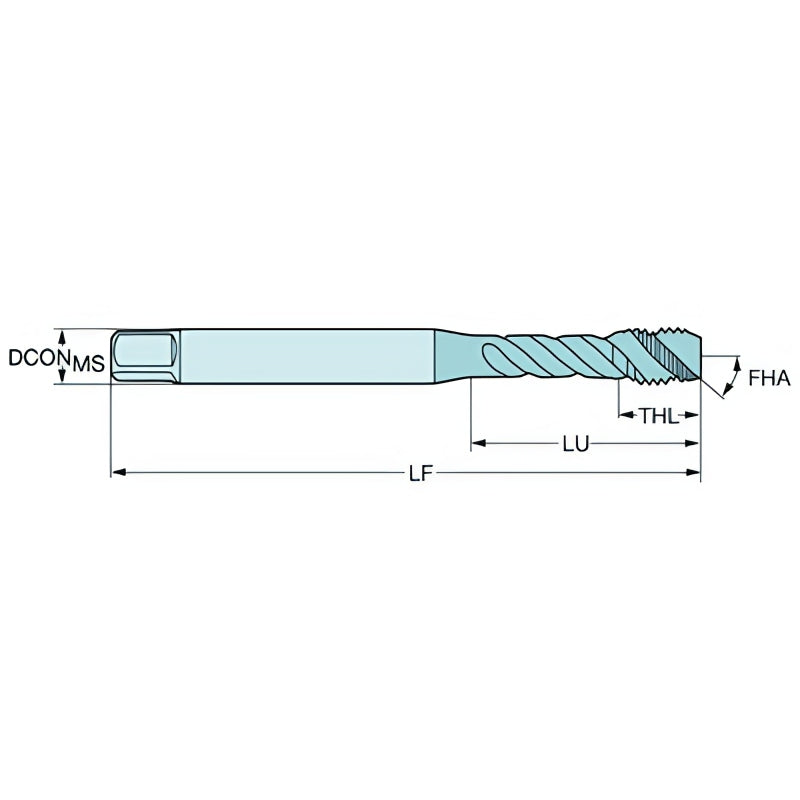

Usable Length (LU) 25 mm 0.9843 in
Functional Length (LF) 70 mm 2.7559 in
Overall Length (OAL) 70 mm 2.7559 in
Neck Diameter 3.62 mm 0.1425 in
Flute Count 3
Flute Helix Angle 45°
Radial Rake Angle 13°
Threading Length 7.30 mm 0.2874 in
Threading Chamfer Type C = 2–3×TP
Chip Breaker XM
Grade C145
Substrate HSS-PM
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 6.00 × 4.90
Connection Diameter (Machine Side) 6.0 mm 0.2362 in
Connection Diameter Tolerance h9
Weight 0.0133 kg 0.0293 lb
Maximum Regrinds 0
Release Date 02/25/2014
Release Pack ID 14.1

Why Choose This Tool?

This Sandvik UNF #10-32 spiral flute tap pairs a premium HSS-PM substrate with a PVD FeN coating for excellent wear resistance and tool life. The 45° spiral flute geometry ensures reliable chip evacuation in blind-hole applications, while the DIN 2184-1 shank standard provides stability for consistent and accurate threading in CNC and manual machining environments.
