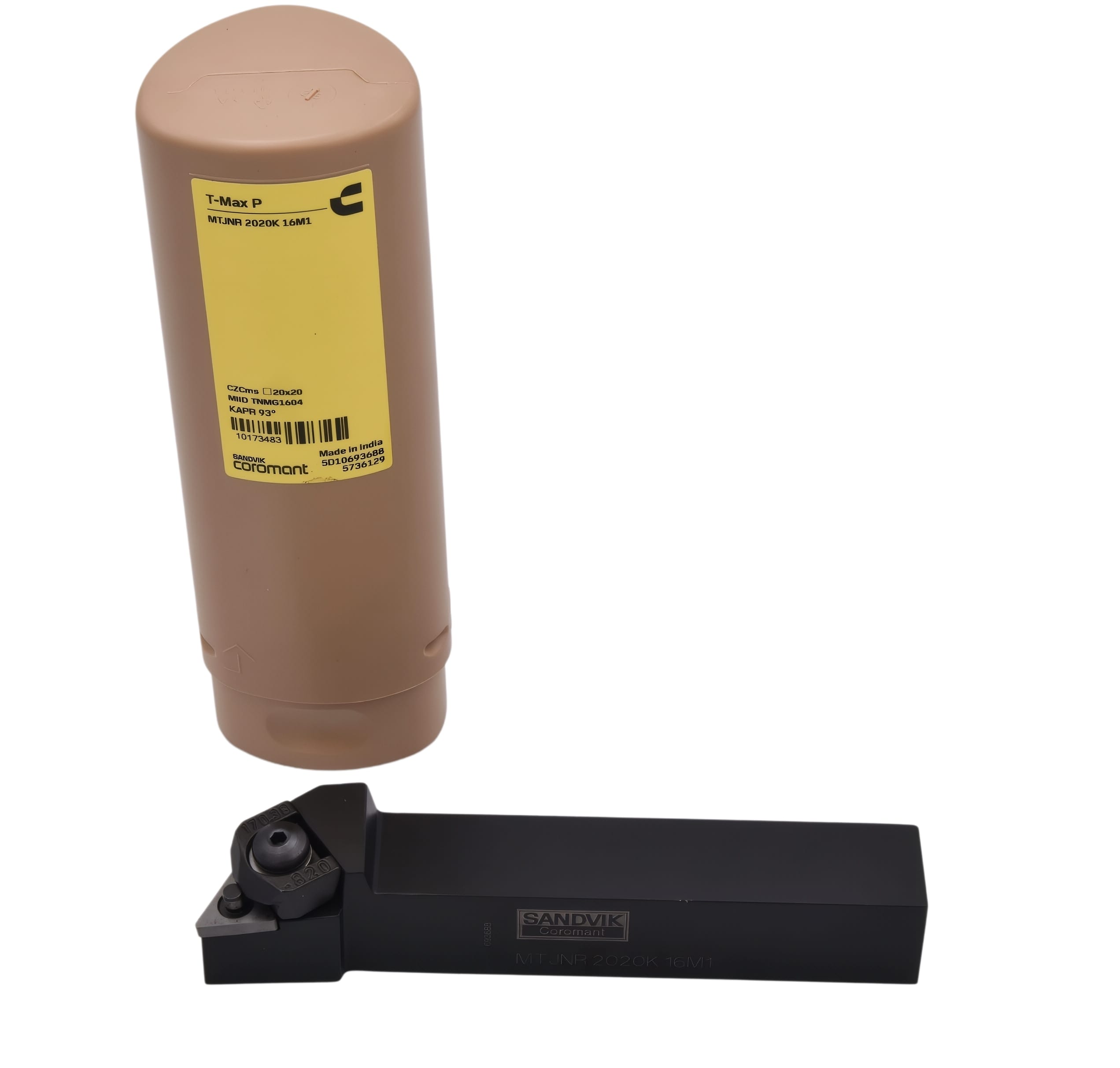

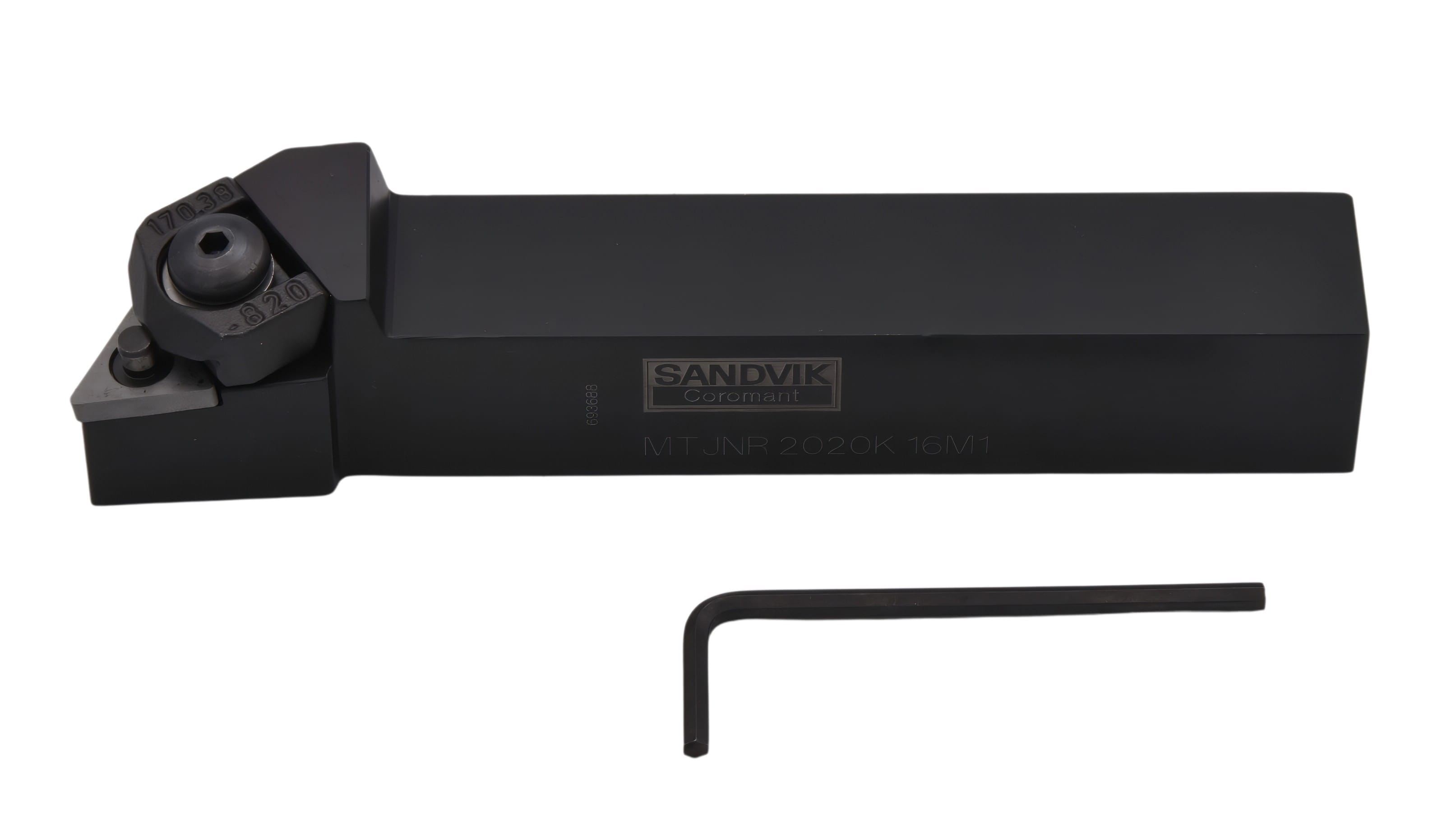

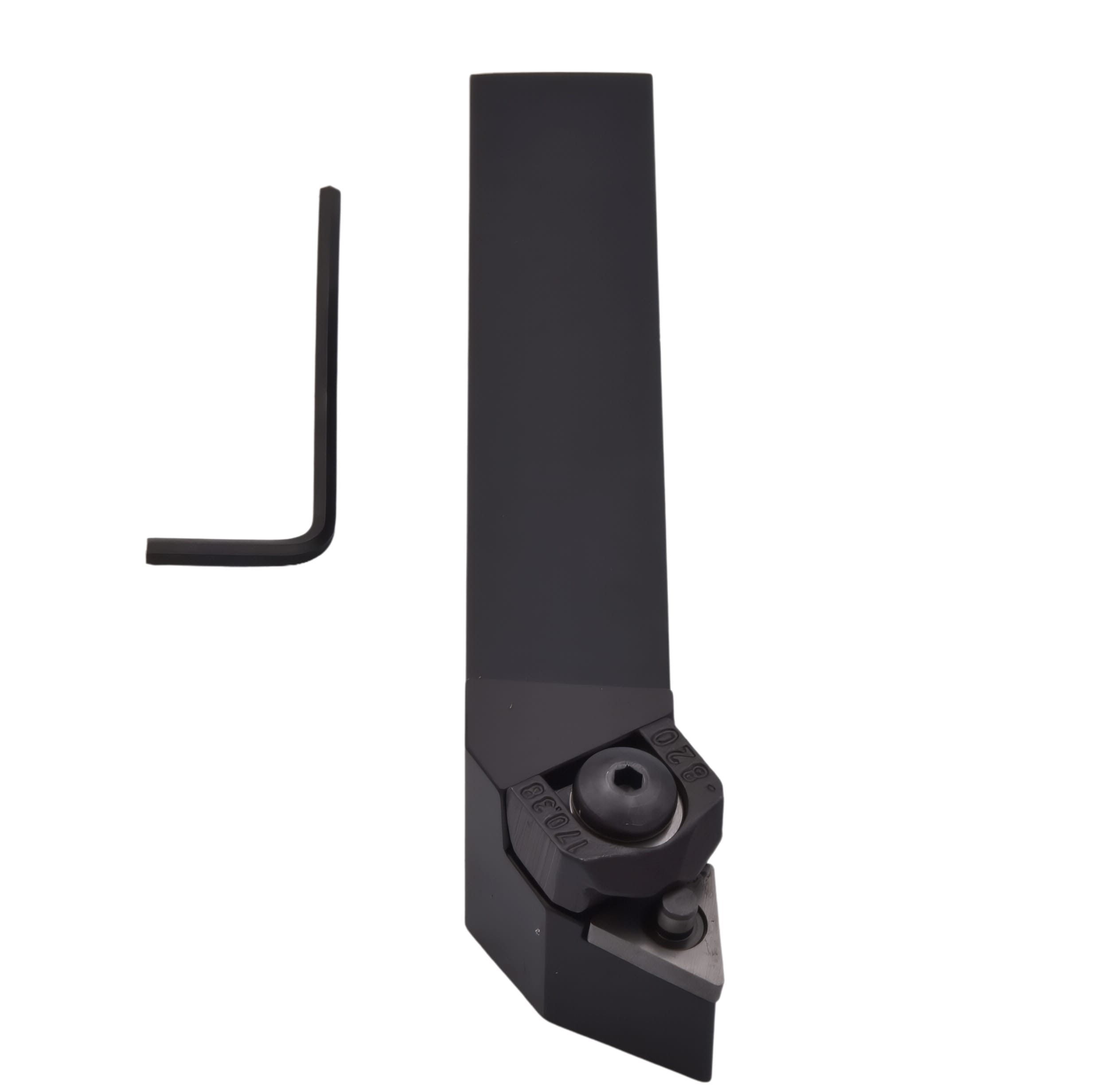

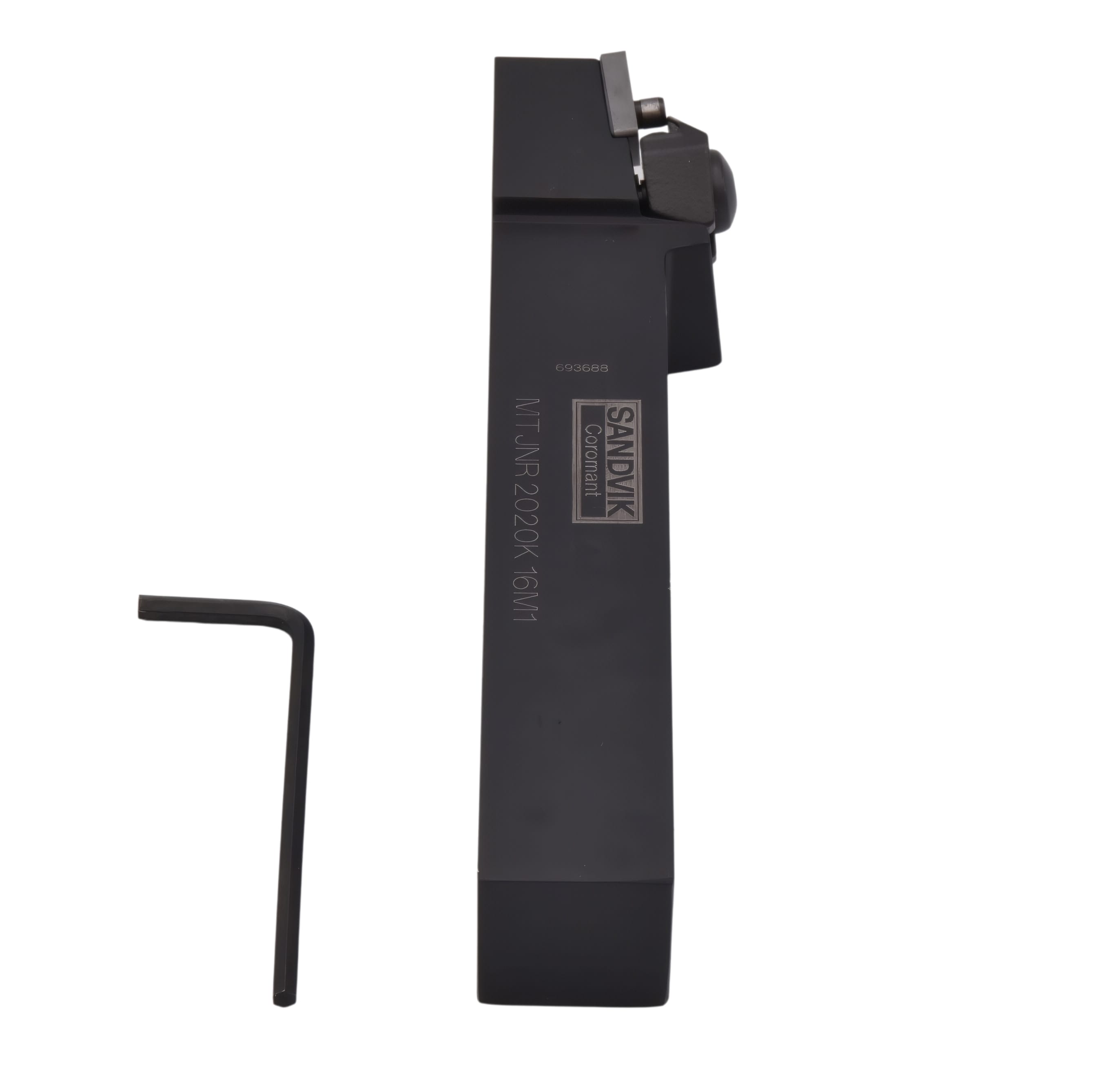

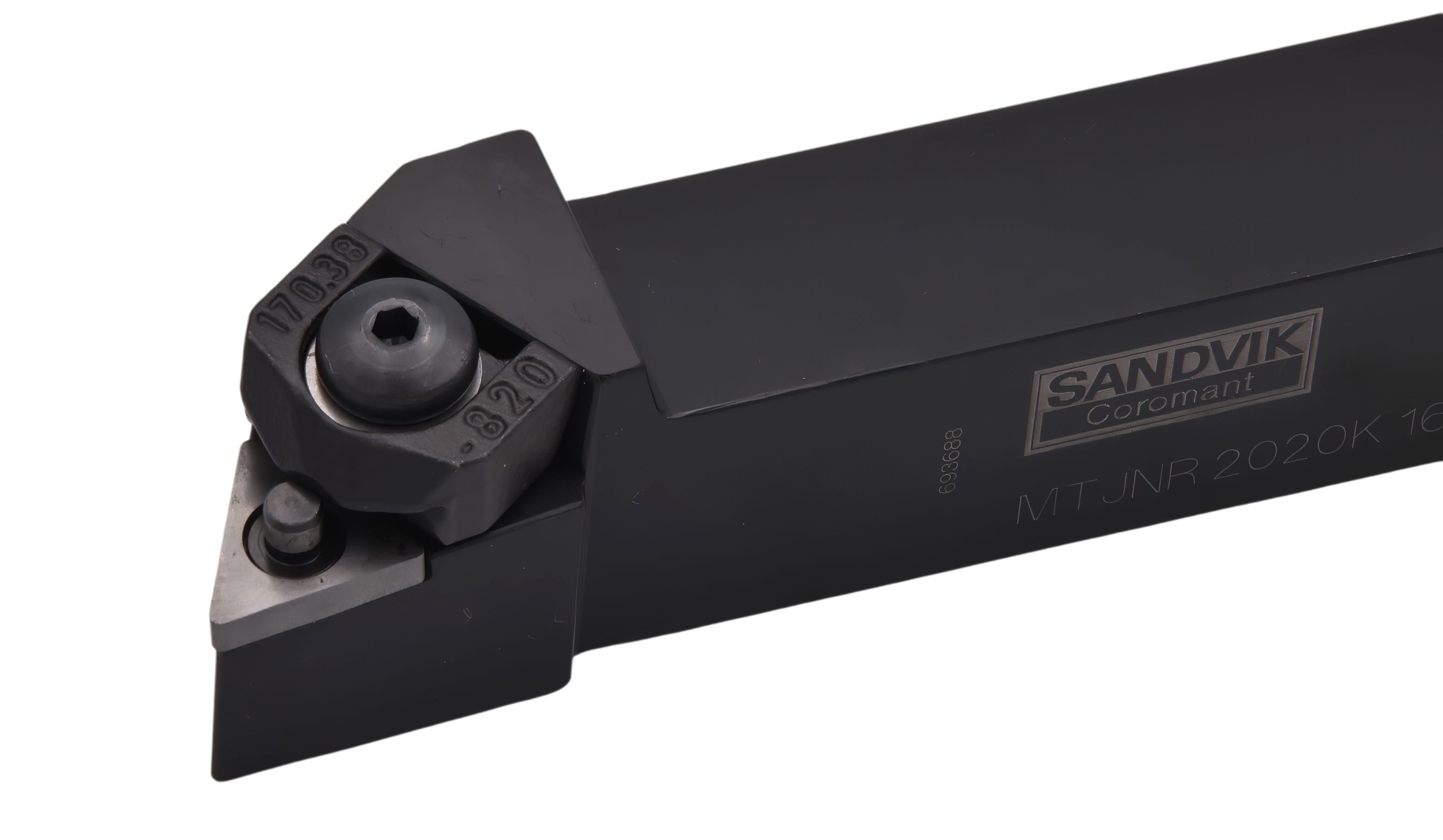

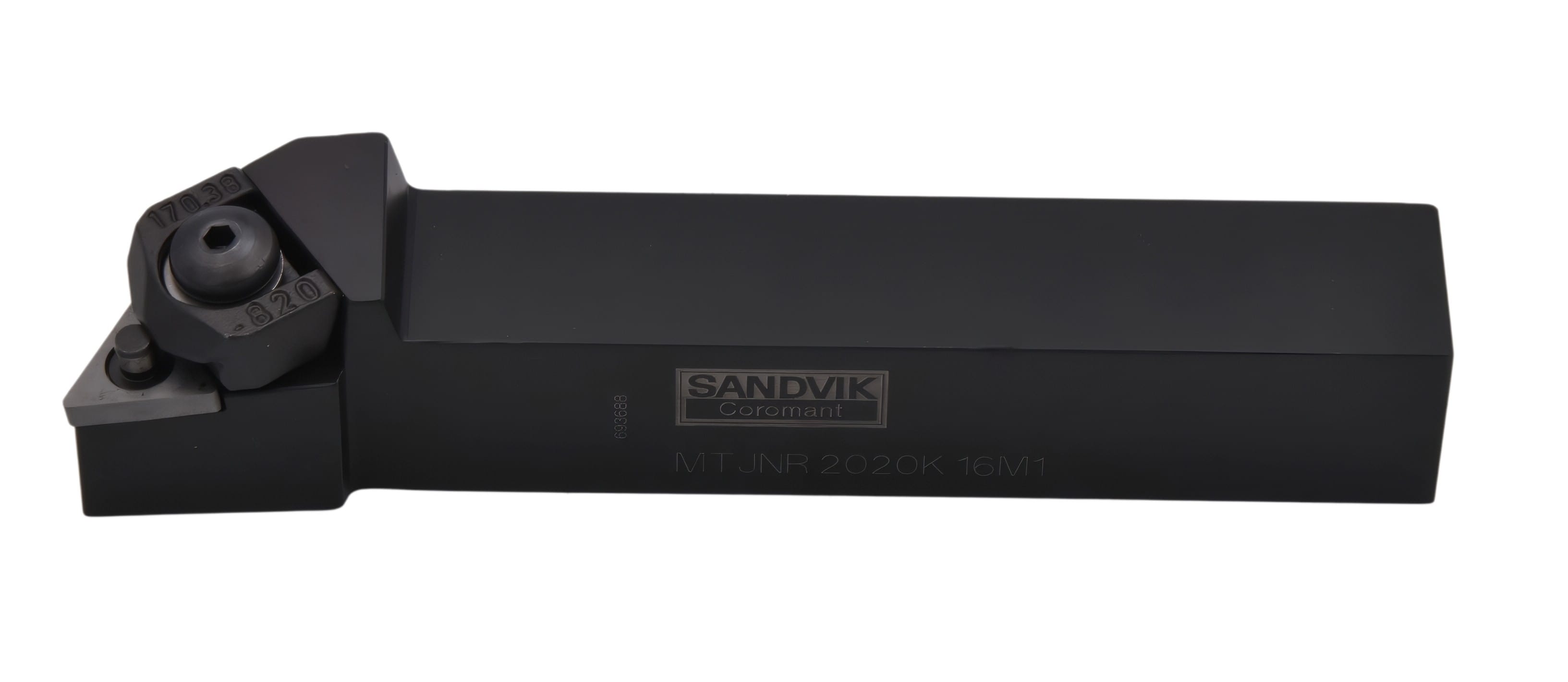

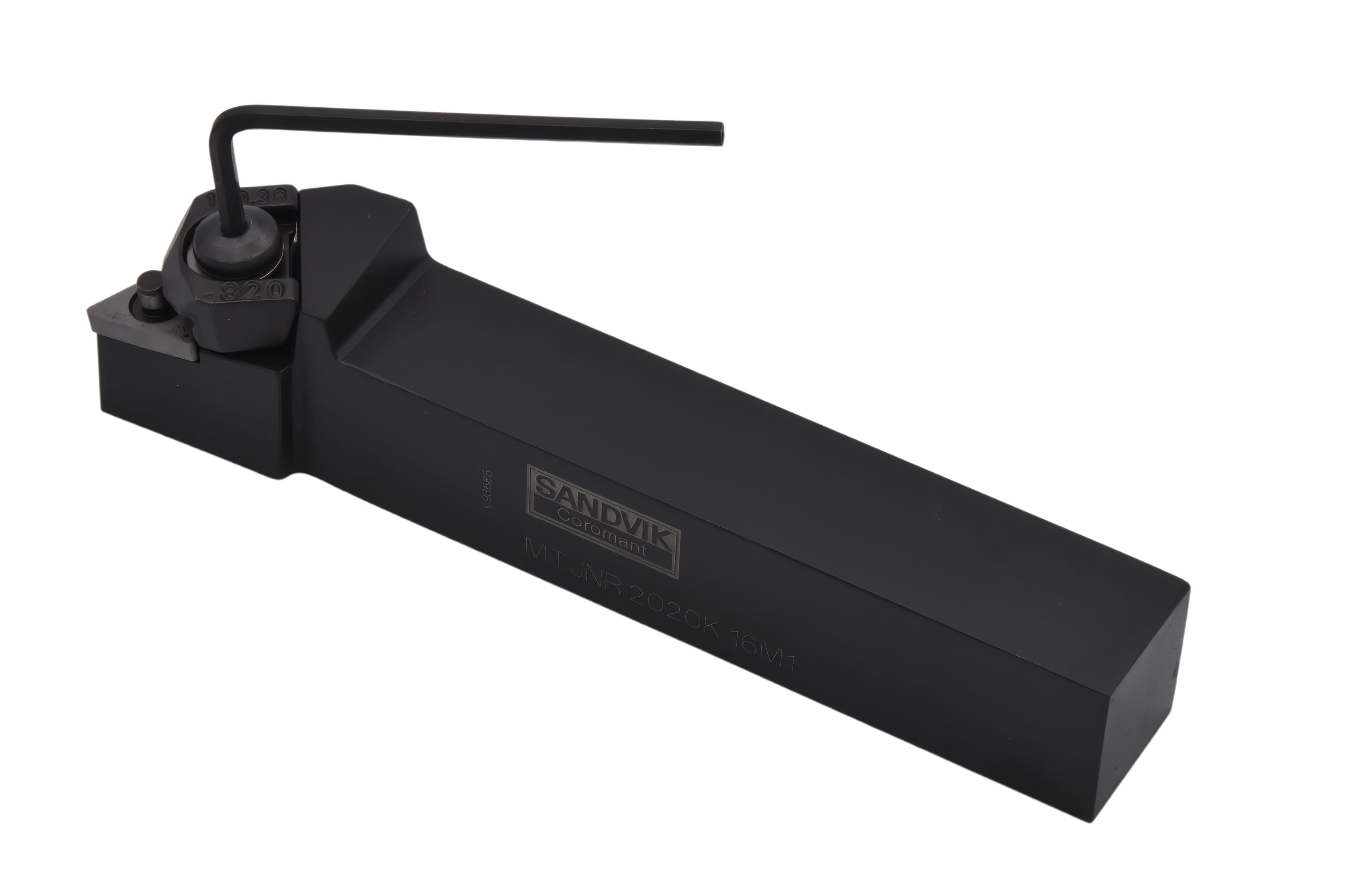

Sandvik MTJNR 2020K 16M1 External Toolholder 20mm Square

Sandvik Coromant MTJNR 2020K 16M1 External Turning Tool Holder – 20 x 20 mm Shank, TNMG 160408 Insert The Sandvik Coromant MTJNR 2020K 16M1 is a high-performance external turning tool...
$206.00
$0.00
$206.00
(-0%)
Vendor: SANDVIK
SKU: MTJNR 2020K 16M1
Availability: In Stock
Subtotal: $206.00

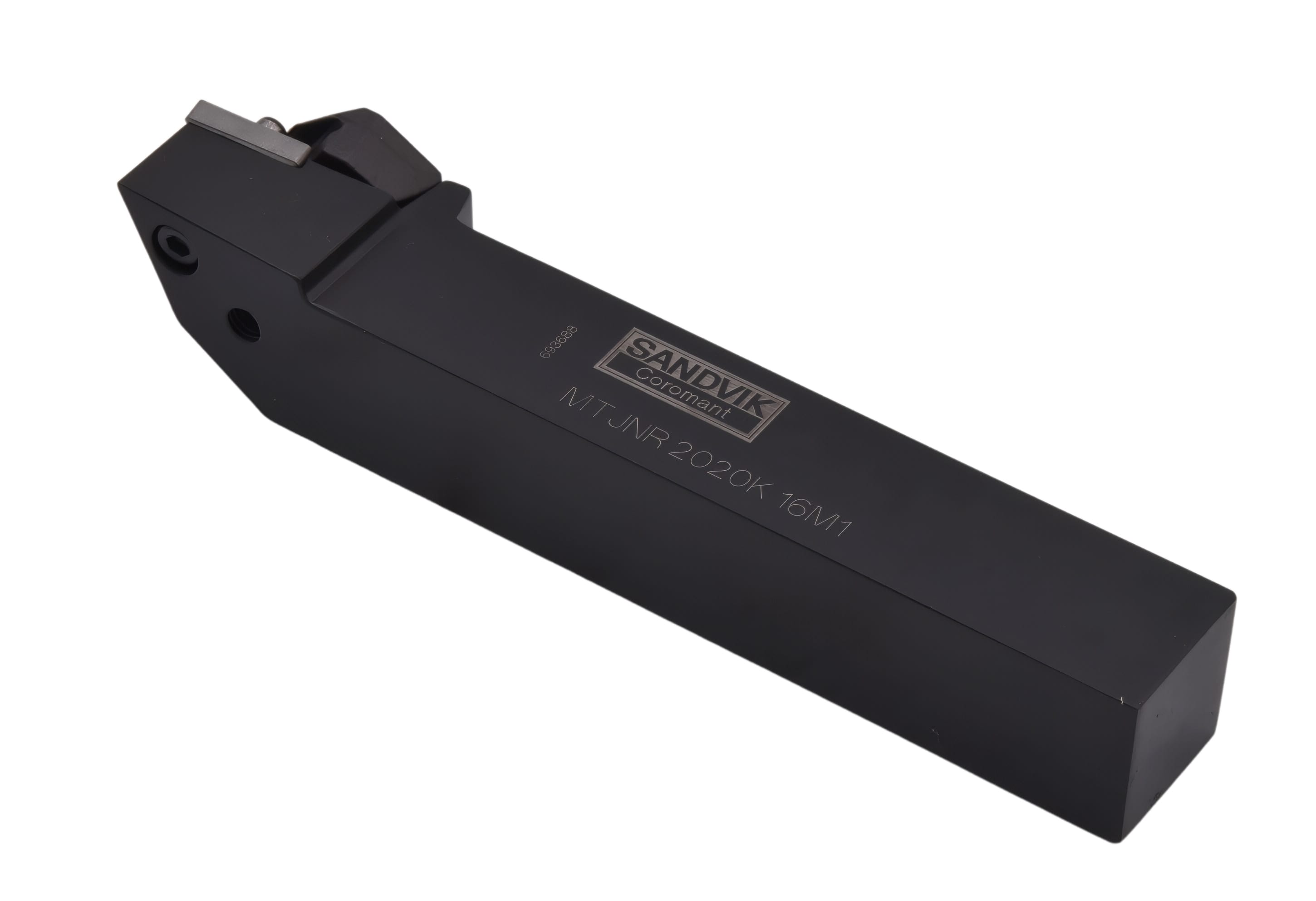

SANDVIK TOOL HOLDERS Sandvik MTJNR 2020K 16M1 External Toolholder 20mm Square

Sandvik MTJNR 2020K 16M1 External Toolholder 20mm Square

$0.00 $206.00

Sandvik MTJNR 2020K 16M1 External Toolholder 20mm Square

$0.00 $206.00

Sandvik Coromant MTJNR 2020K 16M1 External Turning Tool Holder – 20 x 20 mm Shank, TNMG 160408 Insert

The Sandvik Coromant MTJNR 2020K 16M1 is a high-performance external turning tool holder from the proven T-Max® P range, engineered for heavy-duty roughing, longitudinal turning, shoulder machining, and general-purpose turning operations. Its robust wedge-clamp design provides exceptional insert security and rigidity, making it ideal for demanding CNC and conventional lathe applications.

Designed for TNMG 160408 negative triangular inserts, the MTJNR 2020K 16M1 features a precision 20 x 20 mm square shank and a 93° approach angle, delivering excellent chip control, stable cutting performance, and outstanding tool life. The wedge-clamping mechanism ensures maximum insert stability under heavy cutting loads while maintaining consistent machining accuracy and surface finish.

Key Features & Benefits

  • Premium external turning tool holder from the Sandvik T-Max® P series
  • Designed for external turning, facing, and shoulder machining
  • Compatible with TNMG 160408 negative turning inserts
  • Rigid 20 x 20 mm square shank for excellent machining stability
  • Heavy-duty wedge clamp system for secure insert retention
  • 93° approach angle for versatile turning applications
  • Right-hand cutting configuration
  • Suitable for roughing, semi-finishing, and general turning operations
  • High-strength steel body for long service life and reliability

Technical Specifications

  • Brand: Sandvik Coromant
  • Model: MTJNR 2020K 16M1
  • Series: T-Max® P
  • Tool Type: External Turning Tool Holder
  • Cutting Direction: Right Hand
  • Insert Compatibility: TNMG 160408
  • Clamping Method: Wedge Clamp
  • Shank Size: 20 x 20 mm
  • Overall Length: 125 mm
  • Functional Length: 125 mm
  • Maximum Overhang: 30.8 mm
  • Cutting Edge Angle: 93°
  • Lead Angle: -3°
  • Maximum Ramping Angle: 22°
  • Orthogonal Rake Angle: -6°
  • Inclination Angle: -6°
  • Insert Seat Size: 16
  • Body Material: Steel
  • Application: External Turning, Facing, and Shoulder Machining

The Sandvik Coromant MTJNR 2020K 16M1 T-Max® P turning tool holder is designed to deliver maximum rigidity, secure insert clamping, and dependable machining performance, making it an excellent choice for productive external turning applications.
