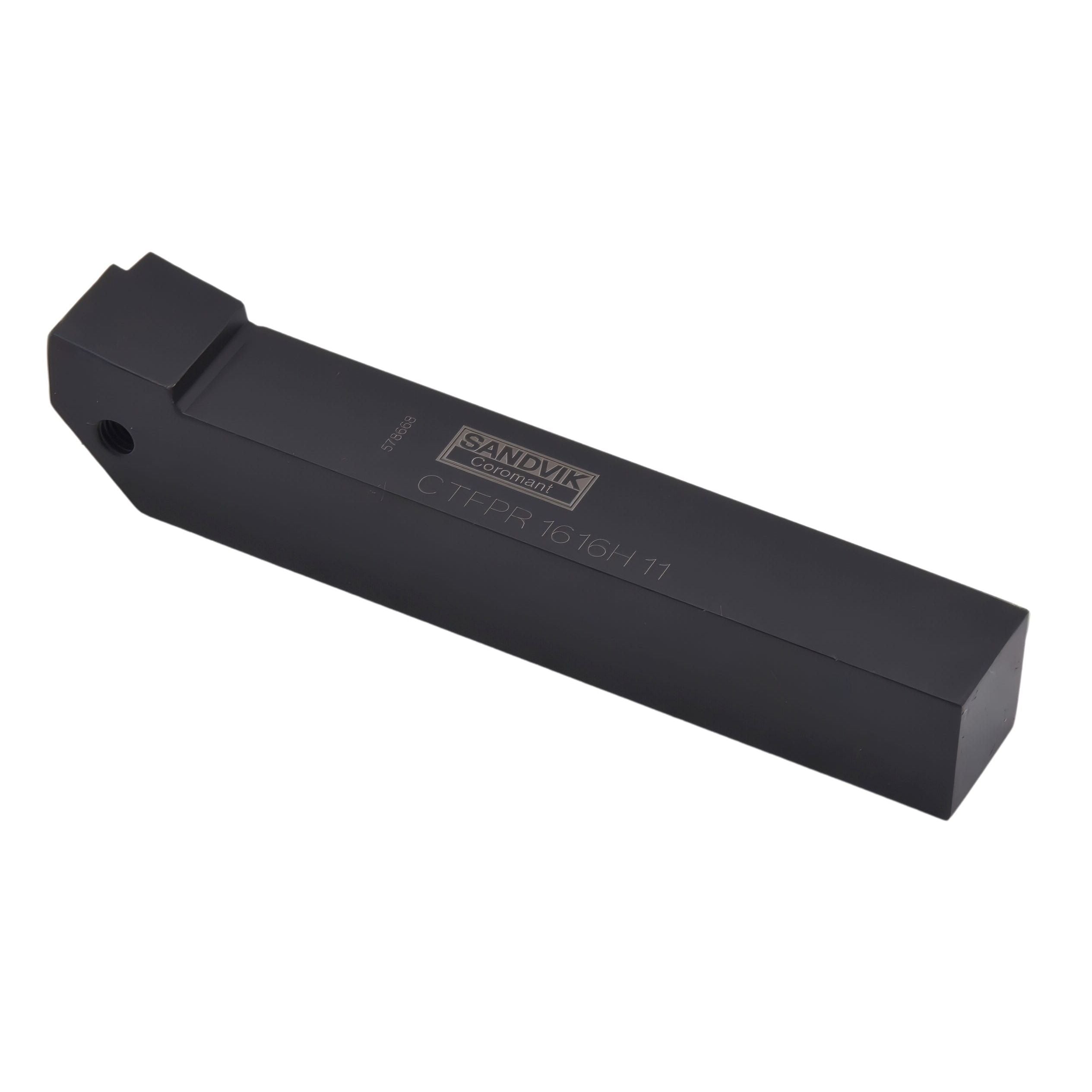

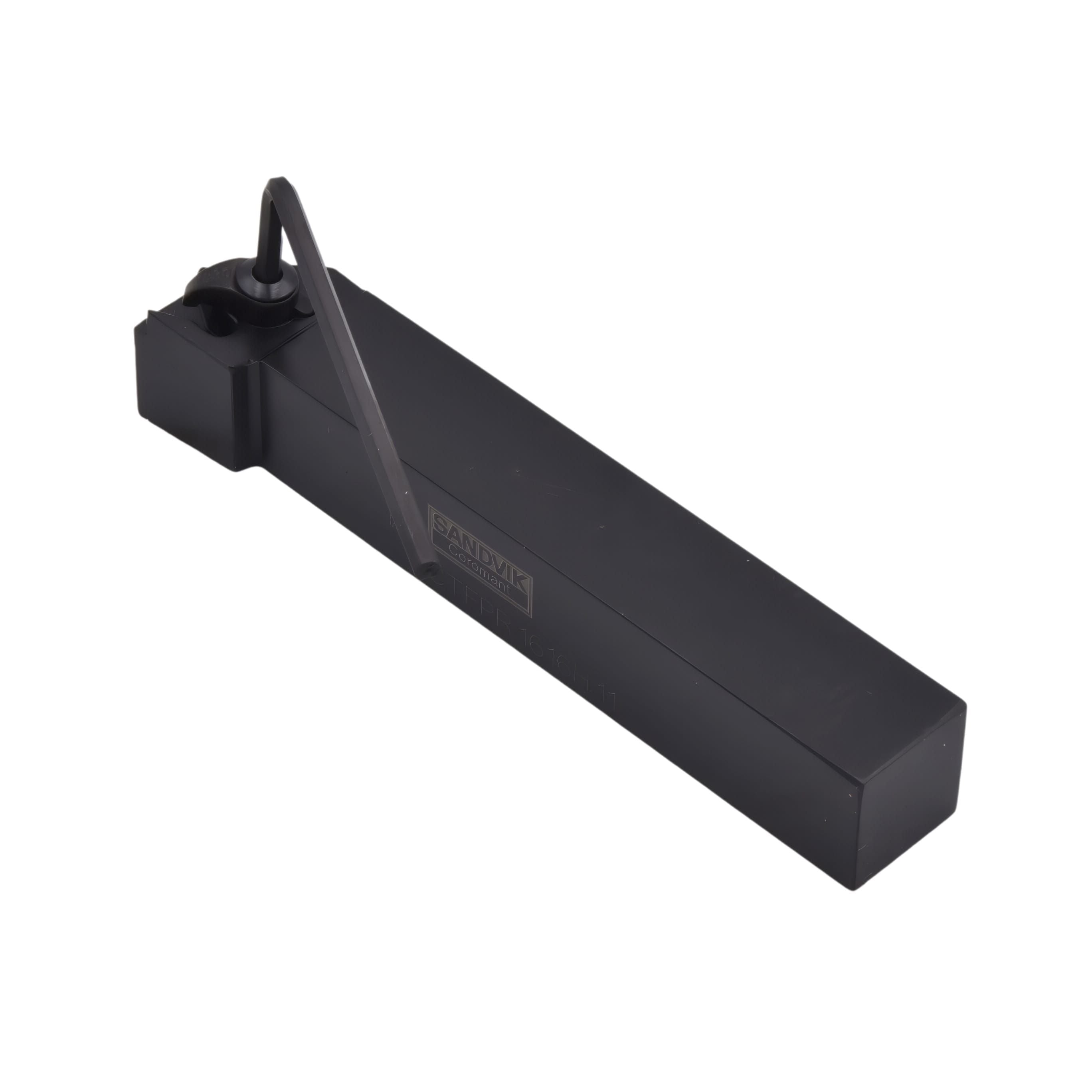

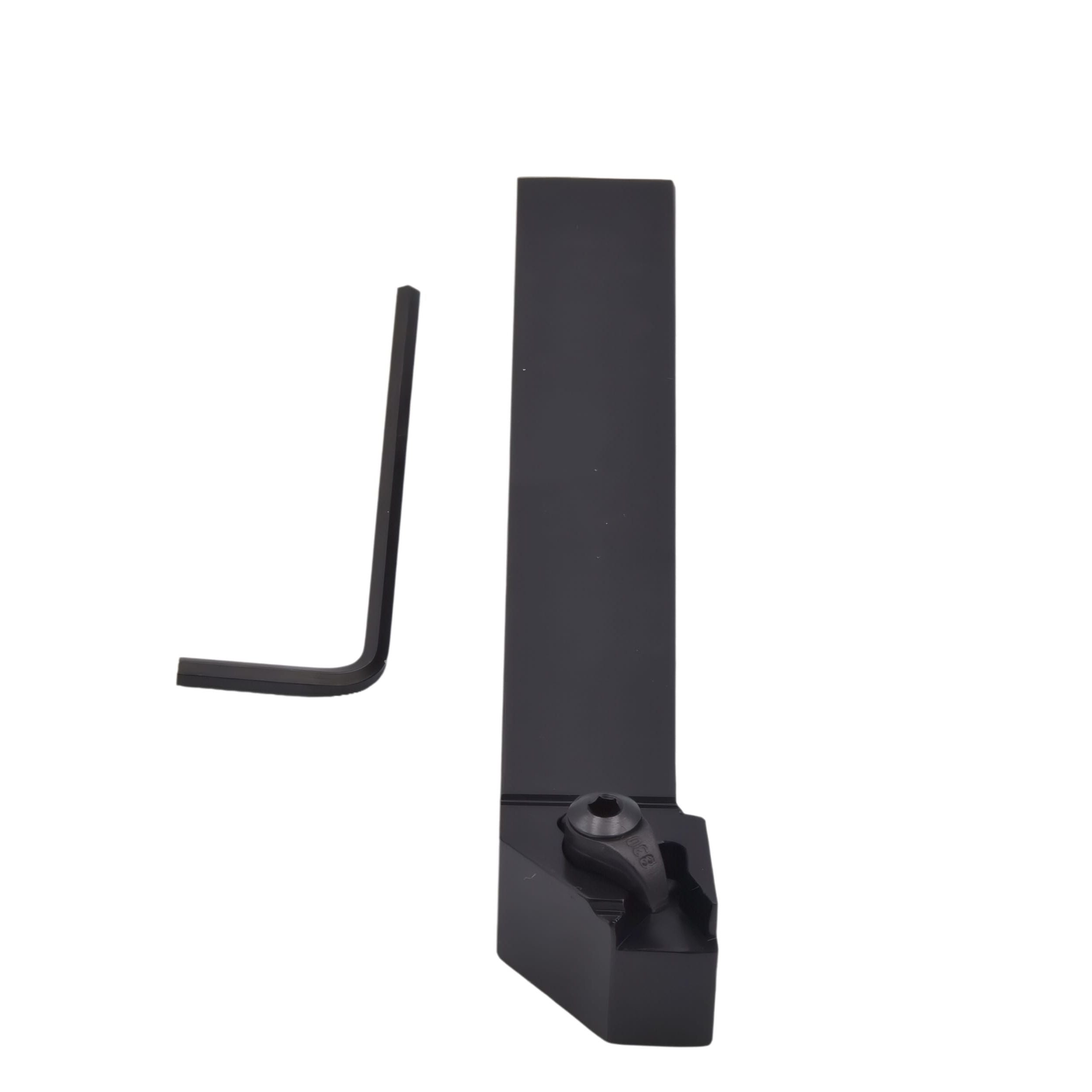

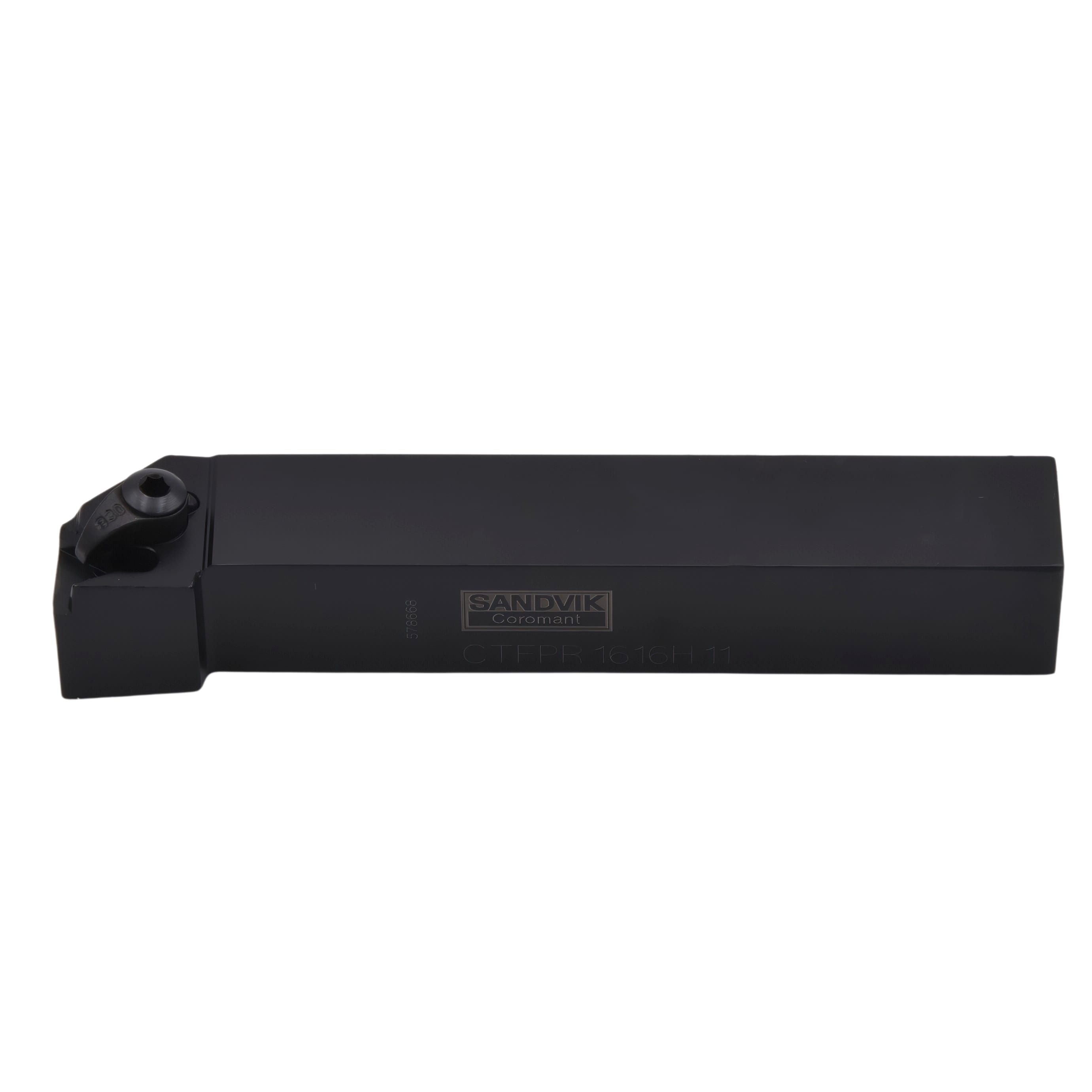

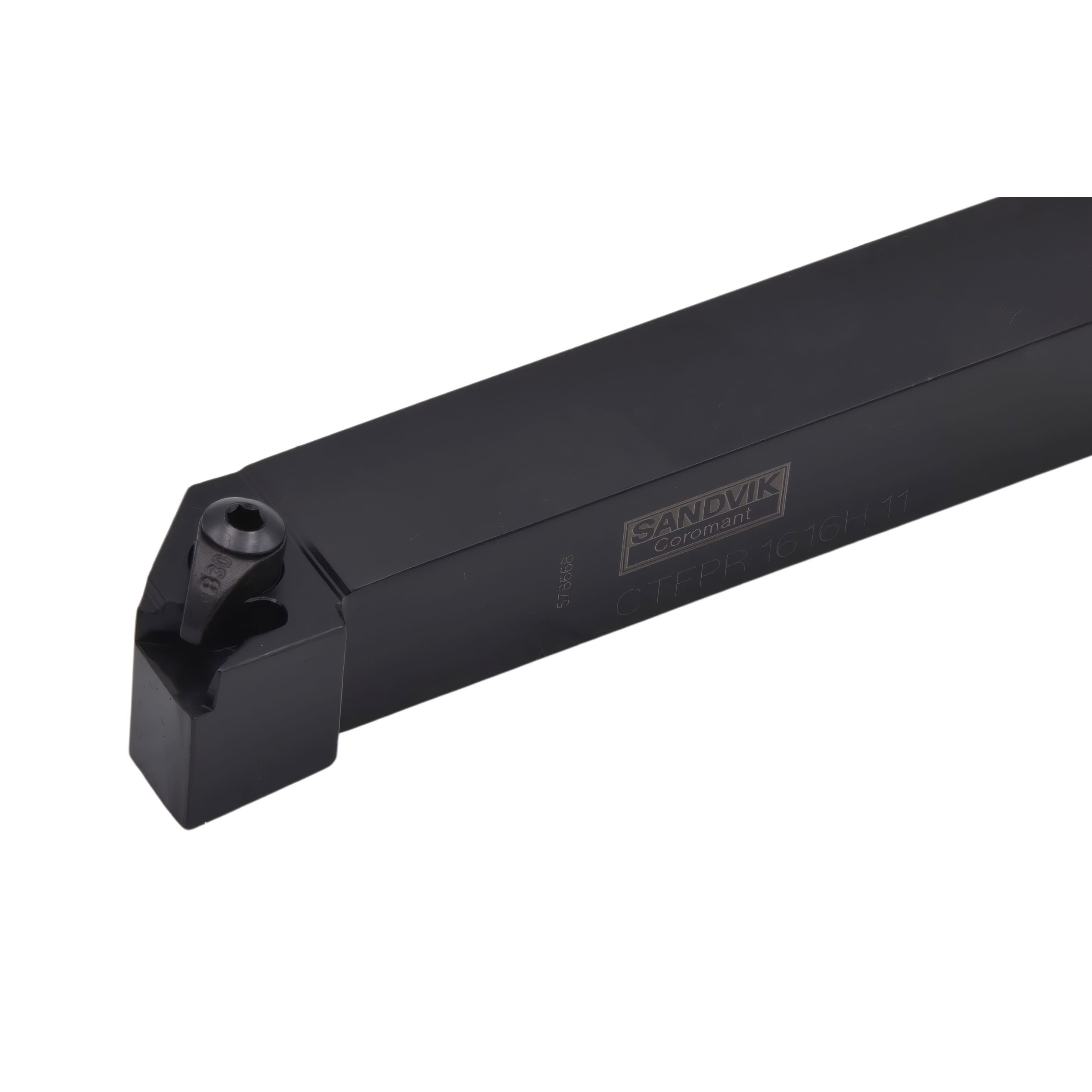

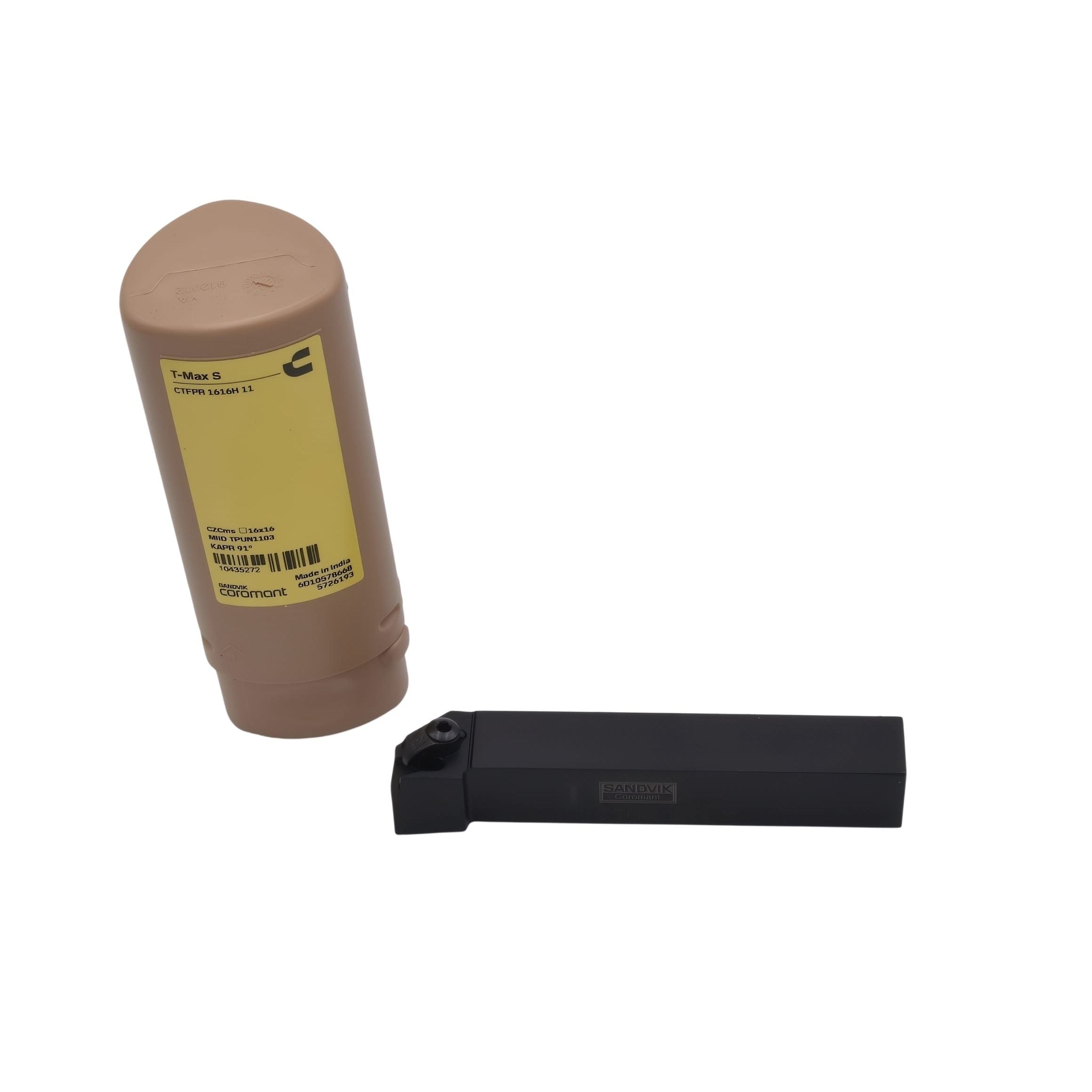

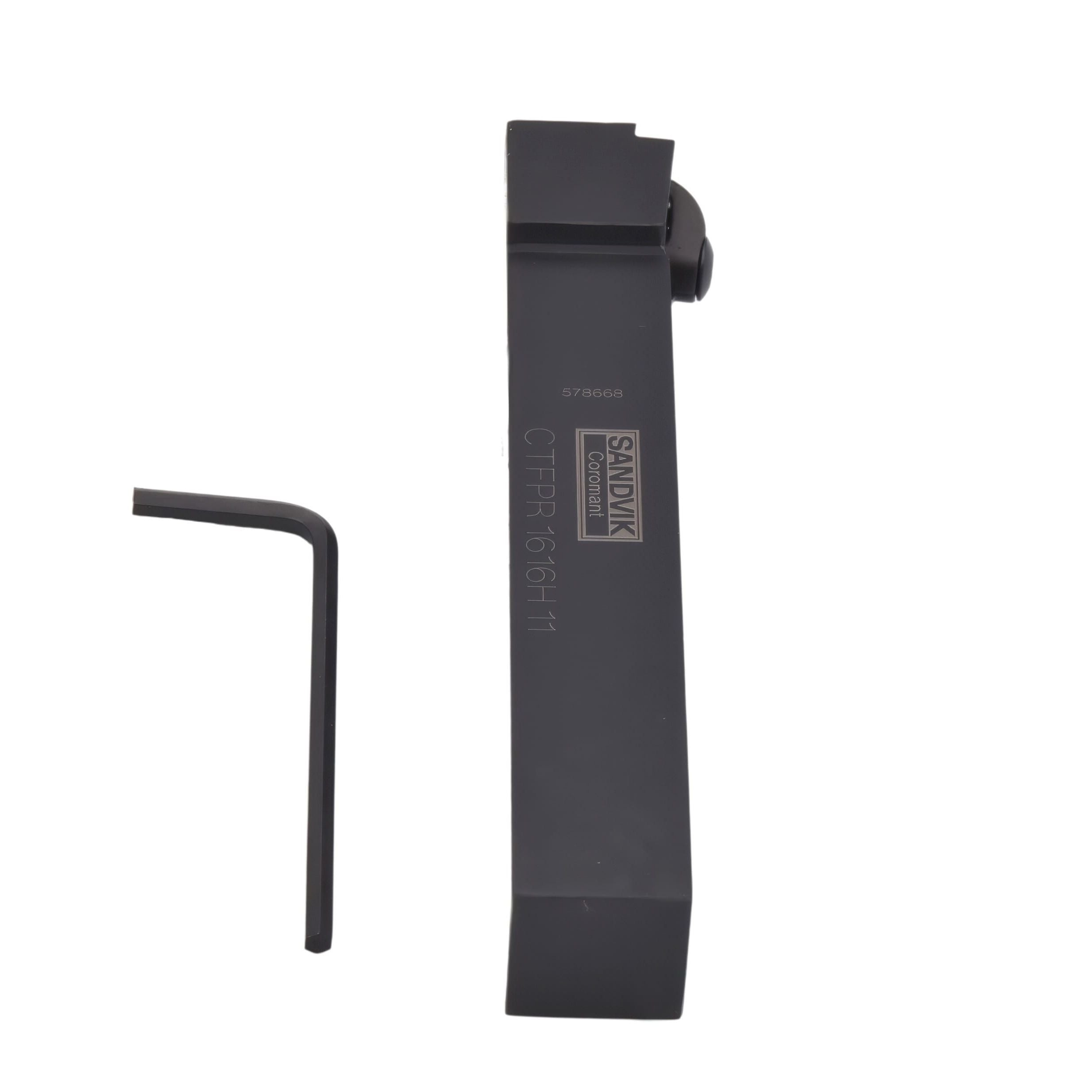

Sandvik Top Clamp Turning Tool Holder CTFPR1616H11 16mm Shank

Sandvik Coromant CTFPR 1616H 11 External Turning Tool Holder – 16 x 16 mm Shank, TPUN 110304 Insert The Sandvik Coromant CTFPR 1616H 11 is a high-performance external turning tool...
$205.00
$0.00
$205.00
(-0%)
Vendor: SANDVIK
SKU: CTFPR 1616H 11
Availability: In Stock
Subtotal: $205.00
SANDVIK Turning Tool Sandvik Top Clamp Turning Tool Holder CTFPR1616H11 16mm Shank

Sandvik Top Clamp Turning Tool Holder CTFPR1616H11 16mm Shank

$0.00 $205.00

Sandvik Top Clamp Turning Tool Holder CTFPR1616H11 16mm Shank

$0.00 $205.00

Sandvik Coromant CTFPR 1616H 11 External Turning Tool Holder – 16 x 16 mm Shank, TPUN 110304 Insert

The Sandvik Coromant CTFPR 1616H 11 is a high-performance external turning tool holder from the proven T-Max® S series, designed for precision turning, facing, profiling, and shoulder machining. Engineered for stability and repeatable cutting performance, this tool holder is ideal for both CNC and conventional lathes performing light to medium machining operations.

Designed to accommodate TPUN 110304 negative turning inserts, the CTFPR 1616H 11 features a rigid 16 x 16 mm square shank and a reliable top-clamp insert clamping system for secure insert retention and excellent machining accuracy. The 91° cutting edge angle provides versatile machining capability while promoting efficient chip control and consistent surface finishes across a wide range of materials.

Key Features & Benefits

  • Premium external turning tool holder from the Sandvik Coromant T-Max® S series
  • Designed for external turning, facing, profiling, and shoulder machining
  • Compatible with TPUN 110304 negative turning inserts
  • Rigid 16 x 16 mm square shank for excellent stability
  • Top-clamp insert clamping system for secure insert retention
  • 91° cutting edge angle for versatile machining applications
  • Right-hand cutting configuration
  • Ideal for precision machining and general turning operations
  • Manufactured from high-strength steel for durability and long service life

Technical Specifications

  • Brand: Sandvik Coromant
  • Model: CTFPR 1616H 11
  • Series: T-Max® S
  • Tool Type: External Turning Tool Holder
  • Cutting Direction: Right Hand
  • Insert Compatibility: TPUN 110304
  • Clamping Method: Top Clamp
  • Shank Size: 16 x 16 mm
  • Overall Length: 100 mm
  • Functional Length: 100 mm
  • Maximum Overhang: 15.5 mm
  • Cutting Edge Angle: 91°
  • Lead Angle: -1°
  • Maximum Ramping Angle: 0°
  • Orthogonal Rake Angle: 6°
  • Inclination Angle: 0°
  • Insert Seat Size: 11
  • Body Material: Steel
  • Application: External Turning, Facing, Profiling, Shoulder Machining

The Sandvik Coromant CTFPR 1616H 11 T-Max® S turning tool holder delivers excellent rigidity, dependable insert clamping, and precision cutting performance, making it a reliable choice for general-purpose external turning and finishing applications.
