Somta Series 214 – 1-5/8" (41.28mm) HSS Morse Taper Shank Drill MT4

Somta Series 214 – 1-5/8" (41.28mm) HSS Morse Taper Shank Drill MT4 The SOMTA 2144128 – 1-5/8" (41.28mm) HSS Morse Taper Shank Drill is a high-performance cutting tool engineered for...
$516.00
$0.00
$516.00
(-0%)
Vendor: SOMTA
SKU: 2144128
Availability: In Stock
Subtotal: $516.00
SOMTA DRILLS Somta Series 214 – 1-5/8" (41.28mm) HSS Morse Taper Shank Drill MT4

Somta Series 214 – 1-5/8" (41.28mm) HSS Morse Taper Shank Drill MT4

$0.00 $516.00

Somta Series 214 – 1-5/8" (41.28mm) HSS Morse Taper Shank Drill MT4

$0.00 $516.00

Somta Series 214 – 1-5/8" (41.28mm) HSS Morse Taper Shank Drill MT4

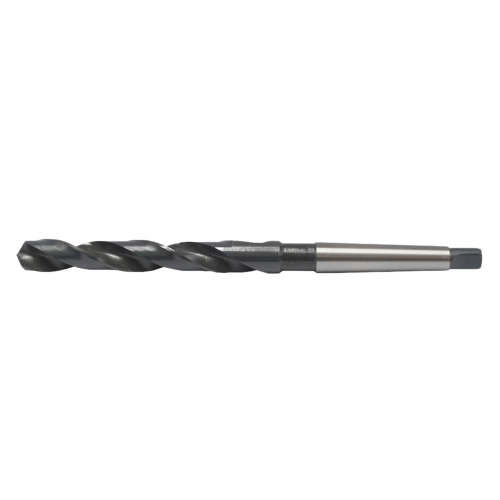

The SOMTA 2144128 – 1-5/8" (41.28mm) HSS Morse Taper Shank Drill is a high-performance cutting tool engineered for deep and precise drilling in tough materials such as steel, cast iron, and non-ferrous metals. With a robust No. 4 Morse Taper shank, it delivers superior rigidity and torque transmission, making it ideal for large industrial machines and heavy-duty production drilling.

Manufactured from premium high-speed steel (HSS), the drill provides exceptional durability, wear resistance, and consistent performance. The Type N geometry and Thinned Point design reduce thrust force, improve centering, and promote smooth chip evacuation. The Bright Finish enhances cutting efficiency and prolongs tool life, ensuring reliable, accurate performance across demanding drilling applications.

Key Features & Benefits

  • High-speed steel (HSS) construction offers superior strength, heat resistance, and long life.
  • Morse Taper No. 4 shank ensures maximum rigidity and torque stability during heavy drilling.
  • Thinned Point geometry enhances centering accuracy and reduces cutting thrust.
  • Bright Finish provides smooth chip flow and improved surface quality.
  • Complies with DIN 345 Type N for precision and repeatable accuracy.

Technical Specifications

  • Part No: 2144128
  • Series: 214
  • Size (d): 41.28 mm (1-5/8")
  • Flute Length (I2): ≈205 mm
  • Overall Length (I1): ≈354 mm
  • Material: High-Speed Steel (HSS)
  • Geometry: Type N – Thinned Point
  • Shank Type: Morse Taper No. 4 (MT4)
  • Finish: Bright Finish (Shank and Point)
  • Standard: DIN 345

Why Choose SOMTA Series 214 – 1-5/8" HSS Morse Taper Shank Drill?

  • Designed for precision and reliability in large-diameter industrial drilling applications.
  • Optimized flute geometry ensures efficient chip evacuation and cooler cutting.
  • Backed by SOMTA’s proven manufacturing excellence and Twin Eagle Imports’ trusted distribution network.
