Somta Series 340 – 6.0 mm HSS-Co8e 2 Flute Ball Nose End Mill

Somta Series 340 – 6.0 mm HSS-Co8e Ball Nose End Mill (2 Flute) | 3400600 The SOMTA 3400600 is a high-performance 2-flute ball nose end mill designed for precision 3D...
$89.00
$0.00
$89.00
(-0%)
Vendor: SOMTA
SKU: 3400600
Availability: In Stock
Subtotal: $89.00
Somta Series 340 – 6.0 mm HSS-Co8e 2 Flute Ball Nose End Mill

Somta Series 340 – 6.0 mm HSS-Co8e 2 Flute Ball Nose End Mill

$0.00 $89.00

Somta Series 340 – 6.0 mm HSS-Co8e 2 Flute Ball Nose End Mill

$0.00 $89.00

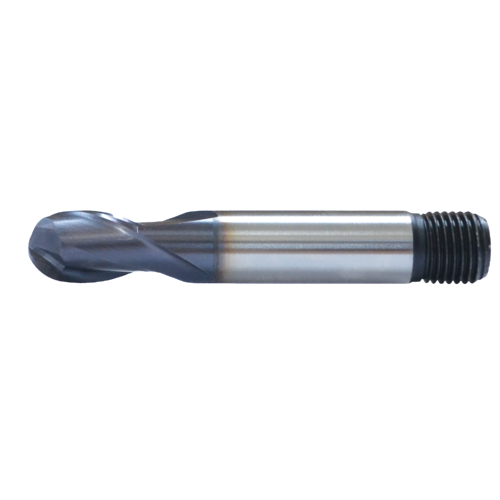

Somta Series 340 – 6.0 mm HSS-Co8e Ball Nose End Mill (2 Flute) | 3400600

The SOMTA 3400600 is a high-performance 2-flute ball nose end mill designed for precision 3D contouring, profiling, and slotting applications. Made from HSS-Co8e, this tool provides excellent edge stability and wear resistance. The spherical tip geometry generates precise radii and smooth transitions, making it suitable for mold making, die finishing, and precision machining.

Key Features & Benefits

  • HSS-Co8e High-Performance Material – Resists thermal deformation and maintains edge sharpness.
  • 2-Flute Geometry – Enhances chip evacuation and reduces cutting resistance.
  • Ball Nose End – Enables fine surface profiling and radius finishing.
  • TiAlN Coating (Optional) – Improves oxidation resistance and extends tool life.
  • DIN 327 Standard – Guarantees consistency and reliability in dimensional accuracy.

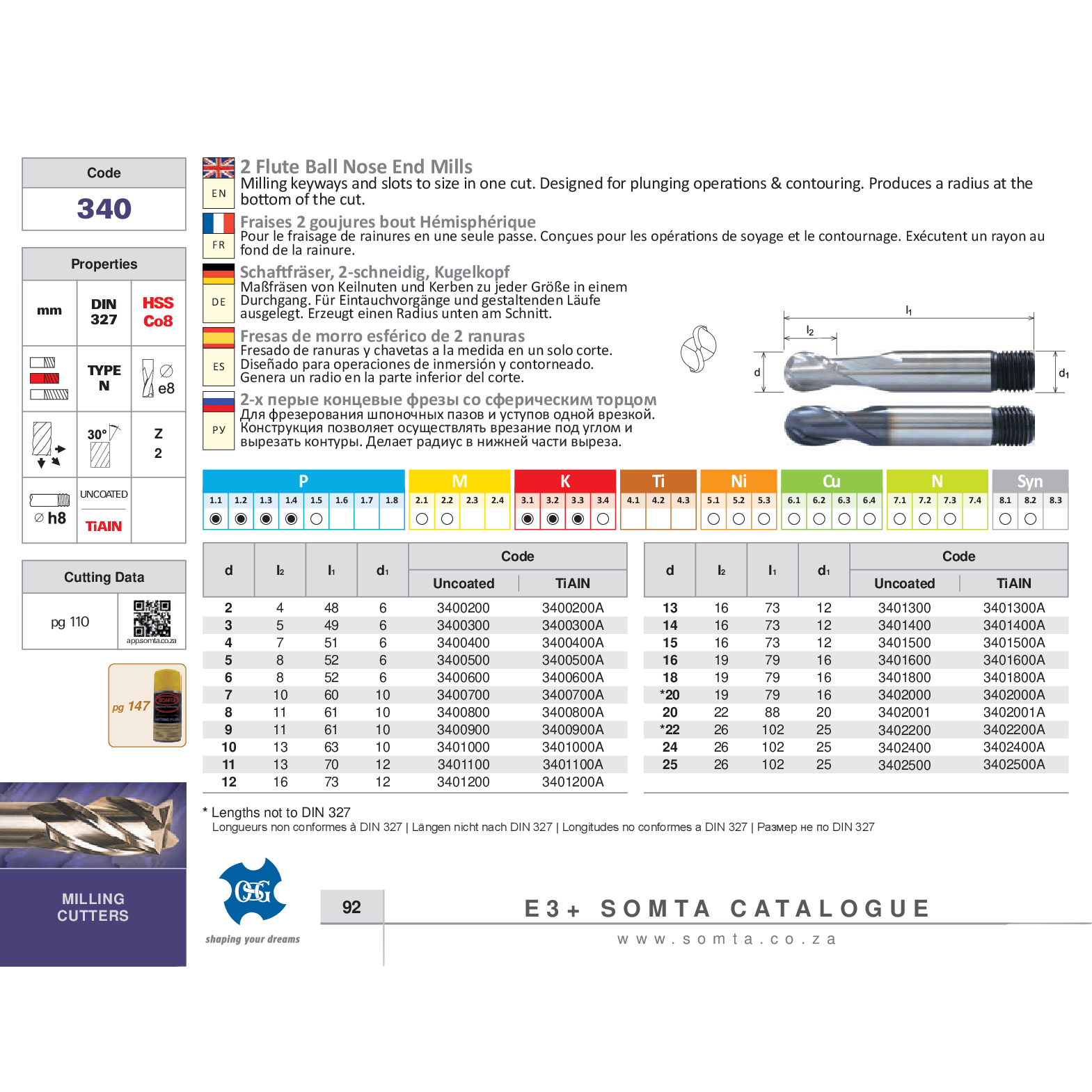

Technical Specifications

  • Part No: 3400600
  • Tool Type: 2-Flute Ball Nose End Mill
  • Cutting Diameter (d): 6 mm
  • Flute Length (l₂): 8 mm
  • Overall Length (l₁): 52 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8e)
  • Coating: Uncoated / TiAlN option
  • Helix Angle: 30°
  • Standard: DIN 327
  • Applications: Precision radius profiling, slot milling, and 3D surface finishing on ferrous and non-ferrous metals.

Why Choose SOMTA Cutting Tools?

  • Precision Engineered – Delivers clean surface finishes and dimensional stability.
  • Long Service Life – Maintains cutting integrity under extended use.
  • Optimized Geometry – Ensures balanced chip flow and vibration control.
  • Reliable Quality – Backed by SOMTA’s globally trusted manufacturing standards.

The SOMTA 3400600 offers dependable performance, fine accuracy, and exceptional tool life in complex milling applications.
