Somta Series 348 – 10.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 10.0 mm HSS-Co8e Slot Drill (2 Flute) | 3481000 The SOMTA 3481000 is a robust 10.0 mm 2-flute slot drill constructed from HSS-Co8e to deliver long-lasting...
$61.00
$0.00
$61.00
(-0%)
Vendor: SOMTA
SKU: 3481000
Availability: In Stock
Subtotal: $61.00
Somta Series 348 – 10.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 10.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $61.00

Somta Series 348 – 10.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $61.00

Somta Series 348 – 10.0 mm HSS-Co8e Slot Drill (2 Flute) | 3481000

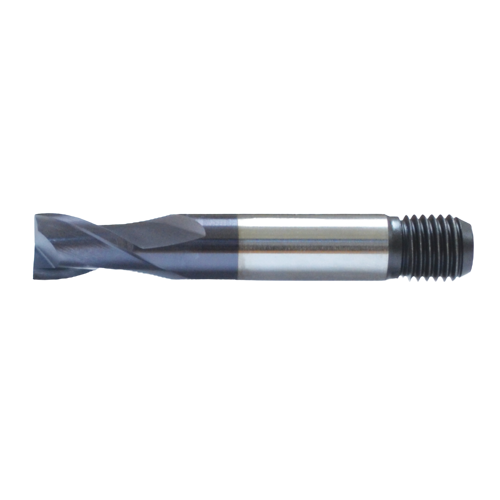

The SOMTA 3481000 is a robust 10.0 mm 2-flute slot drill constructed from HSS-Co8e to deliver long-lasting performance and high accuracy. Engineered for slotting, pocketing, and profiling, its cobalt-enriched design resists wear and maintains sharpness even under demanding cutting conditions.

Key Features & Benefits

  • High-Strength HSS-Co8e Material – Offers exceptional hardness and heat resistance.
  • 2-Flute Geometry – Enables efficient chip evacuation and smooth cutting.
  • Centre-Cutting Design – Ideal for plunge and pocket milling applications.
  • TiAlN Coating Option – Increases tool life and oxidation resistance during high-speed operations.
  • DIN 327 Compliance – Ensures consistent geometry and accurate cutting performance.

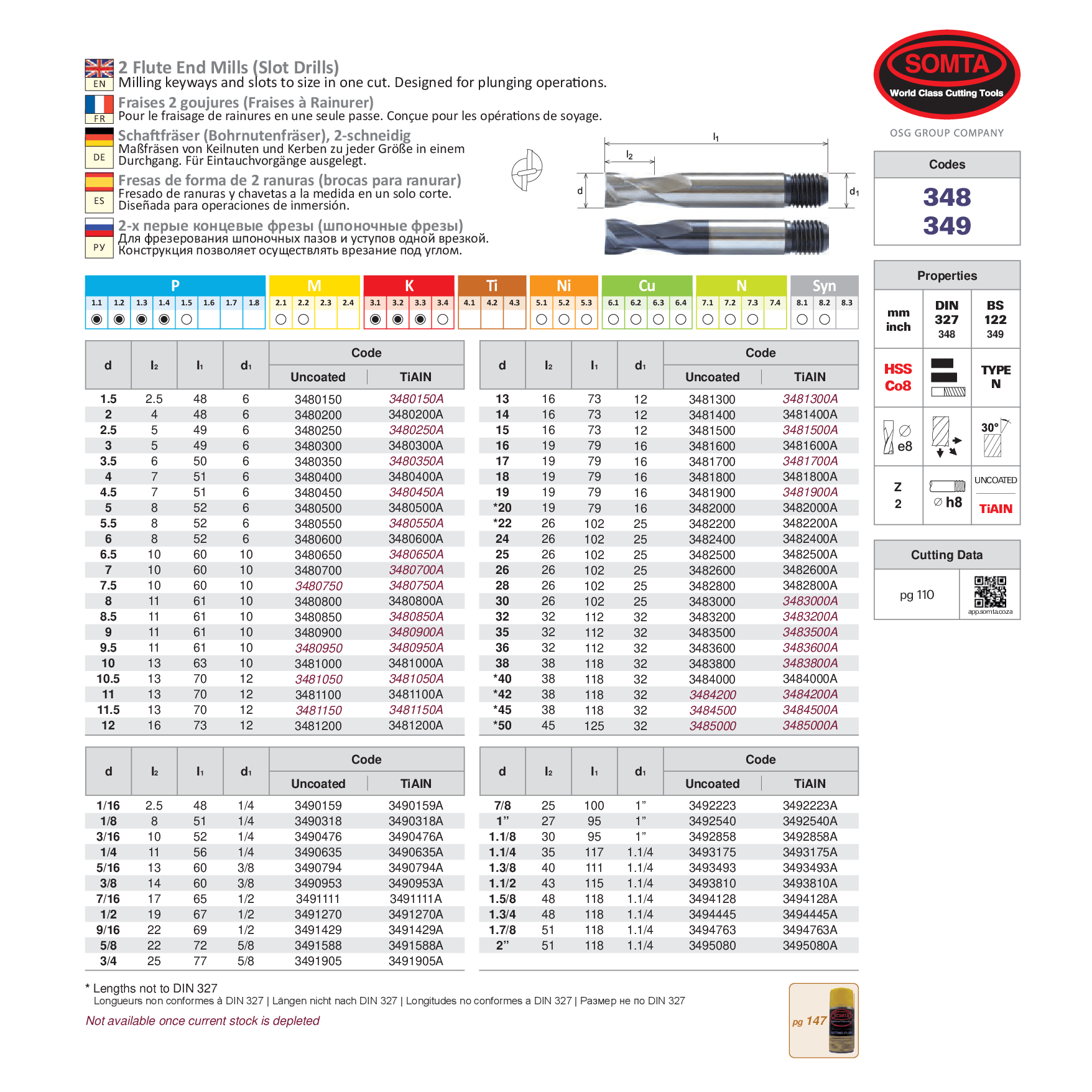

Technical Specifications

  • Part No: 3481000
  • Tool Type: 2-Flute Slot Drill
  • Cutting Diameter (d): 10.0 mm
  • Flute Length (l₂): 13 mm
  • Overall Length (l₁): 63 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8e)
  • Coating: Uncoated / TiAlN option
  • Helix Angle: 30°
  • Standard: DIN 327
  • Applications: Slotting, keyway, and contour milling in steels, cast irons, and non-ferrous alloys.

Why Choose SOMTA Cutting Tools?

  • Reliable Accuracy – Produces consistent, clean results with minimal deflection.
  • High Wear Resistance – Performs exceptionally under continuous cutting cycles.
  • Versatile Functionality – Ideal for both CNC and manual milling operations.
  • Proven SOMTA Craftsmanship – Manufactured with precision to meet professional industry standards.

The SOMTA 3481000 delivers dependable cutting performance and durability for precision slot and keyway machining.
