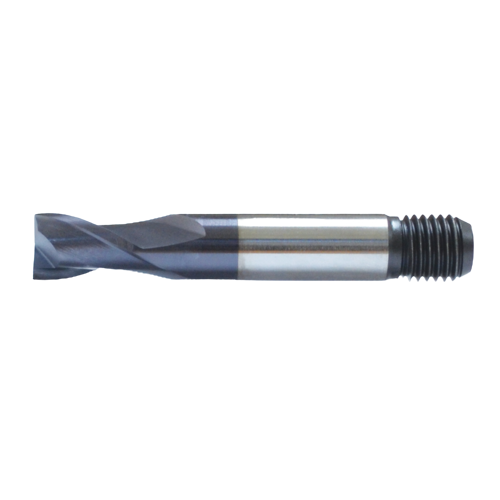

Somta Series 348 – 2.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 2.0 mm HSS-Co8e Slot Drill (2 Flute) | 3480200 The SOMTA 3480200 is a high-performance 2-flute slot drill designed for keyway, slotting, and plunge milling applications....
$38.00
$0.00
$38.00
(-0%)
Vendor: SOMTA
SKU: 3480200
Availability: In Stock
Subtotal: $38.00
Somta Series 348 – 2.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 2.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $38.00

Somta Series 348 – 2.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $38.00

Somta Series 348 – 2.0 mm HSS-Co8e Slot Drill (2 Flute) | 3480200

The SOMTA 3480200 is a high-performance 2-flute slot drill designed for keyway, slotting, and plunge milling applications. Made from durable HSS-Co8e material, it combines wear resistance, toughness, and cutting edge stability. The centre-cut design supports both vertical and horizontal milling on a variety of metals and alloys.

Key Features & Benefits

  • Premium HSS-Co8e Steel – Delivers superior hot hardness and extended tool life.
  • 2-Flute Geometry – Provides improved chip evacuation and reduced cutting resistance.
  • Centre-Cutting Capability – Enables direct plunging without pre-drilling.
  • Optional TiAlN Coating – Enhances surface hardness and heat resistance.
  • DIN 327 Compliance – Ensures accurate manufacturing tolerances.

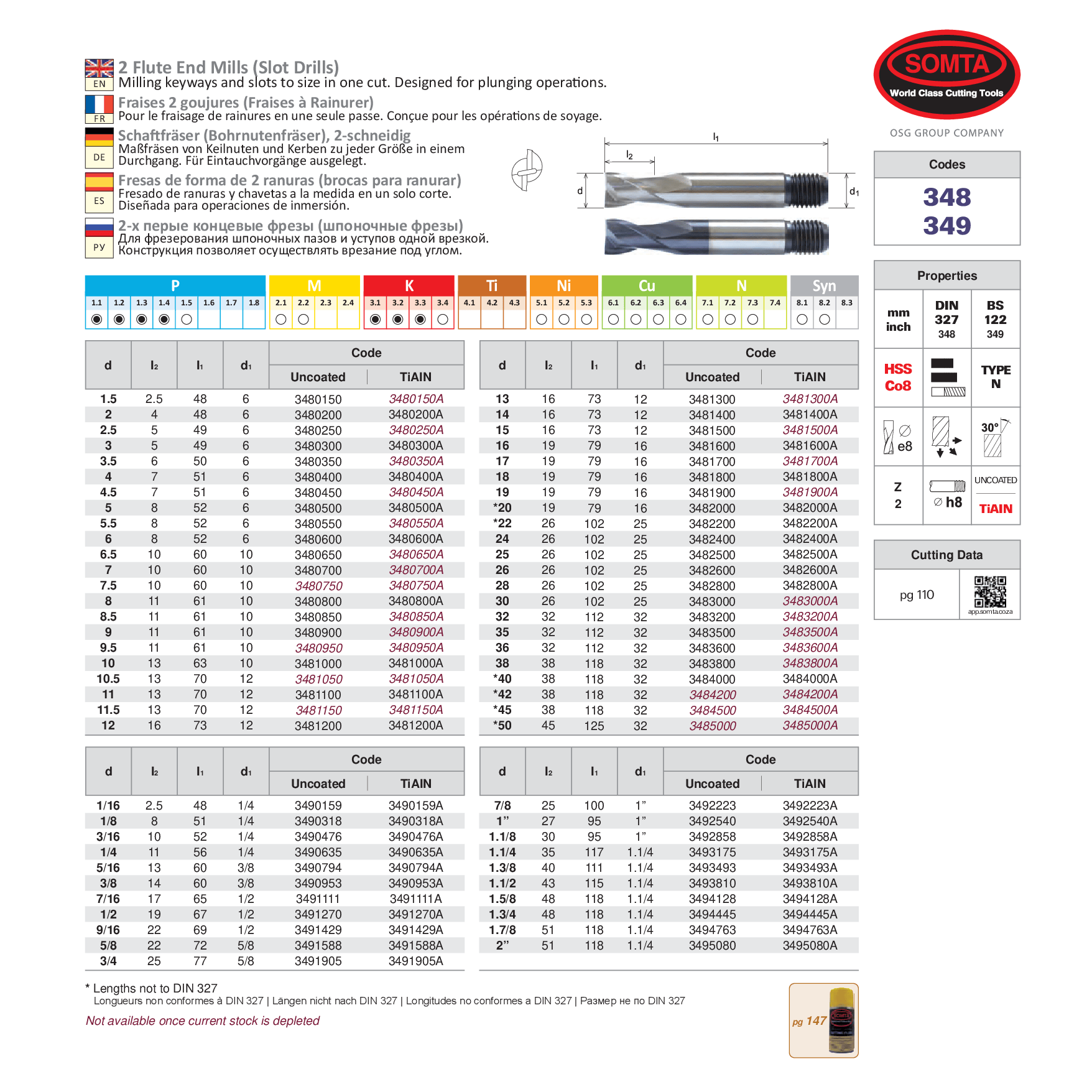

Technical Specifications

  • Part No: 3480200
  • Tool Type: 2-Flute Slot Drill
  • Cutting Diameter (d): 2.0 mm
  • Flute Length (l₂): 4 mm
  • Overall Length (l₁): 48 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8e)
  • Coating: Uncoated / TiAlN option
  • Helix Angle: 30°
  • Standard: DIN 327
  • Applications: Suitable for machining slots, pockets, and keyways in steels, aluminium, and non-ferrous alloys.

Why Choose SOMTA Cutting Tools?

  • High Precision – Produces accurate slots with smooth sidewalls.
  • Resilient Design – Maintains sharpness during extended use.
  • Versatile Use – Ideal for both manual and CNC milling machines.
  • Reliable SOMTA Quality – Manufactured to world-class engineering standards.

The SOMTA 3480200 is built for consistency, accuracy, and longevity in general-purpose slot milling applications.
