Somta Series 348 – 5.5 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 5.5 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $49.00

Somta Series 348 – 5.5 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $49.00

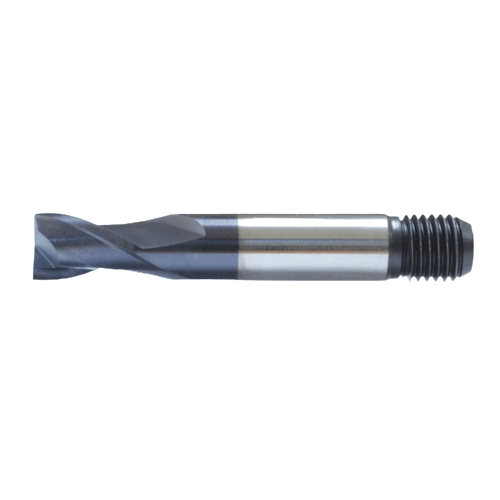

Somta Series 348 – 5.5 mm HSS-Co8e Slot Drill (2 Flute) | 3480550

The SOMTA 3480550 is a versatile 2-flute slot drill crafted from HSS-Co8e for high heat resistance and durability. Its cobalt-alloyed steel composition provides reliable performance in high-speed machining, while the centre-cut geometry enables direct plunging and keyway milling with smooth chip flow and minimal vibration.

Key Features & Benefits

  • Premium HSS-Co8e Material – Withstands elevated cutting temperatures and maintains edge integrity.
  • 2-Flute Cutting Design – Ensures efficient chip evacuation and stable machining.
  • Centre-Cutting Capability – Ideal for plunge, slot, and contour milling operations.
  • TiAlN Coating Option – Enhances performance for high-speed and dry cutting conditions.
  • DIN 327 Standard – Provides uniform geometry and cutting accuracy.

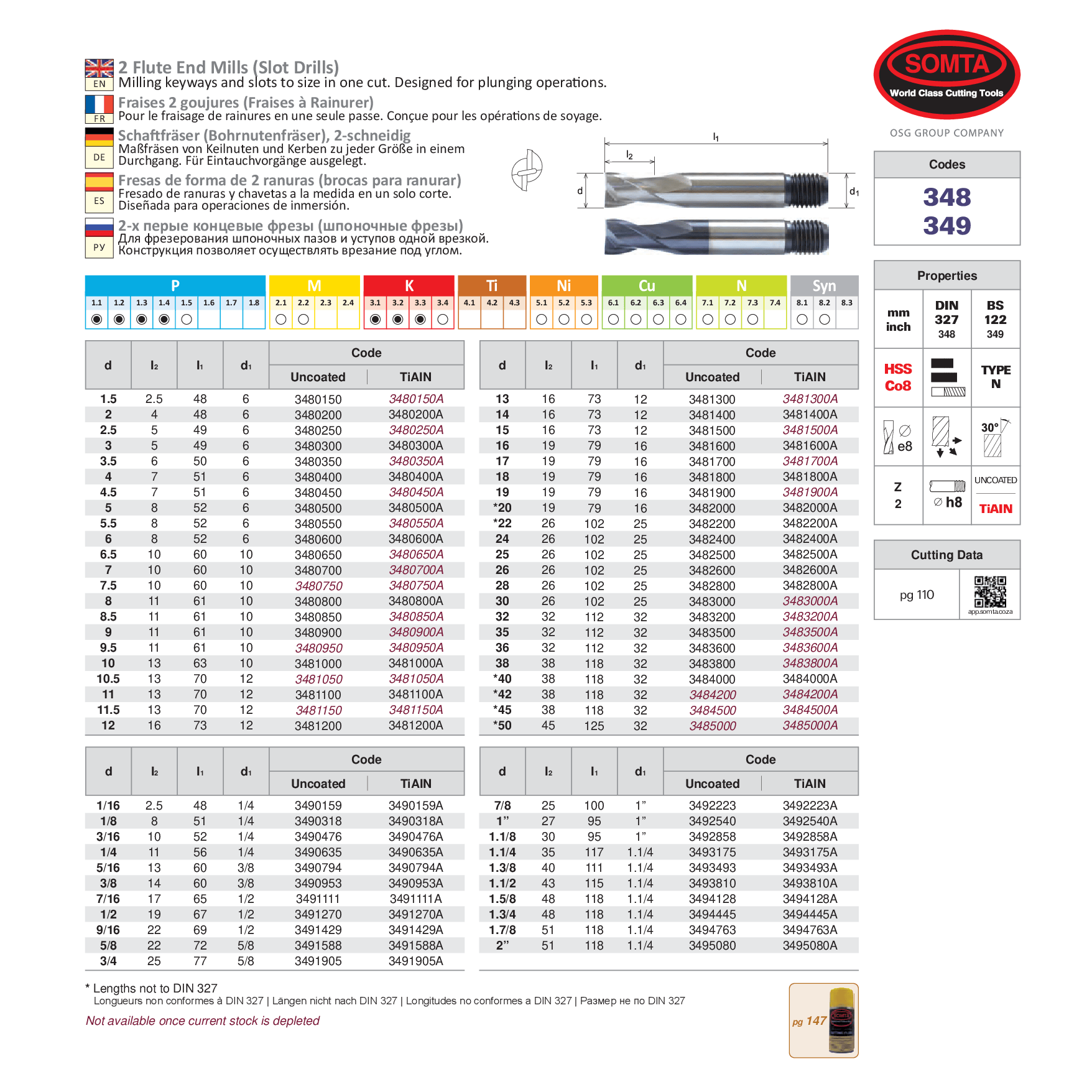

Technical Specifications

  • Part No: 3480550
  • Tool Type: 2-Flute Slot Drill
  • Cutting Diameter (d): 5.5 mm
  • Flute Length (l₂): 8 mm
  • Overall Length (l₁): 52 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8e)
  • Coating: Uncoated / TiAlN option
  • Helix Angle: 30°
  • Standard: DIN 327
  • Applications: Slotting, keyway, and general-purpose milling in steels, cast irons, and non-ferrous metals.

Why Choose SOMTA Cutting Tools?

  • Precision Performance – Provides smooth cutting and consistent dimensional control.
  • Durable Build – Designed for long tool life and stable performance.
  • Versatile Utility – Suitable for CNC, production, and toolroom machining.
  • Proven SOMTA Engineering – Backed by decades of South African tooling expertise.

The SOMTA 3480550 offers a dependable combination of precision, durability, and versatility for keyway and slot milling operations.
