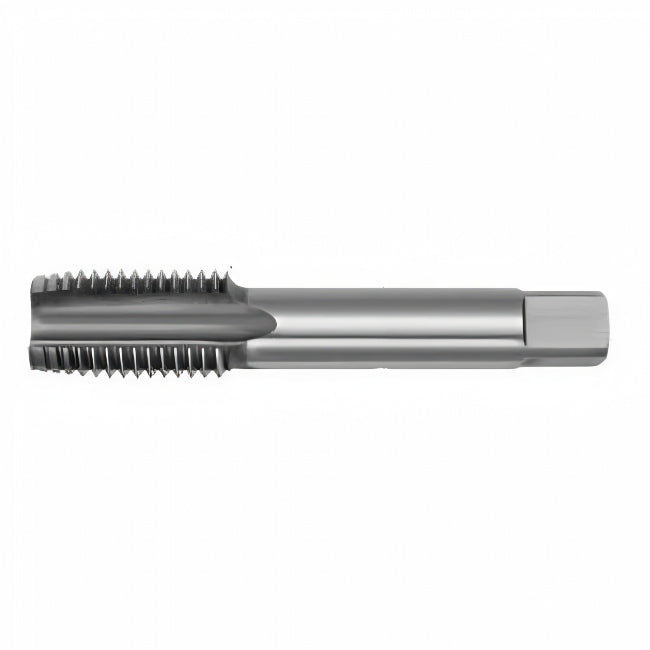

Somta Series 541 - HSS Straight Flute Short Hand Bottom (Finishing) Tap UNC No.10 x 24 TPI

The SOMTA 5410483 – No. 10 UNC HSS Bottom Tap is designed for precise threading at full depth in blind holes. Engineered from high-speed steel (HSS), this bottoming tap features...
$31.00
$31.00
(-0%)
Vendor: SOMTA
SKU: 5410483
Availability: In Stock
Subtotal: $31.00
Somta Series 541 - HSS Straight Flute Short Hand Bottom (Finishing) Tap UNC No.10 x 24 TPI

Somta Series 541 - HSS Straight Flute Short Hand Bottom (Finishing) Tap UNC No.10 x 24 TPI

$31.00

Somta Series 541 - HSS Straight Flute Short Hand Bottom (Finishing) Tap UNC No.10 x 24 TPI

$31.00

The SOMTA 5410483 – No. 10 UNC HSS Bottom Tap is designed for precise threading at full depth in blind holes. Engineered from high-speed steel (HSS), this bottoming tap features a short chamfer for accurate starts and maximum thread engagement near the hole bottom. It adheres to UNC (Unified National Coarse) standards, making it ideal for threading fine components in electrical, mechanical, and general assembly tasks.

Key Features Benefits

  • Bottoming Chamfer (1–2 Lead Threads) – Enables full-depth threading in blind holes.
  • UNC Thread Form – No. 10 diameter for coarse-thread applications.
  • Straight Flute Geometry – Promotes accurate chip evacuation and clean threading.
  • High-Speed Steel (HSS) – Provides excellent wear resistance and tool longevity.
  • Bright Finish – Ensures a clean cut and easy post-operation inspection.
  • Manual or Machine Use – Suitable for both hand tools and machine tapping units.

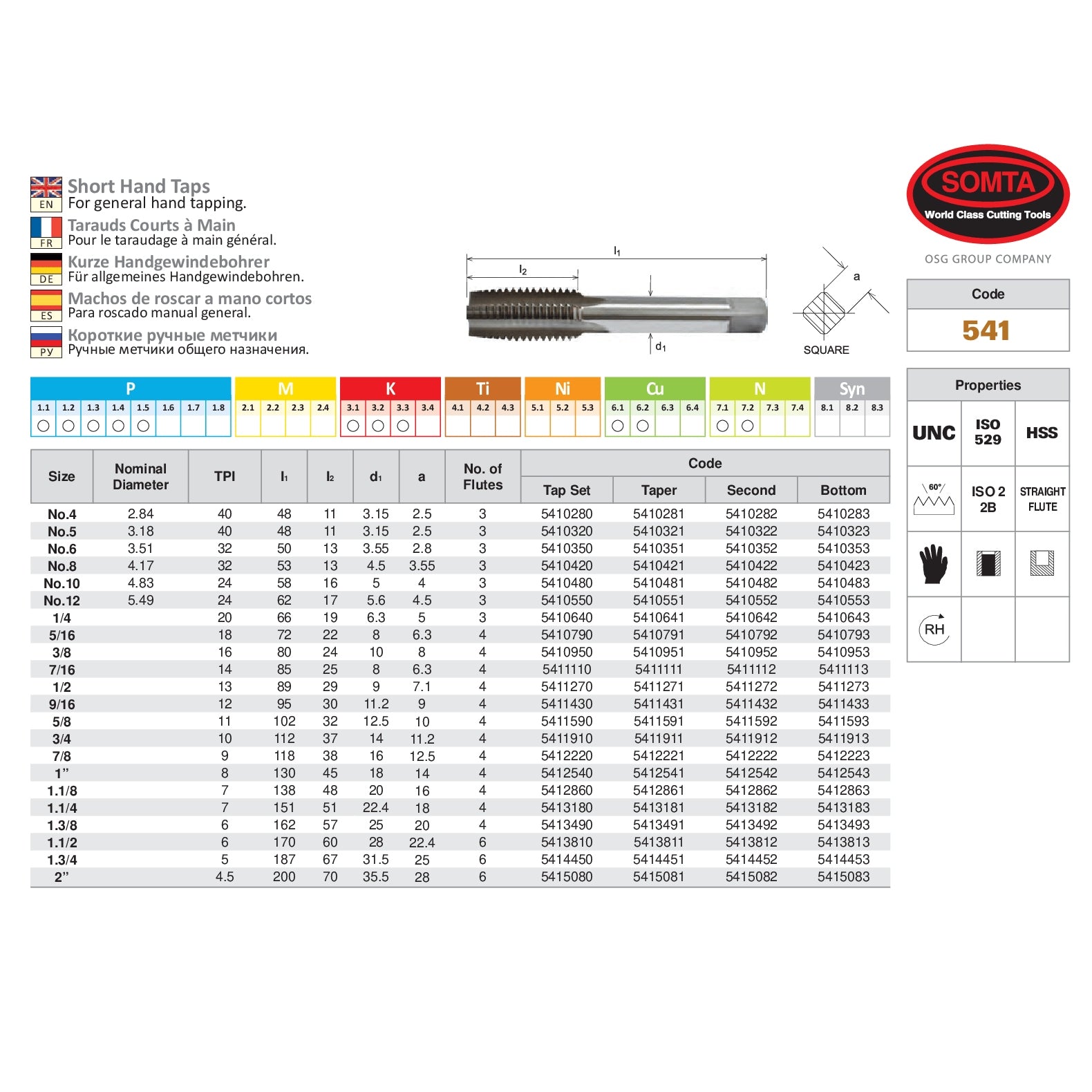

Technical Specifications

  • Part No: 5410483
  • Thread Size: No. 10 UNC
  • Thread Standard: UNC – Unified National Coarse
  • Tap Type: Bottoming (short chamfer)
  • Flute Style: Straight flute
  • Cutting Direction: Right-hand
  • Material Finish: High-Speed Steel (HSS), Bright
  • Standard: ANSI B1.1 / ISO Equivalent

Why Choose the SOMTA 5410483 UNC Bottom Tap?

  • Precision in Blind Holes – Perfect for thread forming in limited-depth cavities.
  • Durable Construction – Maintains edge quality through demanding use.
  • Ideal for Fine Mechanical Work – Commonly used in assembly, electronics, and fabrication.

The SOMTA 5410483 is trusted for small-scale coarse thread cutting where accuracy and blind-hole compatibility are key.
