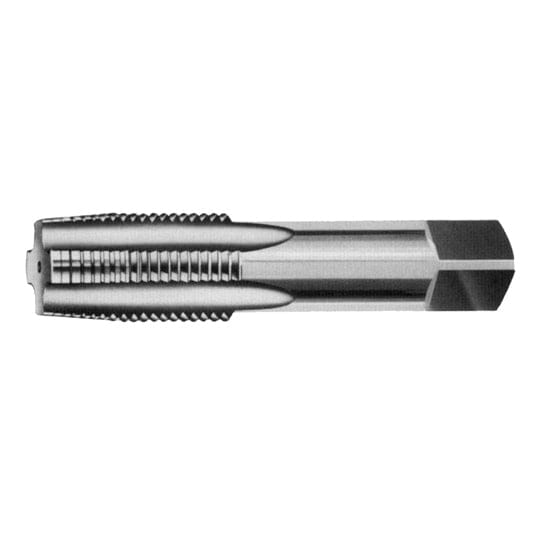

Somta Series 907 – 1/2" BSPF Carbon Steel Bottom Tap

The Somta Series 907 Bottom Tap is a precision-manufactured 1/2" BSPF (British Standard Pipe Parallel) hand tap designed for cutting or cleaning internal parallel pipe threads close to the bottom...
$50.00
$0.00
$50.00
(-0%)
Vendor: SOMTA
SKU: 9071273
Availability: In Stock
Subtotal: $50.00
SOMTA TAPS Somta Series 907 – 1/2" BSPF Carbon Steel Bottom Tap

Somta Series 907 – 1/2" BSPF Carbon Steel Bottom Tap

$0.00 $50.00

Somta Series 907 – 1/2" BSPF Carbon Steel Bottom Tap

$0.00 $50.00

The Somta Series 907 Bottom Tap is a precision-manufactured 1/2" BSPF (British Standard Pipe Parallel) hand tap designed for cutting or cleaning internal parallel pipe threads close to the bottom of blind holes. Manufactured from premium Carbon Steel (Zone 5) to BS 949:1951 standards, this bottoming tap is intended for thread finishing after the taper and second taps have been used, producing full-depth threads as close as possible to the bottom of the hole.

Featuring a 55° Whitworth thread form, 14 TPI, straight flutes, and a right-hand cutting action, the tap offers excellent alignment and chip control when hand tapping mild steel, brass, aluminium, cast iron, and other general engineering materials. It is ideal for maintenance workshops, plumbing applications, repair work, and general engineering where accurate BSP parallel threads are required.

Key Features & Benefits

  • Somta Series 907 Carbon Steel Bottom Tap
  • Part Number: 9071273
  • 1/2" BSPF (British Standard Pipe Parallel)
  • Bottoming tap for finishing blind-hole threads
  • Manufactured from premium Carbon Steel (Zone 5)
  • BS 949:1951 specification
  • 55° Whitworth thread profile
  • 14 TPI thread pitch
  • Straight flute design for hand tapping
  • Right-hand cutting direction
  • Suitable for thread cleaning and finishing operations
  • Recommended for use after taper and second taps

Technical Specifications

  • Brand: Somta
  • Series: 907
  • Part Number: 9071273
  • Thread Size: 1/2" BSPF
  • Nominal Diameter: 20.955mm
  • Thread Form: BSP Parallel (BSPF)
  • Thread Angle: 55° Whitworth
  • TPI: 14
  • Tap Type: Bottom Tap

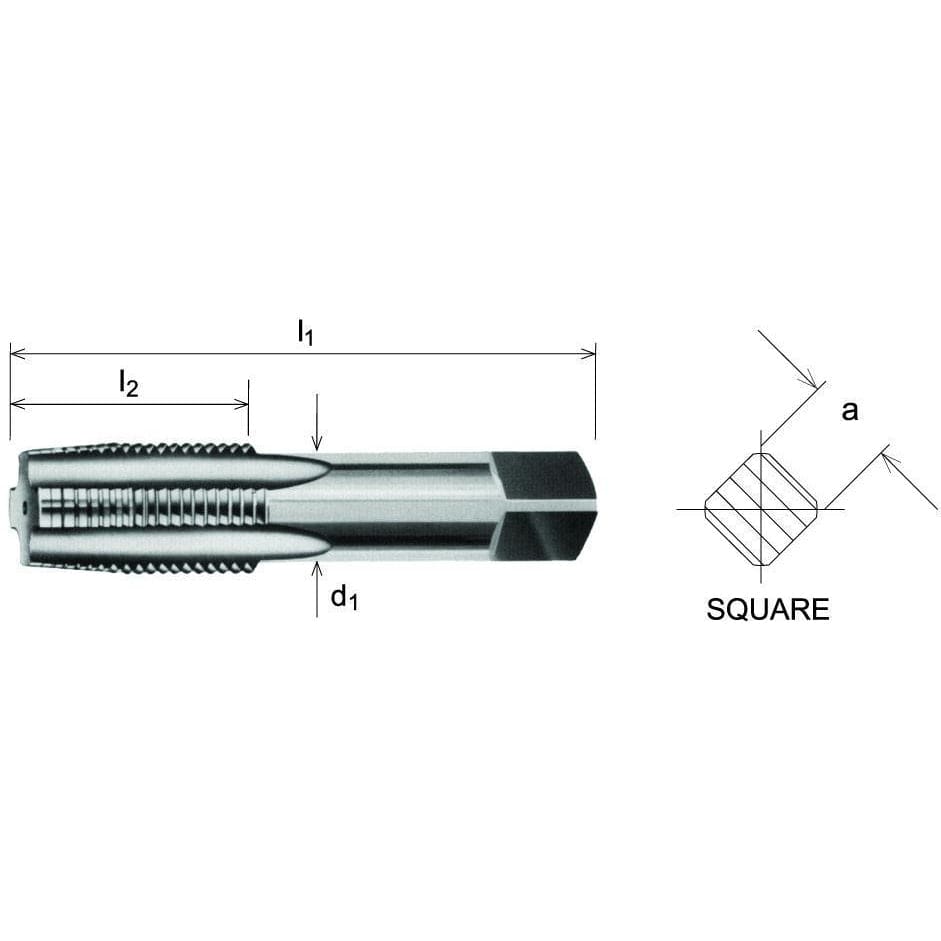

  • Overall Length (l₁): 79.4mm
  • Thread Length (l₂): 34.9mm
  • Shank Diameter (d₁): 17.4mm
  • Square Size (a): 13.1mm
  • Material: Carbon Steel (Zone 5)
  • Flute Style: Straight Flute
  • Cutting Direction: Right Hand
  • Standard: BS 949:1951
  • Application: Finishing BSP parallel threads in blind holes

The Somta 9071273 1/2" BSPF Bottom Tap is the final tap in the three-piece hand tap sequence, producing full-depth, accurate BSP parallel threads at the bottom of blind holes for professional maintenance, plumbing, and engineering applications.
