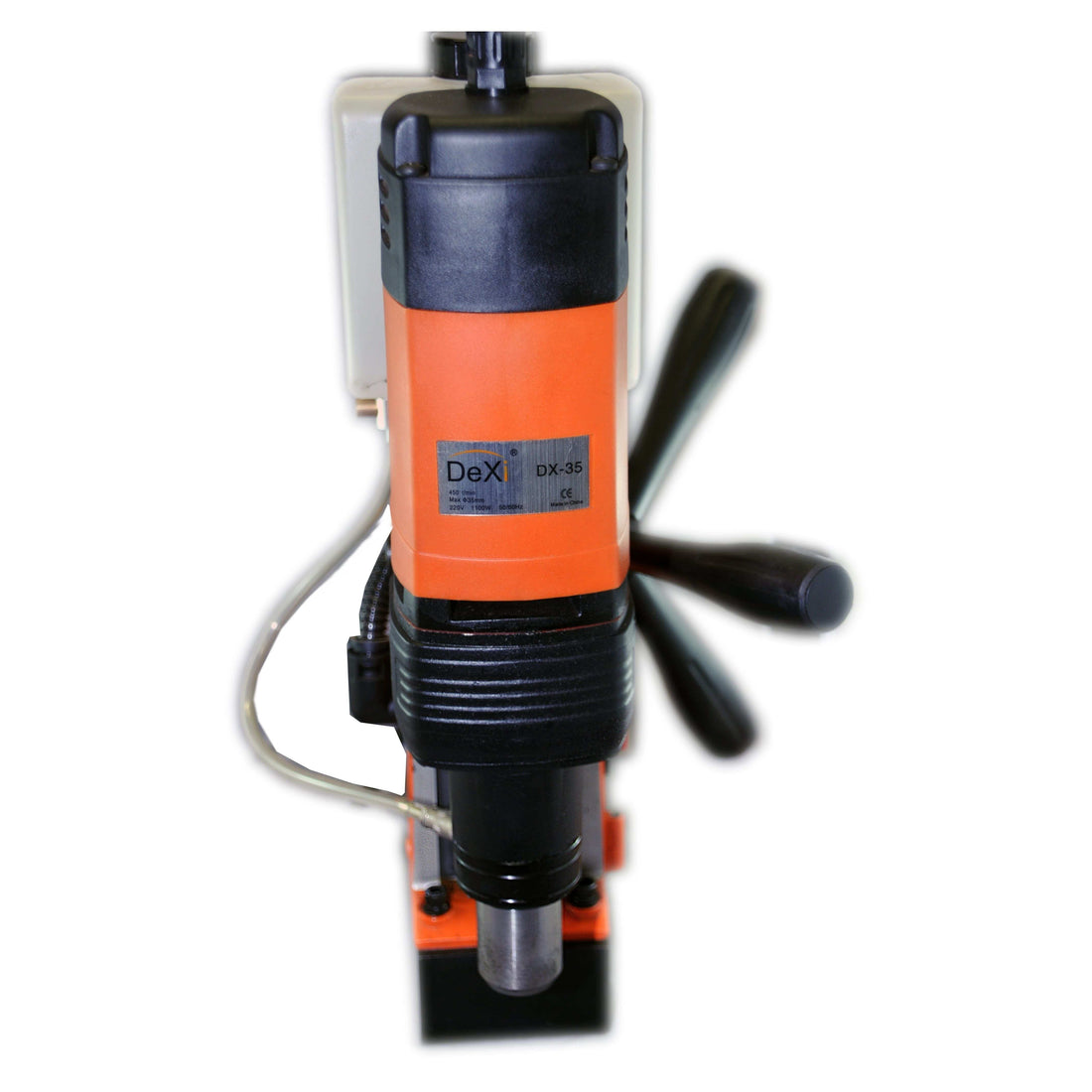

Magnetic drills, often called mag drills, are specialised portable drilling machines designed for drilling precise holes in metal surfaces. Unlike traditional drill presses that require a fixed workshop setup, magnetic drills combine mobility, strength, and precision, allowing operators to perform drilling operations directly on large steel structures or workpieces.

These machines are widely used in industries such as structural steel fabrication, shipbuilding, heavy equipment maintenance, construction, and industrial repair. Their powerful electromagnetic base anchors the drill securely to ferrous materials, enabling accurate and stable drilling even in vertical, horizontal, or overhead positions.

Magnetic drills are an essential tool for professionals who require portable yet powerful drilling capabilities without sacrificing accuracy or productivity.

How Magnetic Drills Work

The defining feature of a magnetic drill is its electromagnetic base, which firmly attaches the machine to ferrous metal surfaces.

When the magnet is activated, an electrical current generates a strong magnetic field that locks the drill in place. This creates a stable drilling platform similar to a drill press but without the need for a stationary machine.

The basic operating process typically follows these steps:

1. The drill is positioned on a clean ferrous metal surface.

2. The electromagnetic base is activated to secure the machine.

3. The cutting tool—usually an annular cutter or twist drill—is aligned with the drilling location.

4. The operator lowers the spindle using a feed handle, similar to a drill press.

5. The hole is drilled with controlled pressure and consistent feed.

Because the drill is magnetically secured, it can maintain accurate positioning and consistent feed pressure, even when drilling on vertical beams or overhead structures.

Many modern magnetic drills also include additional features such as:

• Variable speed motors

• Automatic feed systems

• Integrated coolant systems

• Overload protection

• Magnet safety sensors

These improvements enhance both safety and drilling performance.

Key Components of a Magnetic Drill

Understanding the major components of a magnetic drill helps operators maximise efficiency and maintain proper performance.

Electromagnetic Base

The base is the heart of the machine. It provides the magnetic holding force that keeps the drill stable during operation. Holding power can range from 1,000 kg to over 3,000 kg, depending on the drill model.

A strong magnet ensures:

• Reduced vibration

• Accurate hole positioning

• Improved operator safety

Motor and Gearbox

Magnetic drills use powerful electric motors that drive the spindle and cutting tool. Many machines feature two-speed or variable-speed gearboxes, allowing operators to match the speed to the cutting tool and material.

Lower speeds are typically used for larger cutters, while higher speeds are used for smaller diameter drilling.

Spindle and Tool Holder

The spindle holds the cutting tool and transfers power from the motor. Common tool holding systems include:

• Weldon shank holders

• Morse taper spindles

• Quick-change arbor systems

These allow operators to quickly switch between annular cutters, twist drills, or tapping attachments.

Feed Handles

Similar to a drill press, magnetic drills use feed handles to control the downward movement of the cutting tool. Controlled feed pressure ensures smooth cutting and prevents tool damage.

Coolant System

Many magnetic drills include integrated coolant systems to lubricate and cool the cutting tool during drilling. Proper cooling helps:

• Extend tool life

• Improve surface finish

• Prevent overheating

Applications of Magnetic Drills

Magnetic drills are widely used across various industries because they provide portable precision drilling where traditional machines cannot be used.

Structural Steel Fabrication

One of the most common uses for magnetic drills is drilling holes in steel beams, columns, and plates used in building construction. Instead of transporting large structural components to a workshop, operators can drill directly on-site.

Bridge Construction and Maintenance

Magnetic drills are frequently used for:

• Bridge repairs

• Structural reinforcements

• Steel plate drilling

Their portability allows technicians to work on large infrastructure without dismantling components.

Shipbuilding and Marine Engineering

Shipyards rely heavily on magnetic drills when drilling holes in:

• Hull plates

• Bulkheads

• Structural frames

The ability to drill in vertical or overhead positions is especially valuable in marine environments.

Heavy Equipment Maintenance

Mag drills are ideal for repair and maintenance work, where components cannot easily be removed and placed on stationary machines.

Typical examples include:

• Heavy machinery frames

• Mining equipment

• Industrial plant structures

Remote or On-Site Fabrication

In remote construction projects such as pipelines, wind farms, and large industrial installations, magnetic drills allow workers to perform precise drilling without needing large workshop equipment.

Benefits of Magnetic Drills

Magnetic drills offer several advantages over traditional drilling methods, especially when working with large or fixed metal structures.

Portability

The primary benefit of magnetic drills is mobility. These machines are designed to be easily transported to the job site, allowing operators to drill directly on installed structures.

This eliminates the need for transporting large steel components to a workshop.

Precision and Stability

Despite being portable, magnetic drills offer excellent stability thanks to their powerful magnetic bases. This allows operators to achieve accurate hole positioning and consistent drilling depth.

The stability also reduces vibration, improving both tool life and hole quality.

Increased Productivity

Magnetic drills significantly reduce setup time compared to traditional drilling machines.

Instead of clamping large workpieces onto a drill press, operators simply position the drill on the metal surface and activate the magnet. This speeds up drilling operations, especially for repetitive hole patterns.

Versatility

Magnetic drills are compatible with multiple cutting tools, including:

• Annular cutters

• Twist drills

• Countersinks

• Tapping attachments

• Reamers

This versatility allows a single machine to perform multiple machining operations.

Ability to Drill in Any Position

Traditional drill presses are limited to horizontal work surfaces. Magnetic drills, however, can operate in horizontal, vertical, or overhead positions, making them ideal for structural and fabrication work.

Annular Cutters and Magnetic Drills

Magnetic drills are commonly paired with annular cutters, which are specialised tools designed to remove material only from the perimeter of the hole.

Unlike twist drills that cut through the entire material volume, annular cutters create a hole by cutting a ring around the outside, leaving a solid core.

This provides several advantages:

• Faster cutting speeds

• Lower power consumption

• Cleaner holes with minimal burrs

• Reduced tool wear

Annular cutters are particularly effective when drilling large-diameter holes in structural steel, making them the preferred choice for many mag drill applications.

Safety Considerations

While magnetic drills are powerful and efficient tools, proper safety procedures must always be followed.

Key safety practices include:

• Ensuring the metal surface is clean and flat before activating the magnet

• Using safety straps when drilling in vertical or overhead positions

• Wearing appropriate personal protective equipment (PPE)

• Maintaining proper coolant flow during drilling

• Avoiding use on thin materials that cannot support the magnet’s holding force

Modern magnetic drills often include magnet safety sensors that prevent the motor from operating if the magnetic base is not securely engaged.

Choosing the Right Magnetic Drill

Selecting the correct magnetic drill depends on several factors, including:

• Maximum hole diameter required

• Material thickness

• Motor power

• Magnetic holding force

• Compatibility with annular cutters


For heavy-duty structural drilling, a high-power machine with a strong magnetic base is essential. For maintenance and repair work, a compact and lightweight drill may provide better portability.

Magnetic drills offer the perfect combination of portability, power, and precision, making them indispensable tools in modern metalworking and fabrication environments.

Their ability to attach securely to steel surfaces allows operators to drill accurate holes directly on large structures, eliminating the need for bulky stationary machines. When paired with annular cutters, magnetic drills provide fast, efficient hole-making with minimal setup time.

From construction sites and shipyards to industrial maintenance and fabrication workshops, magnetic drills continue to play a crucial role in improving productivity and ensuring precise drilling performance.
