In mechanical assembly and engineering applications, it’s often the smallest components that play the biggest role. While major parts like bolts, shafts, and structural elements tend to get the most attention, hardware such as washers, rivet nuts, and pins are essential for ensuring stability, alignment, and long-term reliability. These seemingly minor components contribute significantly to load distribution, vibration resistance, and secure fastening across a wide range of industries including manufacturing, construction, automotive, and maintenance.

Understanding how and when to use these components can dramatically improve assembly performance, reduce wear and tear, and prevent costly failures.

The Role of Small Components in Mechanical Systems

Small hardware components serve critical support functions in assemblies. They enhance the performance of primary fasteners, improve safety, and simplify installation and maintenance processes. Without them, even the strongest bolts or most advanced machinery can fail prematurely.

Key benefits of using the correct small components include:

• Even load distribution across surfaces

• Prevention of loosening due to vibration

• Improved alignment and positioning

• Reduced material wear and surface damage

• Faster assembly and disassembly

Selecting the right type, material, and size is essential to achieving these outcomes.

Washers: Load Distribution and Surface Protection

Washers are one of the most commonly used yet underestimated components in fastening systems. Positioned between a fastener (such as a bolt or nut) and the surface being fastened, washers serve multiple purposes that directly impact performance and durability.

Flat Washers

Flat washers are designed to distribute the load of a fastener over a wider surface area. This helps prevent damage to softer materials and reduces the risk of the fastener pulling through the surface.

Key advantages:

• Protects surfaces from damage during tightening

• Prevents embedding into softer materials like aluminium or plastic

• Improves clamping force distribution

• Reduces stress concentration

Flat washers are widely used in construction, general engineering, and assembly work where consistent load distribution is required.

Spring Washers

Spring washers, also known as lock washers, are designed to prevent fasteners from loosening due to vibration or dynamic loads. Their split or curved design creates tension that helps maintain pressure on the fastener.

Common uses:

• Machinery subject to vibration

• Automotive assemblies

• Equipment exposed to movement or shock loads

Spring washers are particularly valuable in environments where maintaining bolt tension is critical for safety and reliability.

Specialty Washers

Other types include:

• Fender washers for large surface coverage

• Toothed washers for improved grip

• Sealing washers for fluid-tight applications

Choosing the correct washer type ensures optimal performance for specific applications.

Rivet Nuts (Nut Inserts): Strong Threads in Thin Materials

Rivet nuts, also known as nutserts or threaded inserts, provide a highly effective solution for creating strong, load-bearing threads in thin or soft materials where traditional tapping is not feasible.

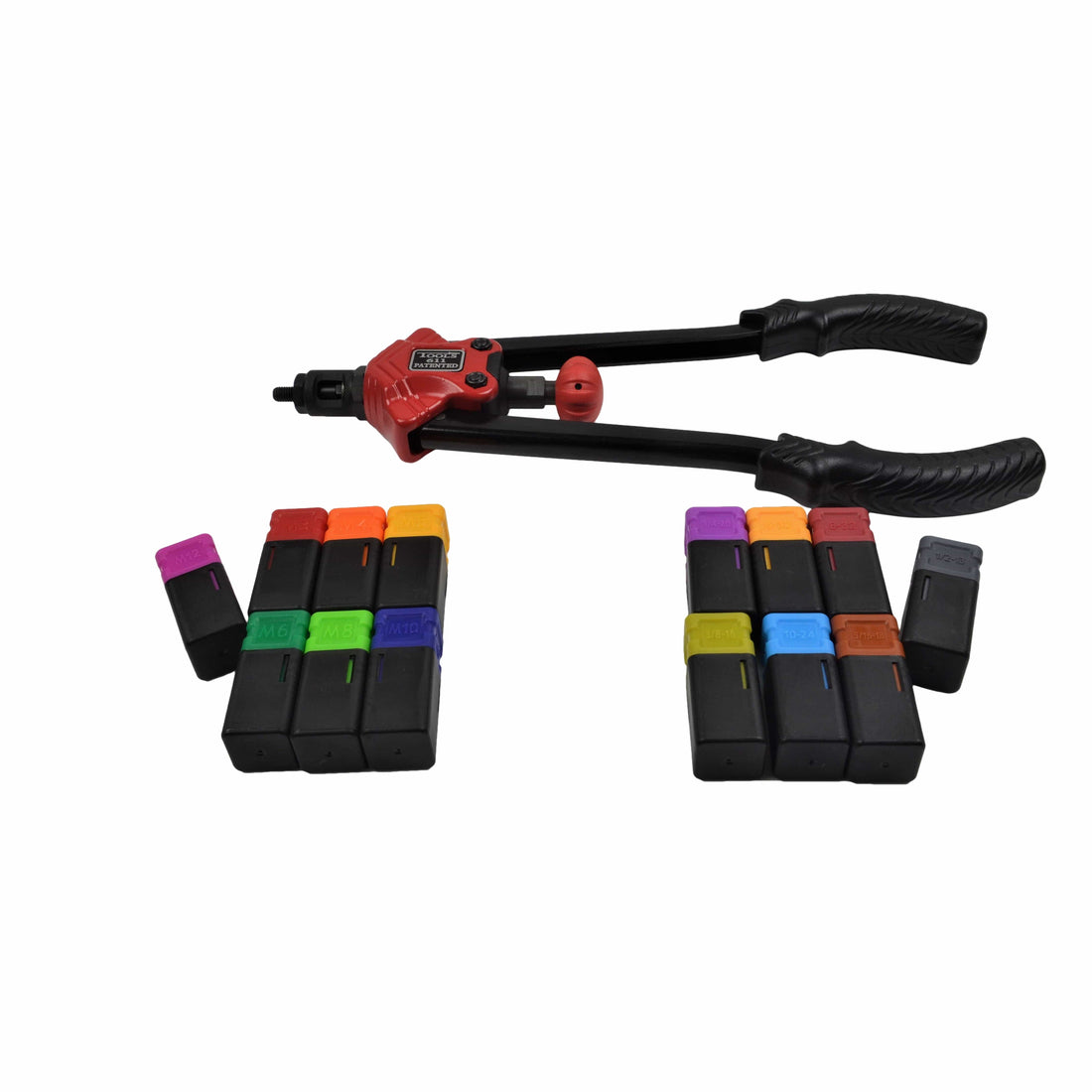

They are installed into pre-drilled holes and deformed using a specialized tool, creating a secure and permanent threaded insert.

Why Use Rivet Nuts?

In many applications, especially sheet metal or hollow sections, there is insufficient thickness to create reliable threads. Rivet nuts solve this problem by offering a durable internal thread without requiring access to both sides of the material.

Key benefits:

• Strong and reliable threads in thin materials

• One-sided installation (blind fastening)

• Reduces need for welding or tapping

• Suitable for automation and high-volume production

• Allows repeated assembly and disassembly

Applications

Rivet nuts are widely used across multiple industries:

• Automotive: body panels, chassis components

• Fabrication: sheet metal enclosures, frames

• Aerospace: lightweight structural assemblies

• Electronics: mounting panels and housings

Materials and Types

Rivet nuts are available in various materials including:

• Steel for strength

• Stainless steel for corrosion resistance

• Aluminium for lightweight applications

They also come in different body styles such as:

• Round body

• Hex body (anti-rotation)

• Closed-end (sealed applications)

Selecting the right combination of material and design ensures optimal performance and longevity.

Pins: Precision Alignment and Secure Retention

Pins are essential components used to align, secure, or locate parts within an assembly. They are commonly used in machinery, tooling, and structural assemblies where precise positioning and reliable retention are required.

Dowel Pins

Dowel pins are precision-engineered cylindrical pins used for accurate alignment of components. They are typically used in assemblies where repeatability and exact positioning are critical.

Key features:

• Tight tolerance fit for precision alignment

• Ensures consistent assembly positioning

• Common in tooling, jigs, and fixtures

Dowel pins are widely used in manufacturing environments where parts must be assembled with high accuracy.

Roll Pins (Spring Pins)

Roll pins are hollow, cylindrical pins with a split along their length. They compress during installation and exert outward pressure, holding themselves securely in place.

Advantages:

• Easy installation without additional hardware

• Absorbs shock and vibration

• Suitable for dynamic applications

They are commonly used in machinery, gear assemblies, and mechanical linkages.

Lynch Pins

Lynch pins are quick-release fasteners used to secure components such as shafts, axles, or attachments. They feature a ring that can be easily opened and closed, allowing rapid installation and removal.

Typical applications:

• Agricultural equipment

• Construction machinery

• Trailers and towing systems

Their convenience makes them ideal for applications requiring frequent assembly and disassembly.

Material Selection and Environmental Considerations

Choosing the correct material for washers, rivet nuts, and pins is just as important as selecting the right type. Environmental conditions, load requirements, and exposure to chemicals or moisture all influence performance.

Common Materials

• Carbon steel: strong and cost-effective for general use

• Stainless steel: corrosion-resistant for outdoor or marine environments

• Brass: suitable for electrical conductivity and corrosion resistance

• Alloy steel: high strength for heavy-duty applications

Environmental Factors to Consider

• Corrosion (humidity, chemicals, salt exposure)

• Temperature extremes

• Vibration and dynamic loads

• Load-bearing requirements

Proper material selection ensures long service life and reduces maintenance needs.

Best Practices for Selection and Use

To maximise performance and reliability, it’s important to follow best practices when selecting and installing small hardware components.

Selection Tips

• Match washer type to load and surface material

• Choose rivet nuts based on thickness and application load

• Select pins according to alignment accuracy and retention needs

• Ensure compatibility with mating components

Installation Guidelines

• Use proper tools for rivet nut installation

• Avoid over-tightening washers to prevent deformation

• Ensure correct hole size and tolerance for pins

• Inspect components regularly for wear or damage

Washers, rivet nuts, and pins may be small, but their impact on mechanical systems is substantial. They enhance the effectiveness of fasteners, improve alignment, and ensure the stability of assemblies across a wide range of applications.

By selecting the correct type, material, and size for each application, engineers and technicians can significantly improve performance, reduce failures, and extend the lifespan of equipment. In any assembly, paying attention to these small components is not just good practice—it’s essential for achieving reliable, long-term results.
